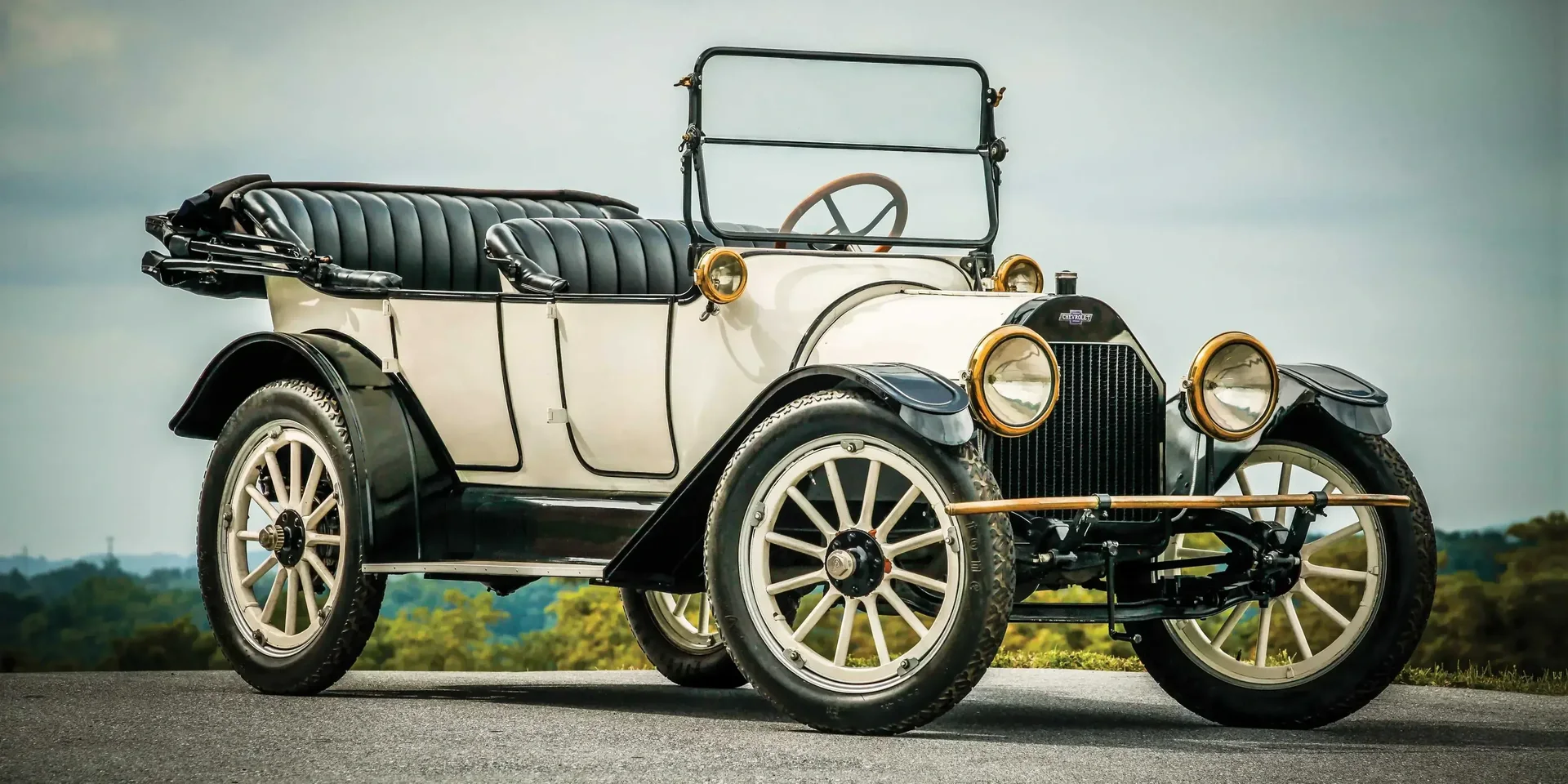

1914 Chevrolet Series H Model H-4 Baby Grand

United StatesGasolineRWDConvertible

Photos

Specifications

Vehicle Details

Year
1914
Make
Chevrolet
Model
Series H
Variant
Model H-4 Baby Grand
Body Style
Convertible
Generation
1st Generation
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 3-speed

Powertrain

Engine Name
2.8 Manual
Engine Configuration
Inline
Power (hp)
24 hp
Power (kW)
18 kW
Displacement
2,802 cc

Dimensions

Wheelbase
2,642 mm (104.0 in)
Curb weight
1,134 kg (2,500 lb)

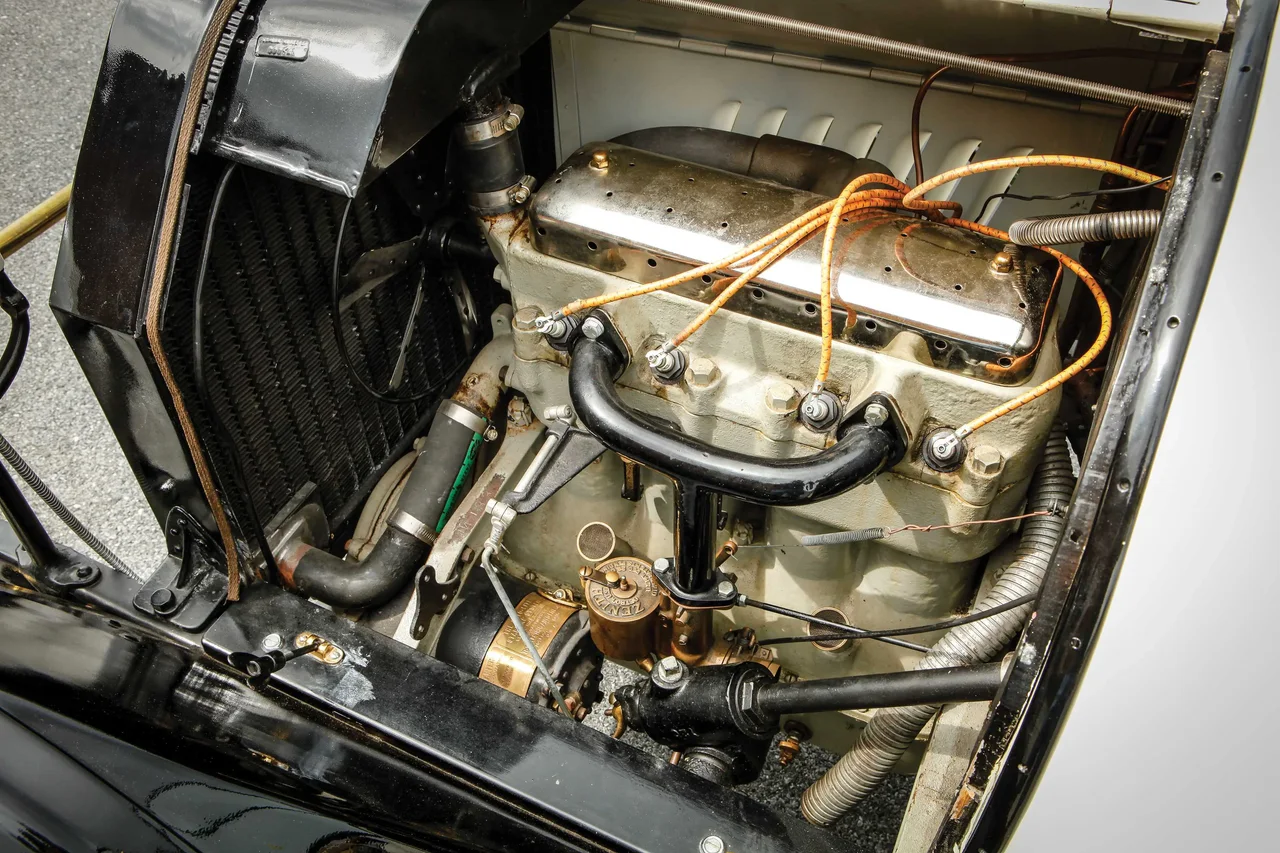

Engine & Performance

Engine

Engine Configuration
Bore
93.66 mm (3.7 in)
Stroke
101.6 mm (4.0 in)
Engine Configuration
Inline
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Single (Number of Barrels) Carburator

Transmission & Drivetrain

Transmission
Manual, 3-speed

Fuel

General
Tank Volume
61 litres

Brakes

Front Brakes
Drum Brakes
Rear Brakes
Drum Brakes
Front Brakes
Diameter
304.8 mm (12.0 in)
Rear Brakes
Diameter
304.8 mm (12.0 in)

Suspensions

Spring, Front
Leaf (Longitudinal Spring)
Spring, Rear
Leaf (Longitudinal Spring)
Live Axle
Yes
Suspension, Rear
Dependent
Yes

Dimensions & Weight

Exterior

Track, Front
1,422 mm (56.0 in)
Track, Rear
1,422 mm (56.0 in)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Chassis Construction
Body-on-Frame (Ladder Frame)
Doors
Front Doors
Conventional
Rear Doors
Conventional

Colour

Finish
Solid
Accent
Black
Cabriolet Top Colour
Black

Rims & Tires

Rim Type
Artillery Wheel

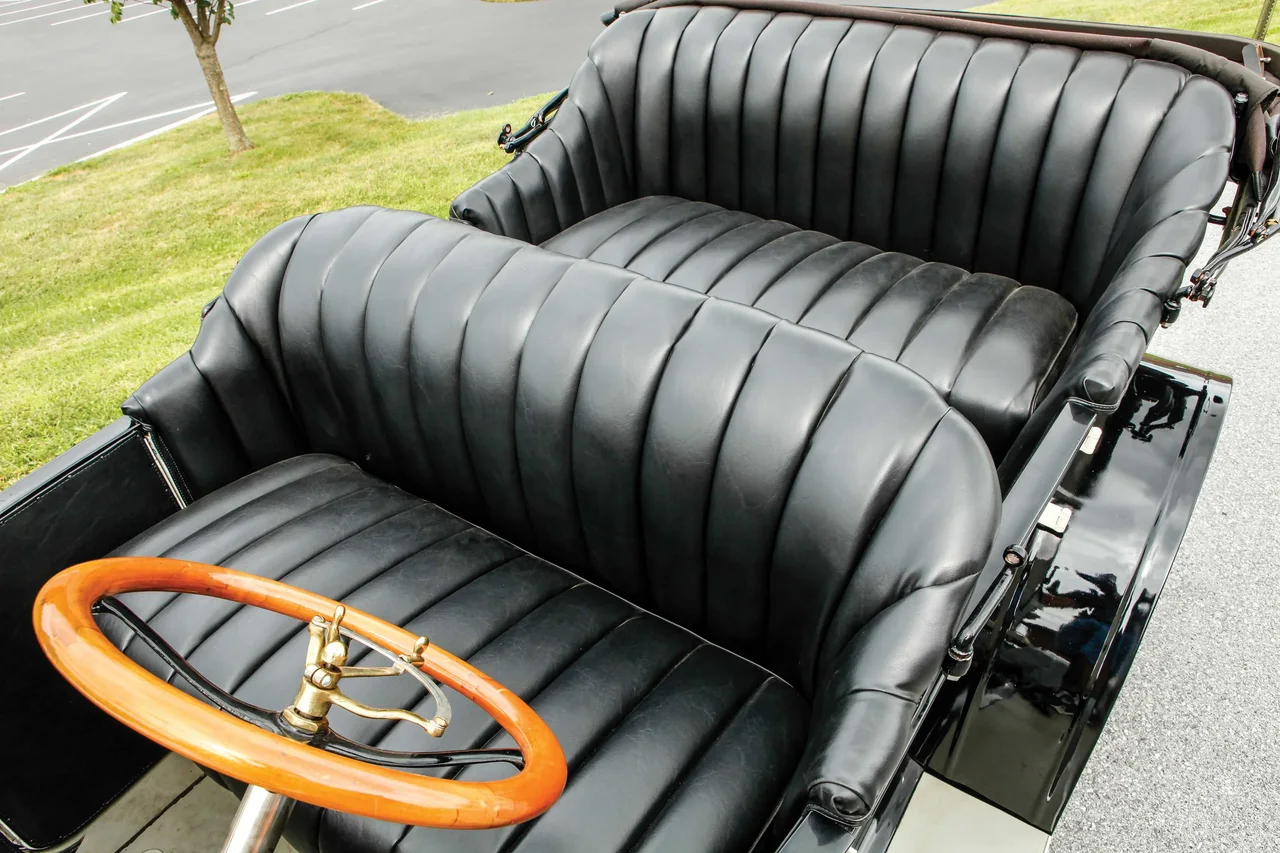

Interior

Equipment

Instrument Cluster
Speedometer
Analogue

Seats

Second Seat Row
Number of Seats
3

Other

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car
