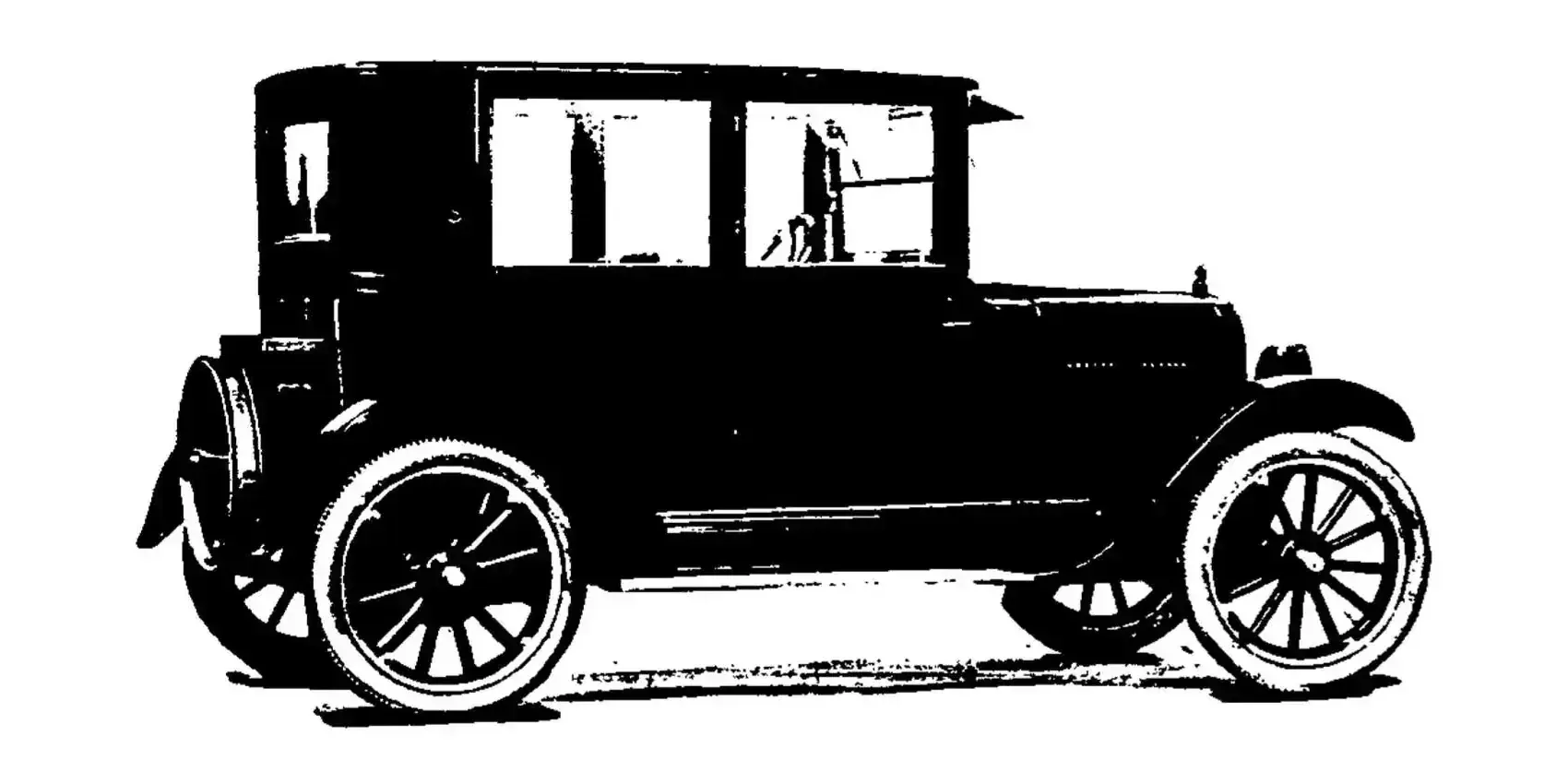

1923 Chevrolet Superior Sedanette

United StatesGasolineRWDSedan

Specifications

Vehicle Details

Year
1923
Make
Chevrolet
Model
Superior
Variant
Sedanette
Body Style
Sedan
Generation
B/D
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 3-speed

Powertrain

Engine Name
Sedanette 2.8 Manual
Engine Configuration
Inline
Power (hp)
26 hp
Power (kW)
19 kW
Displacement
2,802 cc

Dimensions

Length
3,531 mm (139.0 in)
Width
1,689 mm (66.5 in)
Wheelbase
2,616 mm (103.0 in)
Curb weight
932 kg (2,055 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
2,000 rpm
Engine Fluids
Engine Oil, Volume
3.79 litres
Engine Coolant, Volume
7.57 litres
Car Battery
Voltage
6 V
Engine Configuration
Bore
93.66 mm (3.7 in)
Stroke
101.6 mm (4.0 in)
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Single (Number of Barrels) Carburator

Transmission & Drivetrain

Transmission
Manual, 3-speed

Fuel

General
Tank Volume
39.7 litres

Brakes

Front Brakes
Drum Brakes
Rear Brakes
Drum Brakes
Front Brakes
Diameter
254 mm (10.0 in)
Rear Brakes
Diameter
254 mm (10.0 in)

Suspensions

Spring, Front
Leaf (Longitudinal Spring)
Spring, Rear
Leaf (Longitudinal Spring)
Live Axle
Yes
Live Axle
Yes
Suspension, Front
Dependent
Yes
Suspension, Rear
Dependent
Yes

Dimensions & Weight

Exterior

Width, with Mirrors
1,916 mm (75.4 in)
Track, Front
1,473 mm (58.0 in)
Track, Rear
1,473 mm (58.0 in)
Turning Circle
12.1 m
Ground Clearance
248 mm (9.8 in)

Weight

Weight Distribution, front
49.6 %
Weight Distribution, rear
50.4 %

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Chassis Construction
Body-on-Frame (Ladder Frame)

Rims & Tires

Rim Type
Artillery Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue

Seats

Second Seat Row
Number of Seats
2
Type of Seat
Adult
