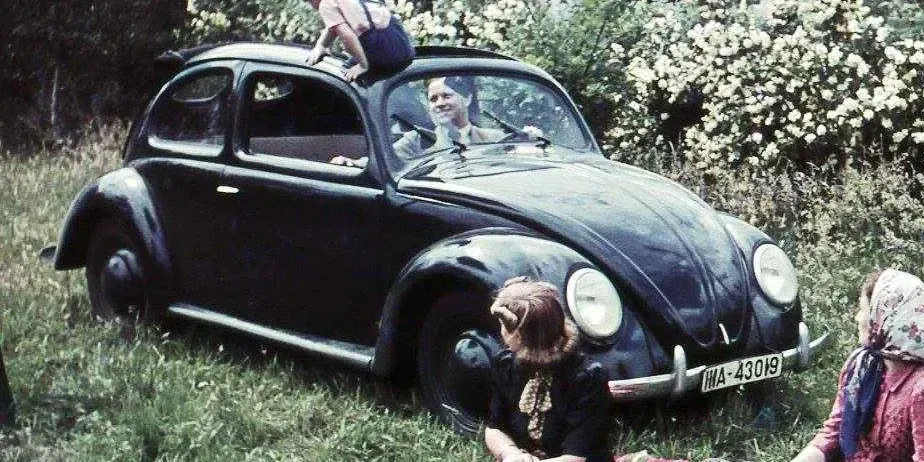

1937 Volkswagen KdF-Wagen

GermanyGasoline2WDCoupe

Specifications

Vehicle Details

Year
1937
Make
Volkswagen
Model
KdF-Wagen
Body Style
Coupe
Generation
Type 60
Seats
5
Doors
2
Fuel
Gasoline
Drivetrain
2WD
Transmission
Manual, 4-speed

Powertrain

Engine Name
1.0 H4 Manual
Power (hp)
24 hp
Power (kW)
17 kW
Top speed
100 km/h (62 mph)
Displacement
985 cc

Dimensions

Length
4,200 mm (165.4 in)
Width
1,550 mm (61.0 in)
Height
1,550 mm (61.0 in)
Wheelbase
2,400 mm (94.5 in)
Curb weight
750 kg (1,653 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,000 rpm
Rev. at Max Torque
1,900 rpm
Engine Configuration
Bore
70 mm (2.8 in)
Stroke
64 mm (2.5 in)
Compression Ratio
5.8 :1

Transmission & Drivetrain

Transmission
Manual, 4-speed

Fuel

General
Tank Volume
25 litres
Fuel Consumption NEDC
Combined
9 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,290 mm (50.8 in)
Track, Rear
1,250 mm (49.2 in)
Turning Circle
11.5 m

Weight

Gross Weight
1,100 kg (2,425 lb)
Cargo Capacity
350 kg (772 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé

Other

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car
