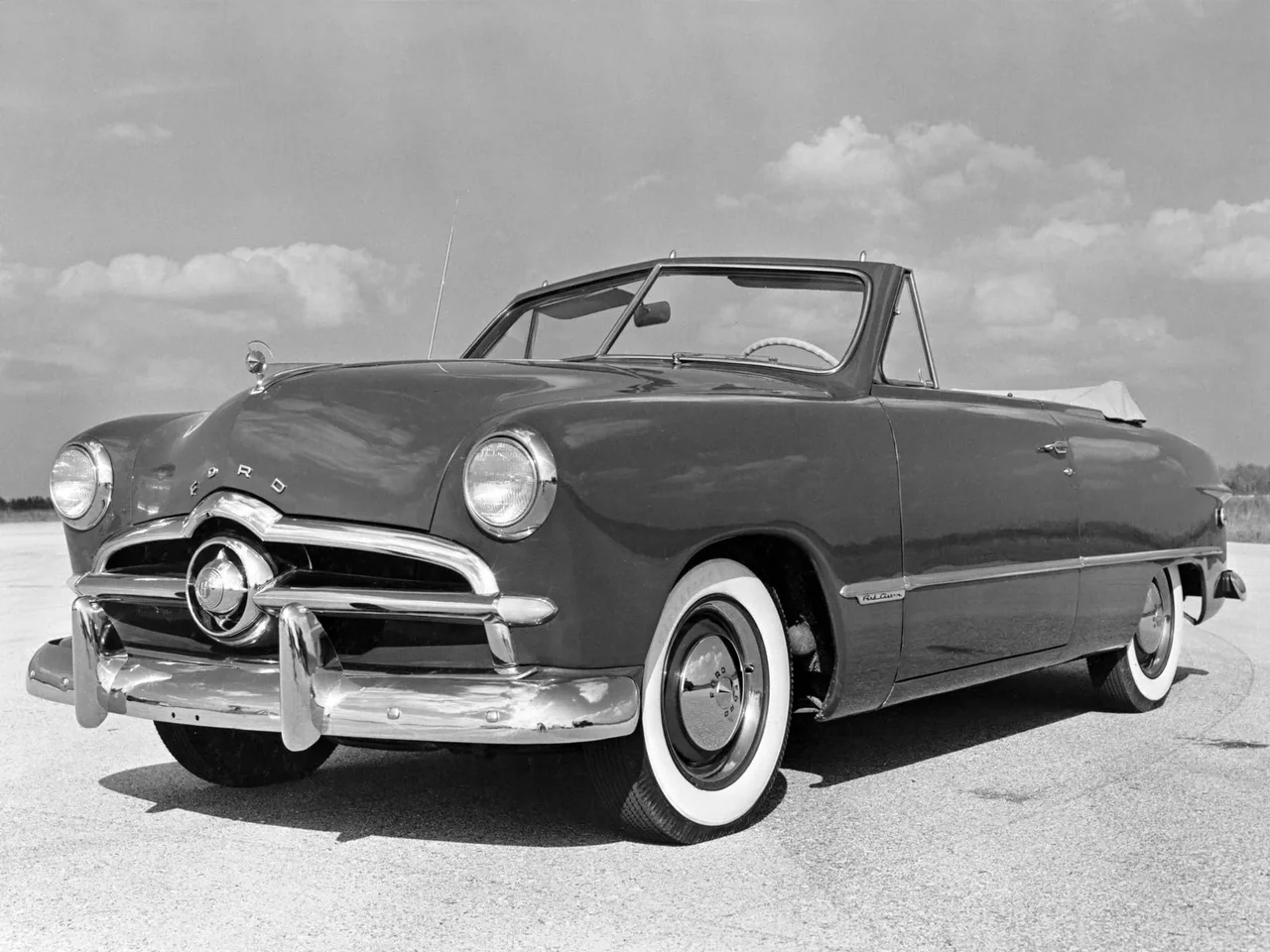

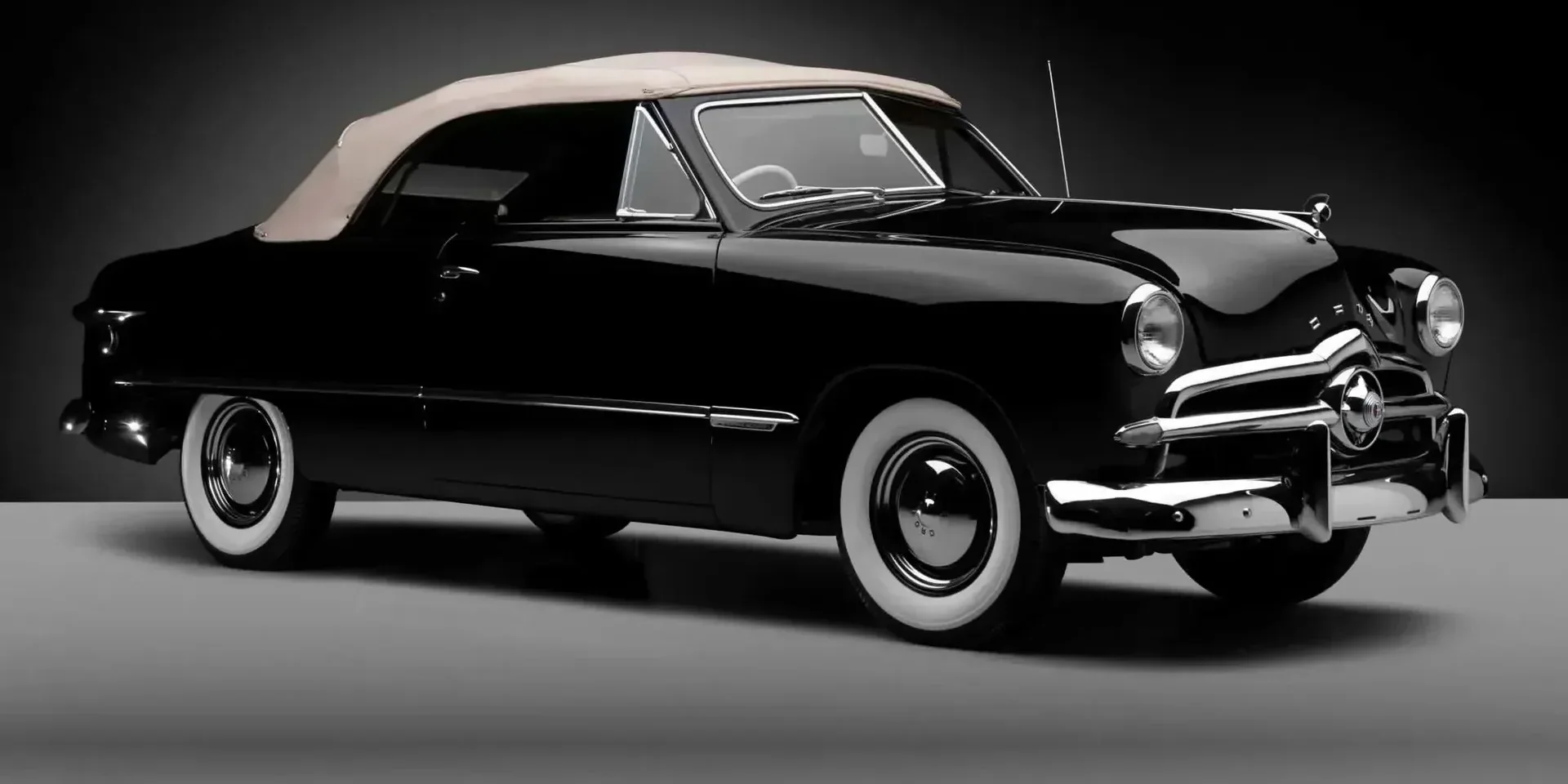

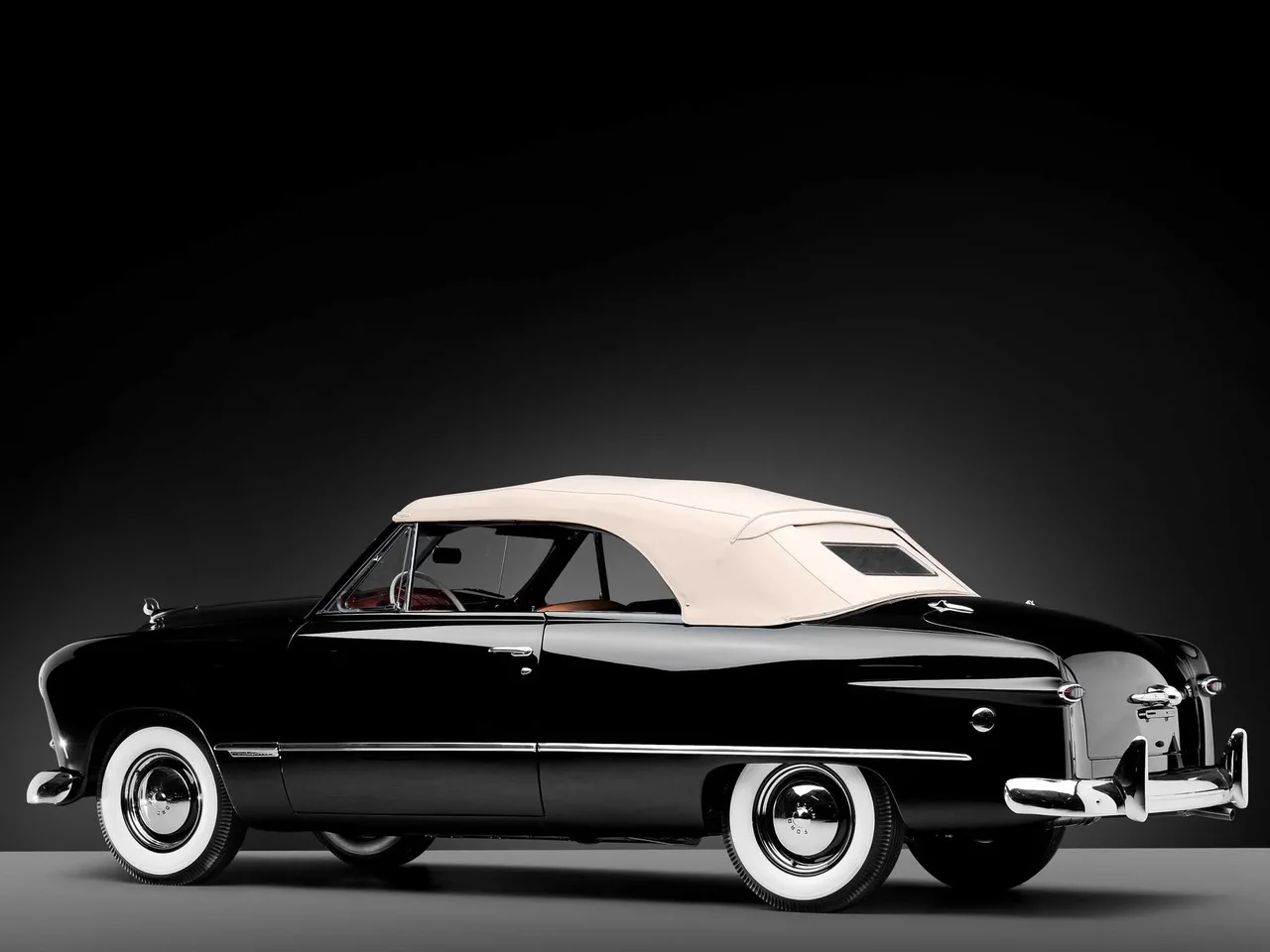

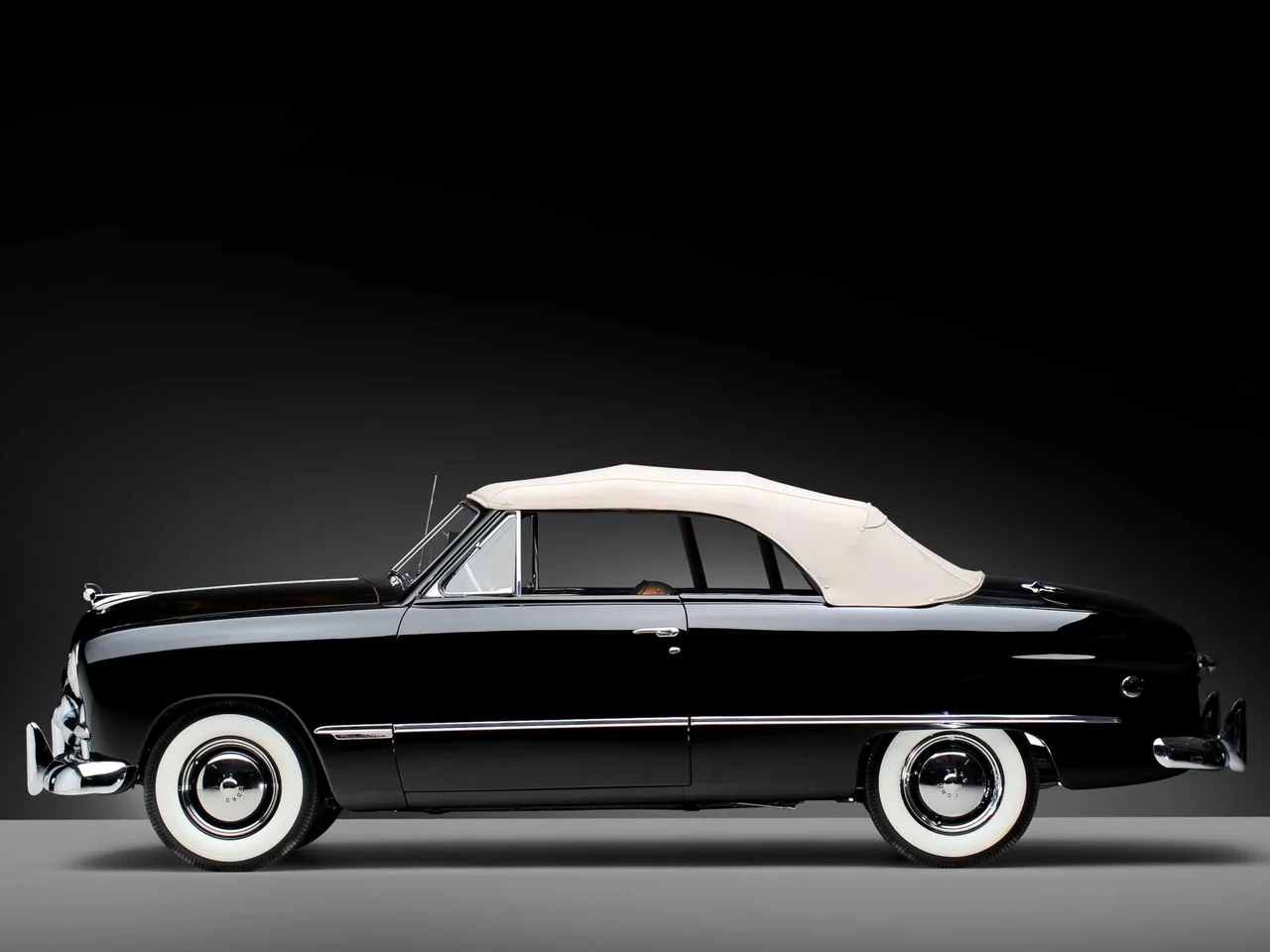

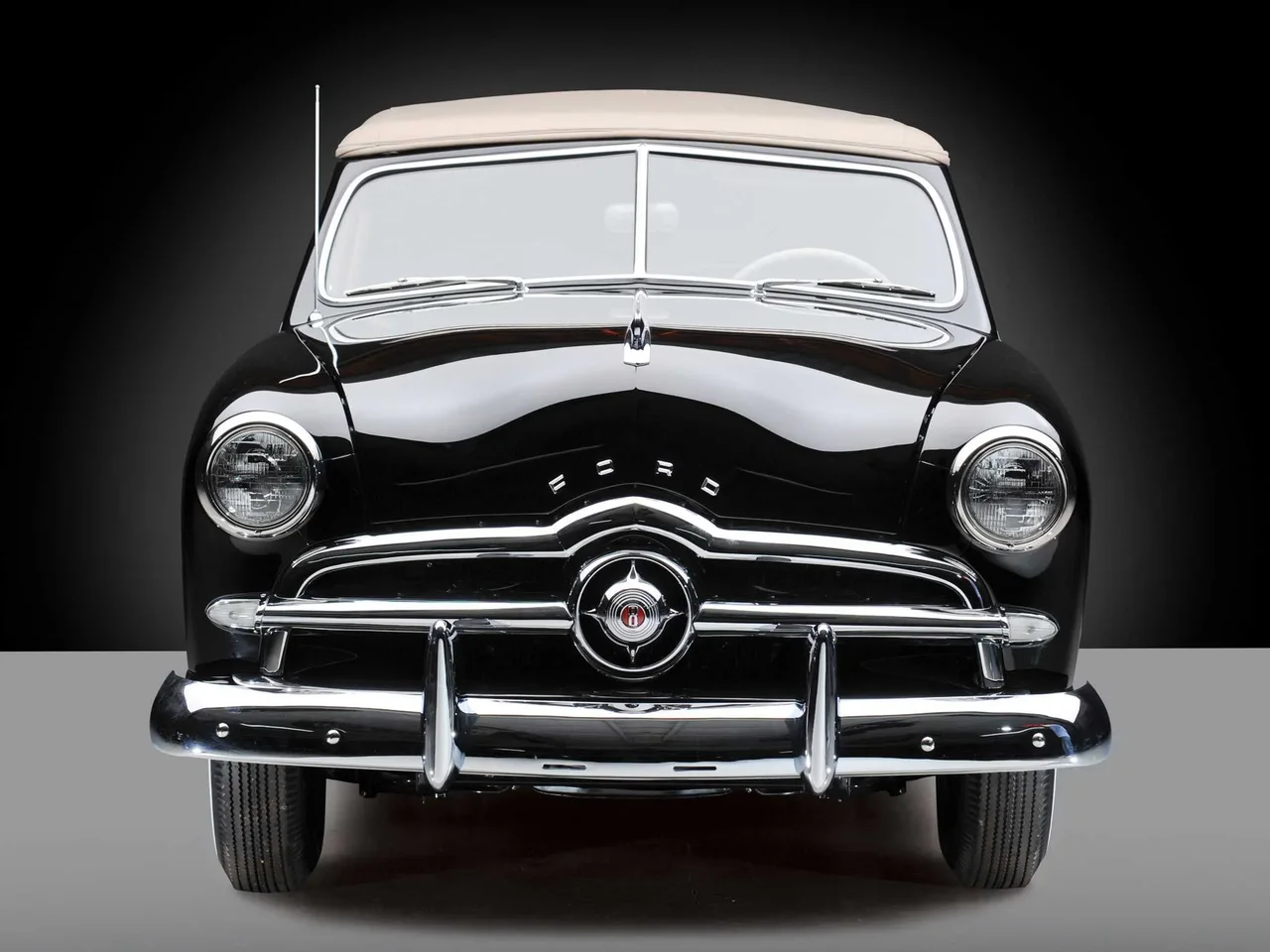

1949 Ford Custom

United StatesGasolineRWDConvertible

Photos

Specifications

Vehicle Details

Year
1949
Make
Ford
Model
Custom
Body Style
Convertible
Generation
98BA/98HA
Seats
6
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 3-speed

Powertrain

Engine Name
Coupé 3.9 V8 Manual
Engine Configuration
V
Power (hp)
101 hp
Power (kW)
75 kW
Torque
244 Nm (180 lb-ft)
Displacement
3,917 cc

Dimensions

Length
4,999 mm (196.8 in)
Width
1,821 mm (71.7 in)
Height
1,595 mm (62.8 in)
Wheelbase
2,896 mm (114.0 in)
Curb weight
1,480 kg (3,263 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,800 rpm
Rev. at Max Torque
2,000 rpm
Engine Configuration
Bore
81.83 mm (3.2 in)
Stroke
95.25 mm (3.8 in)
Compression Ratio
6.8 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Carburator

Transmission & Drivetrain

Transmission
Manual, 3-speed

Fuel

General
Tank Volume
64 litres

Brakes

Parking Brake
Manual
Front Brakes
Drum Brakes
Rear Brakes
Drum Brakes

Dimensions & Weight

Exterior

Track, Front
1,422 mm (56.0 in)
Track, Rear
1,422 mm (56.0 in)
Turning Circle
12.47 m
Ground Clearance
190 mm (7.5 in)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Pillars
A
Doors
Front Doors
Conventional

Lights

Main Beam
Halogen
Rear Lights
Halogen

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
100,000 km/miles
Connectivity
Radio
Optional
Other Equipment
Clock
Analogue

Steering Wheel

Material
Plastic

Trunk

Rear Trunk
Yes

Seats

Colour & Material
Upholstery
Leather
Seat Colour
Brown
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Front Seats
Number of Driver Seat Adjustments, Total
2
Second Seat Row
Number of Seats
3

Other

Car Classification

American Classification
Full-Size Car
British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car
