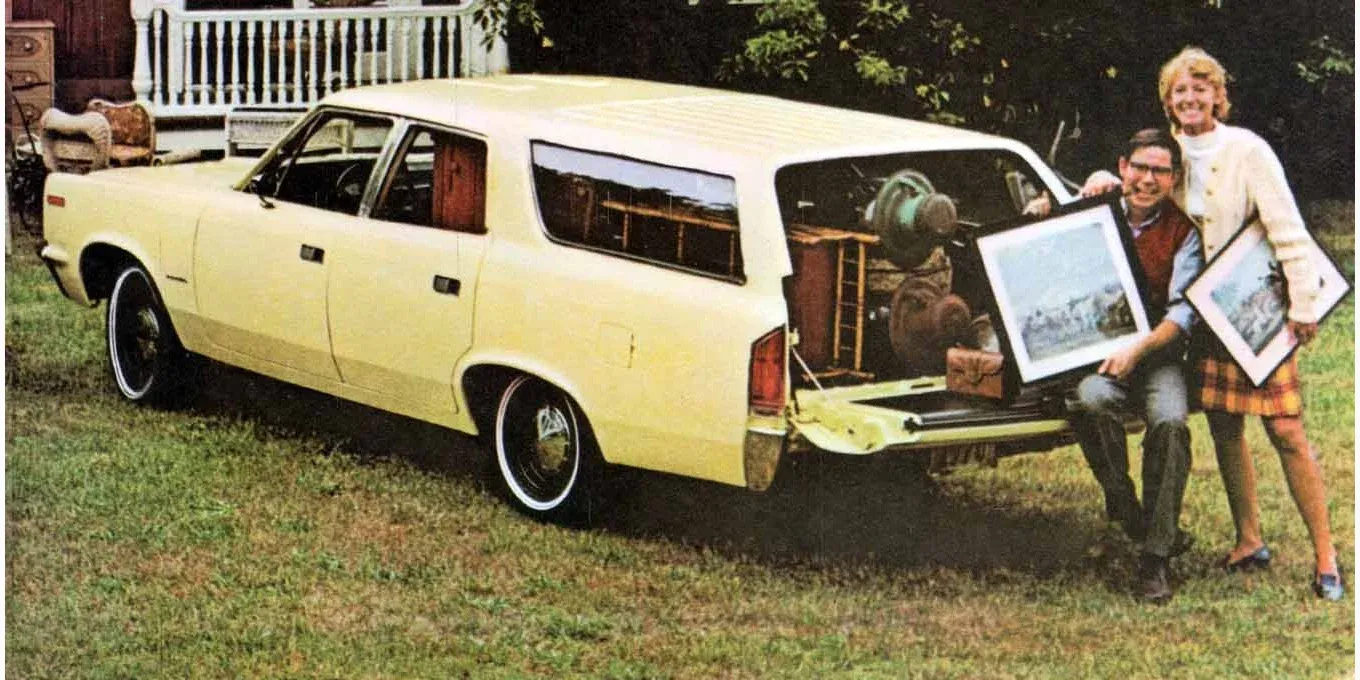

1970 AMC Rebel

United StatesGasolineRWDWagon

Specifications

Vehicle Details

Year
1970
Make
AMC
Model
Rebel
Body Style
Wagon
Generation
1st Generation 2nd Facelift
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic, 3-speed

Powertrain

Engine Name
Wagon 5.9 V8 Shift-Command
Engine Configuration
V
Power (hp)
248 hp
Power (kW)
183 kW
Torque
495 Nm (365 lb-ft)
Displacement
5,899 cc

Dimensions

Length
5,029 mm (198.0 in)
Width
1,961 mm (77.2 in)
Height
1,407 mm (55.4 in)
Wheelbase
2,896 mm (114.0 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,400 rpm
Rev. at Max Torque
2,400 rpm
Engine Fluids
Engine Oil, Volume
4.73 litres
Engine Configuration
Bore
103.63 mm (4.1 in)
Stroke
87.38 mm (3.4 in)
Compression Ratio
9 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Single (Number of Barrels) Carburator
Camshaft Type
Cam-in-block (Pushrod)
Engine Block
Cast Iron
Engine Heads
Cast Iron
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic, 3-speed

Dimensions & Weight

Exterior

Track, Front
1,524 mm (60.0 in)
Track, Rear
1,524 mm (60.0 in)

Interior

Head Room, Front
1,011 mm (39.8 in)
Head Room, Rear
965 mm (38.0 in)
Leg Room, Front
1,082 mm (42.6 in)
Leg Room, Rear
980 mm (38.6 in)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Mechanical
House Colour
Aluminium
Windows
Window Lifts, Front
Manual
Window Lifts, Rear
Manual
Other Equipment
Roof Railing
Yes
Antenna
Whip
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen

Colour

Finish
Solid

Rims & Tires

Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Rear-view Mirror
Adjustments
Mechanical
Interior Storage › Storage Compartments
Glove Compartment
Yes

Seats

Second Seat Row
Number of Seats
3
Type of Seat
Adult

Trunk

Rear Trunk
Yes

Other

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car
