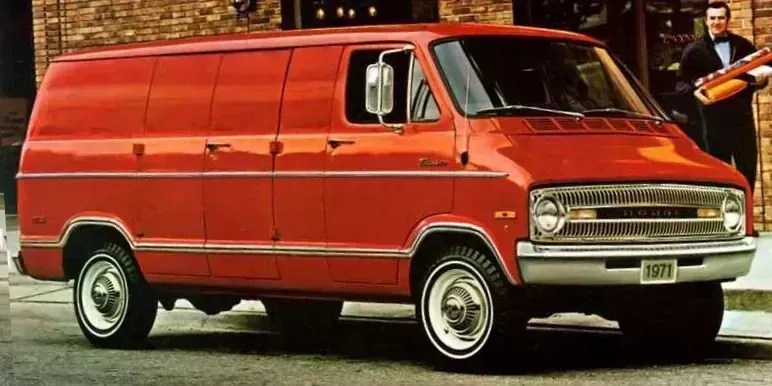

1971 Dodge B-Van B300 Tradesman

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 1971
Make: Dodge
Model: B-Van
Variant: B300 Tradesman

Race Tracks

Vehicles

Makes
Types
Years
Countries

Map

Makes
Race Tracks
Game Studios
TV Networks

TV Shows

Networks

Games

Studios
Franchises
Categories
Platforms

YouTube

People

Founders
Owners

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 1971
Make: Dodge
Model: B-Van
Variant: B300 Tradesman

Body Style

LCV

Generation

1st Generation

Seats

2

Doors

4

Fuel

Gasoline

Drivetrain

RWD

Transmission

Automatic
Manual, 3-speed

Powertrain

Engine Name: 3.7
Engine Configuration: Inline
Power (hp): 142 hp
Power (kW): 104 kW
Torque: 292 Nm (215 lb-ft)
Displacement: 3,687 cc

Dimensions

Width: 2,027 mm (79.8 in)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 3,900 rpm
Rev. at Max Torque: 1,600 rpm

Engine Fluids

Engine Oil, Volume: 3.8 litres

Engine Fluids › Engine Coolant

IAT

Similar lcvs

Suggested vehicles

View all

1971 Mitsubishi Delica

Yes

Car Battery

Voltage: 12 V
Battery Capacity: 48 - 70 Ah
Alternator Charge Current: 41 - 50 A
Alternator Voltage: 14 V

Engine Configuration

Bore: 86.36 mm (3.4 in)
Stroke: 104.8 mm (4.1 in)
Compression Ratio: 8.4 :1
Engine Configuration: Inline
Naturally Aspirated: Yes
Synchronization: Timing Chain
Engine Placement: Front
Engine Mount: Longitudinally
Type of Combustion Engine

Transmission & Drivetrain

Transmission: Automatic
Manual, 3-speed

Fuel

General › Fuel Cap Position

Rear: Left

Emission

Emission Control: Positive Crankcase Ventilation

Brakes

Parking Brake

Manual: Pedal

Front Brakes: Disc Brakes
Rear Brakes: Drum Brakes
Brakes Material: Cast Iron

Front Brakes

Diameter: 325.63 mm (12.8 in)
Width: 30.23 mm (1.2 in)

Suspensions

Spring, Front: Coil
Spring, Rear: Leaf (Longitudinal Spring)

Suspension, Front

Independent: Double Wishbone

Suspension, Rear

Dependent: Beam Axle (Dead Axle)

Dimensions & Weight

Exterior

Track, Front: 1,722 mm (67.8 in)
Track, Rear: 1,656 mm (65.2 in)

LCV Specific

General

Version: L1H1
L2H1
L3H1

Dimensions › Length

Exterior

Chassis & Body

Chassis

Chassis: LCV (Panel Van)
Pillars: A-D
A-D + Extra Pillar(s)
Chassis Construction: Unibody
Body Material: Steel
Protective Moldings: Optional

Doors

Interior

Equipment

Instrument Cluster

Speedometer: Analogue
Fuel Gauge: Analogue
Coolant Temperature: Analogue
Odometer Limit: 100,000 km/miles

Climate Control

Air Condition: Optional

Features

Comfort Features

Cruise Control: Optional

Accessories

Tool Kit and Jack: Yes
Fire Extinguisher: Optional
Warning Triangle: Optional
First Aid Kit: Optional

Safety & Security

Seat Belt

Type of Belt

Two-Point-Belt (Lap Belt): Front Seats

Brake Systems

Power Brakes: Yes

Other

Car Classification

American Classification: Cargo Van
British Classification: Van
Australian Classification: Van
European Segment: M-Segment
Car.info Classification: Cargo Van

Piston

Fuel System

Single (Number of Barrels) Carburator

Camshaft Type

OHC

Engine Block

Cast Iron

Engine Heads

Cast Iron

Engine Cooling

Liquid Cooling

Cooling

Ventilated

Rear Brakes

Diameter: 304.8 mm (12.0 in)

L1

4,470 mm (176.0 in)

L2

4,928 mm (194.0 in)

L3

5,385 mm (212.0 in)

Dimensions › Height

L1H1: 2,052 mm (80.8 in)
L1H2: 2,052 mm (80.8 in)
L1H3: 2,052 mm (80.8 in)

Dimensions › Wheel Base

L1: 2,769 mm (109.0 in)
L2: 3,226 mm (127.0 in)
L3: 3,226 mm (127.0 in)

Side Door › Side Door Height

H1: 1,199 mm (47.2 in)

Side Door › Side Door Width

L1: 1,250 mm (49.2 in)
L2: 1,250 mm (49.2 in)
L3: 1,250 mm (49.2 in)

Cargo Space › Cargo Volume

L1H1: 5,890 litres
L2H1: 7,051 litres
L3H1: 8,410 litres

Cargo Space › Depth

L1: 2,696 mm (106.1 in)
L2: 3,205 mm (126.2 in)
L3: 3,942 mm (155.2 in)

Cargo Space › Depth, Passenger Seat Collapsed

L1: 3,347 mm (131.8 in)
L2: 4,112 mm (161.9 in)
L3: 4,848 mm (190.9 in)

Cargo Space › Height

H1: 1,506 mm (59.3 in)

Cargo Space

Space Width: 1,979 mm (77.9 in)

Cargo Space › Space Width, Between Wheel Arches

L1: 1,416 mm (55.7 in)
L2: 1,416 mm (55.7 in)
L3: 1,416 mm (55.7 in)

Weight › Gross Weight

L1H1: 2,812 kg (6,199 lb)
L2H1: 2,812 kg (6,199 lb)
L3H1: 2,812 kg (6,199 lb)

Weight › Gross Train Weight

L1H1: 1,097 kg (2,418 lb)
L3H1: 984 kg (2,169 lb)

Front Doors

Conventional

Rear Doors

Sliding Right
Dual Swing-out

Equipment

Side Mirrors

Mirror Type: Conventional
Adjustments: Mechanical
Mirror Shape, Driver side: Flat
Mirror Shape, Passenger side: Flat

Windscreen Wipers

Number of Wiper Speeds: 2
Integrated Water Nozzles in Wipers: Yes

Windows

Lights

Main Beam: Halogen
Low Beam: Halogen
Rear Lights: Halogen

Rims & Tires

Fastening Type: Lug Nuts
Rim Material: Steel
Rim Colour: Grey
Rim Type: Disc Wheel
Spare Wheel: Optional

Spare Wheel

Full-size: Optional

Spare Wheel › Full-size

Number of Vents, Front

4 pcs

Controls

Buttons
Faders

Connectivity

Radio: Optional

Connectivity › Radio

AM: Optional
FM: Optional

Interior Storage › Storage Compartments

Glove Compartment: Yes

Interior Storage › Storage Compartments › Glove Compartment

Light: Optional
Lockable: Optional

Lights

Read Light: Optional
Guide Light: Optional

Lights › Read Light

Front: Optional

Lights › Guide Light

Entry Guard: Optional

Other Equipment

Driver Side: Optional
12V Outlet: Optional
Carpets: Optional
Ashtray: Front
Cigarette Lighter: Optional

Other Equipment › Driver Side

Passenger Side: Optional

Other Equipment › 12V Outlet

Front: Optional

Other Equipment › Carpets

Front: Optional

Steering Wheel

Power Steering: Optional
Number of Spokes: 2
Material: Plastic
Steering Mechanism: Recirculating Ball

Power Steering

Hydraulic: Optional

Design

Interior Decor Material: Plastic
Transmission Knob Material: Plastic
Pedals: Standard

Pedals

Brown: Optional

Seats

Front Seats

Armrest: Optional

B-Van

8.9

€67,000

MSRP · EUR

Body

Window Lifts, Front

Manual

Heat-Insulating Windows

Optional

Tinted Windows

Optional

Rear Windows, Pop-out

Optional

Windows › Heat-Insulating Windows

Front: Optional
First Row: Optional
Second Row: Optional
Rear: Optional

Windows › Tinted Windows

Second Row: Optional
Rear Window: Optional

Windows › Rear Windows, Pop-out

Manual: Optional

Other Equipment

Antenna: Optional
Air Intakes: 1-port
Mud Flaps: Optional

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Steel

Optional

LCV

Variant

B-Van B300 Tradesman LCV Generations1 of 4

Year

Powertrain

Horsepower

142 hp

Drivetrain

RWD

Fuel

Gasoline

Transmission

Automatic | Manual, 3-speed
