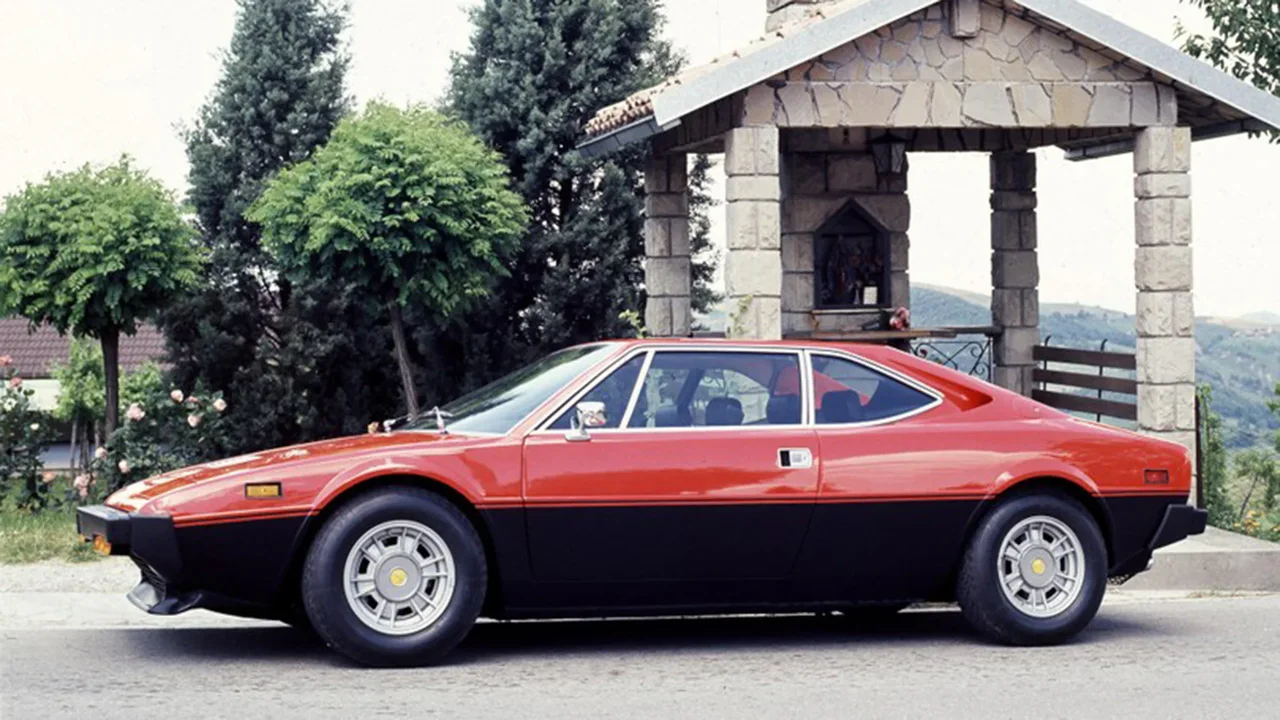

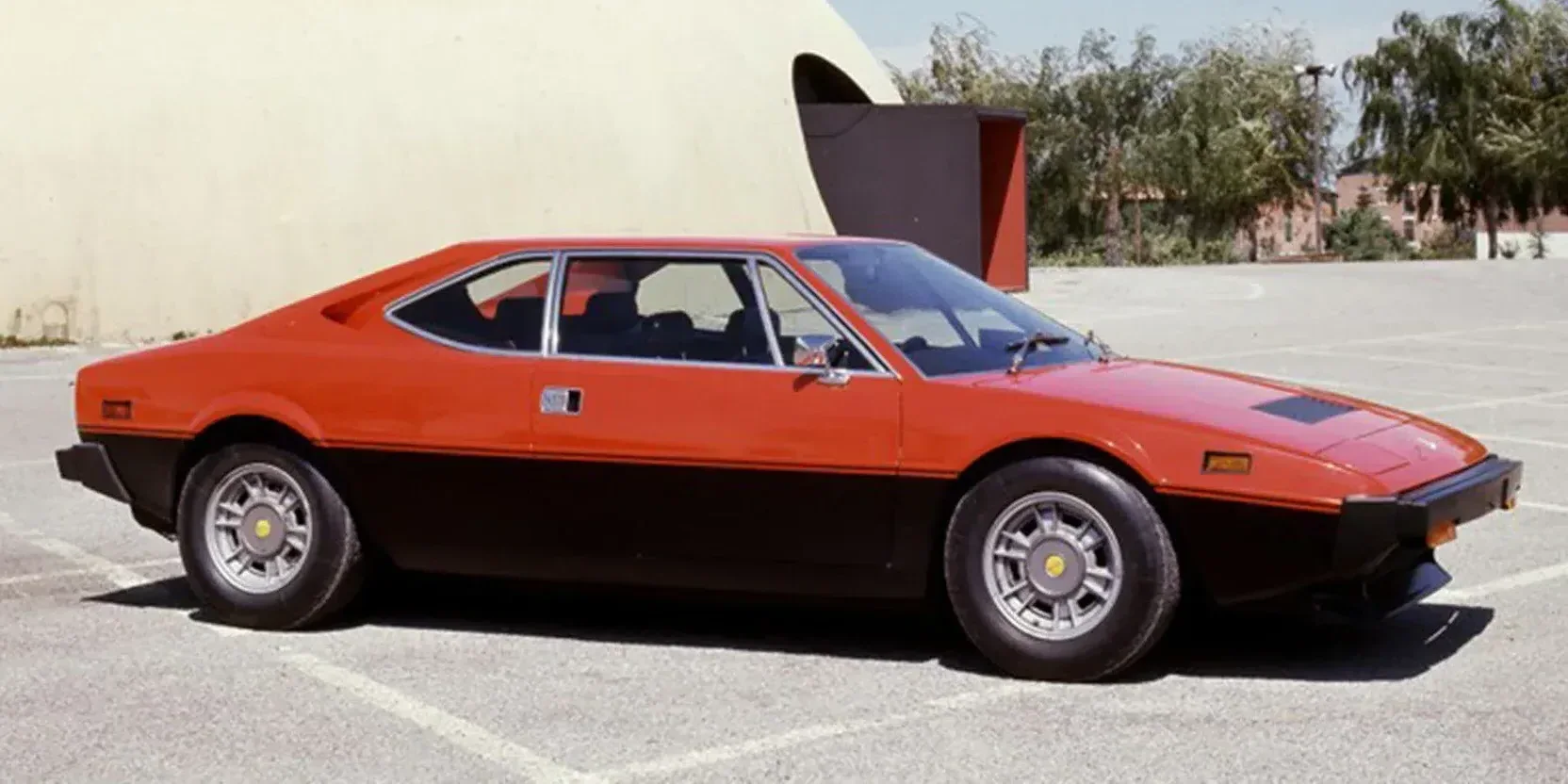

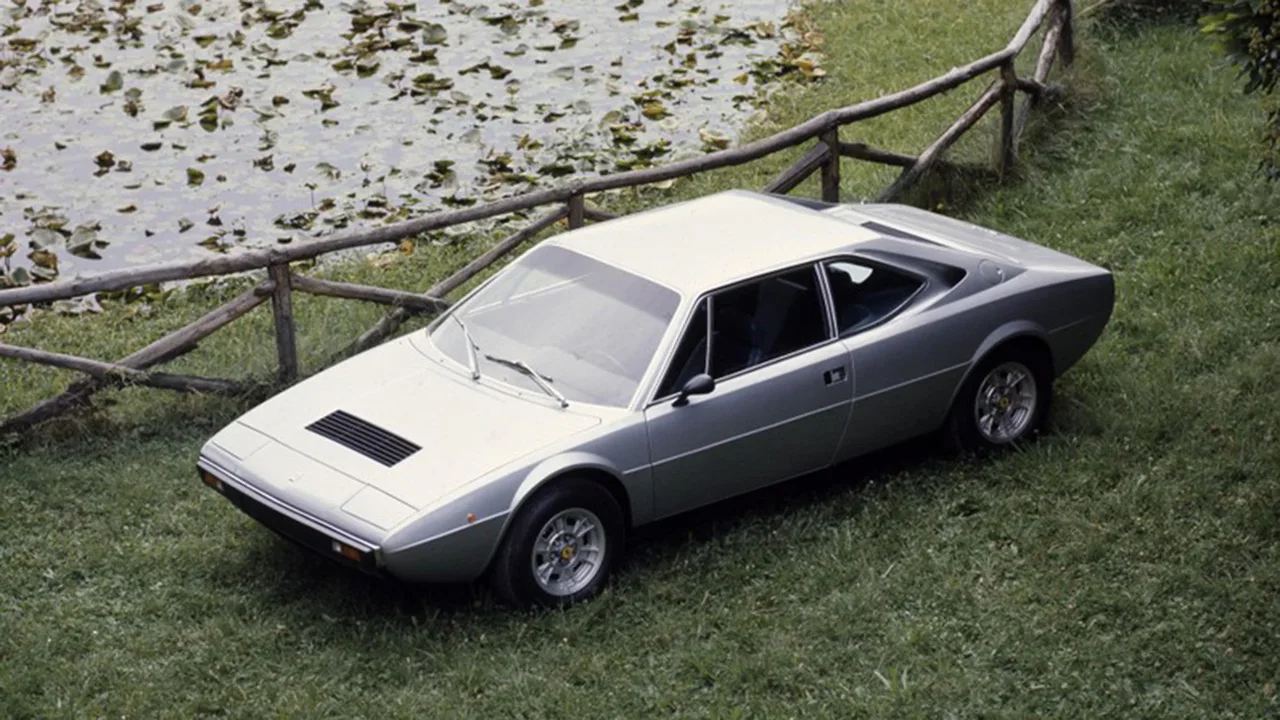

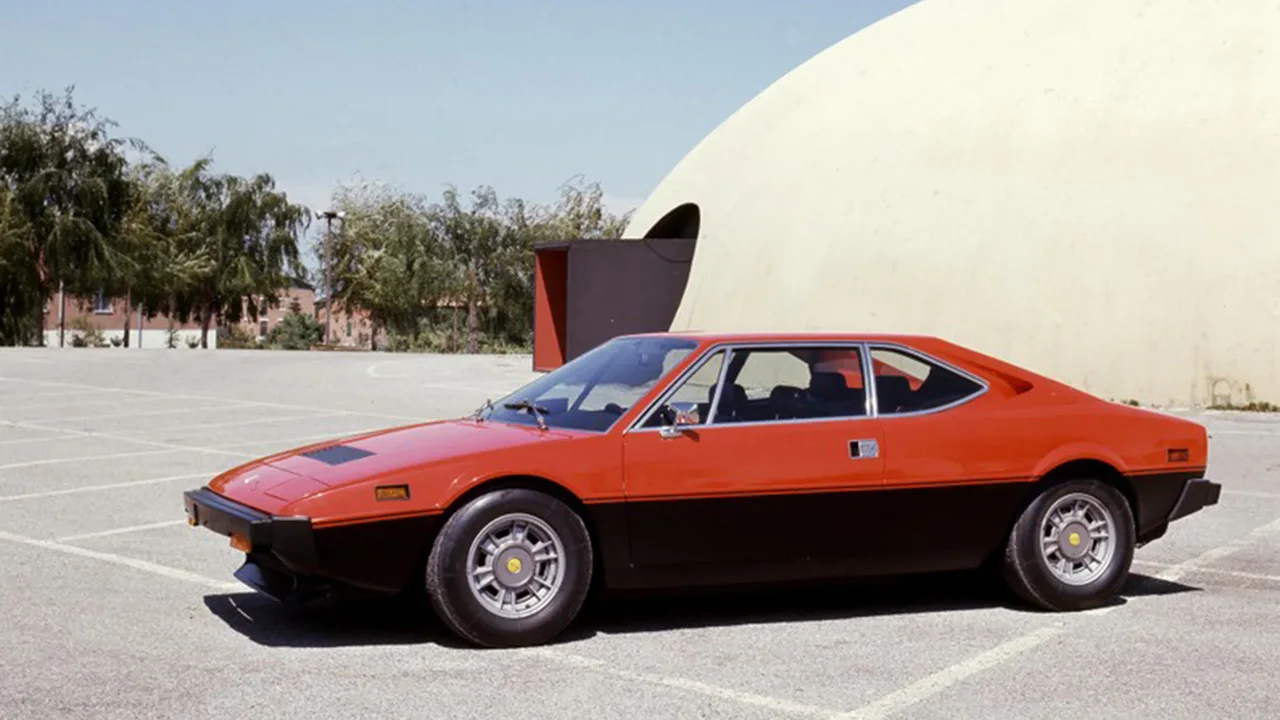

1974 Ferrari Dino 208/308 GT4 Dino

ItalyGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
1974
Make
Ferrari
Model
Dino 208/308 GT4
Variant
Dino
Body Style
Coupe
Generation
Series I
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 5-speed

Powertrain

Engine Name
Dino 308 GT4 Manual
Engine Configuration
V
Power (hp)
250 hp
Power (kW)
186 kW
Torque
285 Nm (210 lb-ft)
Top speed
250 km/h (155 mph)
Displacement
2,927 cc

Dimensions

Length
4,300 mm (169.3 in)
Width
1,710 mm (67.3 in)
Height
1,210 mm (47.6 in)
Wheelbase
2,550 mm (100.4 in)
Curb weight
1,365 kg (3,009 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
7,700 rpm
Engine Fluids
Engine Oil, Volume
9 litres
Car Battery
Voltage
12 V
Battery Capacity
66 Ah
Alternator Charge Current
55 A
Alternator Voltage
14 V
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
71 mm (2.8 in)
Compression Ratio
8.8 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Belt
Engine Placement
Rear-Mid
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Quad Carburator
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Gear Selector
Stick
Gear Ratio
1st Gear
3.42 :1
2nd Gear
2.35 :1
3rd Gear
1.69 :1
4th Gear
1.24 :1
5th Gear
0.95 :1
Reverse
3.25 :1

Fuel

General
Tank Volume
80 litres

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Double Wishbone

Performance

Quarter Mile
14.4 sec

Dimensions & Weight

Exterior

Track, Front
1,460 mm (57.5 in)
Track, Rear
1,460 mm (57.5 in)
Overhang, Front
940 mm (37.0 in)
Overhang, Rear
810 mm (31.9 in)
Turning Circle
12 m

Weight

Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Doors
Front Doors
Conventional

Equipment

Other Equipment
Normal Roof
Yes

Interior

Equipment

Instrument Cluster
Odometer Limit
100,000 km/miles

Steering Wheel

Steering Mechanism
Rack and Pinion

Trunk

Total Trunk Volume
285 litres
Rear Trunk
Yes
Front Trunk
Yes
Rear Trunk
Volume
250 litres
Front Trunk
Volume
35 litres

Other

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

Production

Statistics
Production Number (Series)
3,666
Production Number (Generation)
3,666
Statistics › Production Number (Model)
1st Generation
2,826
