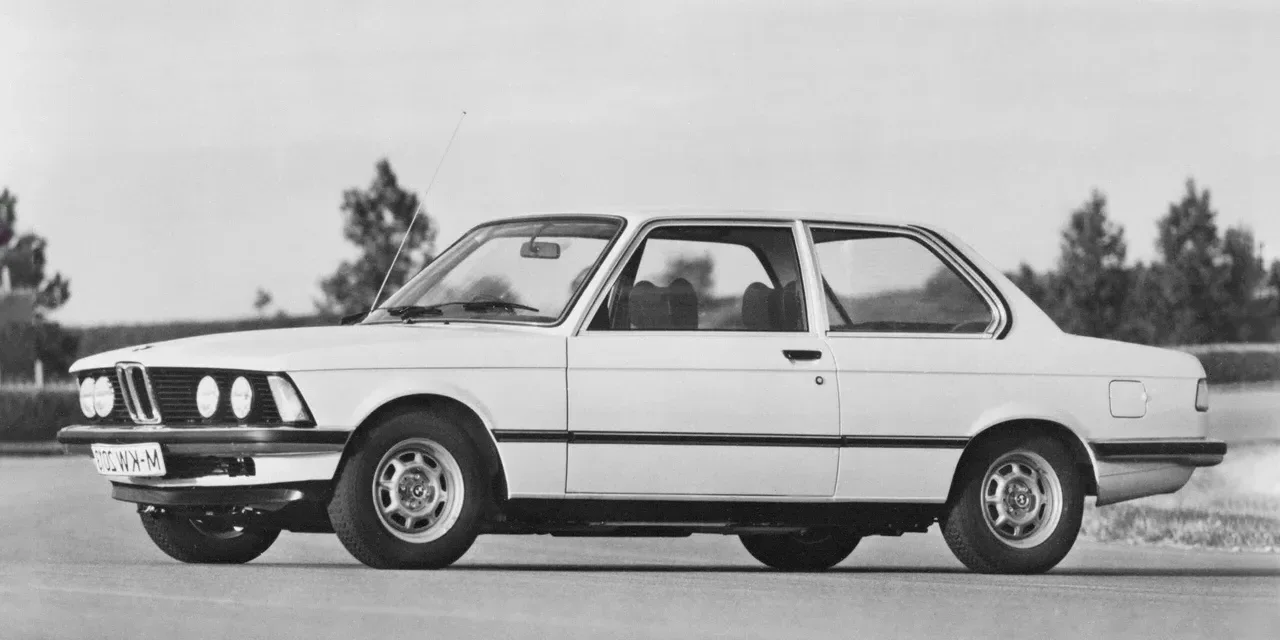

1976 BMW 3 Series

GermanyGasoline2WDSedan

Specifications

Vehicle Details

Year
1976
Make
BMW
Model
3 Series
Body Style
Sedan
Generation
E21
Seats
5
Doors
2
Fuel
Gasoline
Drivetrain
2WD
Transmission
  • Automatic
  • Manual, 3
  • 4
  • 5-speed

Powertrain

Engine Name
320i Sedan
Engine Configuration
Inline
Power (hp)
125 hp
Power (kW)
92 kW
Torque
175 Nm (129 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
9.4 seconds
0–100 km/h
9.9 seconds
Displacement
1,990 cc

Dimensions

Length
4,355 mm (171.5 in)
Width
1,610 mm (63.4 in)
Height
1,380 mm (54.3 in)
Wheelbase
2,563 mm (100.9 in)
Curb weight
1,050 kg (2,315 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,700 rpm
Rev. at Max Torque
4,350 rpm
Car Battery
Voltage
12 V
Battery Capacity
44 - 55 Ah
Alternator Charge Current
45 - 55 A
Alternator Voltage
12 V
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
80 mm (3.1 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Mechanical Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Oil Change & Engine Filter
10,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 3
  • 4
  • 5-speed
Gear Ratio
1st Gear
3.68 :1
2nd Gear
2 :1
3rd Gear
1.33 :1
4th Gear
1 :1
5th Gear
0.81 :1
Reverse
3.71 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Diameter
255 mm (10.0 in)
Rear Brakes
Diameter
255 mm (10.0 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Strut Bar
  • Front
  • Rear
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Semi-Trailing Arm

Fuel

General
Tank Volume
51 - 51 – 52 litres
Reserve Tank Capacity
7 litres
Lockable Fuel Cap
Yes
Fuel Consumption NEDC
City
11.9 – 13.8 - 14.3 – 16.6 litres / 100 km
Highway
11 – 11.5 - 13.2 – 13.8 litres / 100 km
Combined
10.7 – 11.9 litres / 100 km
Fuel Consumption EPA
City
17 – 22.2 MPG
Highway
20.4 – 25.8 MPG
Combined
19.7 – 25.6 MPG

Dimensions & Weight

Exterior

Track, Front
1,386 mm (54.6 in)
Track, Rear
1,399 mm (55.1 in)
Turning Circle
10.3 m
Ground Clearance
145 mm (5.7 in)

Interior

Head Room, Front
900 mm (35.4 in)
Head Room, Rear
870 mm (34.3 in)
Hip Room, Rear
1,320 mm (52.0 in)
Shoulder Room, Front
1,315 mm (51.8 in)
Shoulder Room, Rear
1,300 mm (51.2 in)

Weight

Gross Weight
1,460 kg (3,219 lb)
Max Trailer Load, braked 12%
1000 – 1200 kg (2,205 – 2,646 lb)
Max Trailer Load, unbraked
500 kg (1,102 lb)
Cargo Capacity
390 – 410 kg (860 – 904 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Windscreen Wipers
Number of Wiper Speeds
2
Heated Washer Nozzles
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Manual
Window Lifts, Rear
Manual
Heated Windows
Rear
Tinted Windows
Optional
Safety Glass
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Optional
Number of Exhaust Pipes
1
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional
Special Features
Automatic Headlight Activation
Special Features
Headlight Wipers
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Optional

Colour

Finish
Solid

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Tightening Torque
115 Nm
Rim Material
Steel
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
100,000 km/miles
Climate Control
Air Condition
Optional
Number of Vents, Front
4 pcs
Connectivity
Radio
Optional
Speakers
Total Number of Speakers
2 - 4 pcs
Rear-view Mirror
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Optional
Card Holder
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Front
Cigarette Lighter
Yes
Other Equipment › Carpets
Material
Textile

Steering Wheel

Power Steering
Yes
Sport
Optional
Number of Spokes
4
Material
  • Leather
  • Plastic
Colour
Black
Steering Ratio
21.1 :1
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Carpet
Yes
Light
Yes
Rear Trunk
Volume
460 litres

Design

Interior Decor Material
Plastic
Interior Decor Colour
Grey
Transmission Knob Material
Plastic

Seats

Colour & Material
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Second Seat Row
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Speed Limiter
Yes

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats
Type of Belt › Three-Point-Belt
Outer Rear Seats
Optional

Other

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car
