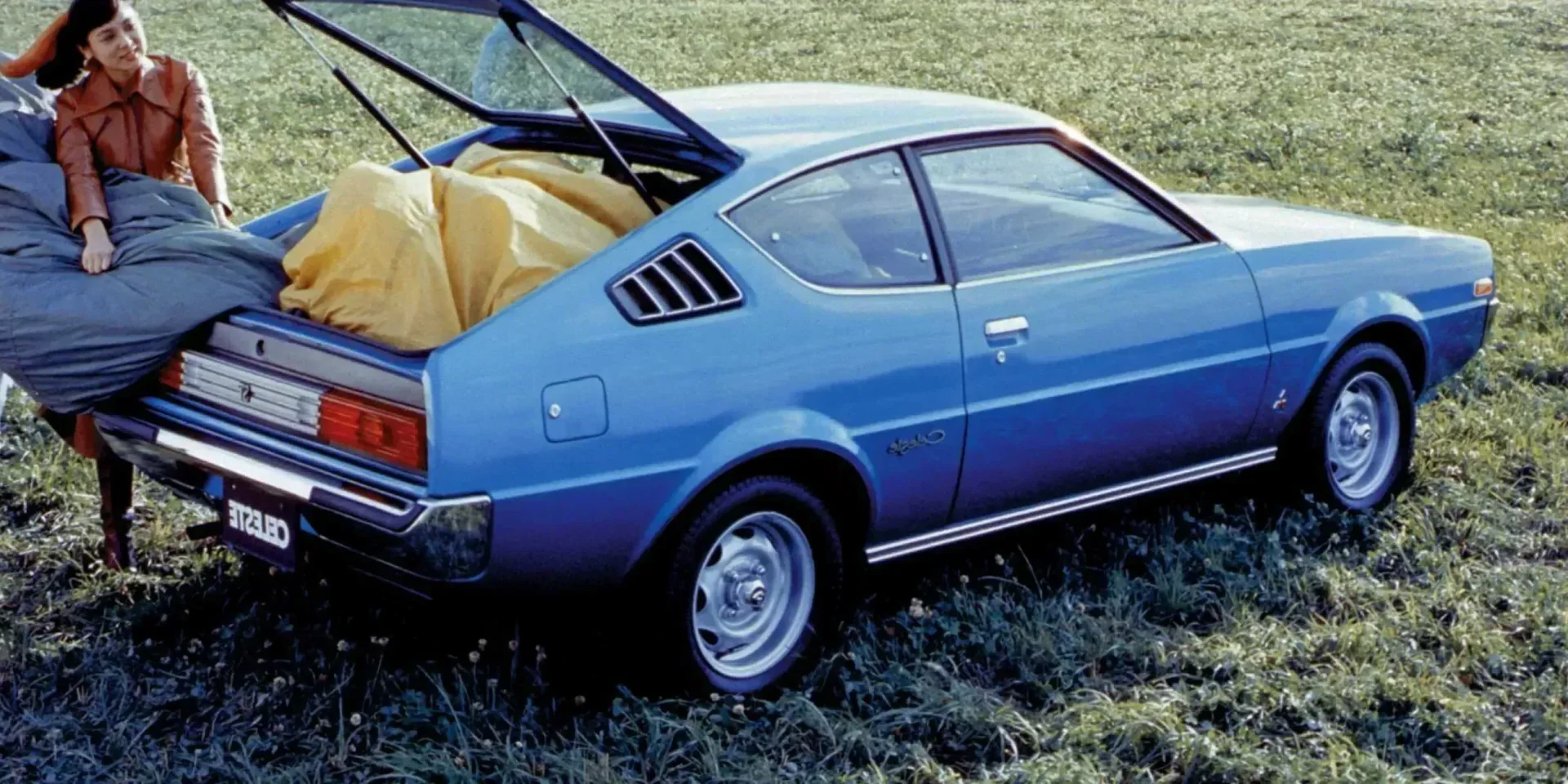

1977 Mitsubishi Celeste

JapanGasolineRWDHatchback

Specifications

Vehicle Details

Year
1977
Make
Mitsubishi
Model
Celeste
Body Style
Hatchback
Generation
A70 1st Facelift
Seats
5
Doors
3
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 5-speed

Powertrain

Engine Name
1600 1.6 Manual
Engine Configuration
Inline
Power (hp)
82 hp
Power (kW)
60 kW
Torque
116 Nm (86 lb-ft)
Top speed
165 km/h (103 mph)
Displacement
1,597 cc

Dimensions

Length
4,115 mm (162.0 in)
Width
1,610 mm (63.4 in)
Height
1,330 mm (52.4 in)
Wheelbase
2,340 mm (92.1 in)
Curb weight
960 kg (2,116 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
3,000 rpm
Engine Fluids
Engine Coolant, Volume
6 litres
Car Battery
Voltage
12 V
Battery Capacity
40 Ah
Alternator Charge Current
35 A
Alternator Voltage
14 V
Engine Configuration
Bore
76.9 mm (3.0 in)
Stroke
88 mm (3.5 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Naturally Aspirated
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Dual Carburator
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
3.21 :1
2nd Gear
2 :1
3rd Gear
1.32 :1
4th Gear
1 :1
5th Gear
0.85 :1
Final Drive
4.22 :1
Reverse
3.67 :1

Fuel

General
Tank Volume
50 litres
General › Fuel Cap Position
Rear
Left

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Dependent
Beam Axle (Dead Axle)

Dimensions & Weight

Exterior

Track, Front
1,325 mm (52.2 in)
Track, Rear
1,295 mm (51.0 in)
Turning Circle
10 m

Weight

Max Trailer Load, braked 12%
800 kg (1,764 lb)
Max Trailer Load, unbraked
550 kg (1,213 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional

Interior

Steering Wheel

Steering Mechanism
Recirculating Ball

Other

Car Classification

European Segment
S-Segment
Car.info Classification
Sports Car
