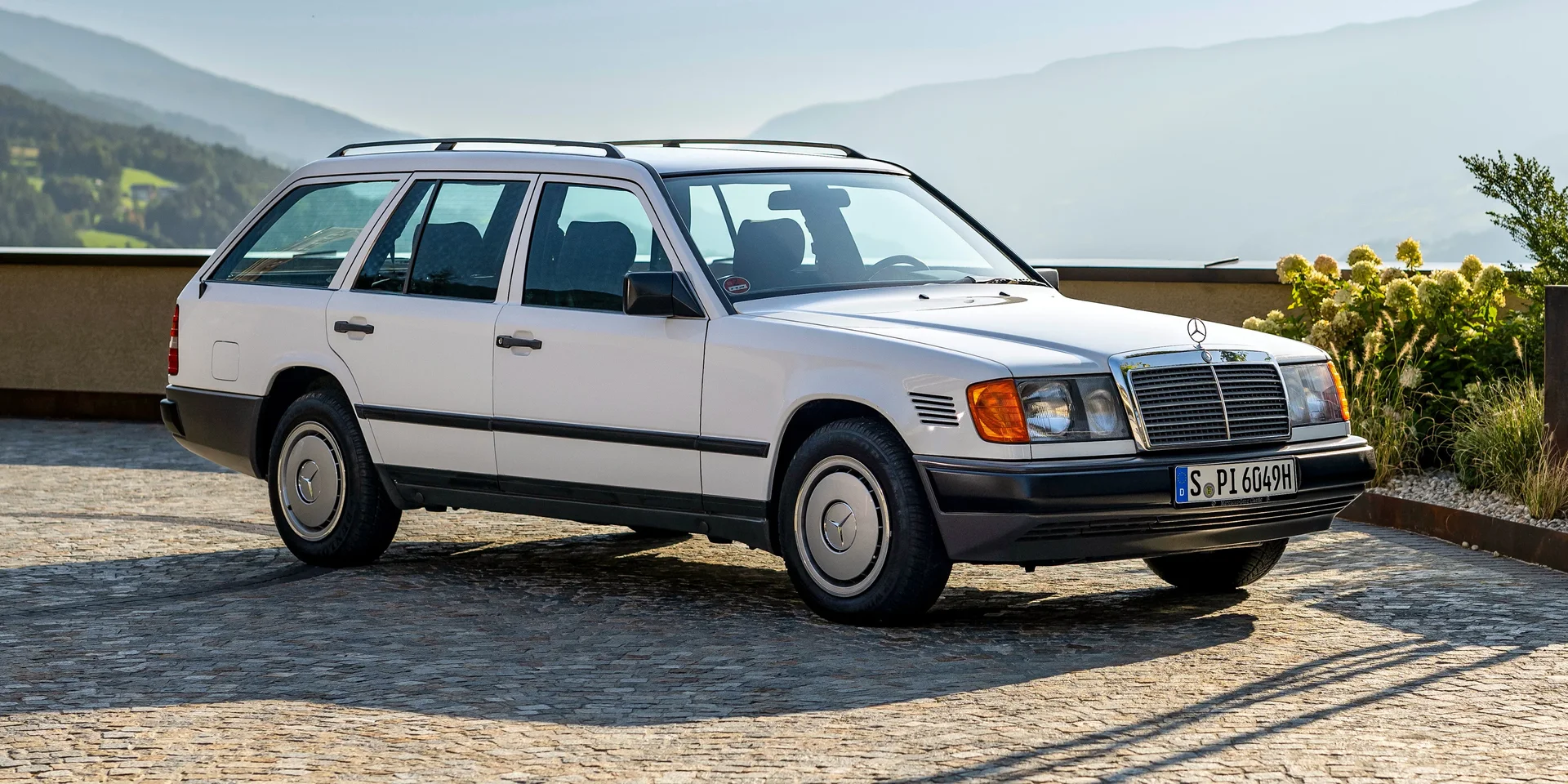

1988 Mercedes-Benz E-Class

GermanyDieselAWDWagon

Specifications

Vehicle Details

Year
1988
Make
Mercedes-Benz
Model
E-Class
Body Style
Wagon
Generation
W124
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic, 4-speed

Powertrain

Engine Name
300 TD Turbo 4MATIC Automatic
Engine Configuration
Inline
Power (hp)
143 hp
Power (kW)
105 kW
Torque
267 Nm (197 lb-ft)
Top speed
188 km/h (117 mph)
0–60 mph
12.1 seconds
0–100 km/h
12.8 seconds
Displacement
2,996 cc

Dimensions

Length
4,765 mm (187.6 in)
Width
1,740 mm (68.5 in)
Height
1,460 mm (57.5 in)
Wheelbase
2,800 mm (110.2 in)
Curb weight
1,680 kg (3,704 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,600 rpm
Rev. at Max Torque
2,400 rpm
Engine Configuration
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Fuel Injection
Service Intervals
Air Filter
60,000 km (37,282 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
10,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic, 4-speed

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Fuel Consumption NEDC
City
10.2 litres / 100 km
Highway
7.5 litres / 100 km
Combined
9.1 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,497 mm (58.9 in)
Track, Rear
1,488 mm (58.6 in)
Overhang, Front
815 mm (32.1 in)
Overhang, Rear
1,150 mm (45.3 in)
Turning Circle
11.2 m
Ground Clearance
165 mm (6.5 in)

Interior

Head Room, Front
986 mm (38.8 in)
Head Room, Rear
969 mm (38.1 in)
Hip Room, Front
1,420 mm (55.9 in)
Hip Room, Rear
1,412 mm (55.6 in)
Shoulder Room, Front
1,414 mm (55.7 in)
Shoulder Room, Rear
1,404 mm (55.3 in)

Weight

Gross Weight
2,285 kg (5,038 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Cargo Capacity
605 kg (1,334 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
Heated
Optional
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows › Window Lifts, Features
Pinch Protection
Optional
Windows › Window Lifts, Features › Pinch Protection
Driver
Optional
Passenger
Optional
Windows
Heated Windows
Rear
Heat-Insulating Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Heat-Insulating Windows
Front
Optional
First Row
Optional
Second Row
Optional
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Pneumatic
Yes
Fog Lights
Front
Halogen
Rear
Halogen

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Climate Control
Air Condition
Optional
Micro Filter
Optional
Outside Temperature Indicator
Optional
Connectivity
Radio
Optional
Radio Preparation
Yes
Phone Preparation
Yes
Cellular Network
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Media Format
CD
Optional
Cassette
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Optional
Card Holder
Yes
Fridge
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Light
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Fridge
Trunk
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Lights
Read Light
Front
Guide Light
Yes
Lights › Read Light
Rear
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Heated
Optional
Power Steering
Yes
Adjustments
Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion
Adjustments
Tilt
Yes

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
530 litres
Volume, Back Seat Collapsed
1,770 litres
Depth
1,250 mm (49.2 in)
Depth, Back Seat Collapsed
1,793 mm (70.6 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Armrest
Yes
Number of Seats
3
Type of Seat
Adult
Third/Fourth Seat Row
Third Seat Row
Optional

Features

Comfort Features

Cruise Control
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Brake Systems

Anti-lock Braking System (ABS)
Yes

Other Features

Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual

Airbags

Frontal Airbag
  • Driver: Optional
  • Passenger: Optional
  • Rear: -

Other

Identification

VIN Location
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
H3
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
  • BA15s (P21W)
  • BAU15s (PY21W)
Turn Indicators, Rear
  • BA15s (P21W)
  • BAU15s (PY21W)
Read Light
SV8.5 (C10W)
Trunk
SV8.5 (C5W)
License Plate Light
SV8.5 (C5W)
