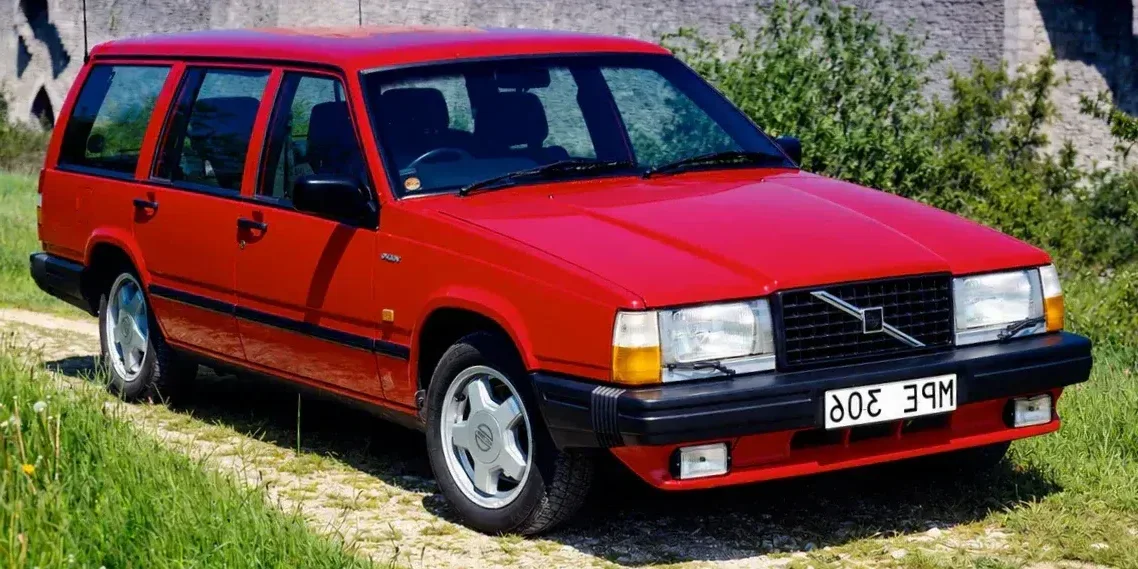

1988 Volvo 740 Turbo

SwedenGasolineRWDWagon

Specifications

Vehicle Details

Year
1988
Make
Volvo
Model
740
Variant
Turbo
Body Style
Wagon
Generation
1st Generation
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic Electrohydraulic
  • Manual, 4-speed

Powertrain

Engine Name
Turbo Station Wagon
Engine Configuration
Inline
Power (hp)
182 hp
Power (kW)
134 kW
Torque
260 Nm (192 lb-ft)
Displacement
2,316 cc

Dimensions

Length
4,785 mm (188.4 in)
Width
1,750 mm (68.9 in)
Height
1,435 mm (56.5 in)
Wheelbase
2,770 mm (109.1 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,800 rpm
Rev. at Max Torque
3,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
Engine Oil, Volume
3.85 litres
Transmission Fluid, Volume
2.3 – 7.5 litres
Engine Coolant, Volume
9.5 litres
Car Battery
Voltage
12 V
Battery Capacity
60 Ah
Cold Start Power
450 A
Alternator Charge Current
100 A
Alternator Voltage
14 V
Engine Configuration
Bore
96 mm (3.8 in)
Stroke
80 mm (3.1 in)
Compression Ratio
8.7 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
80,000 km (49,710 mi)
Air Filter
48,000 km (29,826 mi)
Fuel Filter
96,000 km (59,652 mi)
Spark Plug
48,000 km (29,826 mi)
Brake Fluid
48,000 km / 2 years
Oil Change & Engine Filter
8,000 km / 0.5 years
Engine Coolant
48,000 km / 2 years
Transmission, Fluid
32,000 km (19,884 mi)

Transmission & Drivetrain

Transmission
  • Automatic Electrohydraulic
  • Manual, 4-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Overdrive
Yes
Gear Ratio
1st Gear
2.45 – 4.03 :1
2nd Gear
1.45 – 2.16 :1
3rd Gear
1 – 1.37 :1
4th Gear
0.69 – 1 :1
Final Drive
3.73 – 4.1 :1
Reverse
2.21 – 3.68 :1
Overdrive › Gear Ratio
4th Gear
0.78 :1

Fuel

General
Tank Volume
60 litres
Lockable Fuel Cap
Optional
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Evaporative Control System
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
19 - 21 mm (0.7 - 0.8 in)
Rear
16 - 19 mm (0.6 - 0.7 in)

Dimensions & Weight

Exterior

Track, Front
1,470 mm (57.9 in)
Track, Rear
1,460 mm (57.5 in)
Turning Circle
9.9 m

Interior

Head Room, Front
980 mm (38.6 in)
Head Room, Rear
945 mm (37.2 in)
Leg Room, Front
1,029 mm (40.5 in)
Leg Room, Rear
917 mm (36.1 in)
Hip Room, Front
1,430 mm (56.3 in)
Hip Room, Rear
1,430 mm (56.3 in)

Weight

Gross Weight
1,950 kg (4,299 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Roof Load
100 kg (220 lb)
Permitted Axle Load, front
930 kg (2,050 lb)
Permitted Axle Load, rear
1,050 kg (2,315 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Mid-Strip
Rear
Mid-Strip
Sides
Mid-Strip
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Trigger

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
House Colour
Black
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
3.2 litres
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Heated Windows
Rear
Heat-Insulating Windows
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Heat-Insulating Windows
Front
Optional
First Row
Optional
Second Row
Optional
Rear
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Spoiler
Front
Antenna
Optional
Number of Exhaust Pipes
1
Windblocker
Optional
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Spoiler
Fixed
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes
Special Features
  • Headlight Wipers
  • Headlight Washers
Fog Lights
Front
Halogen
Rear
Halogen
Spot Light
Optional

Colour

Accent
Black
Door Handles
Non-painted

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
65.1
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Rim Material
Aluminium
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Temporary

Interior

Equipment

Instrument Cluster
Shift Indicator
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Coolant Temperature
Analogue
Turbo Pressure
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Air Condition
Optional
Outside Temperature Indicator
Optional
Number of Vents, Front
4 pcs
Controls
  • Faders
  • Rotary Dials
Connectivity
Radio
Optional
Radio Preparation
Yes
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Radio Preparation
Cassette
Optional
Displays
Equalizer
Optional
Speakers
Total Number of Speakers
6 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Manual
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Optional
Door
  • Driver Side
  • Passenger Side
Lights
Read Light
Front
Other Equipment
Make-up Mirror
Passenger Side
Clock
Yes
Carpets
Optional
Ashtray
  • Front
  • Rear
Cigarette Lighter
Yes
Other Equipment › Clock
Analogue
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Power Steering
Hydraulic
Sport
Optional
Colour
Black
Steering Ratio
16.9 :1
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Second Trunk Compartment
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
1,110 litres
Volume, Back Seat Collapsed
2,120 litres
Depth
1,055 mm (41.5 in)
Depth, Back Seat Collapsed
1,815 mm (71.5 in)
Width
1,510 mm (59.4 in)
Height
820 mm (32.3 in)
Cover
Sliding
Optional
Cover › Sliding
Manual
Optional
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Pedals
Standard
Pedals
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Manual
Front Seats
Number of Driver Seat Adjustments, Manual
8
Number of Driver Seat Adjustments, Powered
8
Number of Driver Seat Adjustments, Total
8
Number of Passenger Seat Adjustments, Manual
4
Number of Passenger Seat Adjustments, Total
4
Power Seat, Driver
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Front Seats › Adjustments, Passenger
Backrest Angle
Manual
Lumbar Support
Manual
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Upholstery
  • Leather
  • Velour

Features

Comfort Features

Cruise Control
Optional
Parking Heater
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Two-Point-Belt (Lap Belt)
Centre Rear Seat
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Type of Belt › Three-Point-Belt
Centre Rear Seat
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Optional
Electronic Brake Assist (BA/EBA)
Optional
Brake Pad Wear Indicator
Optional

Other Features

Immobiliser
Optional
Central Locking
Yes
Child Safety Locks
Manual
Number of Standard Keys
2
Total Number of Keys
2

Airbags

Frontal Airbag
  • Driver: Optional
  • Passenger: -
  • Rear: -

Other

Identification

VIN Location
Engine Compartment, Front Panel
Yes

Car Classification

American Classification
Mid-Size Luxury Car
British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Production

Statistics
Production Number (Series)
1,239,222
Statistics › Production Number (Year)
1985
70,434
1986
61,613
1987
67,306
1988
72,312
1989
78,249
1990
26,128
1991
20,355

Similar wagons

Suggested vehicles
