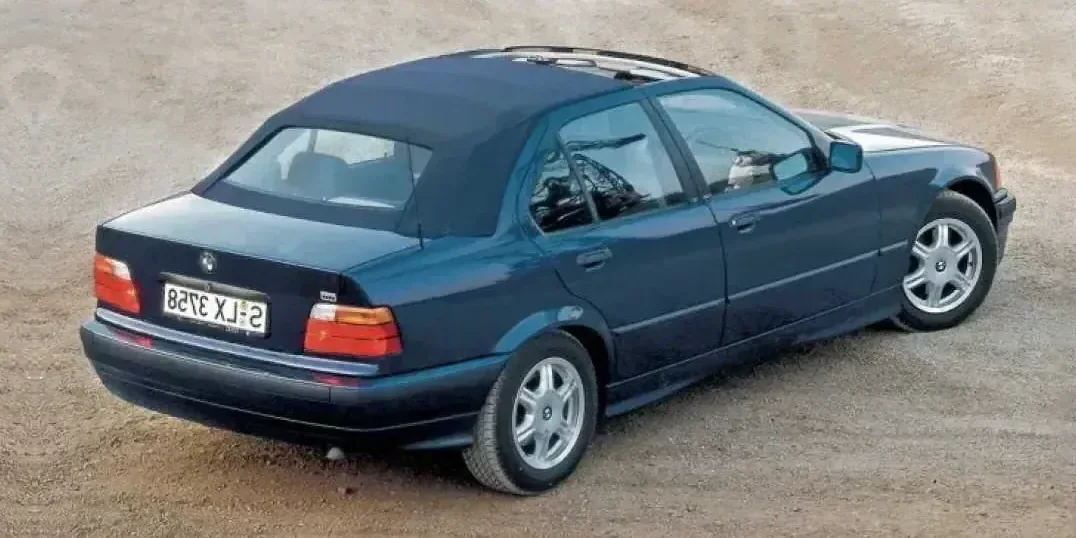

1993 BMW 3 Series

GermanyGasolineRWDConvertible

Specifications

Vehicle Details

Year
1993
Make
BMW
Model
3 Series
Body Style
Convertible
Generation
E36
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 5-speed

Powertrain

Engine Name
320i Baur Convertible
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
190 Nm (140 lb-ft)
Displacement
1,991 cc

Dimensions

Length
4,433 mm (174.5 in)
Width
1,698 mm (66.9 in)
Height
1,393 mm (54.8 in)
Wheelbase
2,700 mm (106.3 in)
Curb weight
1,190 kg (2,624 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,700 rpm
Engine Fluids
Transmission Fluid, Volume
1.1 litres
Engine Coolant, Volume
10.5 litres
Car Battery
Voltage
12 V
Battery Capacity
65 Ah
Alternator Charge Current
90 A
Alternator Voltage
12 V
Engine Configuration
Bore
80 mm (3.1 in)
Stroke
66 mm (2.6 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 5-speed
Gear Ratio
1st Gear
4.23 :1
2nd Gear
2.52 :1
3rd Gear
1.66 :1
4th Gear
1.22 :1
5th Gear
1 :1
Final Drive
3.45 :1
Reverse
4.04 :1

Fuel

General › Fuel Cap Position
Rear
Right
General
Lockable Fuel Cap
Yes

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Diameter
286 mm (11.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Track, Front
1,408 mm (55.4 in)
Track, Rear
1,421 mm (55.9 in)
Turning Circle
10.4 m
Ground Clearance
110 - 145 mm (4.3 - 5.7 in)

Interior

Head Room, Front
969 mm (38.1 in)
Head Room, Rear
947 mm (37.3 in)
Leg Room, Front
1,044 mm (41.1 in)
Leg Room, Rear
864 mm (34.0 in)
Hip Room, Rear
1,353 mm (53.3 in)
Shoulder Room, Front
1,358 mm (53.5 in)
Shoulder Room, Rear
1,353 mm (53.3 in)

Weight

Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Body Material
Steel
Doors
Front Doors
Conventional
Door Handles
Pull-up

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
Heated
Optional
House Colour
Same as Car
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows › Window Lifts, Features
Pinch Protection
Optional
Windows › Window Lifts, Features › Pinch Protection
Driver
Optional
Passenger
Optional
Windows
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Safety Glass
Yes
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes

Colour

Cabriolet Top Colour
Black

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
115 Nm
Rim Type
Disc Wheel

Interior

Equipment

Connectivity
Radio
Optional
Radio Preparation
Yes
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Radio Preparation
CD
Optional
Cassette
Optional
MP3
Optional
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Optional
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Optional
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Footwell (Front)
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Colour
Black
Steering Mechanism
Rack and Pinion

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional

Features

Comfort Features

Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cruise Control
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Optional
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Engine Compartment, Bulkhead
  • Centre
  • Right
Left Side Casing of Window
Yes

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car
