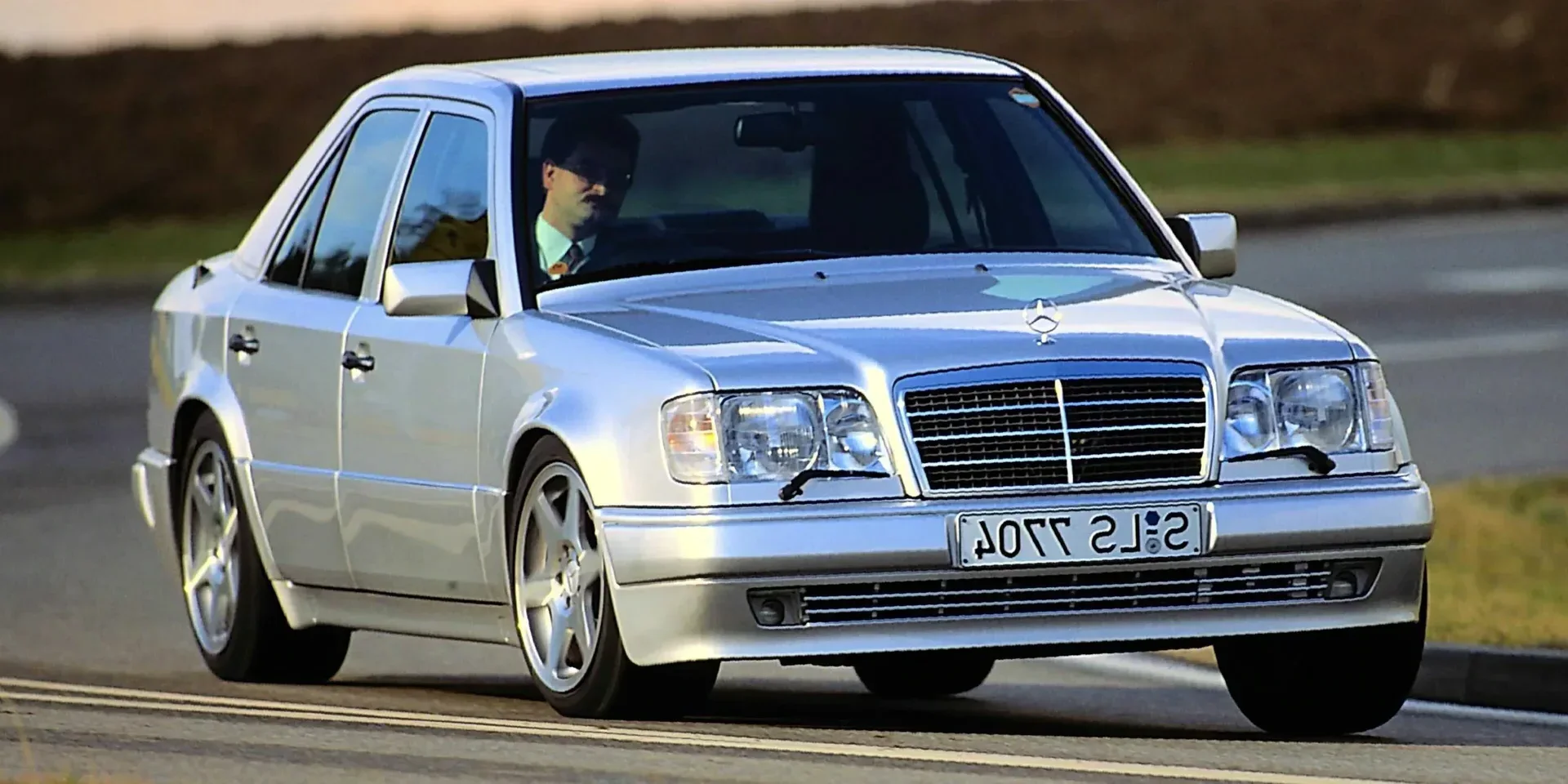

1993 Mercedes-Benz E-Class

GermanyGasolineRWDSedan

Specifications

Vehicle Details

Year
1993
Make
Mercedes-Benz
Model
E-Class
Body Style
Sedan
Generation
W124 2nd Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic, 4-speed

Powertrain

Engine Name
E 500 Automatic
Engine Configuration
V
Power (hp)
320 hp
Power (kW)
235 kW
Torque
470 Nm (347 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.8 seconds (estimated)
0–100 km/h
6.1 seconds
Displacement
4,973 cc

Dimensions

Length
4,740 mm (186.6 in)
Width
1,740 mm (68.5 in)
Height
1,431 mm (56.3 in)
Wheelbase
2,800 mm (110.2 in)
Curb weight
1,710 kg (3,770 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 rpm
Rev. at Max Torque
3,900 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 10W-50
  • 15W-40
Engine Oil, Volume
8 litres
Engine Configuration
Bore
96.5 mm (3.8 in)
Stroke
85 mm (3.3 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
90,000 km / 4 years
Fuel Filter
90,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
10,000 km / 1 years
Engine Coolant
250,000 km / 15 years

Transmission & Drivetrain

Transmission
Automatic, 4-speed

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
90 litres
General › Fuel Cap Position
Rear
Right
Fuel Consumption NEDC
Combined
13 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,501 mm (59.1 in)
Track, Rear
1,491 mm (58.7 in)
Turning Circle
11.2 m
Ground Clearance
142 - 145 mm (5.6 - 5.7 in)

Weight

Gross Weight
2,160 kg (4,762 lb)
Max Trailer Load, braked 12%
1,900 kg (4,189 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
450 kg (992 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Safety Glass
Yes
Second Row Windows
Optional
Electric
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
Driver
Windows › Heated Windows
Front
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Optional
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Front
Halogen
Rear
Halogen
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Manual

Colour

Finish
Metallic

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Optional
Cellular Network
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Media Format
CD
Optional
Cassette
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Light
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Material
Leather
Colour
Black
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Volume
Buttons

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
520 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
H3
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
  • BA15s (P21W)
  • BAU15s (PY21W)
Turn Indicators, Rear
  • BA15s (P21W)
  • BAU15s (PY21W)
Read Light
SV8.5 (C10W)
Trunk
SV8.5 (C5W)
License Plate Light
SV8.5 (C5W)
