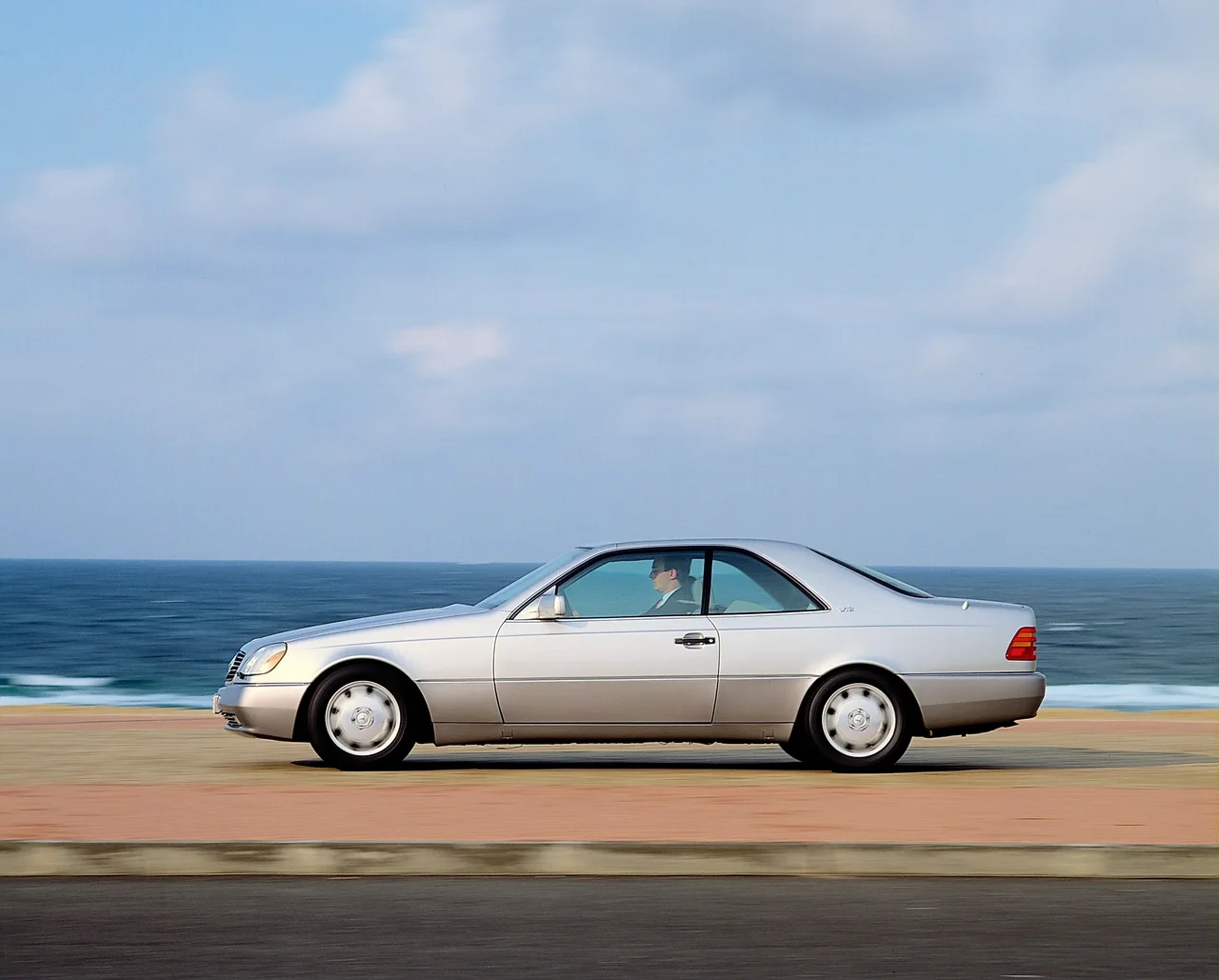

1993 Mercedes-Benz S-Class

GermanyGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
1993
Make
Mercedes-Benz
Model
S-Class
Body Style
Coupe
Generation
W140
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic, 4-speed

Powertrain

Engine Name
500 SEC Automatic
Engine Configuration
V
Power (hp)
320 hp
Power (kW)
235 kW
Torque
470 Nm (347 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
7.0 seconds (estimated)
0–100 km/h
7.3 seconds
Displacement
4,973 cc

Dimensions

Length
5,065 mm (199.4 in)
Width
1,912 mm (75.3 in)
Height
1,455 mm (57.3 in)
Wheelbase
2,945 mm (115.9 in)
Curb weight
2,080 kg (4,586 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 rpm
Rev. at Max Torque
3,900 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Configuration
Bore
96.5 mm (3.8 in)
Stroke
85 mm (3.3 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston

Transmission & Drivetrain

Transmission
Automatic, 4-speed

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes

Fuel

General
Tank Volume
100 litres
Fuel Consumption NEDC
Combined
13.2 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,603 mm (63.1 in)
Track, Rear
1,576 mm (62.0 in)
Turning Circle
11.9 m
Ground Clearance
150 mm (5.9 in)

Weight

Gross Weight
2,600 kg (5,732 lb)
Max Trailer Load, braked 12%
2,100 kg (4,630 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
520 kg (1,146 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-B
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Soft Close
Optional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Windscreen Wipers
Heated Washer Nozzles
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Other Equipment
Sunroof
Openable (Electric)
Normal Roof
Yes
Antenna
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Headlight Range Adjustment
Manual (Pneumatic)

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Rim Material
Alloy

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Climate Control
Climate Control
Automatic
Pollen Filter
Optional
Outside Temperature Indicator
Yes
Connectivity
Radio
Optional
Connectivity › Radio
AM
Optional
FM
Optional
CD
Optional
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Optional
Card Holder
Yes
Fridge
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Back
Optional
Interior Storage › Storage Compartments › Fridge
Rear
Optional
Trunk
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Power Steering
Yes
Adjustments
Telescope
Material
Wood
Colour
Black
Adjustments
Tilt
Powered

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
505 litres

Design

Interior Decor Material
Wood
Accent
Wood
Transmission Knob Material
Wood
Colour
Brown

Seats

Colour & Material
Upholstery
Leather
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
  • Manual
  • Powered
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Armrest
Middle
Front Seats › Heated Seats
Areas
Cushion
Second Seat Row
Armrest
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Armrest
Heated Seats
Optional
Powered Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Passenger Seat
in Front of

Car Classification

American Classification
Full-Size Luxury Car
British Classification
Luxury Car
Australian Classification
Upper Large Car
European Segment
F-Segment
Car.info Classification
Luxury Car
