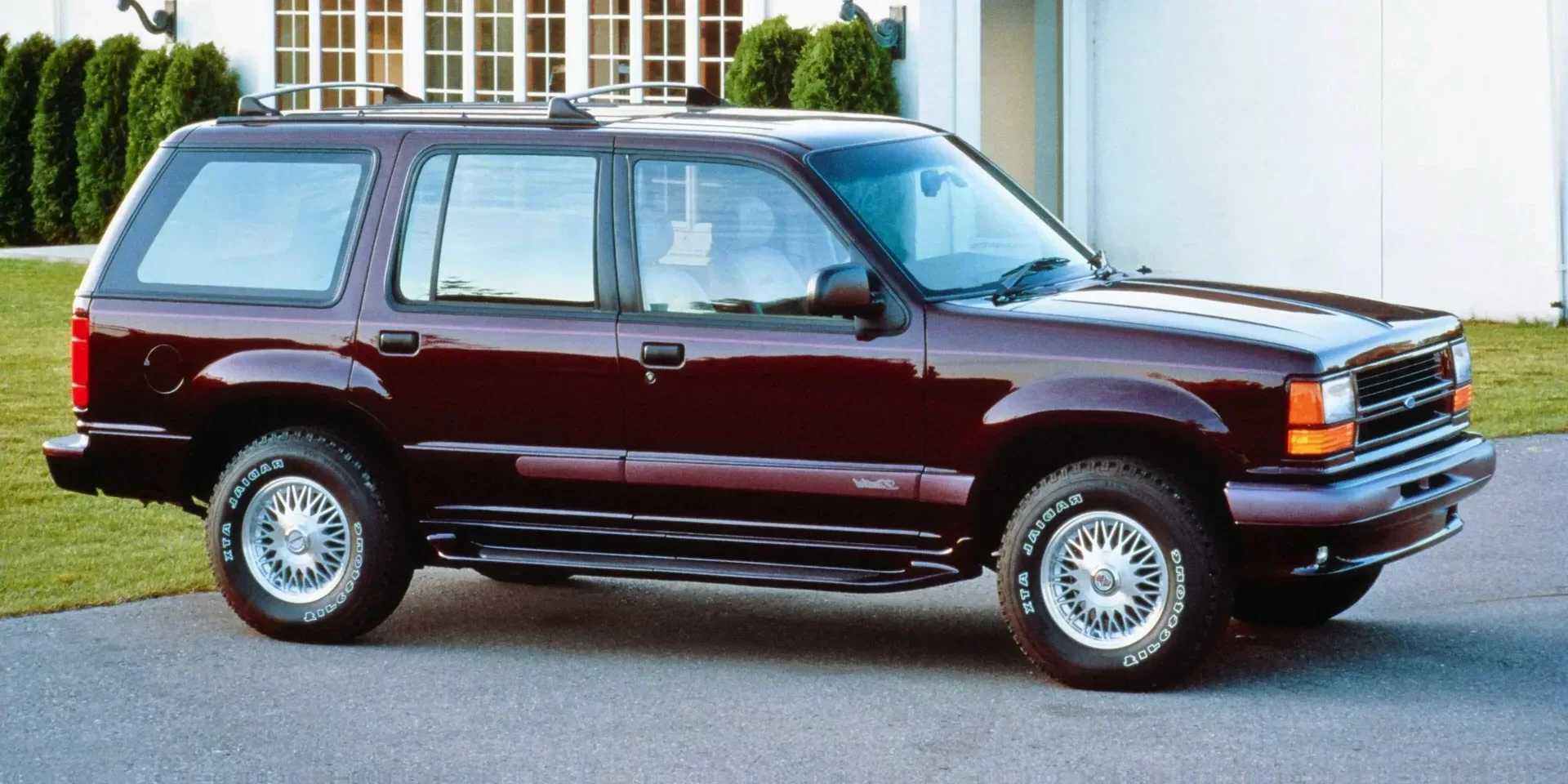

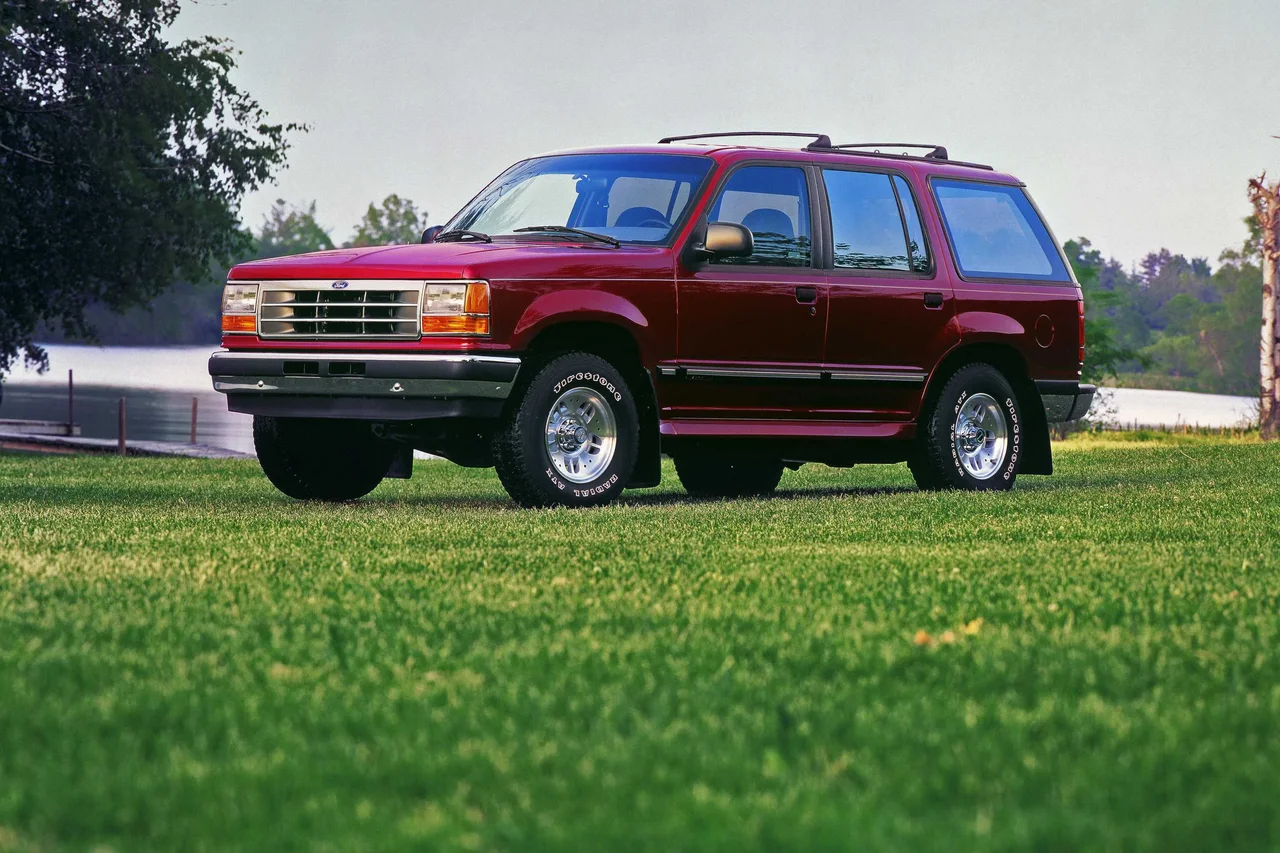

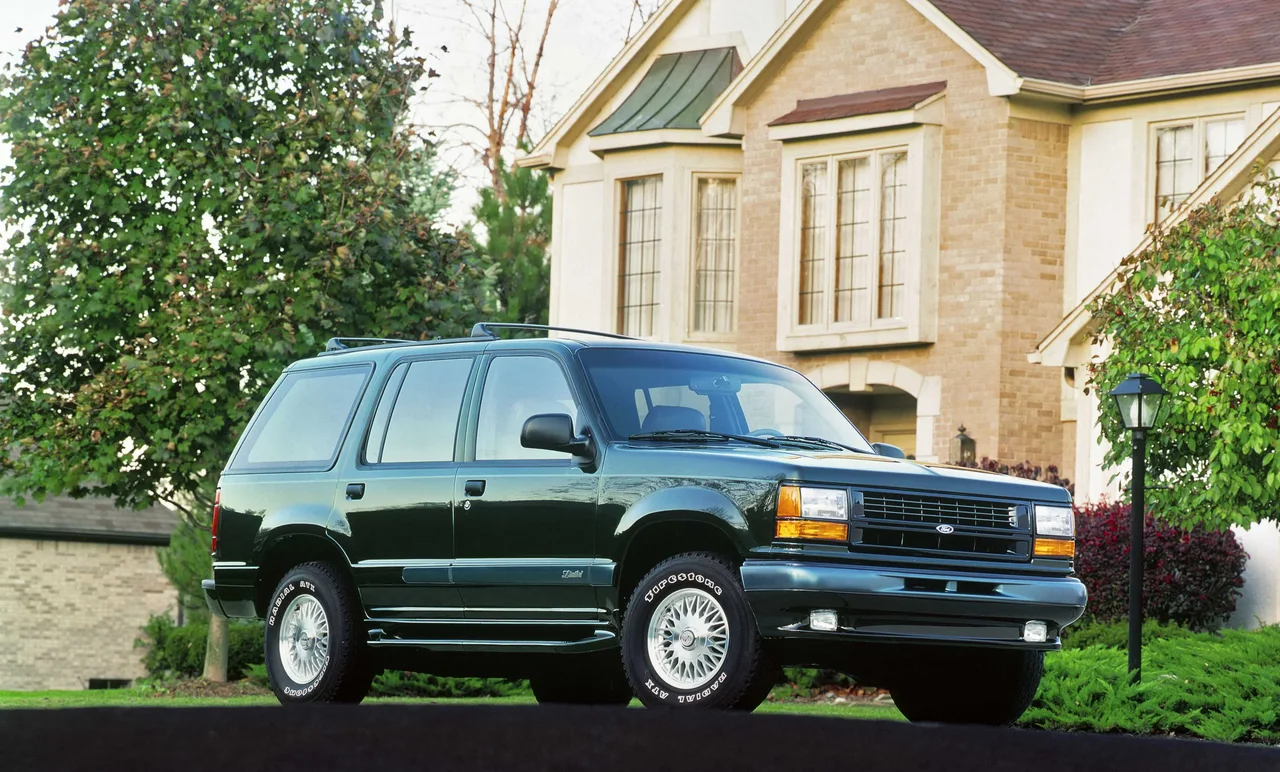

1994 Ford Explorer

United StatesGasoline4WDSUV

Photos

Specifications

Vehicle Details

Year
1994
Make
Ford
Model
Explorer
Body Style
SUV
Generation
1st Generation (UN46)
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
4WD
Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
4.0 V6 OHV 4WD
Engine Configuration
V
Power (hp)
162 hp
Power (kW)
119 kW
Torque
305 Nm (225 lb-ft)
Displacement
3,958 cc

Dimensions

Length
4,673 mm (184.0 in)
Width
1,778 mm (70.0 in)
Height
1,709 mm (67.3 in)
Wheelbase
2,842 mm (111.9 in)
Curb weight
2,345 kg (5,170 lb)

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Configuration
Bore
100 mm (3.9 in)
Stroke
84 mm (3.3 in)
Compression Ratio
9 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Type of Combustion Engine
Piston

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Solid

Fuel

General
Tank Volume
72 litres
Fuel Consumption NEDC
City
17 litres / 100 km
Highway
11.6 litres / 100 km
Combined
15 litres / 100 km

Dimensions & Weight

Exterior

Turning Circle
11 m

Weight

Gross Weight
3,395 kg (7,485 lb)
Cargo Capacity
1,050 kg (2,315 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
U Platform (U1)

Equipment

Side Mirrors
Mirror Type
Conventional
House Colour
Black
Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Lights

Main Beam
Halogen
Fog Lights
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
70.5
Fastening Type
Lug Nuts
Rim Type
Disc Wheel
Spare Wheel
Full-size

Interior

Equipment

Instrument Cluster
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Connectivity
Radio
  • AM
  • FM
Interior Storage › Storage Compartments
Glove Compartment
Light
Other Equipment
Clock
Digital

Steering Wheel

Power Steering
Yes
Material
Plastic
Colour
Black
Steering Mechanism
Recirculating Ball

Trunk

Rear Trunk
Yes
Hatch Opening Type
Open Window Only

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Headrest, Height
Manual
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Parking Heater
Optional
Parking Heater
Engine Heater
Optional

Safety & Security

Other Features

Child Safety Locks
Manual

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV
