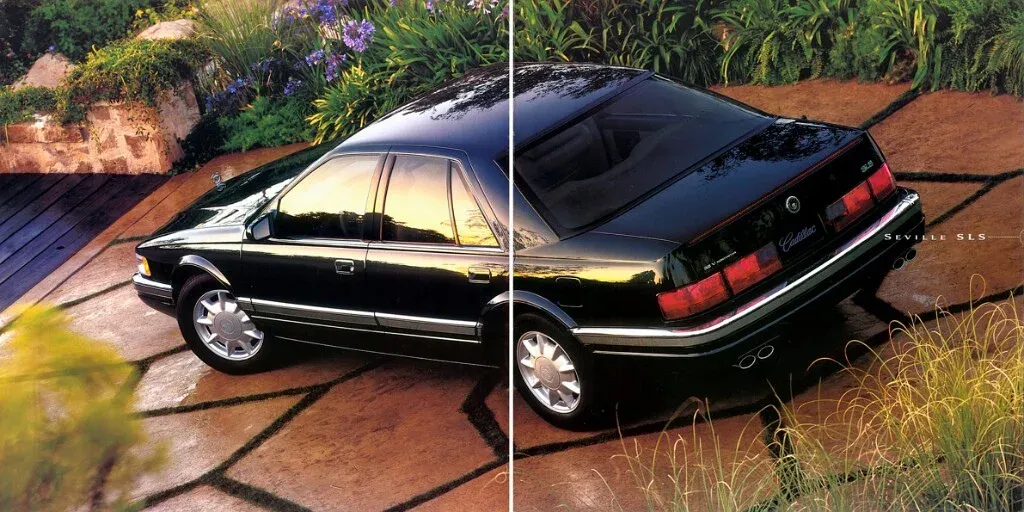

1996 Cadillac Seville

United StatesGasolineFWDSedan

Specifications

Vehicle Details

Year
1996
Make
Cadillac
Model
Seville
Body Style
Sedan
Generation
4th Generation
Seats
5
Doors
2
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 4-speed

Powertrain

Engine Name
4.6 V8 Hydra-Matic
Engine Configuration
V
Power (hp)
279 hp
Power (kW)
205 kW
Torque
407 Nm (300 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
7.4 seconds
0–100 km/h
7.8 seconds (estimated)
Displacement
4,565 cc

Dimensions

Length
5,177 mm (203.8 in)
Width
1,888 mm (74.3 in)
Height
1,371 mm (54.0 in)
Wheelbase
2,819 mm (111.0 in)
Curb weight
1,738 kg (3,832 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
Engine Oil, Volume
6.6 litres
Transmission Fluid, Volume
9.5 litres
Engine Coolant, Volume
11.8 litres
Engine Configuration
Bore
93 mm (3.7 in)
Stroke
84 mm (3.3 in)
Compression Ratio
10.3 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
  • Aluminium
  • Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic, 4-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
Final Drive
2.97 :1

Fuel

General
Tank Volume
76 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
Yes
Suspension, Rear
Independent
Yes

Dimensions & Weight

Exterior

Track, Front
1,546 mm (60.9 in)
Track, Rear
1,546 mm (60.9 in)
Turning Circle
12.3 m

Interior

Head Room, Front
955 mm (37.6 in)
Head Room, Rear
962 mm (37.9 in)
Leg Room, Front
1,086 mm (42.8 in)
Leg Room, Rear
1,003 mm (39.5 in)
Hip Room, Front
1,402 mm (55.2 in)
Hip Room, Rear
1,462 mm (57.6 in)
Shoulder Room, Front
1,499 mm (59.0 in)
Shoulder Room, Rear
1,472 mm (58.0 in)

Weight

Gross Weight
2,248 kg (4,956 lb)
Cargo Capacity
500 kg (1,102 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-up
Platform
General Motors Platforms
K Platform (FWD)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Mechanical
House Colour
Aluminium
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen

Colour

Finish
Solid

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
115
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
70.3
Fastening Type
Lug Nuts
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Fuel Gauge
Analogue
Rear-view Mirror
Anti-glare
Manual
Interior Storage › Storage Compartments
Glove Compartment
Lockable

Seats

Second Seat Row
Number of Seats
3
Type of Seat
Adult

Trunk

Rear Trunk
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
409 litres

Other

Car Classification

American Classification
Mid-Size Luxury Car
British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Awards

Motor Trend
Car of the Year
1992
