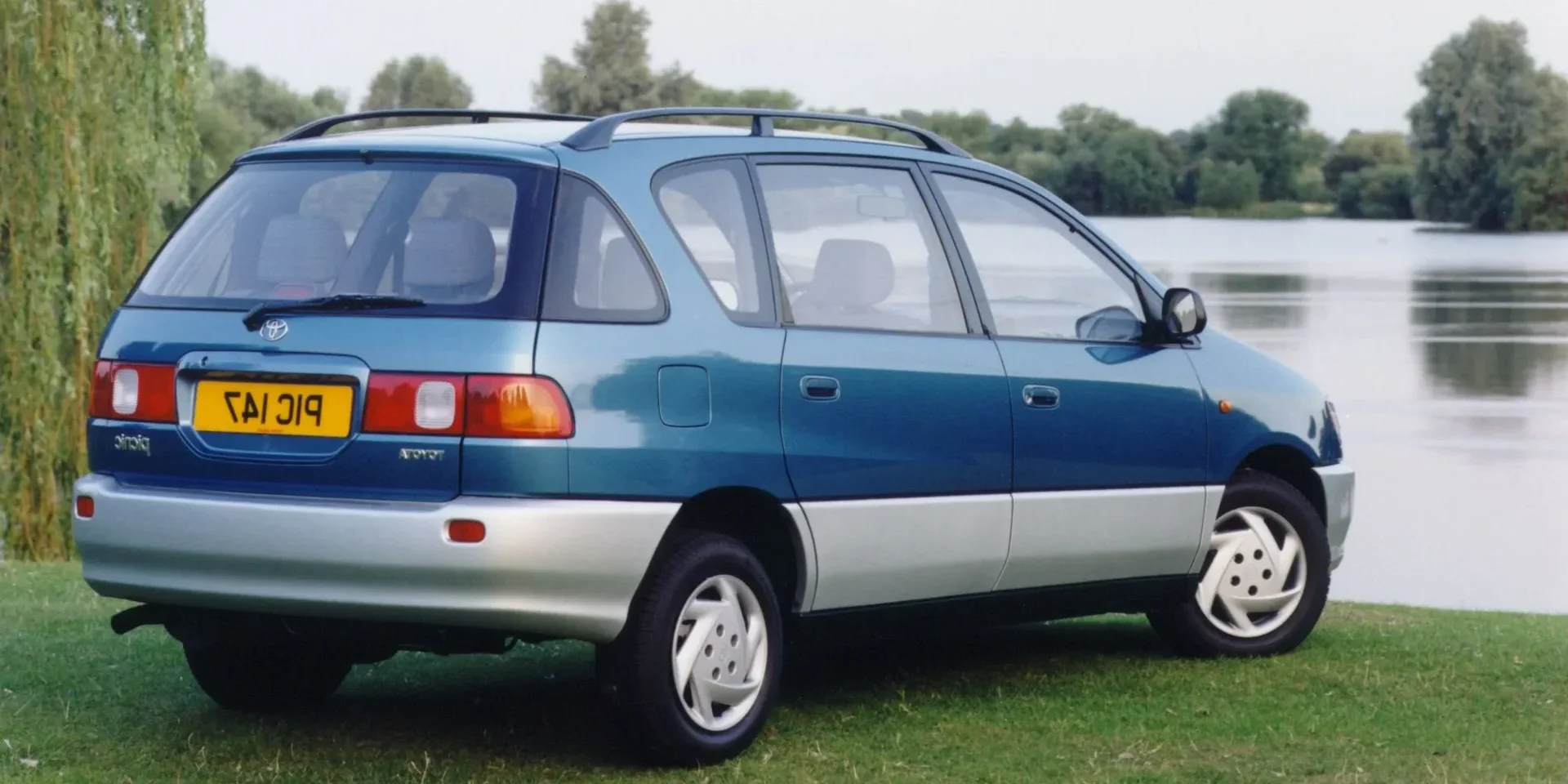

1996 Toyota Picnic

JapanGasolineFWDMinivan

Specifications

Vehicle Details

Year
1996
Make
Toyota
Model
Picnic
Body Style
Minivan
Generation
1st Generation
Seats
6
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
2.0
Engine Configuration
Inline
Power (hp)
128 hp
Power (kW)
94 kW
Torque
178 Nm (131 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
10.3 seconds (estimated)
0–100 km/h
10.8 seconds
Displacement
1,998 cc

Dimensions

Length
4,530 mm (178.3 in)
Width
1,695 mm (66.7 in)
Height
1,620 mm (63.8 in)
Wheelbase
2,735 mm (107.7 in)
Curb weight
1,310 kg (2,888 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,400 rpm
Rev. at Max Torque
4,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
  • 20W-50
Engine Configuration
Bore
86 mm (3.4 in)
Stroke
86 mm (3.4 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
45,000 km / 3 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
150,000 km / 10 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Fuel

General
Tank Volume
60 litres
Fuel Consumption NEDC
City
12.1 – 12.9 litres / 100 km
Highway
7.3 – 7.6 litres / 100 km
Combined
9 – 9.5 litres / 100 km
Emission NEDC
CO₂, Combined
215 – 232 g/km

Dimensions & Weight

Exterior

Track, Front
1,470 mm (57.9 in)
Track, Rear
1,450 mm (57.1 in)
Turning Circle
11 m
Ground Clearance
150 mm (5.9 in)

Weight

Gross Weight
2,010 kg (4,431 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
500 kg (1,102 lb)
Cargo Capacity
675 – 700 kg (1,488 – 1,543 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV

Equipment

Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Black

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts

Interior

Seats

Third/Fourth Seat Row
Third Seat Row
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
182 litres
Volume, Back Seat Collapsed
1,841 litres
Depth
350 mm (13.8 in)

Safety & Security

Safety Testing

General
Test Year
1999
Adult Occupant
4/5 stars
Pedestrian
2/4 stars

Airbags

Frontal Airbag
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Seat Belt

Feature
Seat Belt Reminder
Belt Pretensioner

Other

Identification

VIN Location
Engine Compartment, Inner Wing
Right
Passenger Seat
in Front of

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
HB3
Fog Light, Front
H3
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BA15s (P21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
BA15s (P21W)
Read Light
SV8.5 (C10W)
License Plate Light
W2.1×9.5d (W5W)
