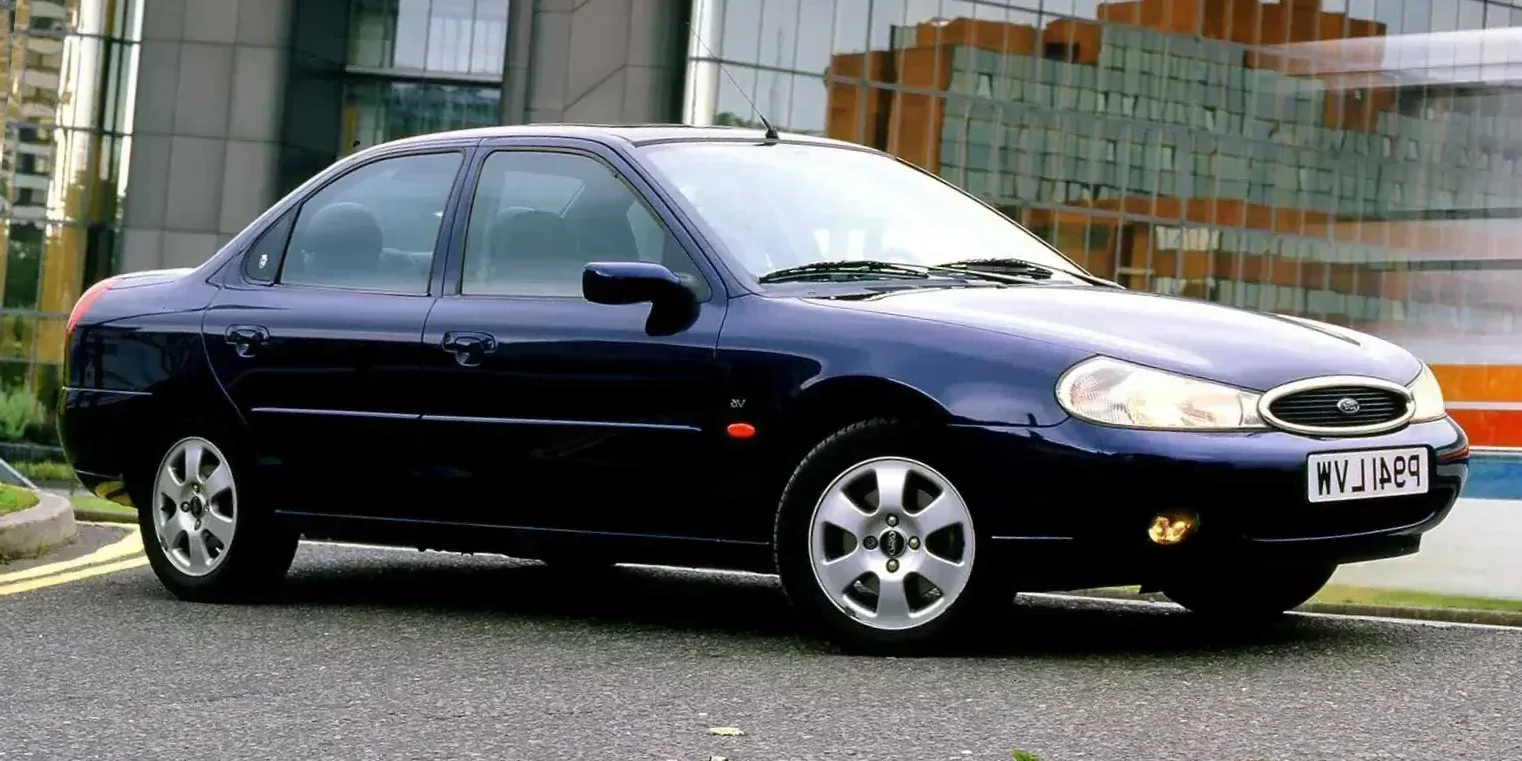

1997 Ford Mondeo

United StatesGasolineFWDSedan

Specifications

Vehicle Details

Year
1997
Make
Ford
Model
Mondeo
Body Style
Sedan
Generation
BxP/GBP Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
2.5 V6
Engine Configuration
V
Power (hp)
170 hp
Power (kW)
125 kW
Torque
220 Nm (162 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
7.9 seconds (estimated)
0–100 km/h
8.3 seconds
Displacement
2,495 cc

Dimensions

Length
4,556 mm (179.4 in)
Width
1,751 mm (68.9 in)
Height
1,372 mm (54.0 in)
Wheelbase
2,704 mm (106.5 in)
Curb weight
1,288 kg (2,840 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,250 rpm
Rev. at Max Torque
4,250 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 15W-40
  • 20W-40
Engine Configuration
Bore
82.4 mm (3.2 in)
Stroke
79.5 mm (3.1 in)
Compression Ratio
9.7 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Fuel

General
Tank Volume
62 litres
Fuel Consumption NEDC
City
13.6 – 14.5 litres / 100 km
Highway
7.1 – 7.6 litres / 100 km
Combined
9.5 – 10.1 litres / 100 km
Emission NEDC
CO₂, Combined
228 – 242 g/km

Dimensions & Weight

Exterior

Track, Front
1,503 mm (59.2 in)
Track, Rear
1,487 mm (58.5 in)
Turning Circle
10.3 m
Ground Clearance
165 mm (6.5 in)

Weight

Gross Weight
1865 – 1880 kg (4,112 – 4,145 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
690 kg (1,521 lb)
Cargo Capacity
551 – 577 kg (1,215 – 1,272 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
CDW27 Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Mechanical
Folding
Manual
House Colour
Same as Car
Windows › Window Lifts, Features
Pinch Protection
Optional
Windows › Window Lifts, Features › Pinch Protection
Driver
Optional
Passenger
Optional
Rear
Optional
Windows
Heated Windows
Rear
Heat-Insulating Windows
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Heat-Insulating Windows
Front
Optional
First Row
Optional
Second Row
Optional
Rear
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Optional
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts

Interior

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Material
Plastic
Colour
Black

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
470 litres
Depth
960 mm (37.8 in)

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Other Features

Immobiliser
Yes
Central Locking
Yes

Safety Testing

General
Test Year
1997
Adult Occupant
2/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Engine Compartment, Front Panel
Yes
Left Side Casing of Window
Yes

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H3
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAZ15d (P21/4W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
SV8.5 (C10W)
License Plate Light
SV8.5 (C5W)
