1997 Volvo V70

SwedenGasolineFWDWagon

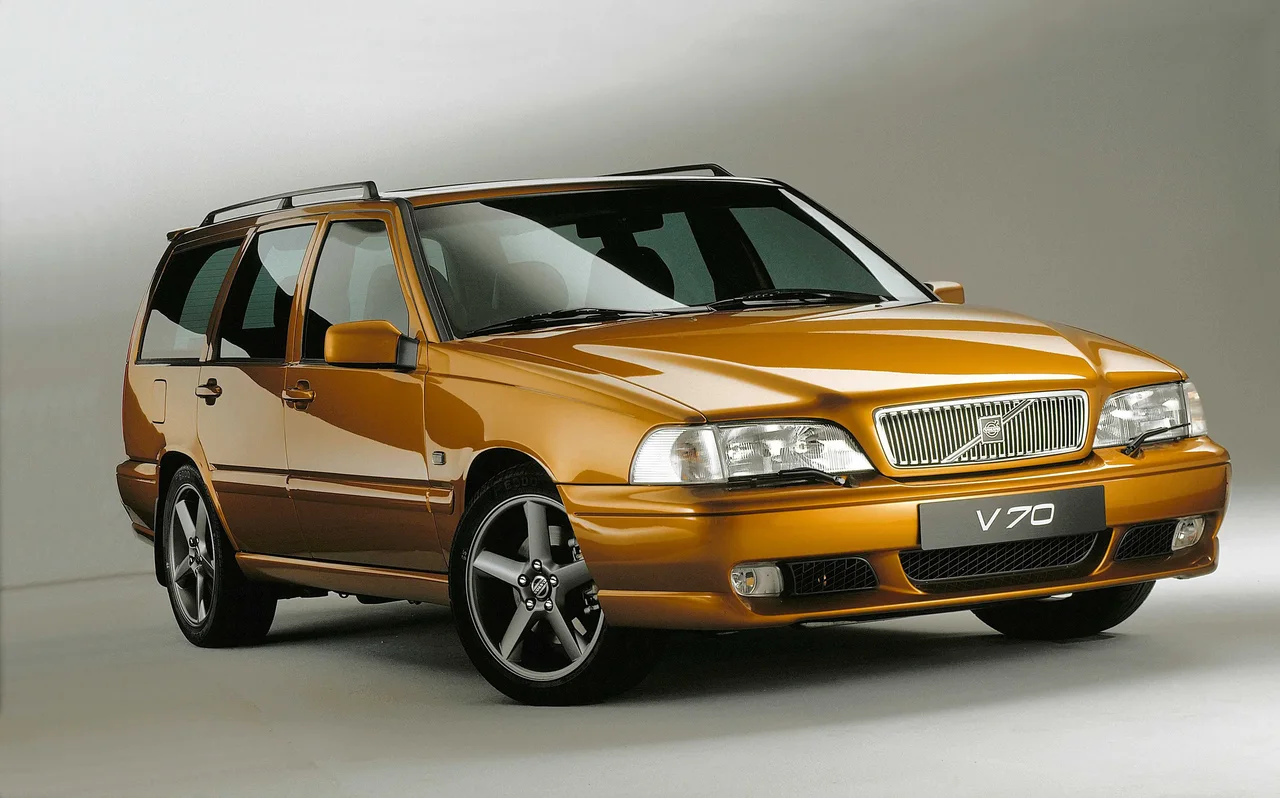

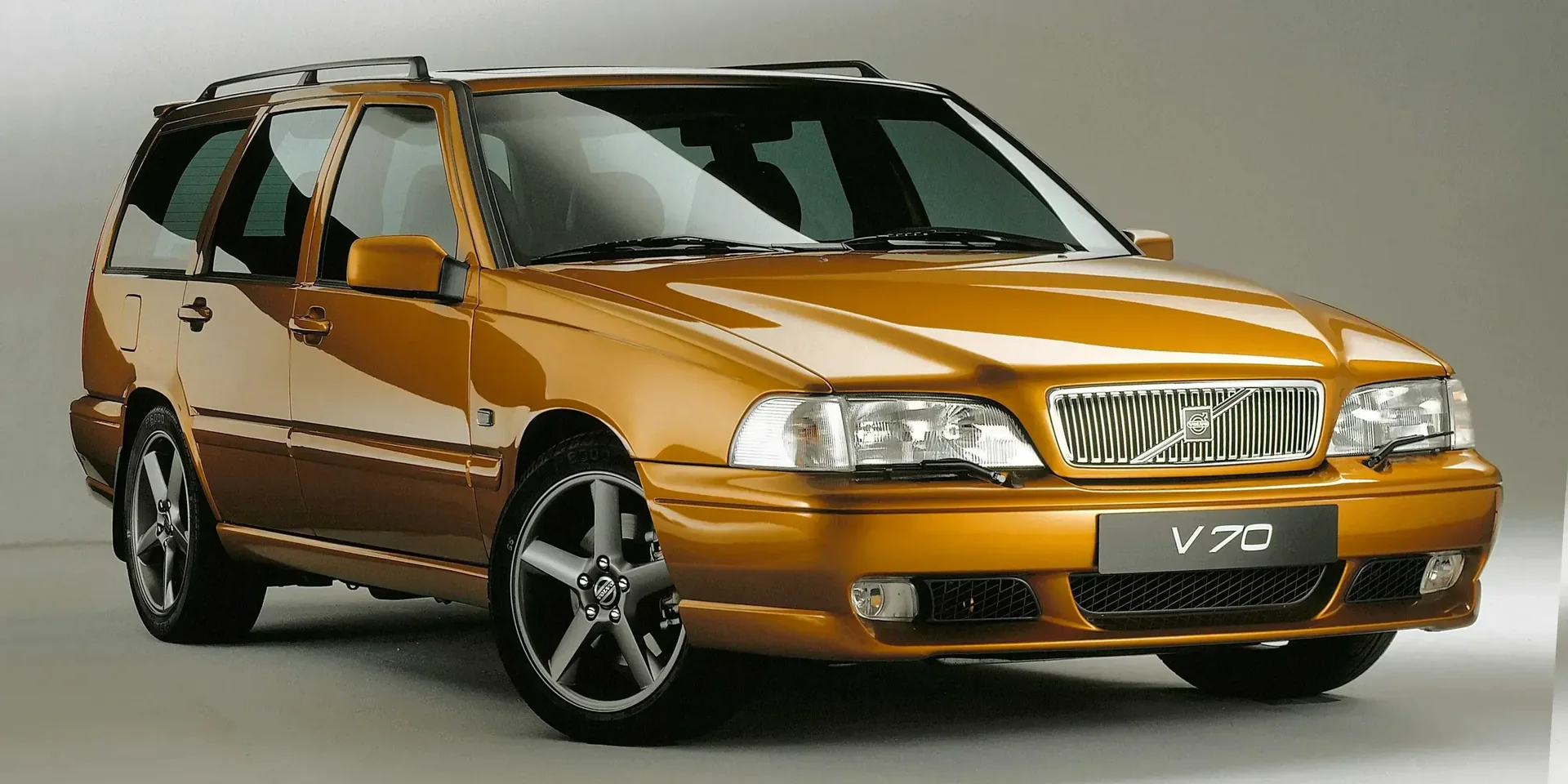

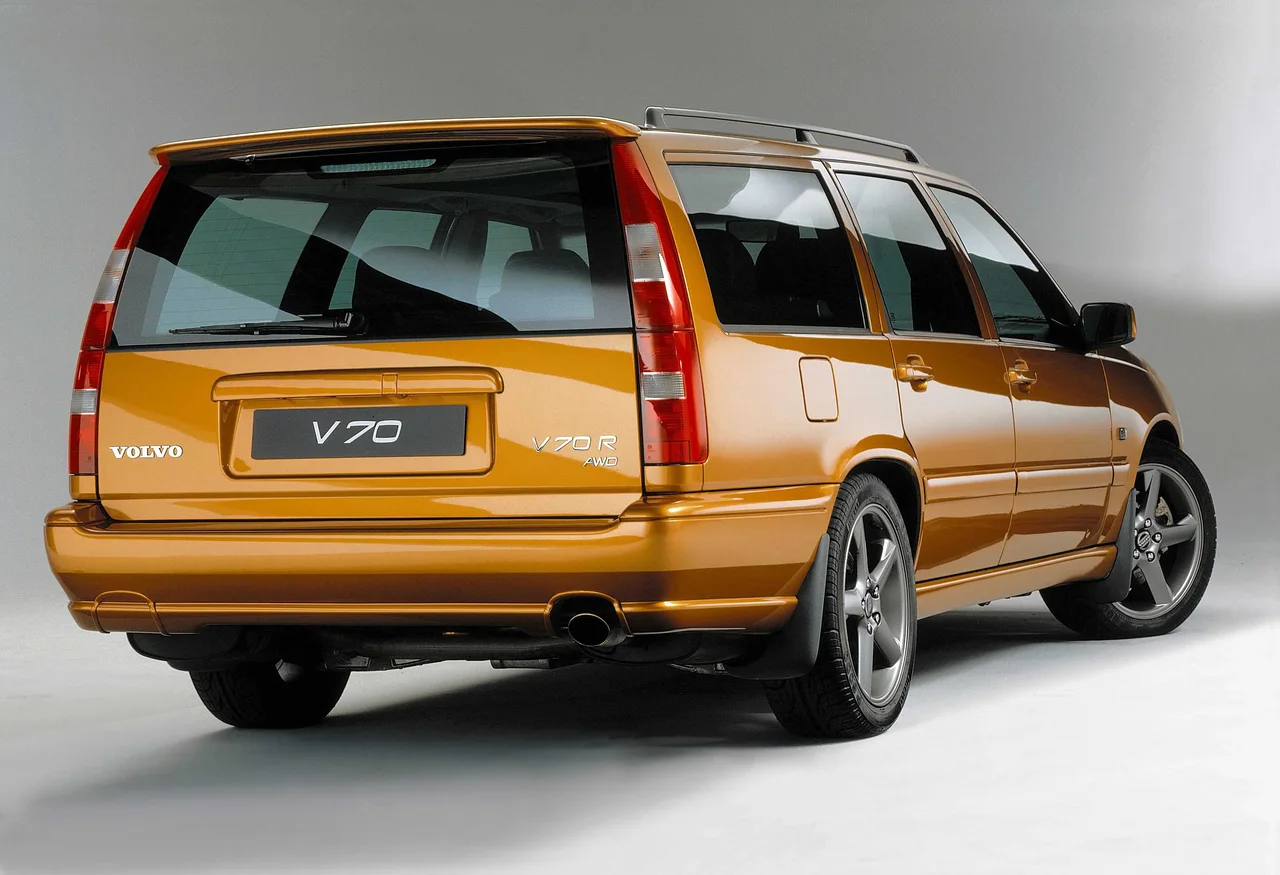

Photos

Specifications

Vehicle Details

Year
1997
Make
Volvo
Model
V70
Body Style
Wagon
Generation
LW
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name
R Automatic
Engine Configuration
Inline
Power (hp)
240 hp
Power (kW)
176 kW
Torque
330 Nm (243 lb-ft)
Top speed
235 km/h (146 mph)
0–60 mph
7.0 seconds (estimated)
0–100 km/h
7.3 seconds
Displacement
2,319 cc

Dimensions

Length
4,729 mm (186.2 in)
Width
1,760 mm (69.3 in)
Height
1,410 mm (55.5 in)
Wheelbase
2,665 mm (104.9 in)
Curb weight
1,506 kg (3,320 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 rpm
Rev. at Max Torque
2,400 - 5,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 15W-40
Engine Oil, Volume
5.8 litres
Engine Coolant, Volume
7 litres
Car Battery
Voltage
12 V
Cold Start Power
420 - 520 A
Alternator Charge Current
100 A
Alternator Voltage
14 V
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
90 mm (3.5 in)
Compression Ratio
8.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
112,000 km (69,594 mi)
Air Filter
48,000 km (29,826 mi)
Fuel Filter
160,000 km (99,419 mi)
Spark Plug
48,000 km (29,826 mi)
Brake Fluid
48,000 km / 2 years
Oil Change & Engine Filter
8,000 km / 1 years
Interior Filter
32,000 km (19,884 mi)

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 4-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
3.61 :1
2nd Gear
2.06 :1
3rd Gear
1.37 :1
4th Gear
0.98 :1
Final Drive
2.56 :1
Reverse
3.95 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Diameter
302 mm (11.9 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
295 mm (11.6 in)
Width
9.6 mm (0.4 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Strut Bar
Optional
Anti-roll Bar
Yes
Sports Suspension
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Yes
Strut Bar
Front
Optional
Anti-roll Bar
Front
20 - 21 mm (0.8 - 0.8 in)
Rear
19.5 - 22 mm (0.8 - 0.9 in)

Fuel

General
Tank Volume
70 litres
Lockable Fuel Cap
Optional
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Emission › Emission Control
Secondary Air Injection
Optional
Fuel Consumption NEDC
City
16.8 litres / 100 km
Highway
8.5 litres / 100 km
Combined
11.5 litres / 100 km

Performance

Braking
100-0 km/h
43.3 m
Drag Coefficient
0.32

Dimensions & Weight

Exterior

Track, Front
1,520 mm (59.8 in)
Track, Rear
1,468 mm (57.8 in)
Turning Circle
10.6 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
990 mm (39.0 in)
Head Room, Rear
960 mm (37.8 in)
Shoulder Room, Front
1,400 mm (55.1 in)
Shoulder Room, Rear
1,450 mm (57.1 in)

Weight

Gross Weight
1,970 - 2,020 kg (4,343 - 4,453 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
415 - 514 kg (915 - 1,133 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,070 kg (2,359 lb)
Permitted Axle Load, rear
1,010 kg (2,227 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Sides
Mid-Strip
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volvo
P80

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
House Colour
Same as Car
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
3 - 4.5 litres
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Sun Visors
Optional
Tinted Windows
  • Windscreen, upper part
  • Front
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Window Lifts, Features
One-touch up/down
Driver
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
  • Openable (Electric)
  • Pop-up
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Roof Railing
Optional
Spoiler
Fixed
Antenna
Glass-integrated
Windblocker
Optional
Mud Flaps
Optional
Other Equipment › Sunroof
Material
Glass
Shading
Sun Blind
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes
Special Features
  • Headlight Wipers
  • Headlight Washers
Fog Lights
Front
Halogen
Rear
Halogen
Spot Light
Optional

Colour

Door Handles
Same as Car

Rims & Tires

Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
110 Nm
Rim Material
Aluminium
Rim Colour
Grey
Rim Type
Disc Wheel
Spare Wheel
Yes
Spare Wheel
Full-size
Optional
Temporary
Optional
Spare Wheel › Full-size
Aluminium
Optional
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Optional
Pollen Filter
Optional
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
  • Buttons
  • Faders
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
750 g
Connectivity
Radio
  • AM
  • FM
  • RDS
Media Format
Cassette
Phone Preparation
Optional
Connectivity › Media Format
CD
Multiple CD Changer (3 - 10 pcs)
Displays
Center Display
Optional
Equalizer
Yes
Speakers
Total Number of Speakers
8 pcs
Tweeters
4 pcs
Midrange Speakers
4 pcs
Speaker Brand
Dynaudio
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Footwell (Front)
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
4
Material
  • Alcantara
  • Leather
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Second Trunk Compartment
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
750 litres
Volume, Back Seat Collapsed
1,580 litres
Depth
1,040 mm (40.9 in)
Depth, Back Seat Collapsed
1,810 mm (71.3 in)
Depth, Passenger Seat Collapsed
2,930 mm (115.4 in)
Opening Width
1,200 mm (47.2 in)
Height
800 mm (31.5 in)
Sill Height
590 mm (23.2 in)
Cover
Sliding
Optional
Cover › Sliding
Manual
Optional
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Material
Plastic
Accent
Aluminium
Entry Guard Material
Stainless steel
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Powered
Lumbar Support
Manual
Front Seats
Number of Driver Seat Adjustments, Powered
8
Number of Driver Seat Adjustments, Total
8
Number of Passenger Seat Adjustments, Powered
8
Number of Passenger Seat Adjustments, Total
8
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Powered
Lumbar Support
Manual
Collapsible
Yes
Front Seats › Power Seat, Driver
User Memory
3 slots
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Yes
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Upholstery
  • Alcantara
  • Leather
Stitching Colour
Silver

Features

Comfort Features

Cruise Control
Yes
Parking Heater
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

GPS
Optional
GPS
CD
Optional

Accessories

Tool Kit and Jack
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Portable Cooling Box
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Three-channel (Four-sensors)
Traction Control System (TCS)
Optional
Electronic Brakeforce Distribution (EBD)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote (Panic Button)
Child Safety Locks
Manual
Number of Remote Keys
1
Number of Standard Keys
2
Total Number of Keys
2
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Towing Protection
Yes
Back-up Horn
Yes
Glass Break Sensor
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Child Protection

Integrated Child Seat
  • Passenger: -
  • Rear: Optional

Other

Identification

VIN Location
Engine Compartment, Front Panel
Yes
Left Side Casing of Window
Yes
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Media Center, Low

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Similar wagons

Suggested vehicles
