1998–2002

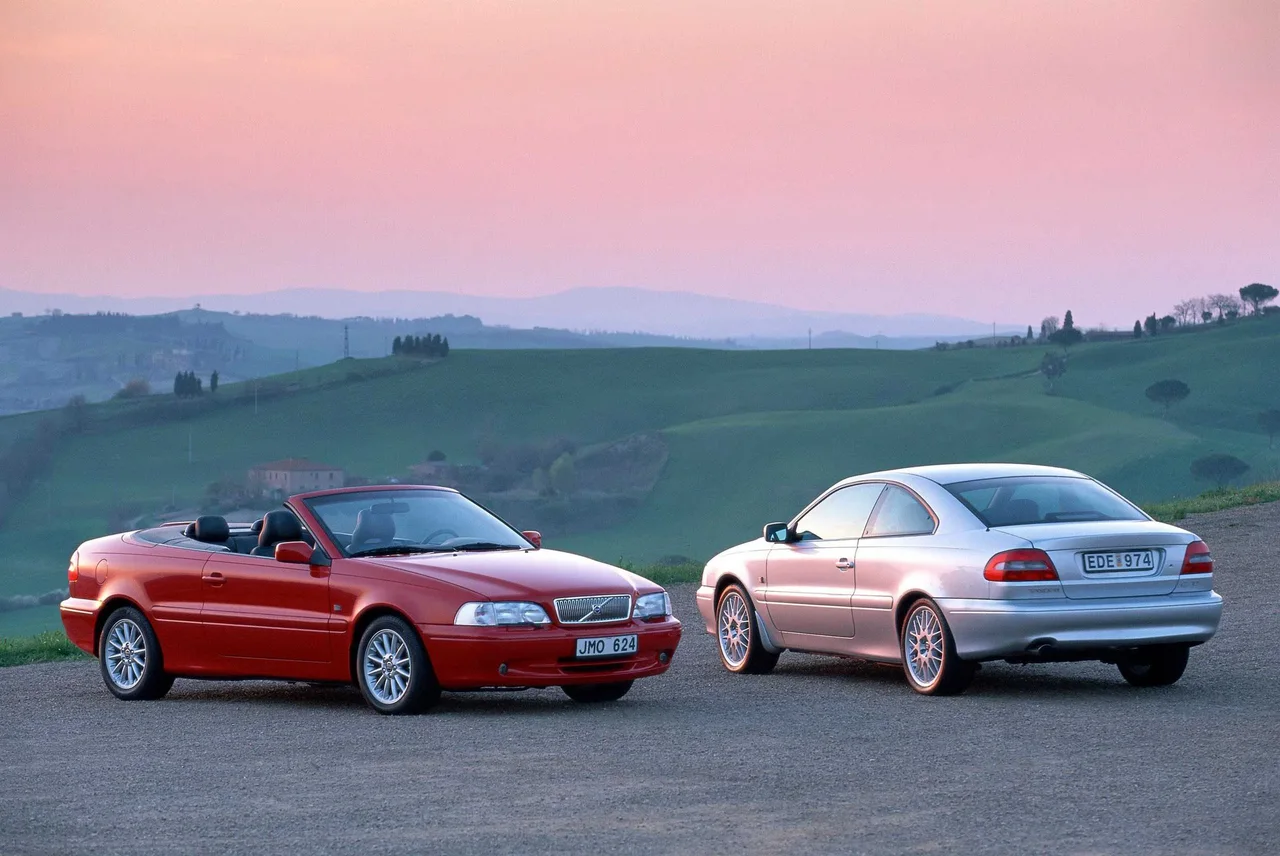

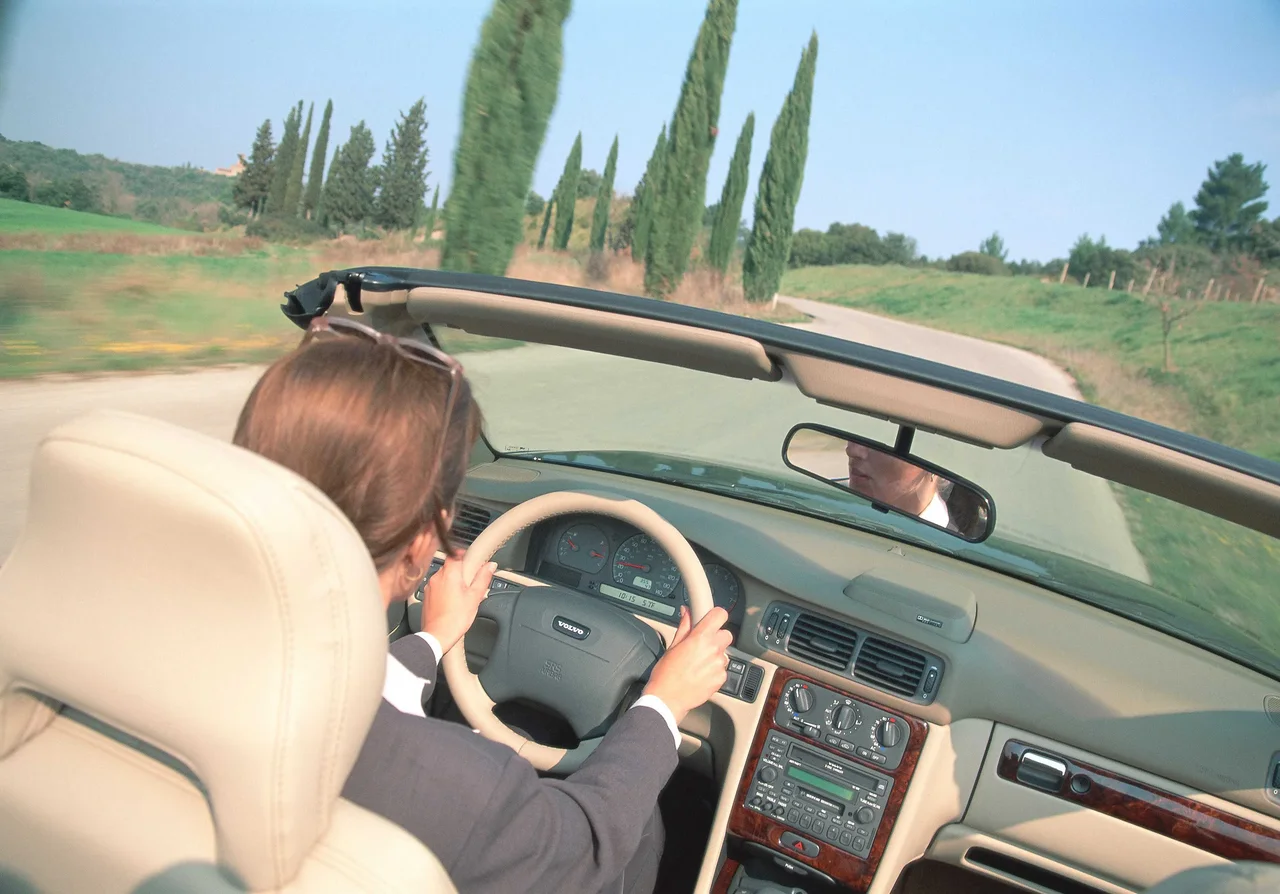

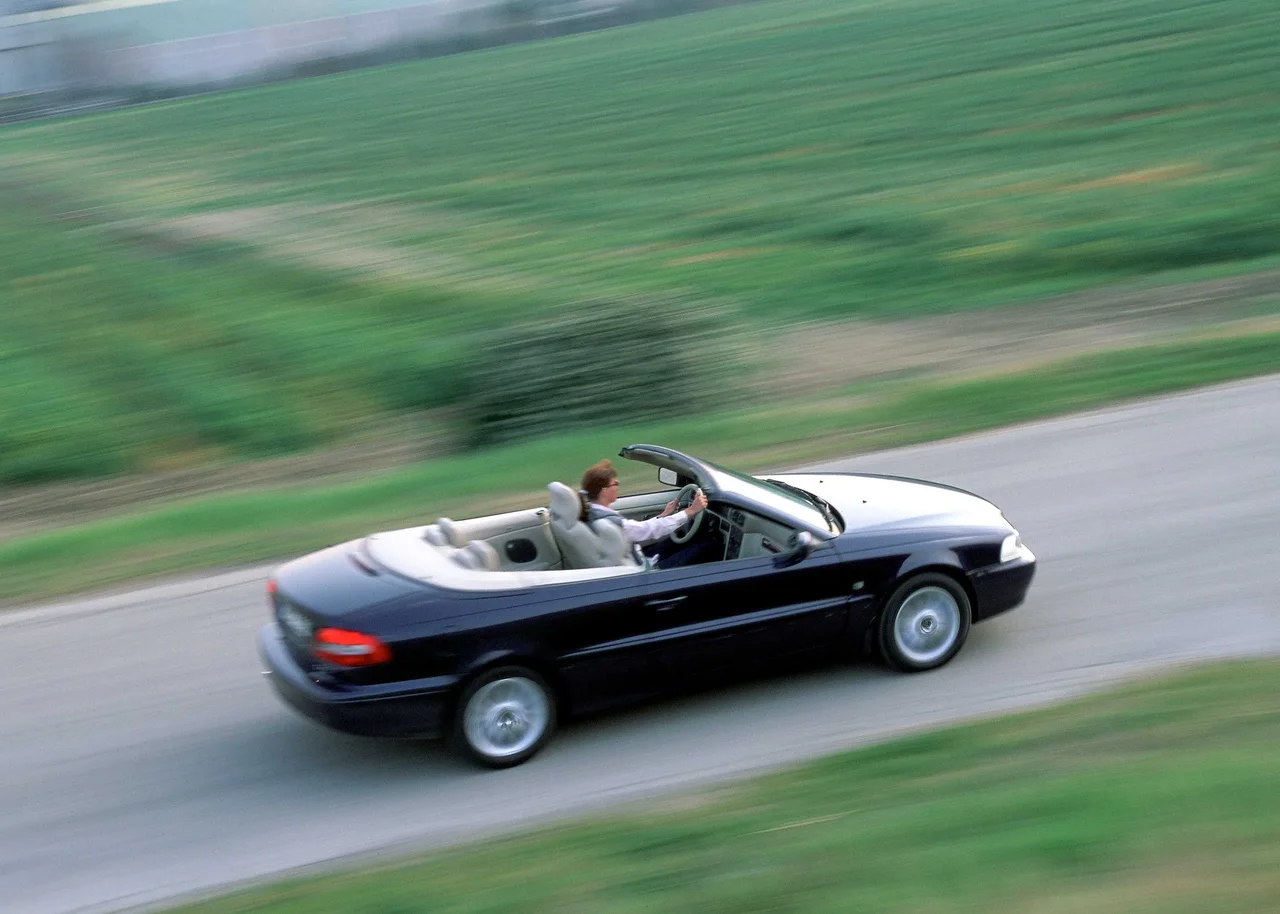

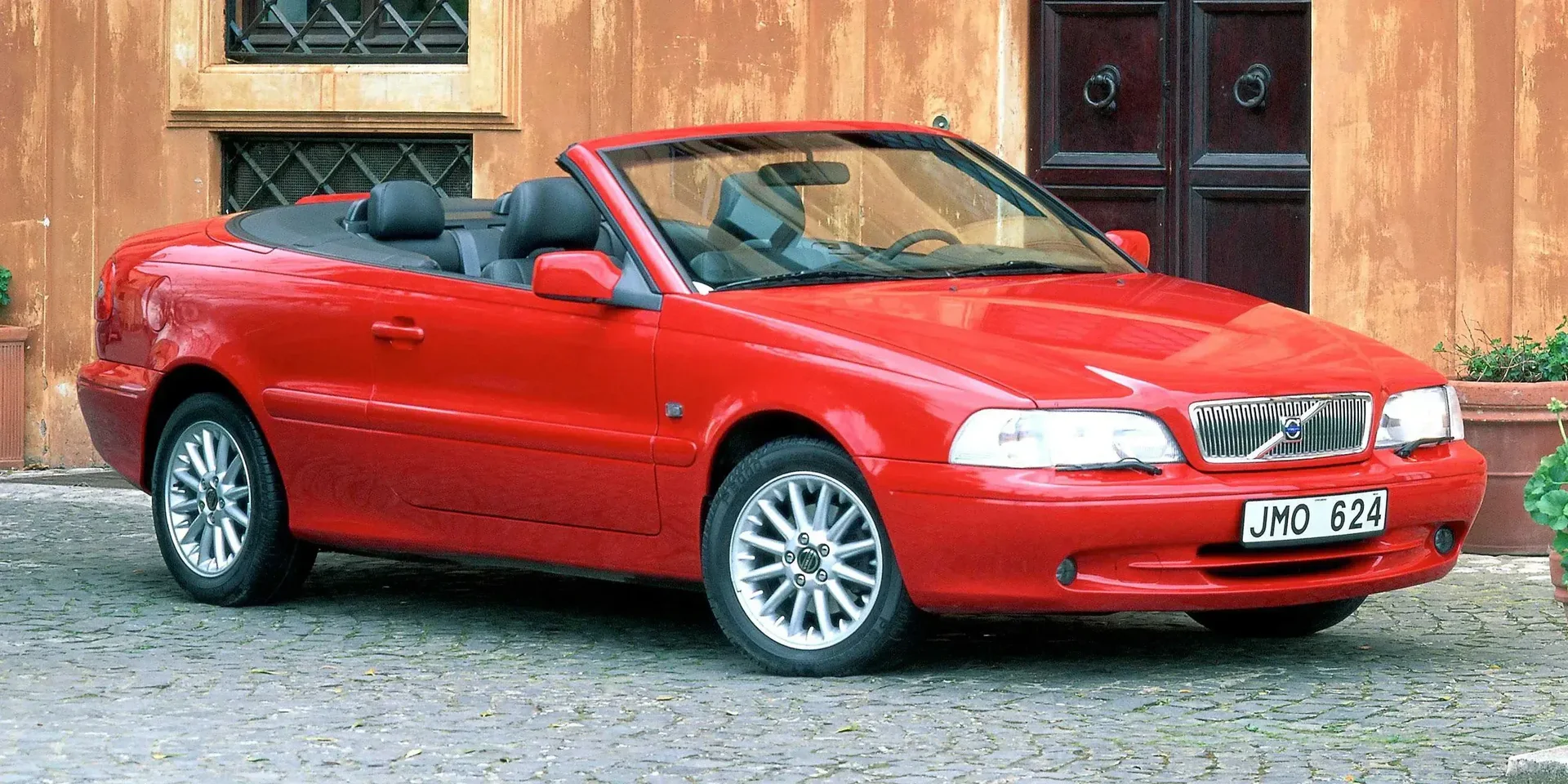

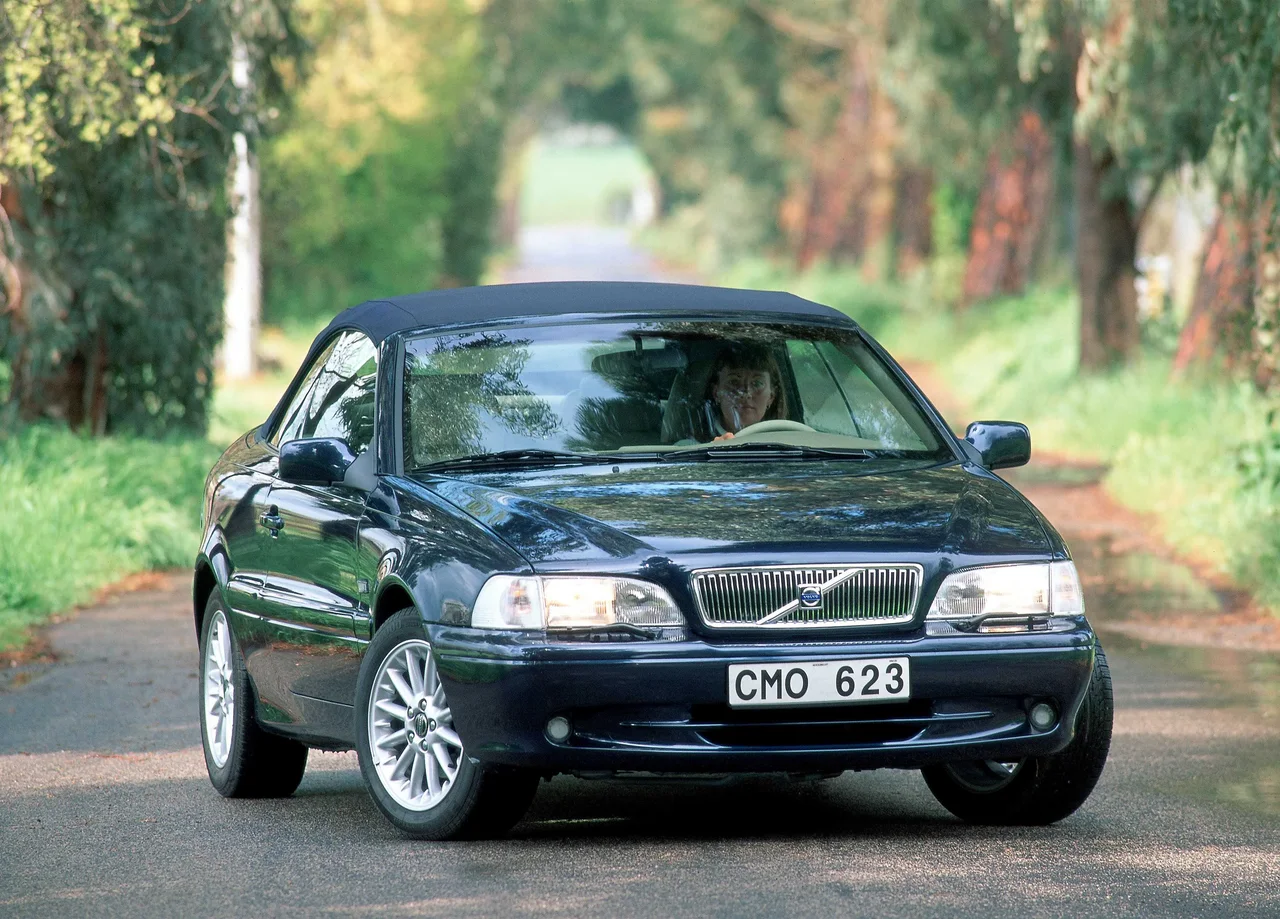

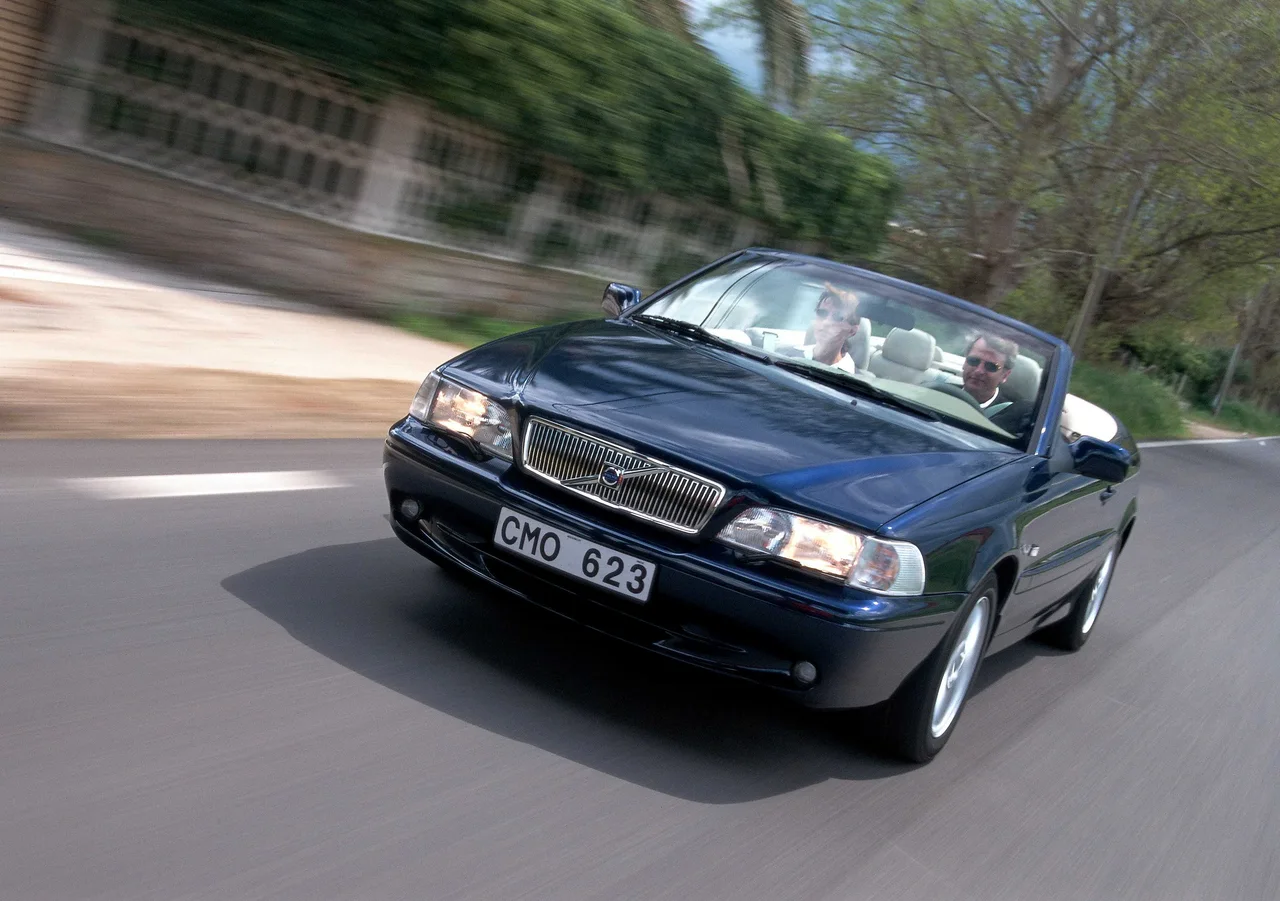

Photos
Specifications
Vehicle Details
- Year
- 1998
- Make
- Volvo
- Model
- C70
- Body Style
- Convertible
- Generation
- NC/NK
- Seats
- 4
- Doors
- 2
- Fuel
- Gasoline
- Drivetrain
- FWD
- Transmission
- Automatic Electrohydraulic
- Manual, 4
- 5-speed
Powertrain
- Engine Name
- 2.5 T
- Engine Configuration
- Inline
- Power (hp)
- 193 hp
- Power (kW)
- 142 kW
- Torque
- 270 Nm (199 lb-ft)
- Top speed
- 210 km/h (130 mph)
- 0–60 mph
- 8.1 seconds (estimated)
- 0–100 km/h
- 8.5 seconds
- Displacement
- 2,435 cc
Dimensions
- Length
- 4,716 mm (185.7 in)
- Width
- 1,817 mm (71.5 in)
- Height
- 1,429 mm (56.3 in)
- Wheelbase
- 2,664 mm (104.9 in)
- Curb weight
- 1,557 kg (3,433 lb)
Engine
Engine Specification
- Rev. at Max Power
- 5,100 rpm
- Rev. at Max Torque
- 1,800 - 5,000 rpm
- Redline
- 6,200 rpm
Engine Fluids
- Synthetic Oil (viscosity)
- 5W-30
- 5W-40
- 10W-30
- Engine Oil, Volume
- 5.8 litres
- Transmission Fluid, Volume
- 2.1 – 7.6 litres
- Engine Coolant, Volume
- 7 litres
Car Battery
- Voltage
- 12 V
- Cold Start Power
- 420 - 520 A
- Alternator Charge Current
- 100 A
- Alternator Voltage
- 14 V
Engine Configuration
- Bore
- 83 mm (3.3 in)
- Stroke
- 90 mm (3.5 in)
- Compression Ratio
- 9 :1
- Engine Configuration
- Inline
- Turbocharger
- Single-turbo
- Synchronization
- Timing Belt
- Engine Placement
- Front
- Engine Mount
- Transversally
- Type of Combustion Engine
- Piston
- Fuel System
- Electronic (Multi-Point) Fuel Injection
- Camshaft Type
- DOHC
- Engine Block
- Aluminium
- Engine Heads
- Aluminium
- Engine Cooling
- Liquid Cooling
Service Intervals
- Timing Interval
- 112,000 km (69,594 mi)
- Air Filter
- 48,000 km (29,826 mi)
- Fuel Filter
- 160,000 km (99,419 mi)
- Spark Plug
- 48,000 km (29,826 mi)
- Brake Fluid
- 2 years
- Engine Coolant
- 8,000 km / 1 years
- Interior Filter
- 32,000 km (19,884 mi)
- Accessory Belt
- 96,000 km (59,652 mi)
Transmission & Drivetrain
- Transmission
- Automatic Electrohydraulic
- Manual, 4
- 5-speed
- Gear Selector
- Stick
- Gear Selector Location
- Mid-Console
Gear Ratio
- 1st Gear
- 3.07 – 3.61 :1
- 2nd Gear
- 1.77 – 2.06 :1
- 3rd Gear
- 1.19 – 1.37 :1
- 4th Gear
- 0.87 – 0.98 :1
- 5th Gear
- 0.7 :1
- Final Drive
- 2.56 – 4 :1
- Reverse
- 2.99 – 3.95 :1
Brakes
Parking Brake
- Manual
- Lever
Parking Brake › Manual
- Material
- Plastic
- Leather
- Optional
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
- Brakes Material
- Steel
Front Brakes
- Diameter
- 280 mm (11.0 in)
- Width
- 26 mm (1.0 in)
- Cooling
- Ventilated
Rear Brakes
- Diameter
- 295 mm (11.6 in)
- Width
- 9.6 mm (0.4 in)
- Cooling
- Solid
Suspensions
- Spring, Front
- Coil
- Spring, Rear
- Coil
- Strut Bar
- Optional
- Anti-roll Bar
- Yes
- Sports Suspension
- Optional
- Comfort Suspension
- Optional
Suspension, Front
- Independent
- MacPherson Strut
Suspension, Rear
- Semi-dependent
- Yes
Strut Bar
- Front
- Optional
Anti-roll Bar
- Front
- 20 mm (0.8 in)
- Rear
- 20 mm (0.8 in)
Fuel
General
- Tank Volume
- 70 litres
- Lockable Fuel Cap
- Optional
General › Fuel Cap Position
- Rear
- Right
Emission
- Emission Control
- Catalyst
- Evaporative Control System
- Exhaust Gas Recirculation
- Positive Crankcase Ventilation
Emission › Emission Control
- Secondary Air Injection
- Optional
Fuel Consumption NEDC
- City
- 13.6 – 15 litres / 100 km
- Highway
- 7.6 – 8.1 litres / 100 km
- Combined
- 9.8 – 10.6 litres / 100 km
Emission NEDC
- CO₂, Combined
- 234 – 252 g/km
Exterior
- Track, Front
- 1,521 mm (59.9 in)
- Track, Rear
- 1,521 mm (59.9 in)
- Turning Circle
- 11.7 m
- Ground Clearance
- 120 mm (4.7 in)
Interior
- Head Room, Front
- 1,000 mm (39.4 in)
- Head Room, Rear
- 990 mm (39.0 in)
- Shoulder Room, Front
- 1,410 mm (55.5 in)
- Shoulder Room, Rear
- 1,140 mm (44.9 in)
Weight
- Gross Weight
- 2010 – 2030 kg (4,431 – 4,475 lb)
- Max Trailer Load, braked 12%
- 1,600 kg (3,527 lb)
- Max Trailer Load, unbraked
- 500 kg (1,102 lb)
- Cargo Capacity
- 330 – 335 kg (728 – 739 lb)
- Max Roof Load
- 0 kg (0 lb)
- Max Towbar Download
- 75 kg (165 lb)
- Permitted Axle Load, front
- 1090 – 1110 kg (2,403 – 2,447 lb)
- Permitted Axle Load, rear
- 970 kg (2,138 lb)
Chassis & Body
Chassis
- Chassis
- Cabriolet Soft-top
- Pillars
- A
- Chassis Construction
- Unibody
- Body Material
- Steel
- Roof Material
- Textile
- Protective Moldings
- Yes
Chassis › Protective Moldings
- Sides
- Mid-Strip
Doors
- Front Doors
- Conventional
- Door Handles
- Pull-out
Platform
- Volvo
- P80
Equipment
Side Mirrors
- Mirror Type
- Conventional
- Adjustments
- Electrical
- Heated
- Yes
- House Colour
- Same as Car
- Mirror Shape, Passenger side
- Convex
Windscreen Wipers
- Number of Wiper Speeds
- 2
- Intermittent Control
- Yes
- Volume Water Tank
- 4.5 litres
- Windscreen Wipers: Connector type, Front
- Hook
Windows
- Window Lifts, Front
- Powered
- Window Lifts, Rear
- Powered (Safety Lock)
- Heated Windows
- Rear
- Frameless Windows
- First Row
- Tinted Windows
- Windscreen, upper part
- Front
- Second Row
- Safety Glass
- Yes
Windows › Window Lifts, Features
- One-touch up/down
- Driver
Windows › Safety Glass
- Front
- Laminated
- Side
- Tempered
Other Equipment
- Tow Hook
- Front
- Rear
- Antenna
- Bumper-integrated
- Whip
- Cabriolet Roof Opening
- Powered
- Windblocker
- Optional
- Mud Flaps
- Optional
Other Equipment › Mud Flaps
- Front
- Optional
- Rear
- Optional
Lights
- Main Beam
- Halogen
- Low Beam
- Halogen
- Rear Lights
- Halogen
- Fog Lights
- Yes
- Special Features
- Come Home/Leaving Lights
- Headlight Wipers
- Headlight Washers
Fog Lights
- Front
- Halogen
- Rear
- Halogen
- Spot Light
- Optional
Colour
- Door Handles
- Same as Car
Rims & Tires
- Number of Bolts
- 5 pcs
- Fastening Type
- Lug Bolts
- Anti-Theft Locking Lug Nuts/Bolts
- Optional
- Tightening Torque
- 110 Nm
- Rim Material
- Aluminium
- Rim Type
- Disc Wheel
- Spare Wheel
- Yes
Spare Wheel
- Full-size
- Optional
- Temporary
- Optional
Spare Wheel › Full-size
- Aluminium
- Optional
Equipment
Instrument Cluster
- Trip Computer
- Optional
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Analogue
- Coolant Temperature
- Analogue
- Odometer Limit
- 1,000,000 km/miles
Climate Control
- Air Condition
- Yes
- Micro Filter
- Optional
- Pollen Filter
- Yes
- Outside Temperature Indicator
- Yes
- Number of Vents, Front
- 4 pcs
- Controls
- Buttons
- Faders
- Rotary Dials
Climate Control › Air Condition
- Refrigerant
- R134A
- Refrigerant, Capacity
- 750 g
Connectivity
- Radio
- AM
- FM
- RDS
- Media Format
- Cassette
- Phone Preparation
- Optional
Connectivity › Media Format
- CD
- Yes
Displays
- Center Display
- Optional
- Equalizer
- Yes
Features
- Dynamic Volume
- Yes
Speakers
- Total Number of Speakers
- 10 - 12 pcs
- Tweeters
- 4 pcs
- Midrange Speakers
- 2 - 4 pcs
- Bass Speakers
- 4 pcs
- Speakers Max. Watt
- 240 - 400 W
- Speaker Brand
- Dynaudio
- Subwoofer
- Optional
Speakers › Subwoofer
- Number of Subwoofers
- 1 pcs
- Subwoofer Size
- 9"
Rear-view Mirror
- Adjustments
- Mechanical
- Rear-view Mirror: Mirror Type
- Standard
Interior Storage › Storage Compartments
- Glove Compartment
- Light
- Lockable
- Armrest Hatch
- Front
- Back Pocket
- Yes
- Coin Holder
- Yes
- Door
- Driver Side
- Passenger Side
Interior Storage
- Cup Holders
- Optional
Lights
- Read Light
- Front
- Rear
- Guide Light
- Footwell (Front)
Other Equipment
- Make-up Mirror
- Driver Side
- Passenger Side
- Clock
- Yes
- 12V Outlet
- Front
- Carpets
- Front
- Rear
- Ashtray
- Optional
- Cigarette Lighter
- Optional
Other Equipment › Make-up Mirror
- Make-up Light
- Driver
- Passenger
Other Equipment › Clock
- Digital
- Instrument Cluster
Other Equipment › Ashtray
- Front
- Optional
- Rear
- Optional
Steering Wheel
- Power Steering
- Hydraulic
- Adjustments
- Tilt
- Telescope
- Sport
- Optional
- Number of Spokes
- 4
- Steering Mechanism
- Rack and Pinion
Trunk
- Rear Trunk
- Yes
- Barrier Net/Grid
- Optional
- Cargo Hooks
- Yes
- Carpet
- Optional
- Hatch Through Rear Seats
- Yes
- Light
- Yes
- Hatch Opening Type
- Under Rear Window
Rear Trunk
- Volume
- 262 litres
- Sill Height
- 706 mm (27.8 in)
Carpet
- Rubber/Rug
- Optional
Design
- Interior Decor Material
- Plastic
- Entry Guard Material
- Stainless steel
- Pedals
- Standard
Seats
Front Seats › Adjustments, Driver
- Seat Depth
- Yes
- Seat Height
- Yes
- Cushion Tilt
- Yes
- Backrest Angle
- Yes
- Lumbar Support
- Manual
Front Seats
- Number of Driver Seat Adjustments, Manual
- 8
- Number of Driver Seat Adjustments, Powered
- 8
- Number of Driver Seat Adjustments, Total
- 8
- Number of Passenger Seat Adjustments, Manual
- 8
- Number of Passenger Seat Adjustments, Powered
- 8
- Number of Passenger Seat Adjustments, Total
- 8
- Power Seat, Driver
- Optional
- Power Seat, Passenger
- Optional
- Heated Seats
- Optional
- Armrest
- Middle
Front Seats › Adjustments, Passenger
- Seat Depth
- Yes
- Seat Height
- Yes
- Cushion Tilt
- Yes
- Backrest Angle
- Yes
- Lumbar Support
- Manual
Front Seats › Heated Seats
- Cushion
- Optional
Front Seats › Heated Seats › Cushion
- Backrest
- Optional
Second Seat Row
- Armrest
- Yes
- Number of Seats
- 2
- Type of Seat
- Adult
Second Seat Row › Headrests
- Outer Seats
- Yes
Comfort Features
- Cruise Control
- Optional
- Parking Heater
- Optional
Parking Heater
- Cabin Heater
- Optional
Parking Heater › Cabin Heater
- Engine Heater
- Optional
- Remote
- Optional
- Timer
- Optional
Other Features
- GPS
- Optional
GPS
- CD
- Optional
Accessories
- Tool Kit and Jack
- Yes
- Fire Extinguisher
- Optional
- Warning Triangle
- Optional
- First Aid Kit
- Optional
- Bicycle Holder
- Optional
Seat Belt
Type of Belt
- Three-Point-Belt
- Front Seats
- Outer Rear Seats
- Seat Belt Colour
- Black
Feature
Driver
Passenger
Rear
Belt Pretensioner
Yes
Yes
-
Belt Load Limiter
Yes
-
-
Assist Systems
- Electronic Stability Control (ESC)
- Optional
Brake Systems
- Power Brakes
- Yes
- Anti-lock Braking System (ABS)
- Three-channel (Four-sensors)
- Traction Control System (TCS)
- Optional
- Electronic Brakeforce Distribution (EBD)
- Yes
Sensors
- Parking Sensors
- Optional
Parking Sensors
- Rear
- Optional
Other Features
- Immobiliser
- Yes
- Anti-theft Alarm
- Optional
- Central Locking
- Yes
- Number of Remote Keys
- 1
- Number of Standard Keys
- 2
- Total Number of Keys
- 2
Immobiliser
- Electronic
- Yes
Central Locking
- Remote
- Optional
Airbags
Feature
Driver
Passenger
Rear
Frontal Airbag
Yes
Optional
-
Side Chest Airbag
Yes
Yes
-
Identification
VIN Location
- Engine Compartment, Inner Wing
- Left
- Left Side Casing of Window
- Yes
- On-board Diagnostic, Port Type
- OBD-II
- On-board Diagnostic, Port Location
- Media Center, Low
Car Classification
- American Classification
- Convertible
- British Classification
- Convertible
- Australian Classification
- Sports Car
- European Segment
- S-Segment
- Car.info Classification
- Sports Car
Production
Statistics
- Production Number (Series)
- 83,597
Statistics › Production Number (Year)
- 1997
- 554
- 1998
- 4,440
- 1999
- 7,715
- 2000
- 9,306
- 2001
- 5,937
- 2002
- 3,344
- 2003
- 10,237
- 2004
- 7,119
- 2005
- 1,622
- 2006
- 15,017
- 2007
- 20,306
- 2008
- 14,381
- 2009
- 9,124
- 2010
- 9,532
- 2011
- 8,029
- 2012
- 5,758
- 2013
- 959
- 2014
- 12
- 2015
- 1
Similar convertibles
Suggested vehicles
1996–2000
1996 Mercedes-Benz SLK-Class SLK
2000
2000 Lotus 340R
1994–1998
1996 Ford Mustang GT
1999–2003
1999 Honda S2000
1994–1997
1994 Marcos LM
1996–1999
1996 Chevrolet Cavalier Z24
1999–2004
1999 Roush Mustang Stage
2000–2007
2000 Toyota MR2
1999–2004
1999 Saleen Mustang
1992–1998
1992 Marcos Mantara
2003–2005
