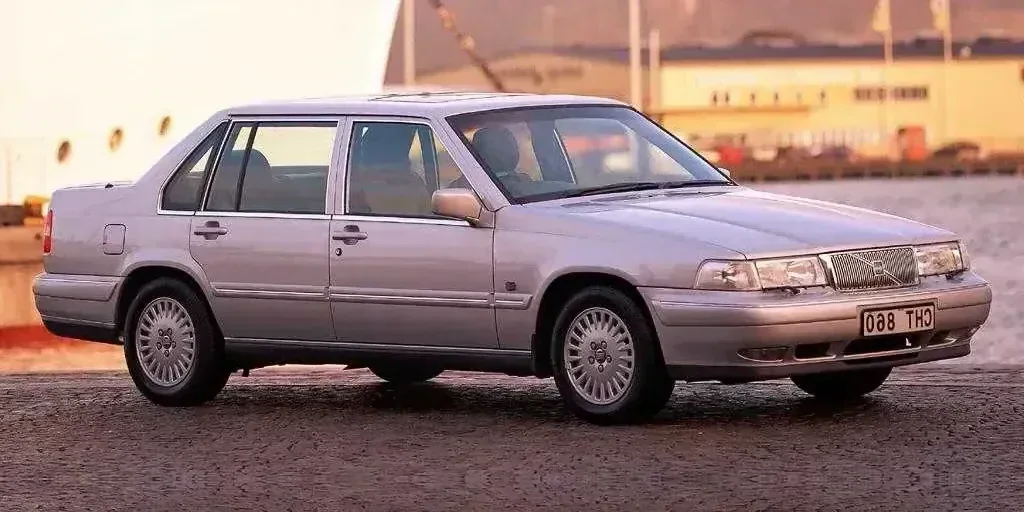

1998 Volvo S90

SwedenGasolineRWDSedan

Photos

Specifications

Vehicle Details

Year
1998
Make
Volvo
Model
S90
Body Style
Sedan
Generation
1st Generation (KS)
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic Electrohydraulic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
3.0
Engine Configuration
Inline
Power (hp)
180 hp
Power (kW)
132 kW
Torque
260 Nm (192 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
8.6 seconds (estimated)
0–100 km/h
9 seconds
Displacement
2,922 cc

Dimensions

Length
4,871 mm (191.8 in)
Width
1,750 mm (68.9 in)
Height
1,410 mm (55.5 in)
Wheelbase
2,770 mm (109.1 in)
Curb weight
1,560 kg (3,439 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,200 rpm
Rev. at Max Torque
4,350 rpm
Redline
6,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 15W-40
Engine Oil, Volume
5.75 litres
Transmission Fluid, Volume
1.75 – 7.5 litres
Engine Coolant, Volume
10 litres
Car Battery
Voltage
12 V
Cold Start Power
520 - 600 A
Alternator Charge Current
120 A
Alternator Voltage
14 V
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
10.7 :1
Engine Configuration
Inline
Naturally Aspirated
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
112,000 km (69,594 mi)
Air Filter
48,000 km (29,826 mi)
Fuel Filter
160,000 km (99,419 mi)
Spark Plug
48,000 km (29,826 mi)
Brake Fluid
48,000 km / 2 years
Oil Change & Engine Filter
16,000 km / 3 years
Interior Filter
24,000 km (14,913 mi)
Accessory Belt
96,000 km (59,652 mi)

Transmission & Drivetrain

Transmission
  • Automatic Electrohydraulic
  • Manual, 4
  • 5-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
2.8 – 3.54 :1
2nd Gear
1.53 – 2.05 :1
3rd Gear
1 – 1.38 :1
4th Gear
0.75 – 1 :1
5th Gear
0.81 :1
Final Drive
3.73 – 3.91 :1
Reverse
2.39 – 3.45 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Diameter
280 mm (11.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link
Anti-roll Bar
Front
23 mm (0.9 in)
Rear
18 mm (0.7 in)

Fuel

General
Tank Volume
80 litres
Lockable Fuel Cap
Optional
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
16.1 litres / 100 km
Highway
8 litres / 100 km
Combined
11 litres / 100 km
Emission NEDC
CO₂, Combined
263 g/km

Performance

Drag Coefficient
0.36

Dimensions & Weight

Exterior

Track, Front
1,502 mm (59.1 in)
Track, Rear
1,515 mm (59.6 in)
Turning Circle
9.7 m

Interior

Head Room, Front
980 mm (38.6 in)
Head Room, Rear
950 mm (37.4 in)

Weight

Gross Weight
2,020 - 2,100 kg (4,453 - 4,630 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Cargo Capacity
460 kg (1,014 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
980 kg (2,161 lb)
Permitted Axle Load, rear
1,150 kg (2,535 lb)
Weight Distribution, front
53 %
Weight Distribution, rear
47 %

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Mid-Strip
Rear
Mid-Strip
Sides
Mid-Strip
Colour
Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Trigger

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Optional
House Colour
Same as Car
Mirror Shape, Driver side
Flat
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
2 litres
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Sun Visors
Optional
Tinted Windows
  • Windscreen, upper part
  • Front
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Window Lifts, Features
One-touch up/down
Driver
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Spoiler
Optional
Antenna
Whip
Number of Exhaust Pipes
1
Windblocker
Optional
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Spoiler
Fixed
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Special Features
  • Headlight Wipers
  • Headlight Washers
Fog Lights
Rear
Halogen

Colour

Accent
Chrome
Door Handles
Same as Car

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
65.1
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Rim Material
Aluminium
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Temporary

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Climate Control
Automatic
Number of Climate Zones
1
Air Condition
Yes
Outside Temperature Indicator
Optional
Number of Vents, Front
4 pcs
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
900 g
Connectivity
Radio
  • AM
  • FM
  • RDS
Media Format
Cassette
Connectivity › Media Format
CD
Yes
Displays
Equalizer
Yes
Features
Dynamic Volume
Yes
Speakers
Total Number of Speakers
8 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Manual
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Coin Holder
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Footwell (Front)
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Analogue
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Power Steering
Hydraulic
Adjustments
Tilt
Sport
Optional
Number of Spokes
4
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Carpet
Optional
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
475 litres
Sill Height
680 mm (26.8 in)
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Material
Plastic
Accent
Wood
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Powered
Lumbar Support
Manual
Front Seats
Number of Driver Seat Adjustments, Powered
8
Number of Driver Seat Adjustments, Total
8
Number of Passenger Seat Adjustments, Powered
8
Number of Passenger Seat Adjustments, Total
8
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Powered
Lumbar Support
Manual
Front Seats › Power Seat, Driver
User Memory
3 slots
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row › Headrests
Outer Seats
Yes
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Cruise Control
Yes
Parking Heater
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Timer
Optional

Accessories

Tool Kit and Jack
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Bicycle Holder
Optional
Portable Cooling Box
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Automatic Belt
Yes
Seat Belt Colour
Black
Feature
Belt Pretensioner
Belt Load Limiter

Brake Systems

Anti-lock Braking System (ABS)
Three-channel (Three-sensors)
Differential Lock
Limited Slip Differential (LSD)

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes
Child Safety Locks
Manual
Number of Remote Keys
1
Number of Standard Keys
3
Total Number of Keys
3
Immobiliser
Electronic
Yes
Anti-theft Alarm
Towing Protection
Yes
Back-up Horn
Yes
Glass Break Sensor
Yes
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Child Protection

Integrated Child Seat
  • Passenger: -
  • Rear: Optional

Other

Car Classification

American Classification
Mid-Size Luxury Car
British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Production

Statistics › Production Number (Year)
2016
7,383
2017
46,602
2018
57,142

Similar sedans

Suggested vehicles
