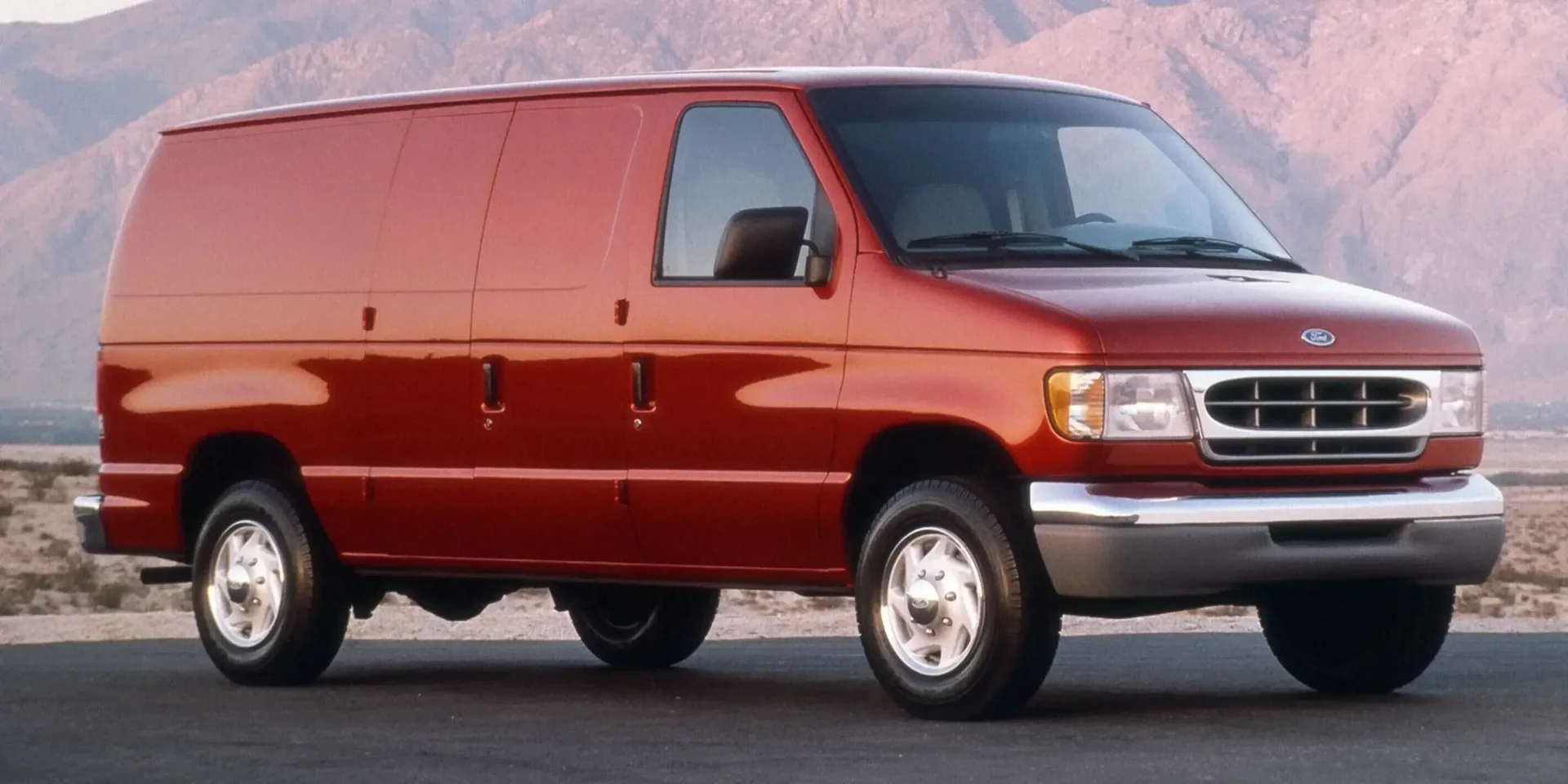

1999 Ford Econoline E-150

United StatesGasolineRWDLCV

Specifications

Vehicle Details

Year
1999
Make
Ford
Model
Econoline
Variant
E-150
Body Style
LCV
Generation
4th Generation Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name
5.4 V8 SEFI 2V Automatic
Engine Configuration
V
Power (hp)
238 hp
Power (kW)
175 kW
Torque
454 Nm (335 lb-ft)
Displacement
5,409 cc

Dimensions

Width
2,014 mm (79.3 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,250 rpm
Rev. at Max Torque
3,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
27.4 litres
Engine Fluids › Engine Coolant
IAT
  • Motorcraft Premium Concentrated (green)
  • Motorcraft Premium Prediluted (green)
Car Battery
Voltage
12 V
Battery Capacity
72 - 78 Ah
Cold Start Power
750 A
Secondary Battery
Optional
Alternator Charge Current
95 - 115 A
Alternator Voltage
14 V
Engine Configuration
Bore
90.2 mm (3.6 in)
Stroke
105.8 mm (4.2 in)
Compression Ratio
9 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 4-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Overdrive
Yes
Gear Ratio
1st Gear
2.84 :1
2nd Gear
1.55 :1
3rd Gear
1 :1
4th Gear
0.7 :1
Final Drive
3.55 :1
Reverse
2.33 :1

Fuel

General
Tank Volume
132 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
328 mm (12.9 in)
Rear Brakes
Diameter
280 mm (11.0 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
25.4 mm (1.0 in)

Dimensions & Weight

Exterior

Track, Front
1,763 mm (69.4 in)
Track, Rear
1,689 mm (66.5 in)
Overhang, Front
765 mm (30.1 in)
Approach Angle
24.4 °
Departure Angle
13.4 °
Ground Clearance
180 mm (7.1 in)

Interior

Head Room, Front
1,080 mm (42.5 in)
Leg Room, Front
1,016 mm (40.0 in)
Hip Room, Front
1,666 mm (65.6 in)
Shoulder Room, Front
1,737 mm (68.4 in)

Weight

Gross Weight
3,266 kg (7,200 lb)
Max Trailer Load, braked 12%
2,948 kg (6,499 lb)
Gross Train Weight
5,216 kg (11,499 lb)
Cargo Capacity
982 kg (2,165 lb)
Max Towbar Download
277 kg (611 lb)

LCV Specific

General
Version
  • L1H1
  • L1H2
Dimensions › Length
L1
5,382 mm (211.9 in)
Dimensions › Wheel Base
L1
3,505 mm (138.0 in)
Dimensions › Overhang, Rear
L1
1,113 mm (43.8 in)
Dimensions › Turning Circle
L1
14.81 m
Side Door › Side Door Height
H1
1,227 mm (48.3 in)
Side Door › Side Door Width
L1
1,382 mm (54.4 in)
Side Door › Ground to Door Height
L1H1
683 mm (26.9 in)
Rear Doors › Rear Doors Height
L1H1
1,257 mm (49.5 in)
Rear Doors
Rear Doors Width
1,369 mm (53.9 in)
Rear Doors › Sill Height
L1H1
683 mm (26.9 in)
Cargo Space › Cargo Volume
L1H1
7,263 litres
Cargo Space › Depth
L1
3,058 mm (120.4 in)
Cargo Space › Height
H1
1,334 mm (52.5 in)
Cargo Space › Space Width, Between Wheel Arches
L1
1,303 mm (51.3 in)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Minibus)
Pillars
A-D
Chassis Construction
Body-on-Frame (Ladder Frame)
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
  • Sliding Right
  • Dual Swing-out
Door Handles
Pull-up
Platform
Ford Motor Company
VN Platform (VN58/VN127)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
House Colour
Non-painted
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
Sun Visors
Optional
Tinted Windows
Optional
Rear Windows, Pop-out
Optional
Windows › Heated Windows
Rear
Optional
Windows › Heat-Insulating Windows
Second Row
Optional
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Rear Windows, Pop-out
Manual
Optional
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Special Features
Headlight Range Adjustment
Manual

Colour

Door Handles
Non-painted

Rims & Tires

Fastening Type
Lug Nuts
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Climate Control
Manual
Air Condition
Yes
Number of Vents, Front
4 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
1,247 g
Connectivity
Radio
  • AM
  • FM
  • RDS
TV Receiver
Optional
Connectivity › Media Format
CD
Yes
Cassette
Optional
Displays
Entertainment Screens
Optional
Equalizer
Optional
Displays › Entertainment Screens
Middle of Roof
Optional
Speakers
Total Number of Speakers
4 - 6 pcs
Rear-view Mirror
Anti-glare
Manual
Compass
Optional
Oustide Temperature
Optional
Interior Storage › Storage Compartments
Armrest Hatch
Optional
Fridge
Optional
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Ambient Light
Optional
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
12V Outlet
  • Front
  • Rear
110V Outlet
Optional
Carpets
Optional
Ashtray
  • Front (Retractable)
  • Rear
Cigarette Lighter
Yes
Other Equipment › 110V Outlet
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Adjustments
Tilt
Number of Spokes
2
Colour
Black
Steering Ratio
17 :1
Steering Mechanism
Recirculating Ball
Multifunction Steering Wheel
Number of Buttons
5 pcs

Trunk

Release Button
Yes
Carpet
Rug
Light
Yes
Hatch Opening Type
Two-parted Doors

Design

Transmission Knob Material
Plastic
Entry Guard Material
Plastic
Entry Guard Material
Black
Optional
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Yes
Lumbar Support
Optional
Front Seats
Number of Driver Seat Adjustments, Manual
2 - 4
Number of Driver Seat Adjustments, Powered
8 - 10
Number of Driver Seat Adjustments, Total
10 - 12
Number of Passenger Seat Adjustments, Manual
2 - 4
Number of Passenger Seat Adjustments, Powered
8 - 10
Number of Passenger Seat Adjustments, Total
10 - 12
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Type of Seat
Comfort Seat (Driver | Passenger)
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Manual
Lumbar Support
Optional
Second Seat Row
Armrest
Yes
Type of Seat
Adult
Second Seat Row › Armrest
Massage
Optional
Powered Seats
Optional
Seat Depth
Optional
Backrest Angle
Optional
Third/Fourth Seat Row
Third Seat Row
Optional

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Optional
Speed Limiter
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Optional
Feature
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes

Other Features

Central Locking
Yes

Airbags

Frontal Airbag
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Middle

Car Classification

American Classification
Passenger Van
British Classification
Minibus
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Passenger Van
