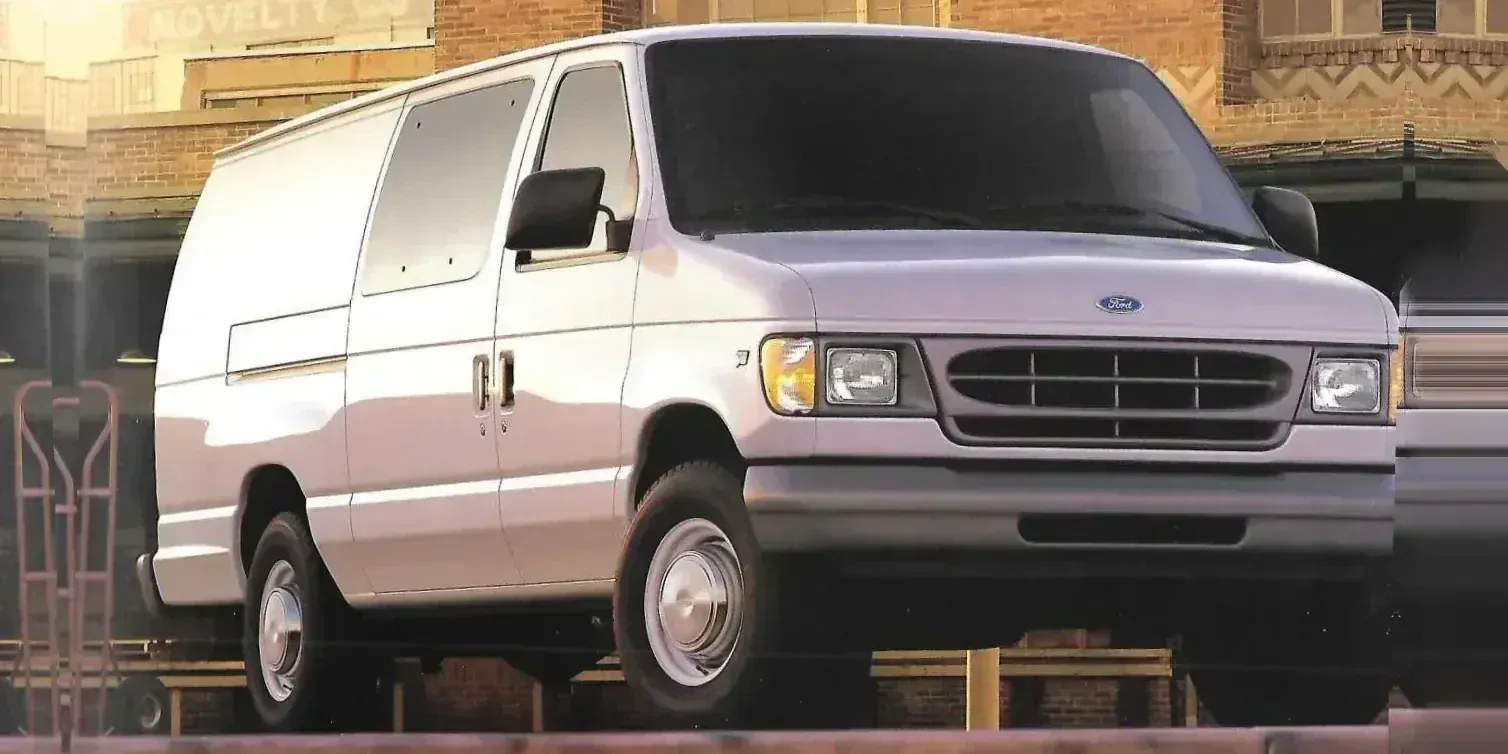

1999 Ford Econoline E-350

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 1999
Make: Ford
Model: Econoline
Variant: E-350

Race Tracks

Vehicles

Makes
Types
Years
Countries

Map

Makes
Race Tracks
Game Studios
TV Networks

TV Shows

Networks

Games

Studios
Franchises
Categories
Platforms

YouTube

People

Founders
Owners

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 1999
Make: Ford
Model: Econoline
Variant: E-350

Body Style

LCV

Generation

4th Generation Facelift

Seats

1

Doors

4

Fuel

Gasoline

Drivetrain

RWD

Transmission

Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name: 6.8 V10 SEFI 2V Automatic
Engine Configuration: V
Power (hp): 268 hp
Power (kW): 198 kW
Torque: 556 Nm (410 lb-ft)
Displacement: 6,760 cc

Dimensions

Width: 2,014 mm (79.3 in)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 4,250 rpm
Rev. at Max Torque: 2,750 rpm

Engine Fluids

Synthetic Oil (viscosity): 5W-30
Engine Oil, Volume: 5.7 litres
Engine Coolant, Volume

Similar lcvs

Suggested vehicles

View all

1998 Dodge Ram

29 litres

Engine Fluids › Engine Coolant

IAT: Motorcraft Premium Concentrated (green)
Motorcraft Premium Prediluted (green)

Car Battery

Voltage: 12 V
Battery Capacity: 72 - 78 Ah
Cold Start Power: 750 A
Secondary Battery: Optional
Alternator Charge Current: 95 - 115 A
Alternator Voltage: 14 V

Engine Configuration

Bore: 90.2 mm (3.6 in)
Stroke: 105.8 mm (4.2 in)
Compression Ratio: 9 :1
Engine Configuration: V-Engine
Naturally Aspirated: Yes
Synchronization: Timing Chain
Engine Placement: Front
Engine Mount: Longitudinally
Type of Combustion Engine

Transmission & Drivetrain

Transmission: Automatic (Electrohydraulic), 4-speed
Gear Selector: Stalk
Gear Selector Location: Steering Column
Overdrive: Yes

Gear Ratio

1st Gear: 2.71 :1
2nd Gear: 1.54 :1
3rd Gear: 1 :1

Fuel

General

Tank Volume: 132 litres

General › Fuel Cap Position

Rear: Left

Emission

Emission Control: Catalyst
Evaporative Control System
Exhaust Gas Recirculation
Positive Crankcase Ventilation

Brakes

Parking Brake

Manual: Pedal

Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes
Brakes Material: Cast Iron

Front Brakes

Diameter: 331 mm (13.0 in)

Rear Brakes

Suspensions

Spring, Front: Coil
Spring, Rear: Leaf (Longitudinal Spring)
Anti-roll Bar: Yes

Suspension, Front

Independent: Double Wishbone

Suspension, Rear

Dependent: Beam Axle (Dead Axle)

Anti-roll Bar

Dimensions & Weight

Exterior

Track, Front: 1,763 mm (69.4 in)
Track, Rear: 1,689 mm (66.5 in)
Overhang, Front: 765 mm (30.1 in)
Approach Angle: 29.7 °
Departure Angle: 10.8 °
Ground Clearance: 205 mm (8.1 in)

Exterior

Chassis & Body

Chassis

Chassis: LCV (Panel Van)
Pillars: A-D
A-D + Extra Pillar(s)
Chassis Construction: Body-on-Frame (Ladder Frame)
Body Material: Steel

Doors

Front Doors

Interior

Equipment

Instrument Cluster

Speedometer: Analogue
Fuel Gauge: Analogue
Voltmeter: Analogue
Oil Pressure: Analogue
Coolant Temperature: Analogue
Odometer Limit: 1,000,000 km/miles

Climate Control

Features

Comfort Features

Keyless Entry: Optional
Cruise Control: Optional
Speed Limiter: Optional

Other Features

Horn: Dual Note

Accessories

Safety & Security

Seat Belt

Height Adjustable Retractor: Yes

Feature

Driver

Passenger

Rear

Belt Pretensioner

DriverYes

Other

Identification

VIN Location

Left Side Casing of Window: Yes

On-board Diagnostic, Port Location: Steering Wheel, Lower Middle

Car Classification

American Classification: Cargo Van
British Classification

Piston

Fuel System

Electronic (Multi-Point) Fuel Injection

Camshaft Type

OHC

Engine Block

Cast Iron

Engine Heads

Aluminium

Engine Cooling

Liquid Cooling

4th Gear

0.7 :1

Final Drive

3.55 :1

Reverse

2.18 :1

Diameter

328 mm (12.9 in)

Front

25.4 mm (1.0 in)

Interior

Head Room, Front: 1,080 mm (42.5 in)
Head Room, Rear: 1,021 mm (40.2 in)
Leg Room, Front: 1,016 mm (40.0 in)
Leg Room, Rear: 937 mm (36.9 in)
Hip Room, Front: 1,666 mm (65.6 in)
Hip Room, Rear: 1,689 mm (66.5 in)
Shoulder Room, Front: 1,737 mm (68.4 in)

Weight

Gross Weight: 4,264 - 4,309 kg (9,401 - 9,500 lb)
Max Trailer Load, braked 12%: 4,173 kg (9,200 lb)
Gross Train Weight: 6,804 kg (15,000 lb)
Cargo Capacity: 1,760 - 1,869 kg (3,880 - 4,120 lb)
Max Towbar Download: 277 kg (611 lb)

LCV Specific

General

Version: L1H1
L2H1

Dimensions › Length

L1: 5,382 mm (211.9 in)
L2: 5,890 mm (231.9 in)

Dimensions › Height

L1H1: 2,055 mm (80.9 in)

Dimensions › Wheel Base

Conventional

Rear Doors

Sliding Right
Dual Swing-out

Door Handles

Pull-up

Platform

Ford Motor Company: VN Platform (VN58/VN127)

Equipment

Side Mirrors

Mirror Type: Conventional
Folding: Manual
House Colour: Non-painted

Windscreen Wipers

Number of Wiper Speeds: 2
Intermittent Control: Yes

Windows

Heated Windows

Lights

Main Beam: Halogen
Low Beam: Halogen
Rear Lights: Halogen

Special Features

Headlight Range Adjustment: Manual

Colour

Bumper: Optional
Door Handles: Non-painted

Rims & Tires

Fastening Type: Lug Nuts
Rim Material: Steel
Rim Type: Disc Wheel
Spare Wheel: Optional

Spare Wheel

Full-size: Optional

Spare Wheel › Full-size

Steel: Optional

Air Condition: Optional
Number of Vents, Front: 4 pcs
Controls: Rotary Dials

Climate Control › Air Condition

Refrigerant: R134A
Refrigerant, Capacity: 1,247 g

Connectivity

Radio: Optional

Connectivity › Radio

AM: Optional
FM: Optional
RDS: Optional

Connectivity › Media Format

CD: Optional
Cassette: Optional

Displays

Equalizer: Optional

Speakers

Total Number of Speakers: 2 - 4 pcs

Rear-view Mirror

Compass: Optional
Oustide Temperature: Optional

Interior Storage › Storage Compartments

Under Seats: Front
Door: Driver Side
Passenger Side

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front

Other Equipment › Make-up Mirror

Driver Side: Optional
Passenger Side: Optional
Make-up Light: Optional

Other Equipment

12V Outlet: Front
Carpets: Optional
Ashtray: Front (Retractable)
Cigarette Lighter: Yes

Steering Wheel

Multifunction Steering Wheel: Optional
Power Steering: Hydraulic
Adjustments: Tilt
Number of Spokes: 2
Material: Plastic
Colour: Black
Steering Ratio: 17 :1
Steering Mechanism: Recirculating Ball

Multifunction Steering Wheel

Seats

Front Seats › Adjustments, Driver

Seat Depth: Yes
Seat Height: Optional
Backrest Angle: Manual
Lumbar Support: Optional

Front Seats

Number of Driver Seat Adjustments, Manual: 4 - 6
Number of Driver Seat Adjustments, Powered: 6
Number of Driver Seat Adjustments, Total

Trunk

Release Button: Yes
Light: Yes
Hatch Opening Type: Two-parted Doors

Design

Interior Decor Material: Plastic
Transmission Knob Material: Plastic
Entry Guard Material: Plastic

Tool Kit and Jack: Yes

Passenger

Yes

Rear-

Belt Load Limiter

DriverYes

Passenger-

Rear-

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats

Brake Systems

Power Brakes: Yes
Anti-lock Braking System (ABS): Yes

Other Features

Central Locking: Optional
Reversing Alarm: Optional

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

Rear-

Airbag cut-off Switch

Driver

Van

Australian Classification

Van

European Segment

M-Segment

Car.info Classification

Cargo Van

Econoline

8.9

€67,000

MSRP · EUR

Body

Shoulder Room, Rear

1,791 mm (70.5 in)

L1

3,505 mm (138.0 in)

L2

3,505 mm (138.0 in)

Dimensions › Overhang, Rear

L1: 1,113 mm (43.8 in)
L2: 1,620 mm (63.8 in)

Dimensions › Turning Circle

L1: 14.81 m
L2: 16.7 m

Side Door › Side Door Height

H1: 1,227 mm (48.3 in)

Side Door › Side Door Width

L1: 1,382 mm (54.4 in)
L2: 1,382 mm (54.4 in)

Side Door › Ground to Door Height

L1H1: 732 mm (28.8 in)
L2H1: 767 mm (30.2 in)

Rear Doors › Rear Doors Height

L1H1: 1,257 mm (49.5 in)

Rear Doors

Rear Doors Width: 1,369 mm (53.9 in)

Rear Doors › Sill Height

L1H1: 683 mm (26.9 in)
L2H1: 683 mm (26.9 in)

Cargo Space › Cargo Volume

L1H1: 7,263 litres
L2H1: 8,761 litres

Cargo Space › Depth

L1: 3,058 mm (120.4 in)
L2: 3,566 mm (140.4 in)

Cargo Space › Height

H1: 1,334 mm (52.5 in)

Cargo Space › Space Width, Between Wheel Arches

L1: 1,341 mm (52.8 in)

Optional

Heat-Insulating Windows

Front
First Row

Tinted Windows

Optional

Windows › Heated Windows

Rear: Optional

Windows › Heat-Insulating Windows

Second Row: Optional
Rear: Optional

Windows › Tinted Windows

Second Row: Optional
Rear Window: Optional

Number of Buttons: 5 pcs

4 - 8

Number of Passenger Seat Adjustments, Manual

4 - 6

Number of Passenger Seat Adjustments, Powered

6

Number of Passenger Seat Adjustments, Total

4 - 6

Power Seat, Driver

Optional

Power Seat, Passenger

Optional

Front Seats › Adjustments, Passenger

Seat Depth: Yes
Seat Height: Optional
Backrest Angle: Manual

-

PassengerOptional

Rear-

LCV
