2001 Audi A4

GermanyGasolineAWDSedan

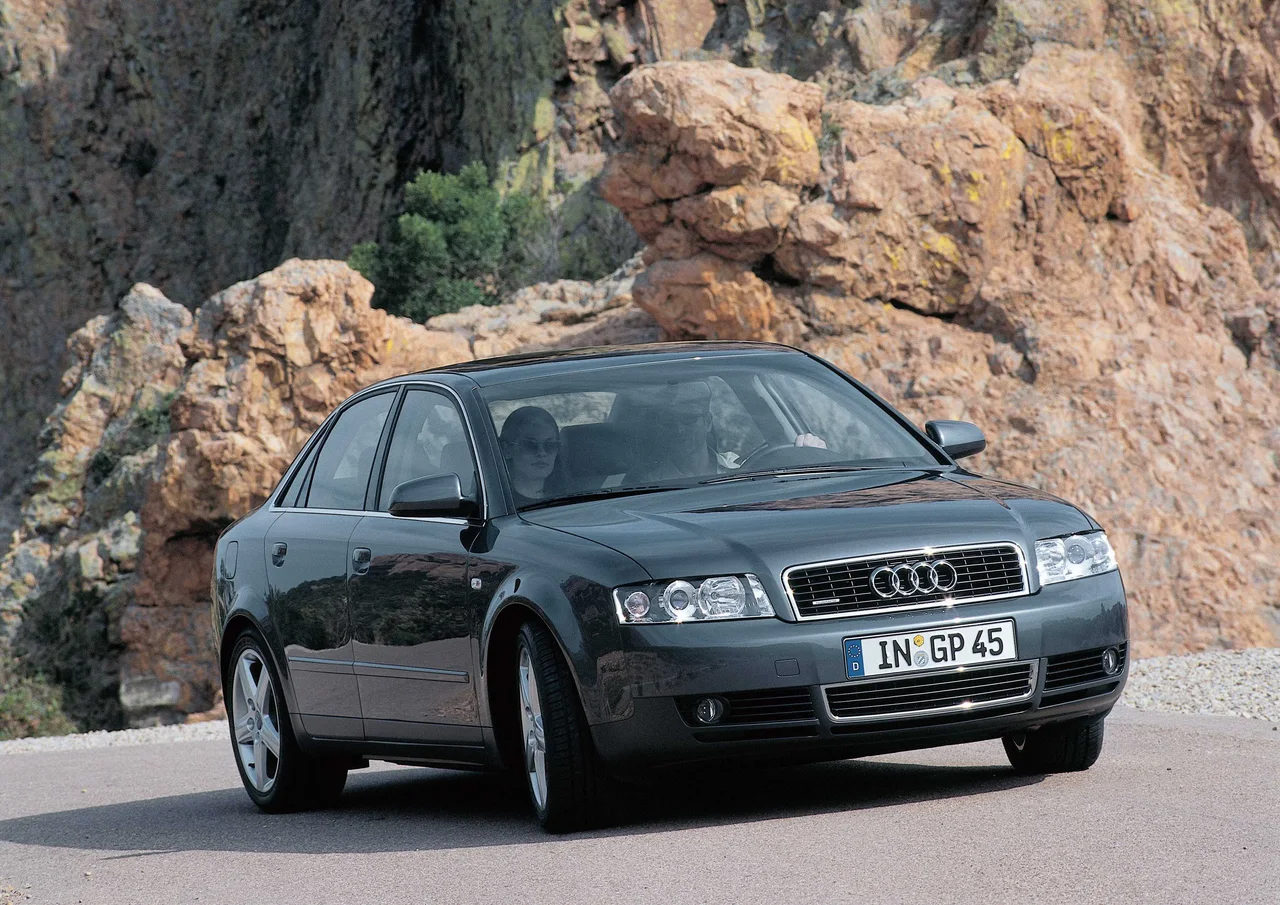

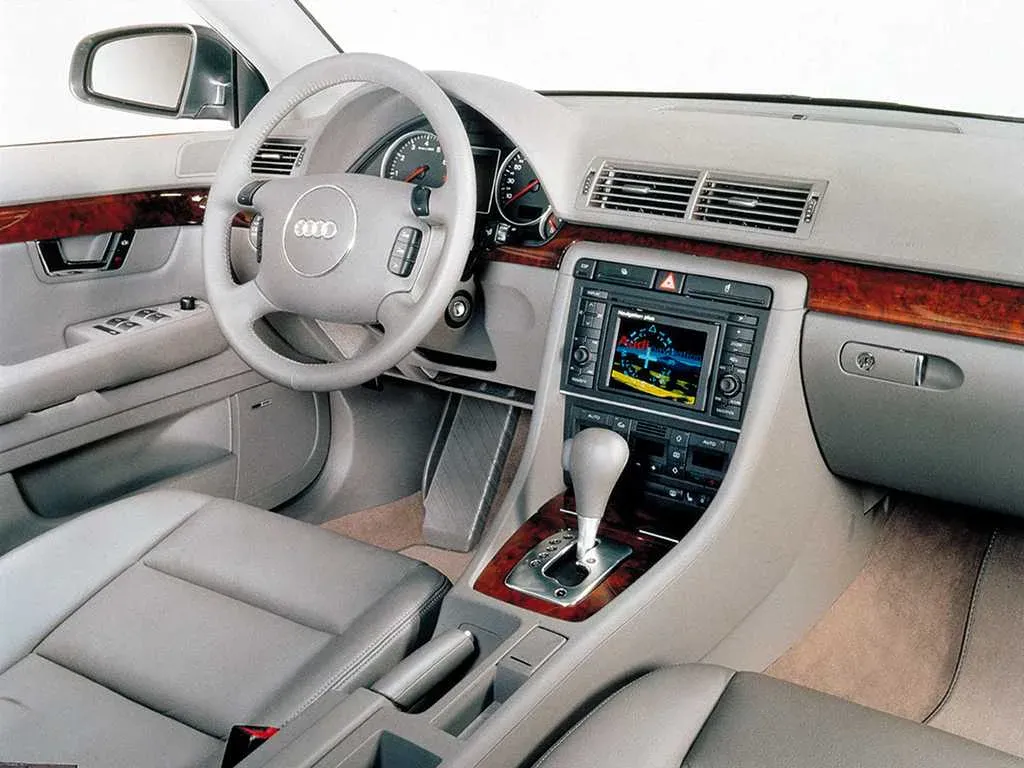

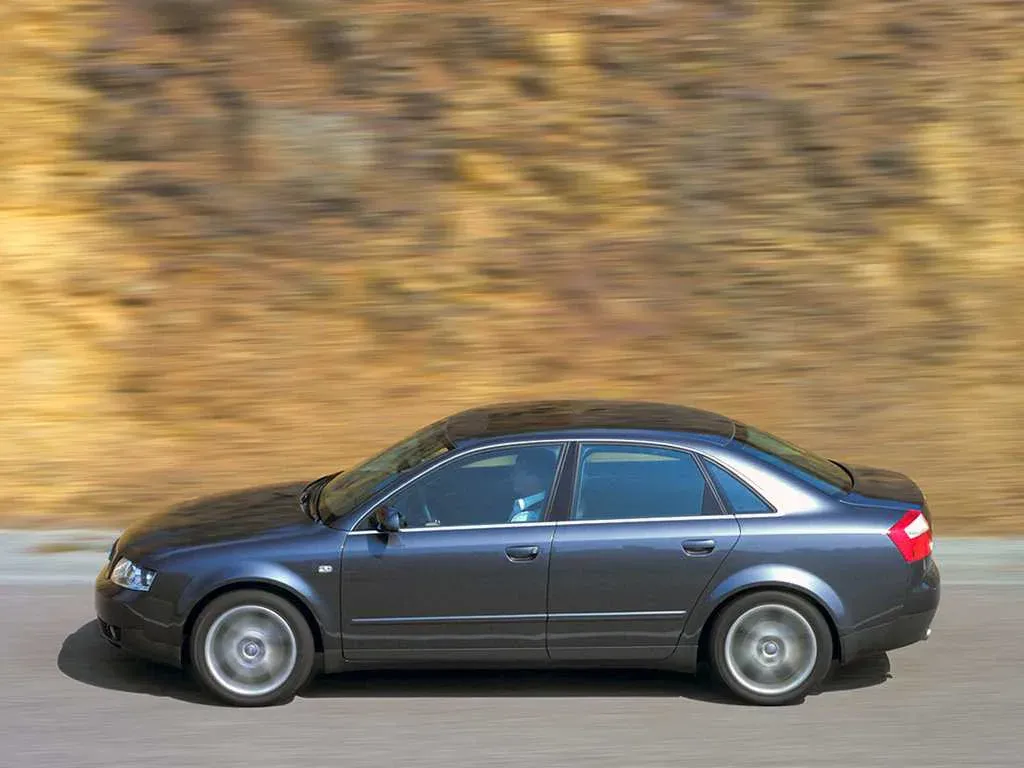

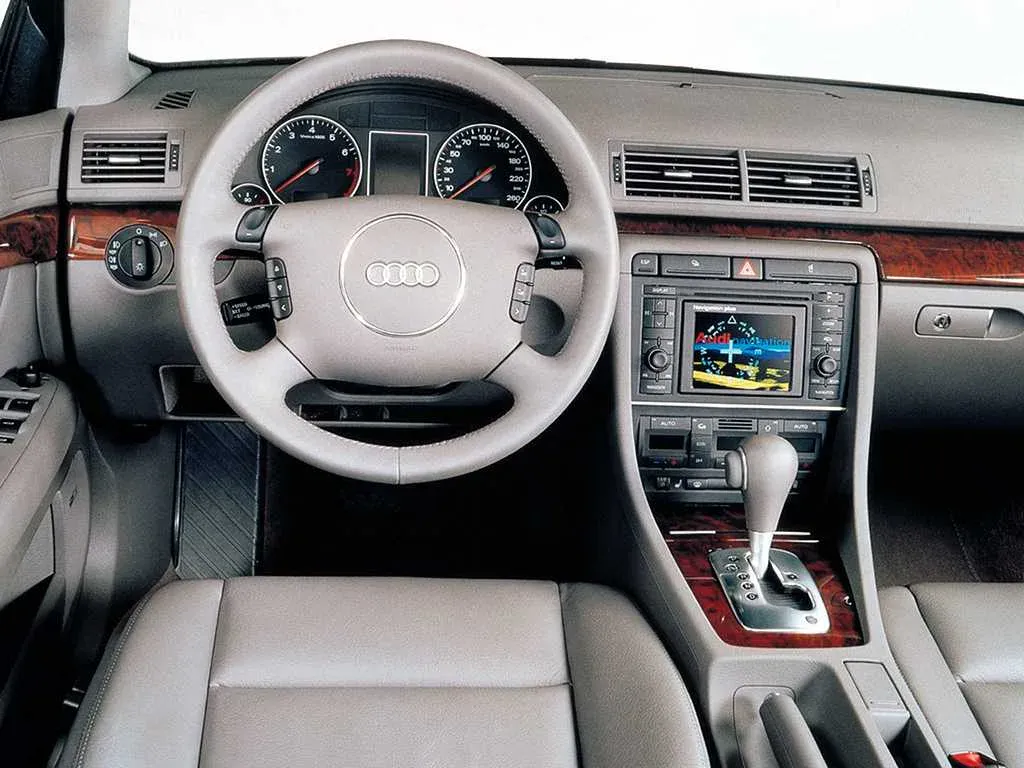

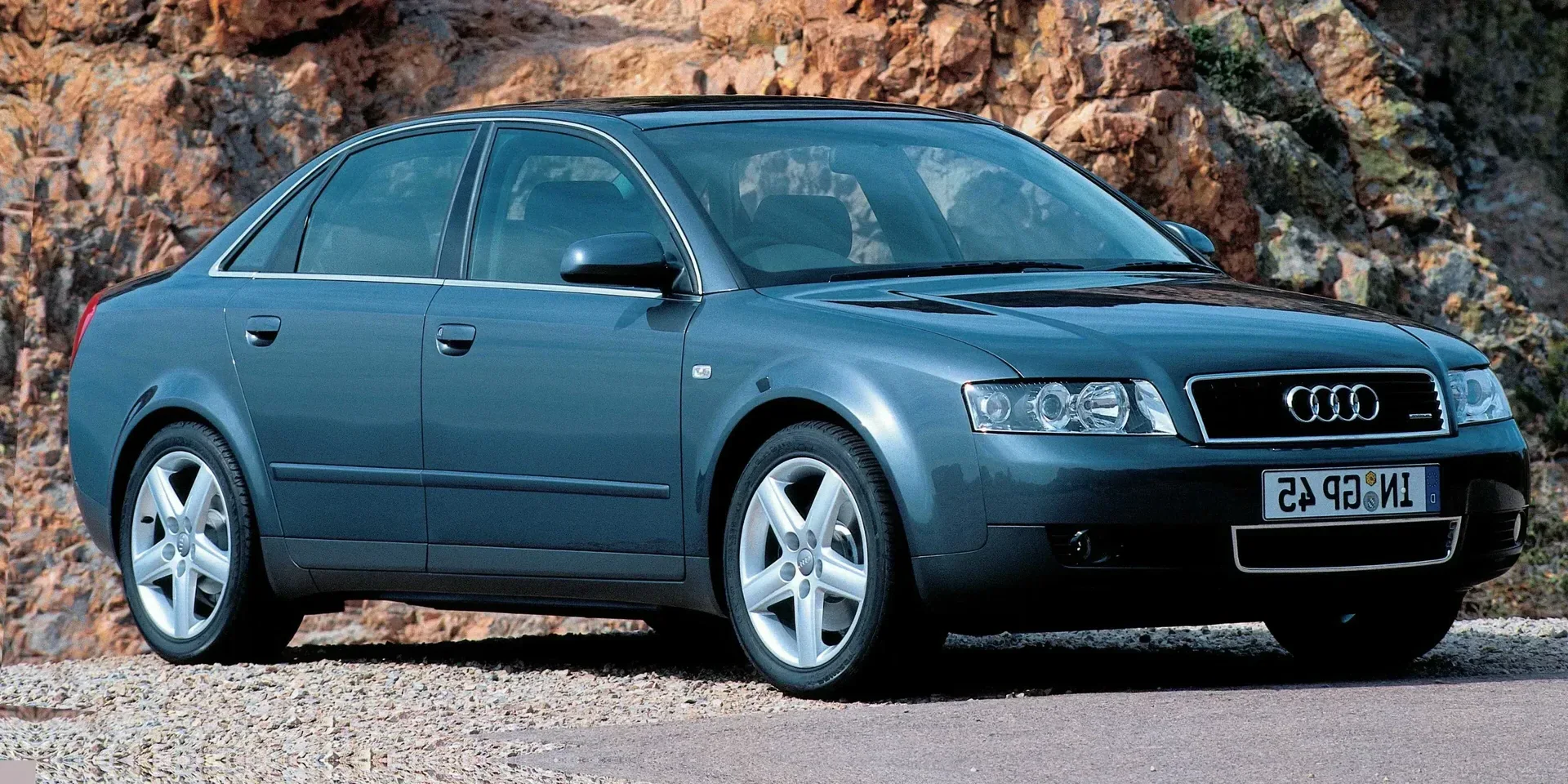

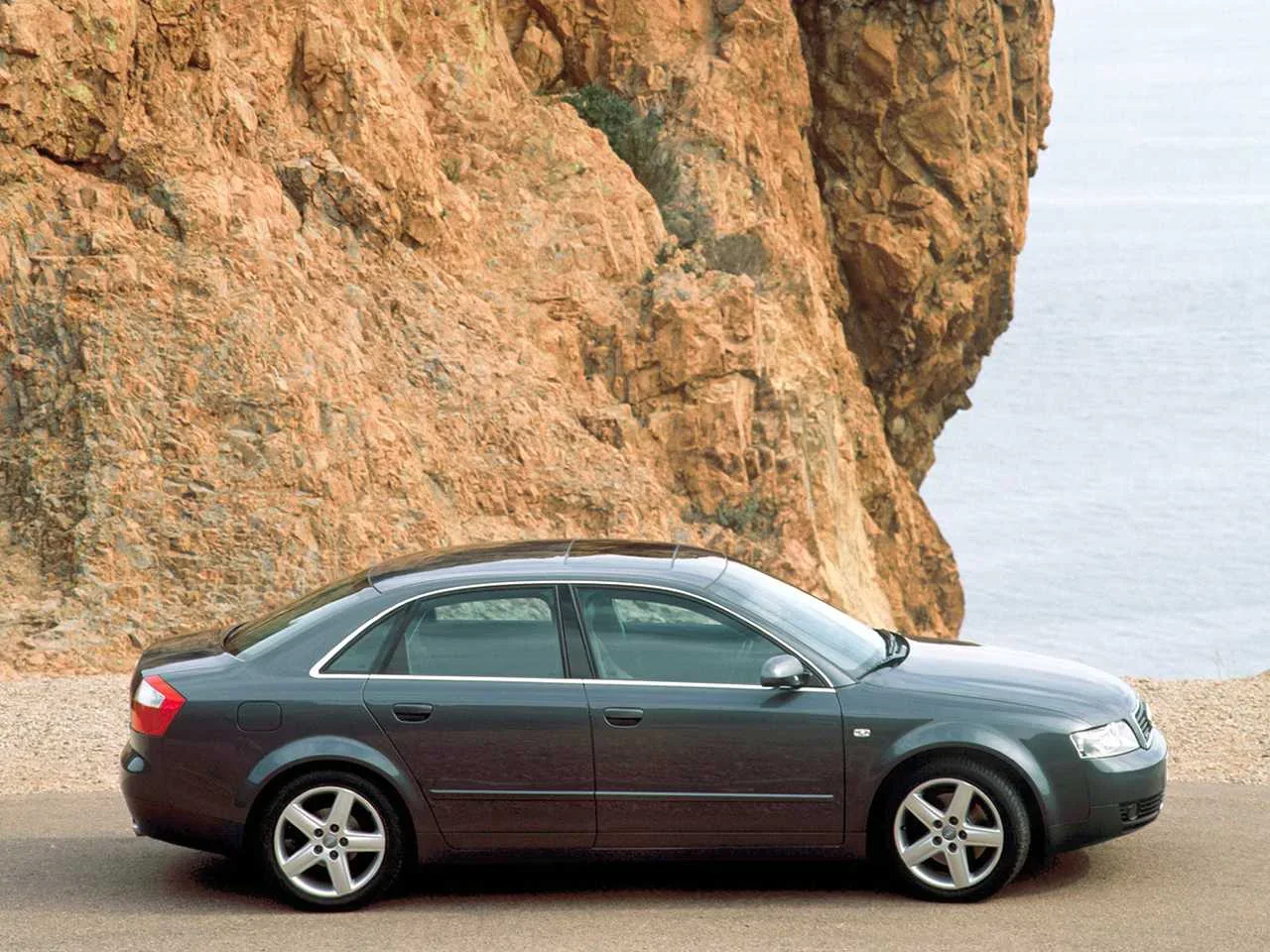

Photos

Specifications

Vehicle Details

Year
2001
Make
Audi
Model
A4
Body Style
Sedan
Generation
B6
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
  • Automatic Manumatic
  • Manual, 5
  • 6-speed

Powertrain

Engine Name
3.0 V6 quattro
Engine Configuration
V
Power (hp)
220 hp
Power (kW)
162 kW
Torque
300 Nm (221 lb-ft)
Top speed
238 km/h (148 mph)
0–60 mph
6.7 seconds
0–100 km/h
6.9 seconds
Displacement
2,976 cc

Dimensions

Length
4,547 mm (179.0 in)
Width
1,766 mm (69.5 in)
Height
1,428 mm (56.2 in)
Wheelbase
2,650 mm (104.3 in)
Curb weight
1,490 kg (3,285 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,300 rpm
Rev. at Max Torque
3,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
  • 10W-50
  • 10W-60
Engine Oil, Volume
6.3 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
10.5 :1
Engine Configuration
V-Engine
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Block
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
120,000 km (74,565 mi)
Air Filter
90,000 km (55,923 mi)
Spark Plug
60,000 km (37,282 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 5
  • 6-speed
Gear Ratio
1st Gear
3.5 :1
2nd Gear
1.89 :1
3rd Gear
1.32 :1
4th Gear
1.03 :1
5th Gear
0.86 :1
6th Gear
0.73 :1
Final Drive
3.38 :1
Reverse
3.46 :1

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Emission Control
Catalyst
Fuel Consumption NEDC
City
14.9 – 16 litres / 100 km
Highway
7.8 – 8 litres / 100 km
Combined
10.5 – 10.8 litres / 100 km
Emission NEDC
CO₂, Combined
252 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,937 mm (76.3 in)
Track, Front
1,528 mm (60.2 in)
Track, Rear
1,526 mm (60.1 in)
Overhang, Front
921 mm (36.3 in)
Overhang, Rear
976 mm (38.4 in)
Turning Circle
11.1 m
Ground Clearance
112 mm (4.4 in)

Interior

Head Room, Front
976 mm (38.4 in)
Head Room, Rear
946 mm (37.2 in)
Leg Room, Front
1,049 mm (41.3 in)
Leg Room, Rear
870 mm (34.3 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,357 mm (53.4 in)
Shoulder Room, Front
1,335 mm (52.6 in)
Shoulder Room, Rear
1,305 mm (51.4 in)

Weight

Gross Weight
2055 – 2105 - 2065 – 2105 kg (4,553 – 4,641 lb)
Max Trailer Load, braked 12%
1,900 kg (4,189 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
550 kg (1,213 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Aluminium
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-up
Platform
Volkswagen Group
B6/PL46

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Optional
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Front
Yes
Rear
Halogen
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
  • Yes
  • Optional
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
Optional
TV Receiver
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › TV Receiver
Analogue
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
MP3
Optional
Displays
Center Display
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
Driver Side
Clock
Yes
12V Outlet
Front
Carpets
Front
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Passenger Side
Optional
Make-up Light
Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Number of Spokes
  • 3
  • 4
Colour
Black
Steering Mechanism
Rack and Pinion
Menu Navigation
Optional
Media
Optional
Channels
Optional
Buttons
Optional
Buttons
Optional

Trunk

Rear Trunk
Yes
Carpet
Optional
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
445 litres
Volume, Back Seat Collapsed
720 litres
Depth
1,088 mm (42.8 in)
Depth, Back Seat Collapsed
1,720 mm (67.7 in)
Width
1,000 mm (39.4 in)
Opening Width
898 mm (35.4 in)
Height
471 mm (18.5 in)
Sill Height
694 mm (27.3 in)

Design

Colour
Black

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2001
Adult Occupant
4/5 stars
Pedestrian
1/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
  • Centre
  • Right
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
  • BAX9s (H6W)
  • W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W3W | W5W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W3W | W5W)
Entry Light
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

Similar sedans

Suggested vehicles
