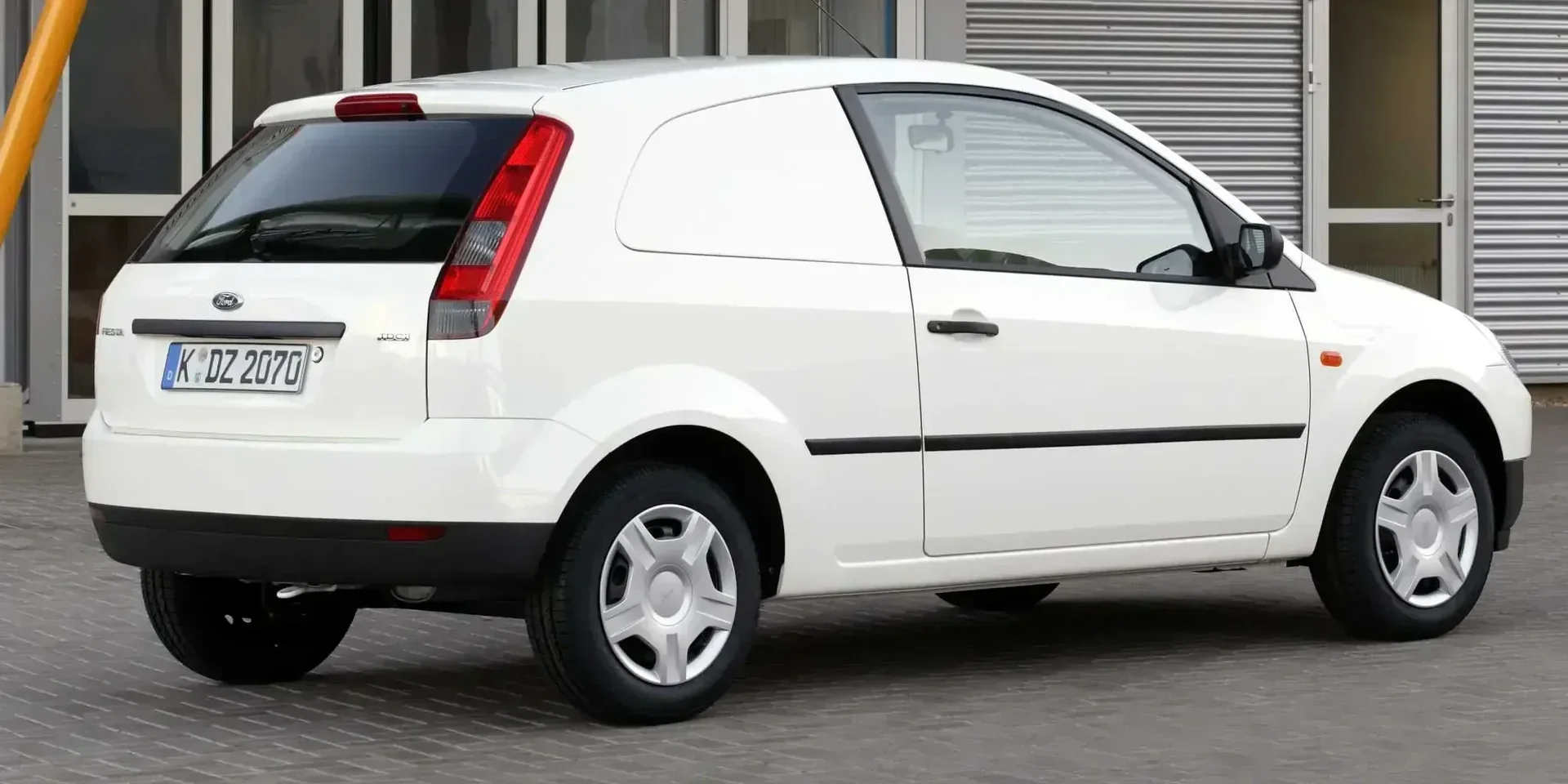

2002 Ford Fiesta

United StatesDieselFWDHatchback

Specifications

Vehicle Details

Year
2002
Make
Ford
Model
Fiesta
Body Style
Hatchback
Generation
JC3/JD3/JH1
Seats
2
Doors
3
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 5-speed

Powertrain

Engine Name
1.4 TDCi Manual
Engine Configuration
Inline
Power (hp)
68 hp
Power (kW)
50 kW
Torque
160 Nm (118 lb-ft)
Top speed
163 km/h (101 mph)
0–60 mph
14.8 seconds (estimated)
0–100 km/h
15.5 seconds
Displacement
1,399 cc

Dimensions

Length
3,916 mm (154.2 in)
Width
1,683 mm (66.3 in)
Height
1,432 mm (56.4 in)
Wheelbase
2,486 mm (97.9 in)
Curb weight
1,040 kg (2,293 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
2,000 rpm
Engine Configuration
Bore
73.7 mm (2.9 in)
Stroke
82 mm (3.2 in)
Compression Ratio
18 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Brake Fluid
2 years
Oil Change & Engine Filter
20,000 km / 1 years

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
45 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 3
Fuel Consumption NEDC
City
5.4 litres / 100 km
Highway
3.8 litres / 100 km
Combined
4.4 litres / 100 km
Emission NEDC
CO₂, Combined
116 g/km

Dimensions & Weight

Exterior

Track, Front
1,474 mm (58.0 in)
Track, Rear
1,444 mm (56.9 in)
Turning Circle
9.8 m
Ground Clearance
124 mm (4.9 in)

Interior

Head Room, Front
995 mm (39.2 in)
Head Room, Rear
950 mm (37.4 in)
Leg Room, Front
1,058 mm (41.7 in)
Leg Room, Rear
885 mm (34.8 in)
Shoulder Room, Front
1,344 mm (52.9 in)
Shoulder Room, Rear
1,355 mm (53.3 in)

Weight

Gross Weight
1,560 kg (3,439 lb)
Max Trailer Load, braked 12%
750 kg (1,653 lb)
Max Trailer Load, unbraked
500 kg (1,102 lb)
Cargo Capacity
520 kg (1,146 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Platform
Ford Motor Company
B3 Platform (Global B Platform)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
Heated
Optional
Windows
Heat-Insulating Windows
  • Front
  • First Row
  • Rear
Safety Glass
Yes
Rear
Yes
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Tow Hook
  • Front
  • Rear
Antenna
Whip
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Manual (Electric)

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.3
Fastening Type
Lug Nuts
Tightening Torque
90 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Climate Control
Number of Vents, Front
4 pcs
Rear-view Mirror
Anti-glare
Manual
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Optional
Interior Storage › Storage Compartments › Glove Compartment
Light
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Number of Spokes
3
Material
Plastic
Colour
Black

Trunk

Rear Trunk
Yes

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Backrest Angle
Manual
Front Seats › Adjustments, Passenger
Cushion Edge
Yes
Backrest Angle
Manual

Features

Comfort Features

Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Safety Testing

General
Test Year
2002
Adult Occupant
4/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BA15s (P21W)
