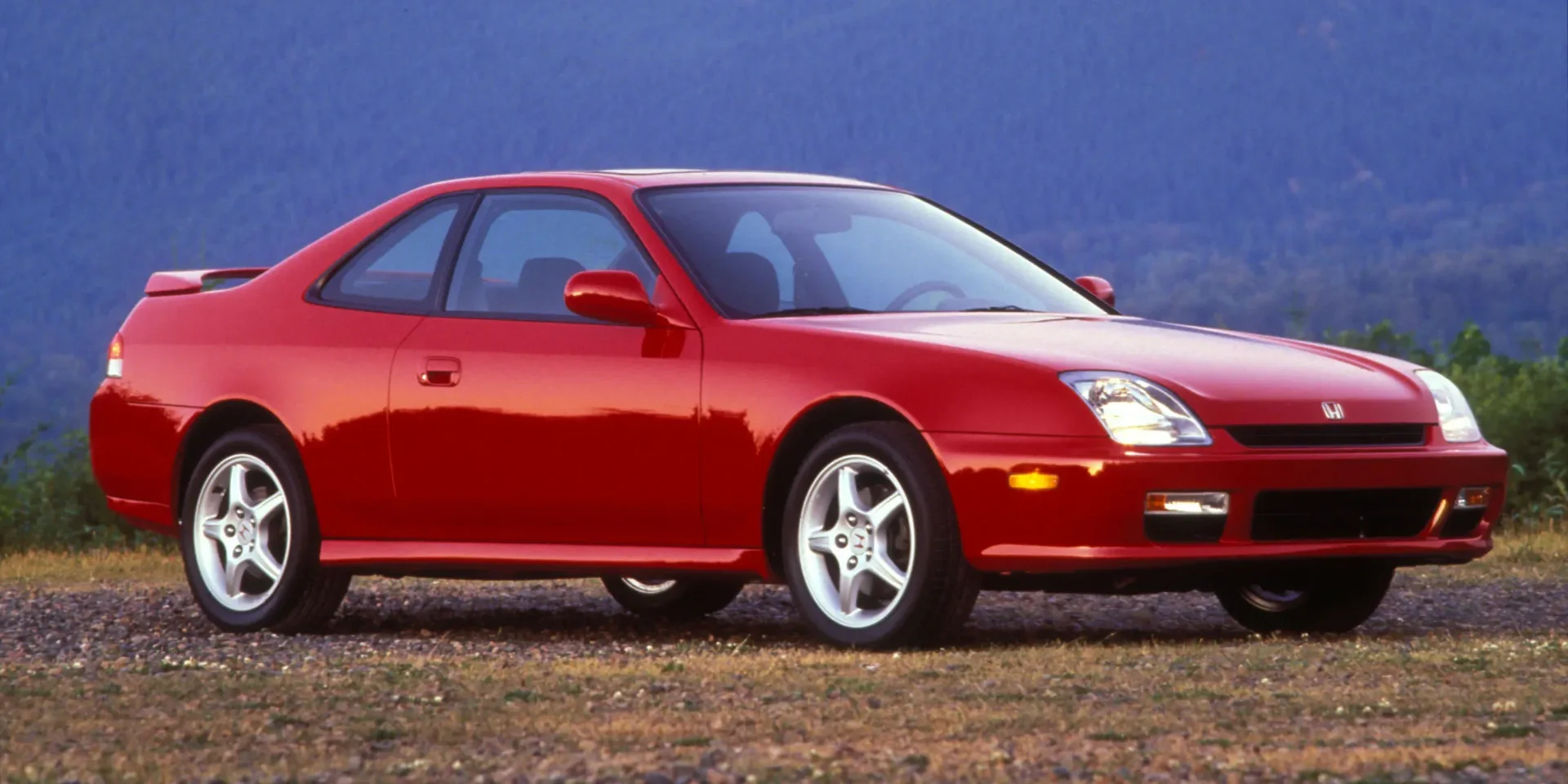

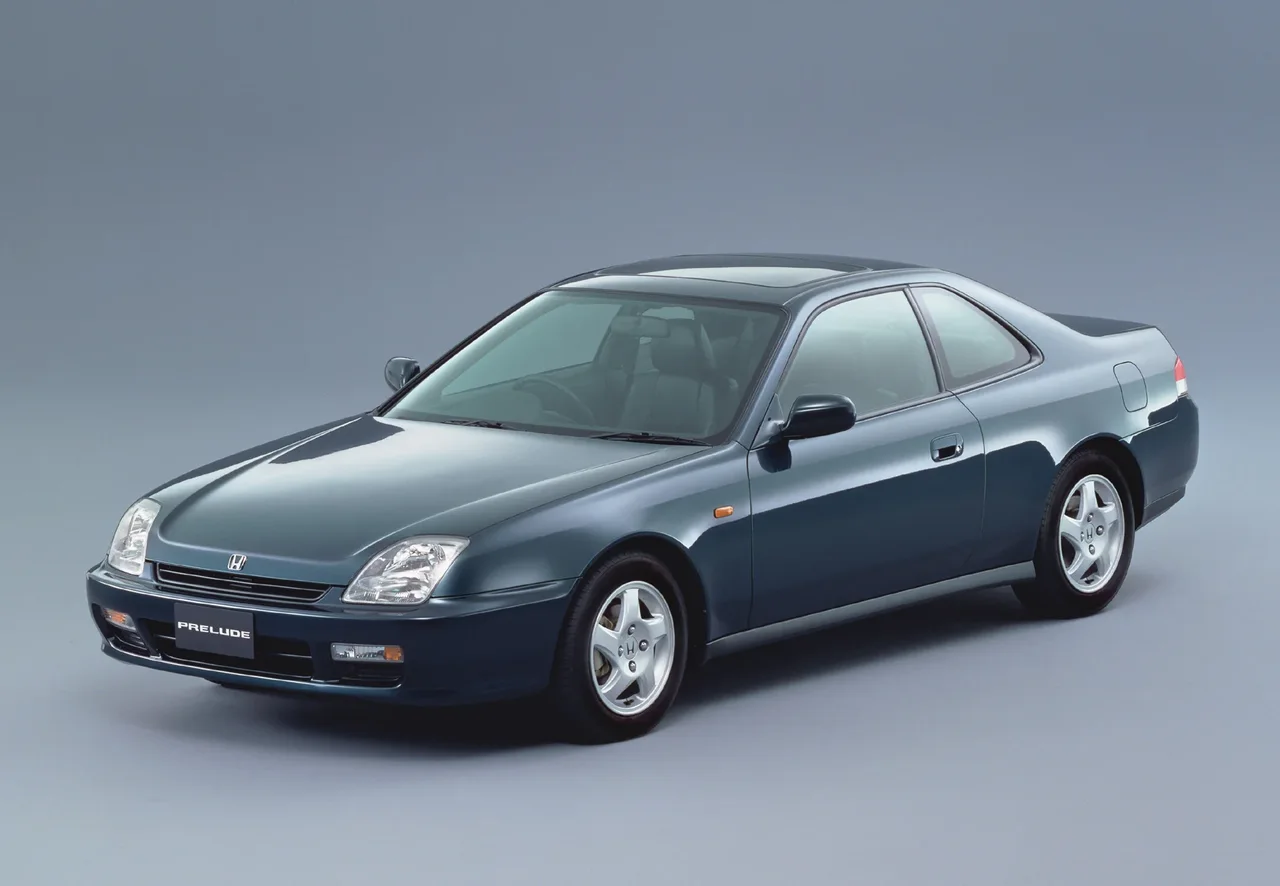

2002 Honda Prelude Type S

JapanGasolineFWDCoupe

Photos

Specifications

Vehicle Details

Year
2002
Make
Honda
Model
Prelude
Variant
Type S
Body Style
Coupe
Generation
BB5-BB9
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
Type S
Engine Configuration
Inline
Power (hp)
220 hp
Power (kW)
164 kW
Top speed
240 km/h (149 mph)
0–60 mph
6.4 seconds
0–100 km/h
6.7 seconds
Displacement
2,157 cc

Dimensions

Length
4,545 mm (178.9 in)
Width
1,750 mm (68.9 in)
Height
1,315 mm (51.8 in)
Wheelbase
2,585 mm (101.8 in)
Curb weight
1,270 kg (2,800 lb)

Engine & Performance

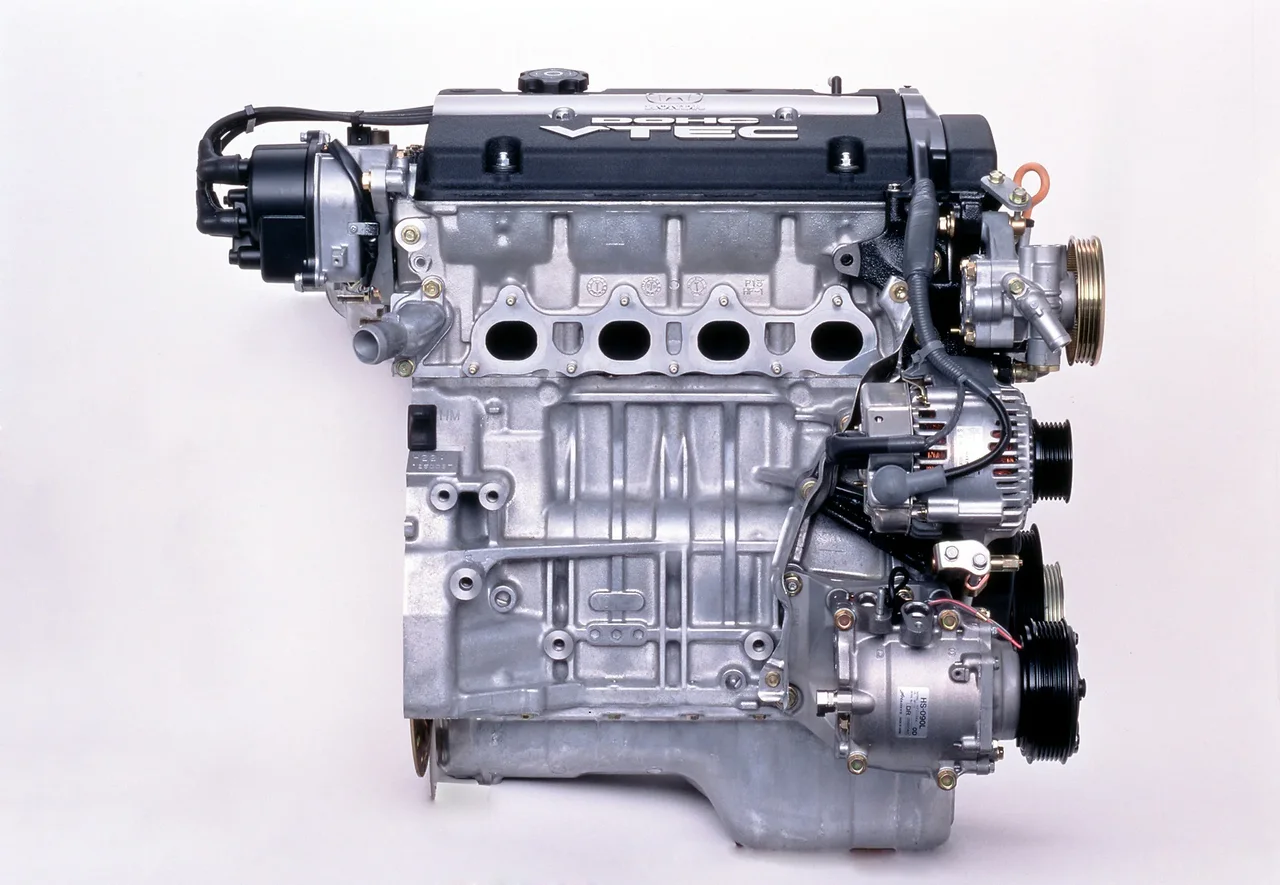

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 15W-40
  • 20W-40
Engine Oil, Volume
4.8 litres
Engine Configuration
Bore
85 mm (3.3 in)
Stroke
95 mm (3.7 in)
Compression Ratio
11 :1
Engine Configuration
Inline
Synchronization
Timing Belt
Engine Mount
Transversally
Service Intervals
Timing Interval
120,000 km / 8 years
Air Filter
45,000 km / 3 years
Fuel Filter
45,000 km / 3 years
Spark Plug
45,000 km / 3 years
Brake Fluid
3 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
3 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
60 litres
Fuel Consumption NEDC
City
14 – 14.4 litres / 100 km
Highway
9.6 – 9.8 litres / 100 km
Combined
11.7 – 12.1 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,525 mm (60.0 in)
Track, Rear
1,515 mm (59.6 in)
Turning Circle
11 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
954 mm (37.6 in)
Head Room, Rear
897 mm (35.3 in)
Leg Room, Front
1,092 mm (43.0 in)
Leg Room, Rear
703 mm (27.7 in)
Hip Room, Front
1,323 mm (52.1 in)
Hip Room, Rear
1,172 mm (46.1 in)

Weight

Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Windows
Window Lifts, Front
Powered
Tinted Windows
  • Front
  • Second Row
  • Rear Window
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
64.1
Fastening Type
Lug Nuts

Interior

Equipment

Instrument Cluster
Tachometer
Analogue

Steering Wheel

Number of Spokes
3
Colour
Black

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
284 litres

Seats

Front Seats
Type of Seat
Sport Seats
Second Seat Row
Collapsible
Yes

Safety & Security

Other Features

Immobiliser
Yes
Central Locking
Yes

Airbags

Frontal Airbag
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Engine Compartment, Front Panel
Yes

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

Spare Parts BETA

Bulb Types
Low Beam
H1
Main Beam
H1
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
SV8.5 (C10W)
License Plate Light
W2.1×9.5d (W5W)
