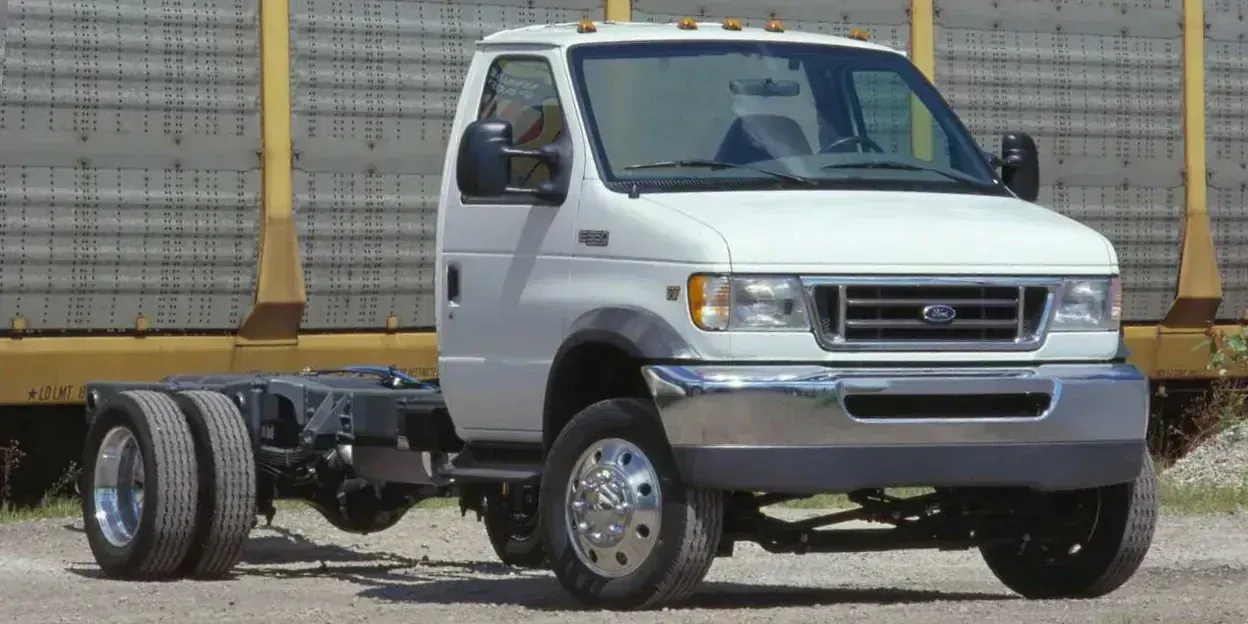

2003 Ford E-Series E-550 Super Duty

United StatesDieselRWDLCV

Specifications

Vehicle Details

Year
2003
Make
Ford
Model
E-Series
Variant
E-550 Super Duty
Body Style
LCV
Generation
1st Generation 1st Facelift
Seats
2
Doors
2
Fuel
Diesel
Drivetrain
RWD
Transmission
Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name
7.3 V8 Power Stroke Automatic
Engine Configuration
V
Power (hp)
218 hp
Power (kW)
160 kW
Torque
576 Nm (425 lb-ft)
Displacement
7,276 cc

Dimensions

Width
2,014 mm (79.3 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
2,600 rpm
Rev. at Max Torque
1,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
10W-30
Semi-synthetic Oil (viscosity)
  • 10W-30
  • 15W-40
Engine Oil, Volume
14.2 litres
Engine Coolant, Volume
26 litres
Car Battery
Voltage
12 V
Battery Capacity
65 Ah
Cold Start Power
750 A
Secondary Battery
Optional
Alternator Charge Current
110 - 130 A
Alternator Voltage
14 V
Engine Configuration
Bore
104.4 mm (4.1 in)
Stroke
106.2 mm (4.2 in)
Compression Ratio
17.5 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Cast Iron
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 4-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Overdrive
Yes
Gear Ratio
1st Gear
2.71 :1
2nd Gear
1.54 :1
3rd Gear
1 :1
4th Gear
0.7 :1
Final Drive
4.1 :1
Reverse
2.18 :1

Fuel

General
Tank Volume
132 - 208 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Exhaust Gas Recirculation

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
331 mm (13.0 in)
Rear Brakes
Diameter
328 mm (12.9 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
23 - 25.4 mm (0.9 - 1.0 in)
Rear
28.6 mm (1.1 in)

Dimensions & Weight

Exterior

Track, Front
1,999 mm (78.7 in)
Track, Rear
1,970 mm (77.6 in)
Overhang, Front
765 mm (30.1 in)

Interior

Head Room, Front
1,080 mm (42.5 in)
Leg Room, Front
1,016 mm (40.0 in)
Hip Room, Front
1,666 mm (65.6 in)
Shoulder Room, Front
1,737 mm (68.4 in)

Weight

Max Towbar Download
277 kg (611 lb)

LCV Specific

General
Version
  • L2H1
  • L3H1
Dimensions › Length
L2
6,538 mm (257.4 in)
L3
6,515 mm (256.5 in)
Dimensions › Wheel Base
L2
4,013 mm (158.0 in)
L3
4,470 mm (176.0 in)
Dimensions › Overhang, Rear
L2
1,621 mm (63.8 in)
L3
1,283 mm (50.5 in)
Dimensions › Turning Circle
L2
16.7 m
L3
18.84 m

Exterior

Chassis & Body

Chassis
Chassis
LCV

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
House Colour
Non-painted
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Windows
Heat-Insulating Windows
  • Front
  • First Row
Other Equipment
Antenna
Optional
Air Intakes
1-port
Number of Exhaust Pipes
1
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Mud Flaps
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Special Features
Headlight Range Adjustment
Manual

Colour

Bumper
Optional
Door Handles
Non-painted

Rims & Tires

Number of Bolts
8 pcs
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Dual Rear Wheels
Yes
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Steel
Optional

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Climate Control
Manual
Number of Climate Zones
1
Air Condition
Yes
Number of Vents, Front
4 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
1,134 g
Connectivity
Radio
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Media Format
CD
Optional
Cassette
Optional
Displays
Equalizer
Optional
Speakers
Total Number of Speakers
2 - 4 pcs
Rear-view Mirror
Compass
Optional
Oustide Temperature
Optional
Interior Storage › Storage Compartments
Coin Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
4
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Optional
12V Outlet
Front
Carpets
Optional
Ashtray
Front (Retractable)
Cigarette Lighter
Yes
Other Equipment › Clock
Digital
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Adjustments
Tilt
Number of Spokes
2
Material
Plastic
Colour
Black
Steering Ratio
17 :1
Steering Mechanism
Recirculating Ball
Multifunction Steering Wheel
Number of Buttons
5 pcs

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Front Seats
Number of Driver Seat Adjustments, Manual
4 - 6
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
4 - 8
Number of Passenger Seat Adjustments, Manual
4 - 6
Number of Passenger Seat Adjustments, Powered
6
Number of Passenger Seat Adjustments, Total
4 - 8
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Entry Guard Material
Plastic

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater
Engine Heater
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes

Safety & Security

Airbags

Other Airbags
Pedestrian Airbag
No
Middle Airbag
No
Door-mounted Airbags
No
Seat Belt Airbag
No
Seat Cushion
No
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Seat Belt

Height Adjustable Retractor
Yes
Feature
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes

Other Features

Immobiliser
Optional
Central Locking
Optional
Reversing Alarm
Optional
Number of Remote Keys
2
Number of Standard Keys
2
Total Number of Keys
4
Central Locking
Remote
Optional

Child Protection

Isofix
  • Passenger: No
  • Rear: No

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Middle

Car Classification

European Segment
M-Segment
Car.info Classification
Commercial Chassis
