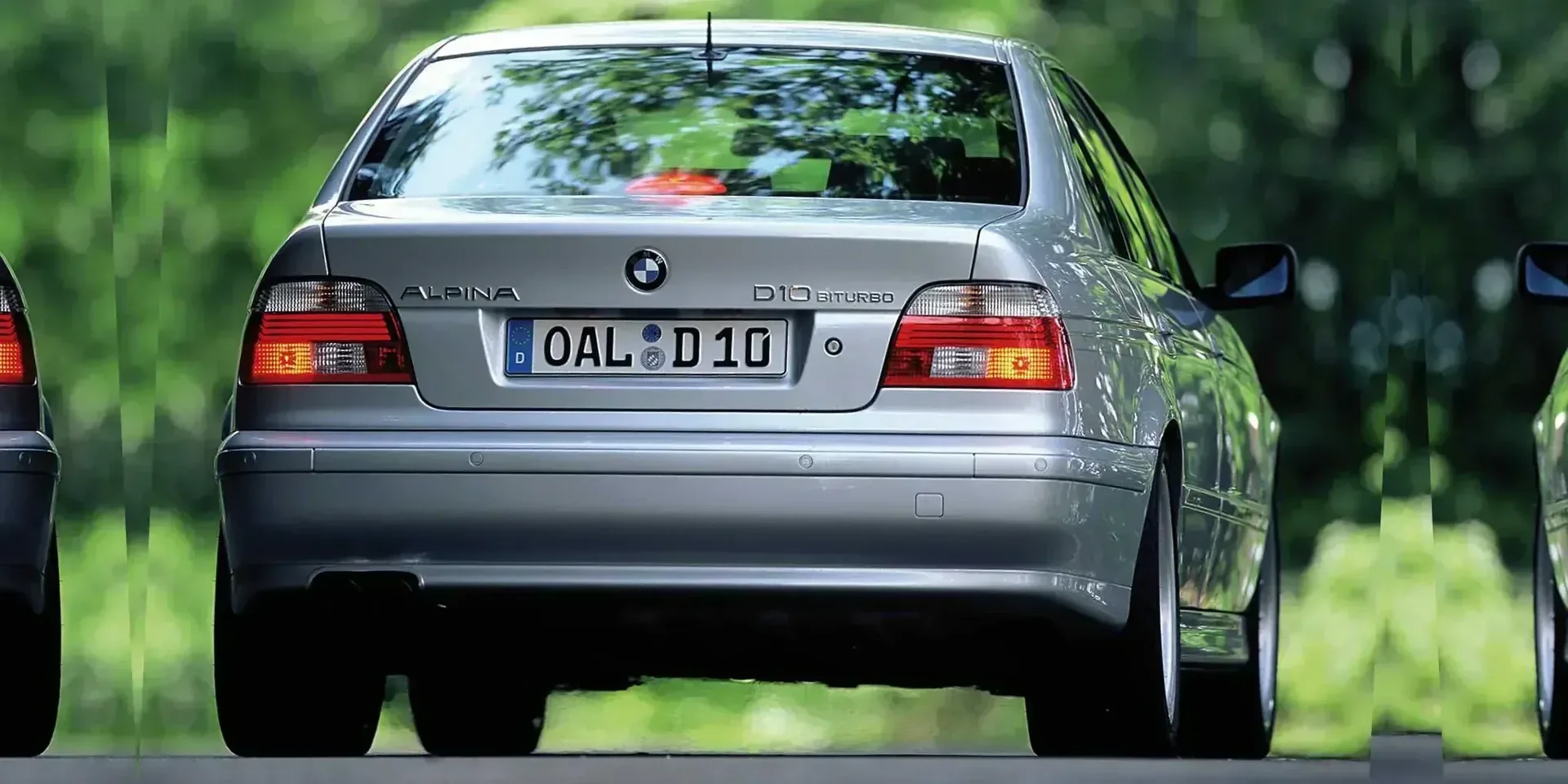

2004 Alpina 5 Series D10 BITURBO

GermanyDieselRWDSedan

Specifications

Vehicle Details

Year
2004
Make
Alpina
Model
5 Series
Variant
D10 BITURBO
Body Style
Sedan
Generation
E39
Seats
5
Doors
4
Fuel
Diesel
Drivetrain
RWD
Transmission
  • Automatic Manumatic
  • Manual, 5
  • 6-speed

Powertrain

Engine Name
D10 BITURBO Sedan
Engine Configuration
Inline
Power (hp)
245 hp
Power (kW)
180 kW
Torque
500 Nm (369 lb-ft)
Top speed
254 km/h (158 mph)
0–60 mph
6.4 seconds
0–100 km/h
6.8 seconds
Displacement
2,926 cc

Dimensions

Length
4,775 mm (188.0 in)
Width
1,800 mm (70.9 in)
Height
1,415 mm (55.7 in)
Wheelbase
2,830 mm (111.4 in)
Curb weight
1,655 kg (3,649 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,200 rpm
Rev. at Max Torque
3,500 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
88 mm (3.5 in)
Compression Ratio
16 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 5
  • 6-speed

Fuel

General
Tank Volume
70 litres
Emission
Emission Standard
Euro 3
Fuel Consumption NEDC
City
10.8 – 11.7 litres / 100 km
Highway
6.4 – 6.9 litres / 100 km
Combined
8.9 – 9.5 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,512 mm (59.5 in)
Track, Rear
1,518 mm (59.8 in)
Overhang, Front
869 mm (34.2 in)
Overhang, Rear
1,084 mm (42.7 in)
Turning Circle
11.3 m
Ground Clearance
120 mm (4.7 in)

Interior

Head Room, Front
984 mm (38.7 in)
Head Room, Rear
962 mm (37.9 in)
Hip Room, Front
1,472 mm (58.0 in)
Hip Room, Rear
1,487 mm (58.5 in)
Shoulder Room, Front
1,442 mm (56.8 in)
Shoulder Room, Rear
1,420 mm (55.9 in)

Weight

Gross Weight
2,200 kg (4,850 lb)
Cargo Capacity
545 kg (1,202 lb)
Max Roof Load
70 kg (154 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Whip
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Automatic Headlight Activation
Optional
Adaptive Headlights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Manual (Electric)

Rims & Tires

Tightening Torque
115 Nm

Interior

Equipment

Instrument Cluster
Trip Computer
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Rotary Dials
Climate Control › Controls
Buttons
Optional
Connectivity
Radio
  • AM
  • FM
Media Format
Cassette
Connectivity › Media Format
CD
Optional
MP3
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Back
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Bottom of the Doors
Lights › Read Light
Rear
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Dashboard
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
460 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cruise Control
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Optional
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Light Sensor
Optional
Rain Sensors
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Optional

Other

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car
