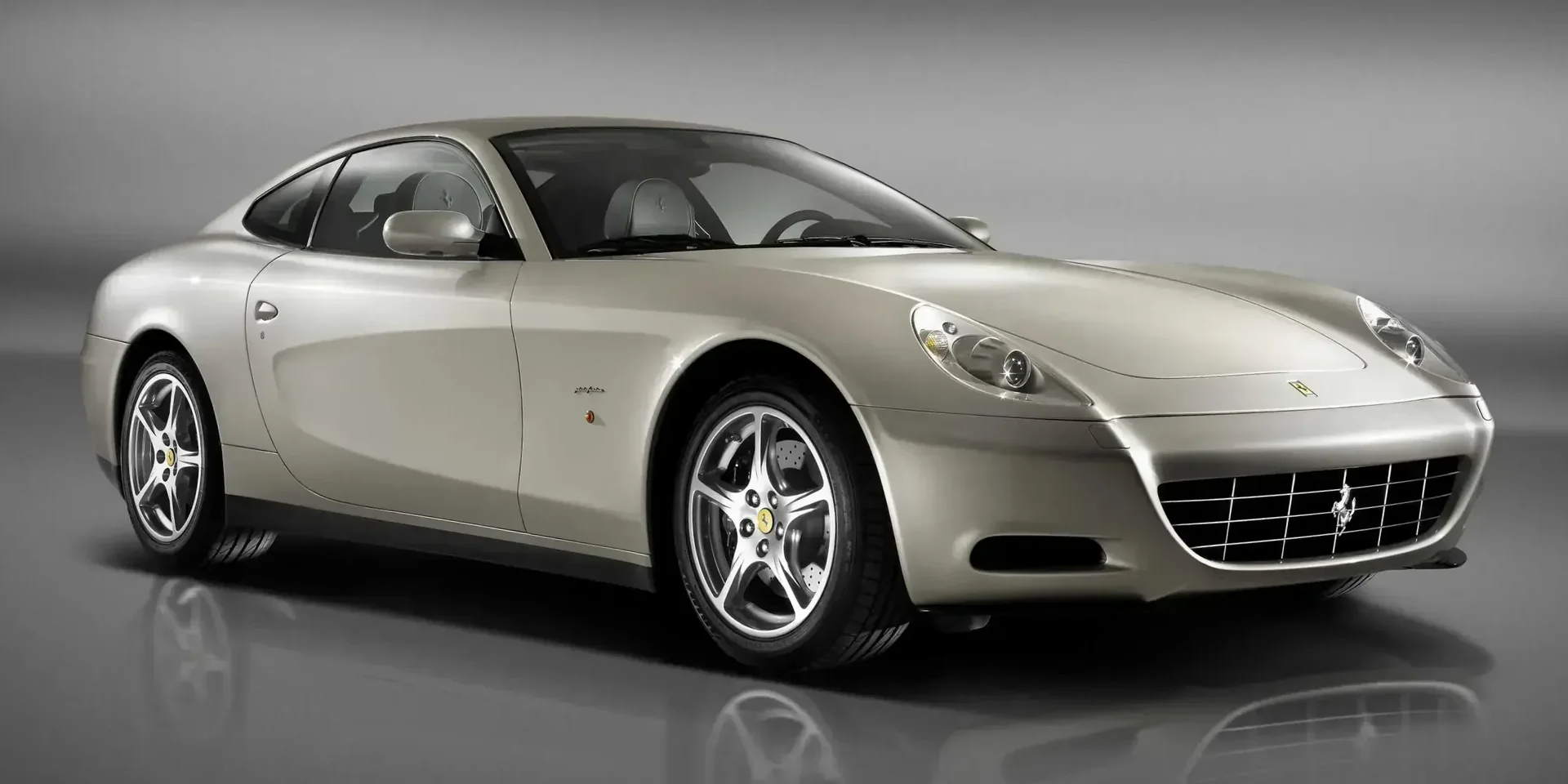

2004 Ferrari 612 Scaglietti

ItalyGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
2004
Make
Ferrari
Model
612 Scaglietti
Body Style
Coupe
Generation
F137
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Powertrain

Engine Name
5.7 V12
Engine Configuration
V
Power (hp)
540 hp
Power (kW)
397 kW
Torque
588 Nm (434 lb-ft)
Top speed
320 km/h (199 mph)
0–60 mph
4.0 seconds (estimated)
0–100 km/h
4.2 seconds
Displacement
5,478 cc

Dimensions

Length
4,902 mm (193.0 in)
Width
1,957 mm (77.0 in)
Height
1,344 mm (52.9 in)
Wheelbase
2,950 mm (116.1 in)
Curb weight
1,850 kg (4,079 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
7,250 rpm
Rev. at Max Torque
5,250 rpm
Redline
7,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-40
Engine Oil, Volume
13 litres
Transmission Fluid, Volume
5 litres
Engine Coolant, Volume
19 litres
Car Battery
Voltage
12 V
Battery Capacity
100 Ah
Alternator Charge Current
150 A
Alternator Voltage
14 V
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
77 mm (3.0 in)
Compression Ratio
11 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 6-speed
Gear Selector
  • Stick
  • Joystick
  • Push Button
  • Paddles
Gear Selector Location
  • Mid-Console
  • On Steering Wheel

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
380 mm (15.0 in)
Width
34 mm (1.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
360 mm (14.2 in)
Width
32 mm (1.3 in)
Cooling
Ventilated
Carbon Ceramic
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Double Wishbone

Fuel

General
Tank Volume
105 litres
Reserve Tank Capacity
20 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
Fuel Consumption NEDC
City
32.1 litres / 100 km
Highway
14 litres / 100 km
Combined
20.7 litres / 100 km
Emission NEDC
CO₂, City
738 g/km
CO₂, Highway
321 g/km
CO₂, Combined
475 g/km

Performance

Acceleration
0-200 km/h
13.4 sec
Quarter Mile
12.25 – 12.3 sec

Dimensions & Weight

Exterior

Track, Front
1,688 mm (66.5 in)
Track, Rear
1,641 mm (64.6 in)
Overhang, Front
856 mm (33.7 in)
Overhang, Rear
1,096 mm (43.1 in)
Turning Circle
12.2 m
Ground Clearance
100 mm (3.9 in)

Weight

Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Doors
Front Doors
Conventional

Equipment

Windscreen Wipers
Volume Water Tank
6.5 litres
Windows
Window Lifts, Front
Powered
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Xenon
Low Beam
Xenon

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Bolts

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
1,050 g
Connectivity
Radio
Yes
Media Format
MP3
Bluetooth
Yes
Connectivity › Media Format
CD
Multiple CD Changer
Displays
Center Display
Yes

Steering Wheel

Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
240 litres

Seats

Colour & Material
Upholstery
Leather
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional

Features

Comfort Features

Cruise Control
Yes

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Yes

Airbags

Feature
Frontal Airbag
Airbag cut-off Switch

Other

Car Classification

American Classification
Grand Tourer
British Classification
Grand Tourer
Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car
