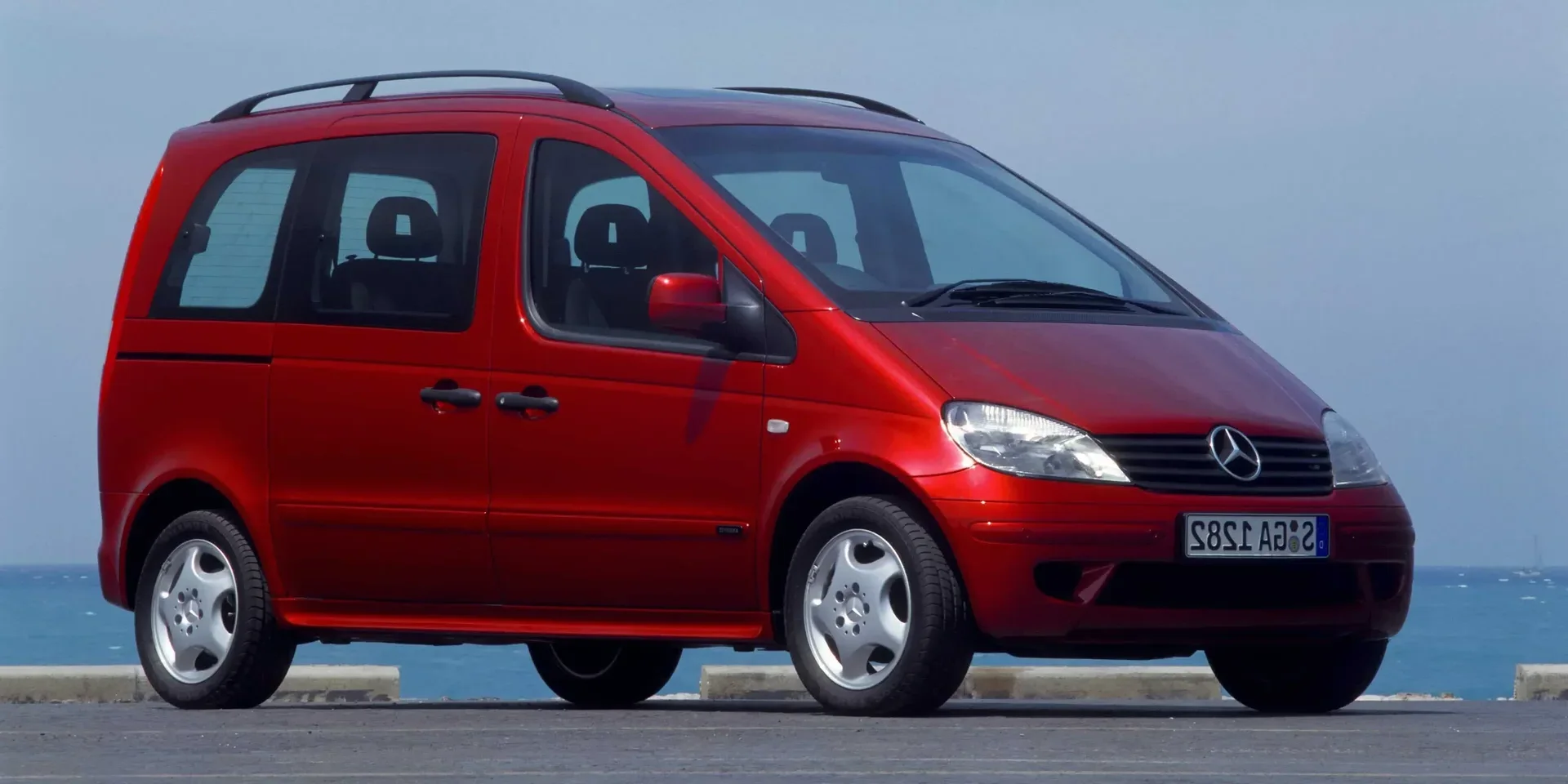

2005 Mercedes-Benz Vaneo

GermanyGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2005
Make
Mercedes-Benz
Model
Vaneo
Body Style
Minivan
Generation
W414
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Semi-automatic
  • Manual, 5-speed

Powertrain

Engine Name
1.9
Engine Configuration
Inline
Power (hp)
125 hp
Power (kW)
92 kW
Torque
180 Nm (133 lb-ft)
Top speed
171 km/h (106 mph)
0–60 mph
10.3 seconds (estimated)
0–100 km/h
10.8 seconds
Displacement
1,898 cc

Dimensions

Length
4,192 mm (165.0 in)
Width
1,742 mm (68.6 in)
Height
1,830 mm (72.0 in)
Wheelbase
2,900 mm (114.2 in)
Curb weight
1,200 kg (2,646 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
4,000 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
85.6 mm (3.4 in)
Compression Ratio
10.8 :1
Engine Configuration
Inline
Engine Mount
Transversally
Service Intervals
Air Filter
80,000 km / 4 years
Fuel Filter
80,000 km / 4 years
Spark Plug
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km / 15 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Semi-automatic
  • Manual, 5-speed

Brakes

Front Brakes
Disc Brakes

Fuel

General
Tank Volume
54 litres
Fuel Consumption NEDC
City
10.7 – 11.5 litres / 100 km
Highway
6.7 – 6.8 litres / 100 km
Combined
8.2 – 8.5 litres / 100 km
Emission NEDC
CO₂, Combined
197 – 204 g/km

Dimensions & Weight

Exterior

Track, Front
1,524 mm (60.0 in)
Track, Rear
1,477 mm (58.1 in)
Turning Circle
11.8 m
Ground Clearance
140 mm (5.5 in)

Weight

Gross Weight
1,920 kg (4,233 lb)
Max Trailer Load, braked 12%
750 kg (1,653 lb)
Max Trailer Load, unbraked
400 kg (882 lb)
Cargo Capacity
710 – 720 kg (1,565 – 1,587 lb)
Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV

Equipment

Windows
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Tow Hook
  • Front
  • Rear
Roof Railing
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
  • M12x1.5
  • M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts

Interior

Equipment

Instrument Cluster
Tachometer
Analogue
Climate Control
Outside Temperature Indicator
Yes
Connectivity
Radio
Optional

Seats

Colour & Material
Upholstery
Textile
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
715 litres
Volume, Back Seat Collapsed
3,000 litres
Depth
910 mm (35.8 in)
Depth, Back Seat Collapsed
1,860 mm (73.2 in)

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Safety Testing

General
Test Year
2002
Adult Occupant
4/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Seat Belt

Feature
Seat Belt Reminder
Belt Pretensioner

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV
