2006 Mercedes-Benz E-Class

GermanyDieselRWDWagon

Photos

Specifications

Vehicle Details

Year
2006
Make
Mercedes-Benz
Model
E-Class
Body Style
Wagon
Generation
W211 Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
RWD
Transmission
Automatic

Powertrain

Engine Name
E 320 T CDI 7G-Tronic
Engine Configuration
V
Power (hp)
224 hp
Power (kW)
165 kW
Torque
540 Nm (398 lb-ft)
Top speed
240 km/h (149 mph)
0–60 mph
7.0 seconds (estimated)
0–100 km/h
7.3 seconds
Displacement
2,987 cc

Dimensions

Length
4,888 mm (192.4 in)
Width
1,822 mm (71.7 in)
Height
1,506 mm (59.3 in)
Wheelbase
2,854 mm (112.4 in)
Curb weight
1,785 kg (3,935 lb)

Engine & Performance

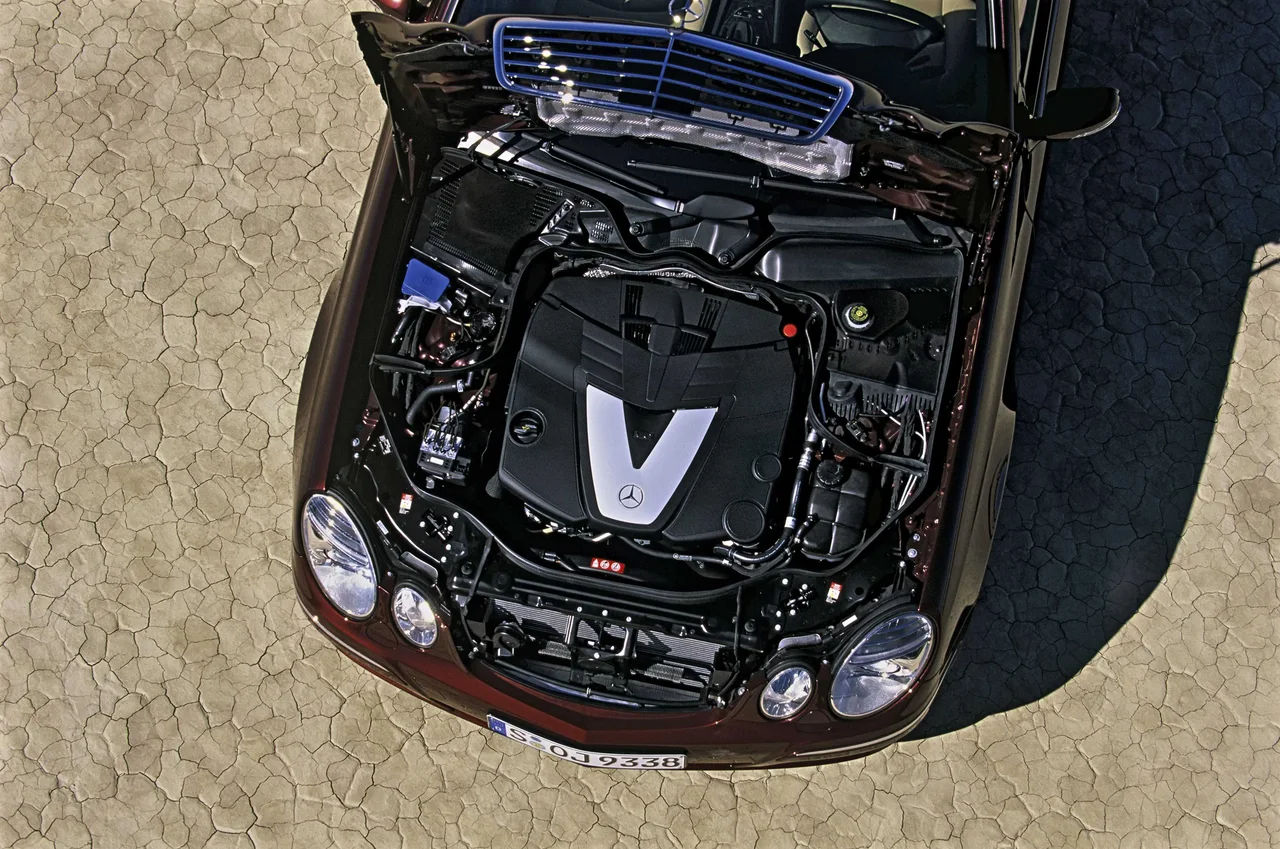

Engine

Engine Specification
Rev. at Max Power
3,800 rpm
Rev. at Max Torque
1,600 - 2,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Oil, Volume
8.5 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92 mm (3.6 in)
Compression Ratio
17.7 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
80,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km / 15 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
MacPherson Strut
Anti-roll Bar
Front

Fuel

General
Tank Volume
70 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
10.6 litres / 100 km
Highway
5.9 litres / 100 km
Combined
7.6 litres / 100 km
Emission NEDC
CO₂, Combined
202 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,063 mm (81.2 in)
Track, Front
1,559 mm (61.4 in)
Track, Rear
1,552 mm (61.1 in)
Overhang, Front
869 mm (34.2 in)
Overhang, Rear
1,165 mm (45.9 in)
Turning Circle
11.4 m
Ground Clearance
124 mm (4.9 in)

Interior

Head Room, Front
1,106 mm (43.5 in)
Head Room, Rear
998 mm (39.3 in)
Hip Room, Front
1,454 mm (57.2 in)
Hip Room, Rear
1,454 mm (57.2 in)
Shoulder Room, Front
1,432 mm (56.4 in)
Shoulder Room, Rear
1,424 mm (56.1 in)

Weight

Gross Weight
2,460 kg (5,423 lb)
Max Trailer Load, braked 12%
2,100 kg (4,630 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
675 kg (1,488 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Side Lock
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Glass-integrated
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Front
Yes
Rear
Yes
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Manual (Pneumatic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Tire Pressure Monitoring System (TPMS)
Direct
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Back Seat Controls
Optional
Climate Control › Back Seat Controls
Buttons
Optional
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • MP3
  • WMA
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › TV Receiver › Digital
Analogue
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Dual Sun Visors
Optional
Clock
Analogue
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Dual Sun Visors
Driver
Optional
Passenger
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Sport
Yes
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

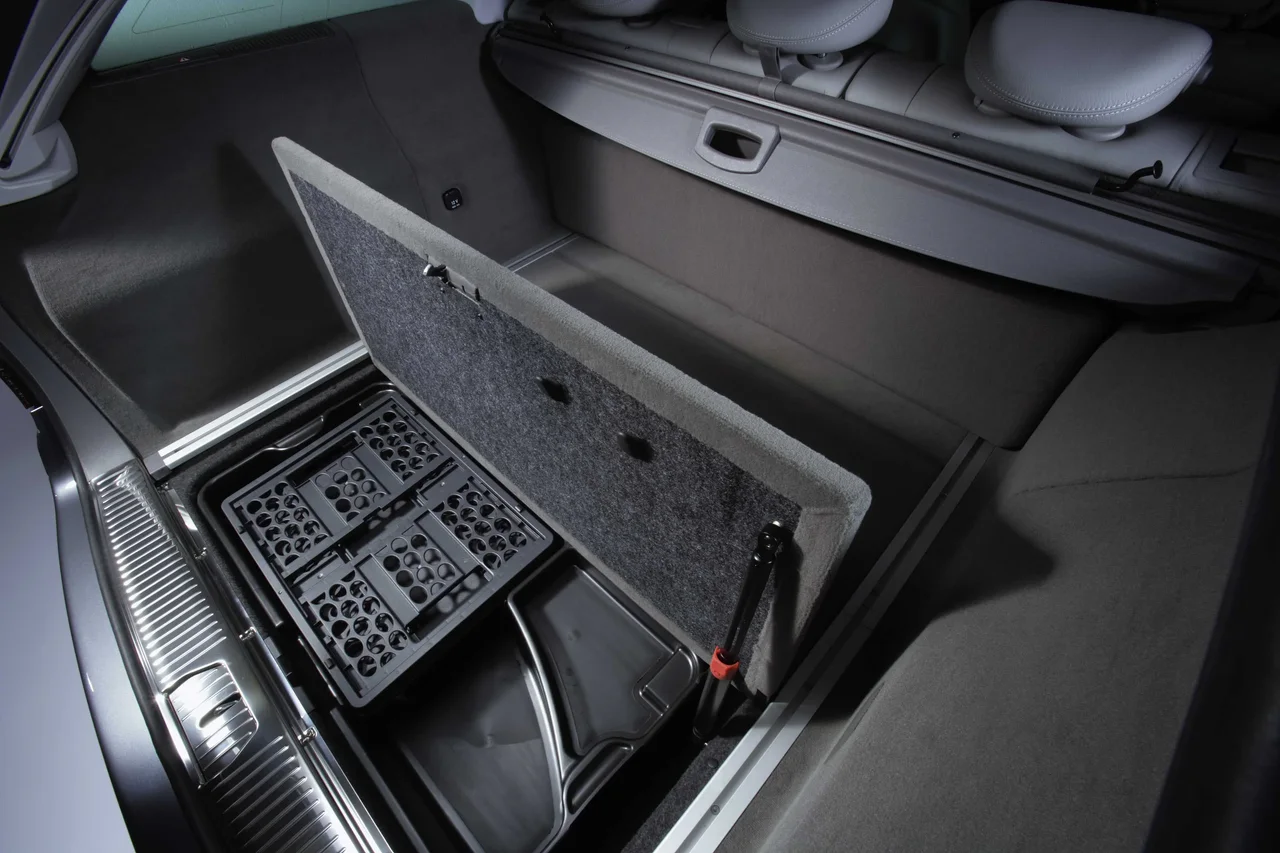

Trunk

Rear Trunk
Yes
Cover
Sliding (Manual)
Carpet
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
690 litres
Volume, Back Seat Collapsed
1,950 litres
Depth
1,190 mm (46.9 in)
Depth, Back Seat Collapsed
1,810 mm (71.3 in)
Width
1,110 mm (43.7 in)
Height
850 mm (33.5 in)
Sill Height
571 mm (22.5 in)
Carpet
Rubber
Optional

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Easy Entry
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note
GPS
SD-Card
Optional
GPS › SD-Card
DVD
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2002
Adult Occupant
5/5 stars
Pedestrian
1/4 stars
Overall Score
32.95
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
13.26
Side Impact
15.69
Pole
2
Safety Assist
Seat Belt Reminders
2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Fog Light, Front
H11
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Turn Indicators, Front
BAU15s (PY21W)
License Plate Light
SV8.5 (C5W)

Similar wagons

Suggested vehicles
