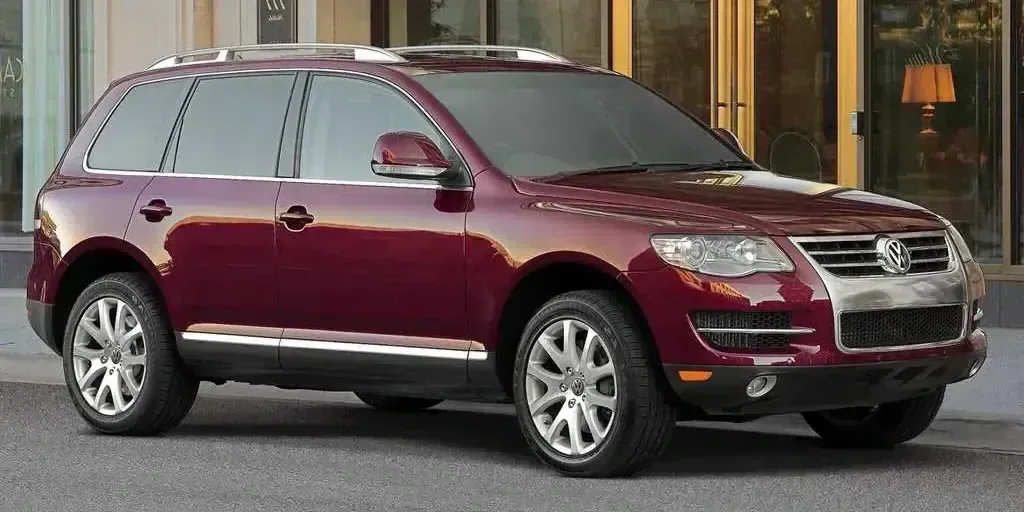

2006 Volkswagen Touareg

GermanyDieselAWDSUV

Photos

Specifications

Vehicle DetailsPowertrainDimensionsEngine & PerformanceDimensions & WeightExteriorInterior

Vehicle Details

Year
2006
Make
Volkswagen
Model
Touareg
Body Style
SUV
Generation
I (Type 7L)
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 6-speed

Powertrain

Engine Name
5.0 V10 TDI 4XMotion TipTronic
Engine Configuration
V
Power (hp)
313 hp
Power (kW)
230 kW
Torque
750 Nm (553 lb-ft)
Top speed
225 km/h (140 mph)
0–60 mph
7.4 seconds (estimated)
0–100 km/h
7.8 seconds

Dimensions

Length
4,757 mm (187.3 in)
Width
1,928 mm (75.9 in)
Height
1,726 mm (68.0 in)
Wheelbase
2,855 mm (112.4 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,750 rpm
Rev. at Max Torque
2,000 rpm
Engine Fluids
Engine Oil, Volume
11.5 litres
Engine Configuration
Bore
Displacement
4,921 cc
81 mm (3.2 in)
Stroke
95.5 mm (3.8 in)
Compression Ratio
18.5 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Spur Gear
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
OHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
120,000 km / 4 years
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Low Gear
Yes

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes

Suspensions

Spring, Front
Pneumatic Air
Spring, Rear
Pneumatic Air
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
100 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Exhaust Gas Recirculation
Fuel Consumption NEDC
City
16.6 litres / 100 km

Dimensions & Weight

Exterior

Width, with Mirrors
2,217 mm (87.3 in)
Width, open Doors
3,863 mm (152.1 in)
Height (Bonnet Open)
1,953 mm (76.9 in)
Track, Front
1,645 mm (64.8 in)
Track, Rear
1,657 mm (65.2 in)
Overhang, Front

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional

Interior

Seats

Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Volkswagen emblem
Cooling
Solid
Highway
9.8 litres / 100 km
Combined
12.2 litres / 100 km
926 mm (36.5 in)
Overhang, Rear
973 mm (38.3 in)
Approach Angle
33 °
Breakover Angle
27
Departure Angle
33 °
Turning Circle
11.6 m
Ground Clearance
300 mm (11.8 in)
Wading Depth
580 mm (22.8 in)

Interior

Head Room, Front
984 - 1,008 mm (38.7 - 39.7 in)
Head Room, Rear
982 - 987 mm (38.7 - 38.9 in)
Leg Room, Front
1,050 mm (41.3 in)
Leg Room, Rear
905 mm (35.6 in)
Hip Room, Front
1,504 mm (59.2 in)
Hip Room, Rear
1,505 mm (59.3 in)
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
E Platform (PL71)
Split Fold Ratio
60/40

Trunk

Rear Trunk
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
555 litres
Volume, Back Seat Collapsed
1,570 litres
Depth
960 mm (37.8 in)
Depth, Back Seat Collapsed
1,630 mm (64.2 in)
Width
Touareg
8.9

€67,000

MSRP · EUR

Body
1,160 mm (45.7 in)
Height
945 mm (37.2 in)
Height, to Trunk Cover
600 mm (23.6 in)
Trunk Door Opening Height
2,182 mm (85.9 in)
SUV
Variant
Touareg SUV Generations1 of 10
Year
Powertrain
Horsepower
313 hp
Drivetrain
AWD
Fuel
Transmission
