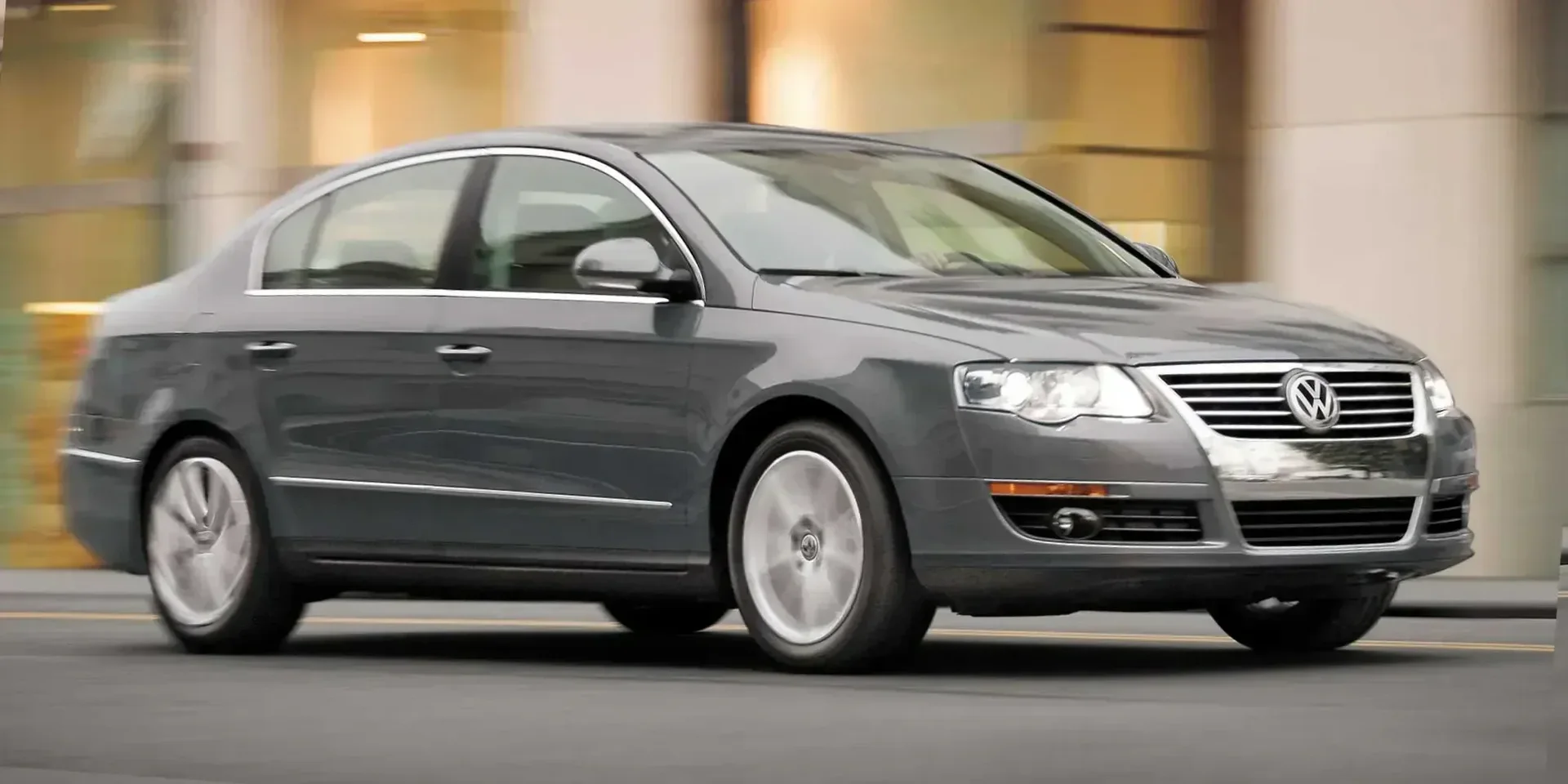

2007 Volkswagen Passat

GermanyGasolineFWDSedan

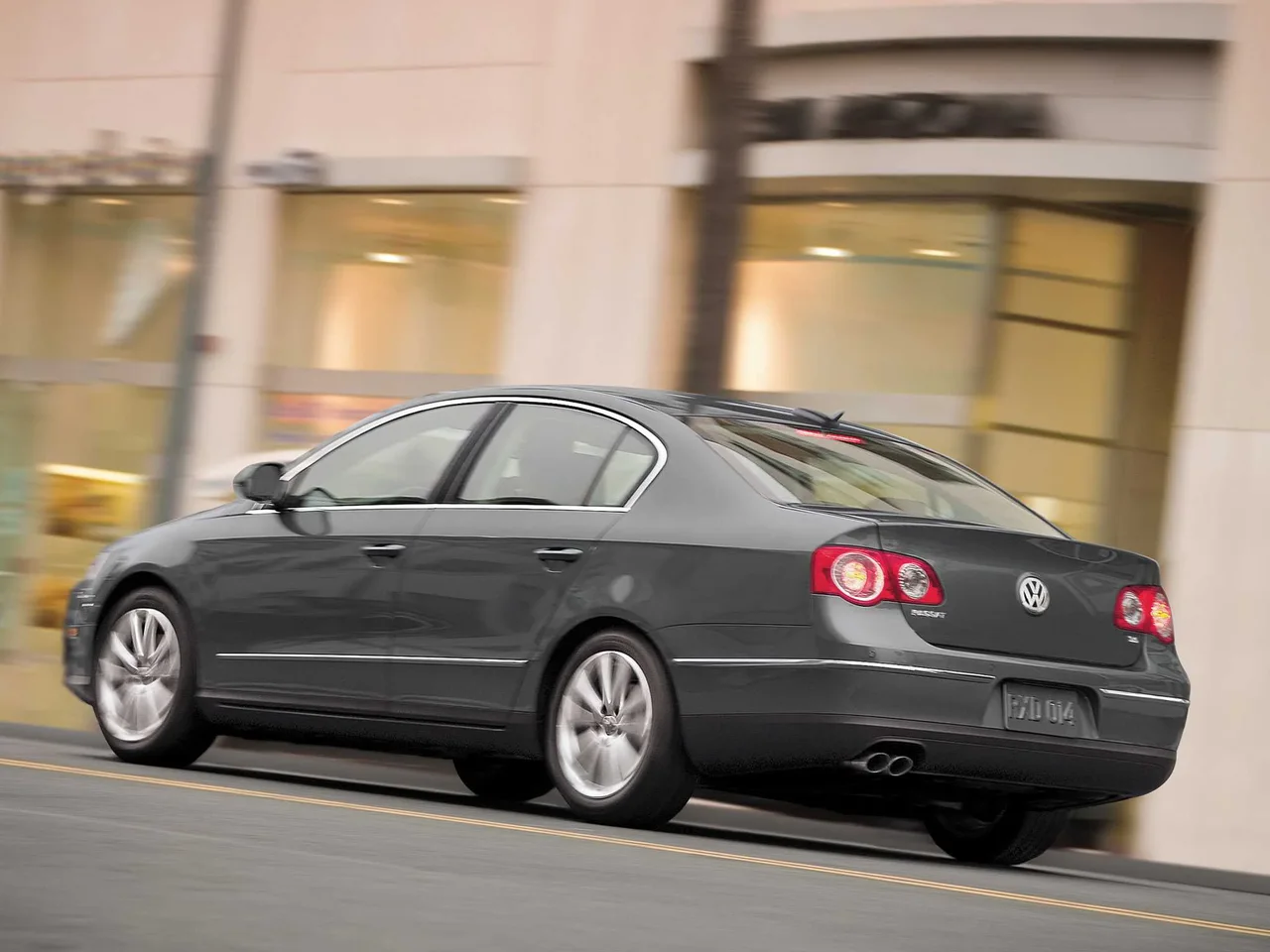

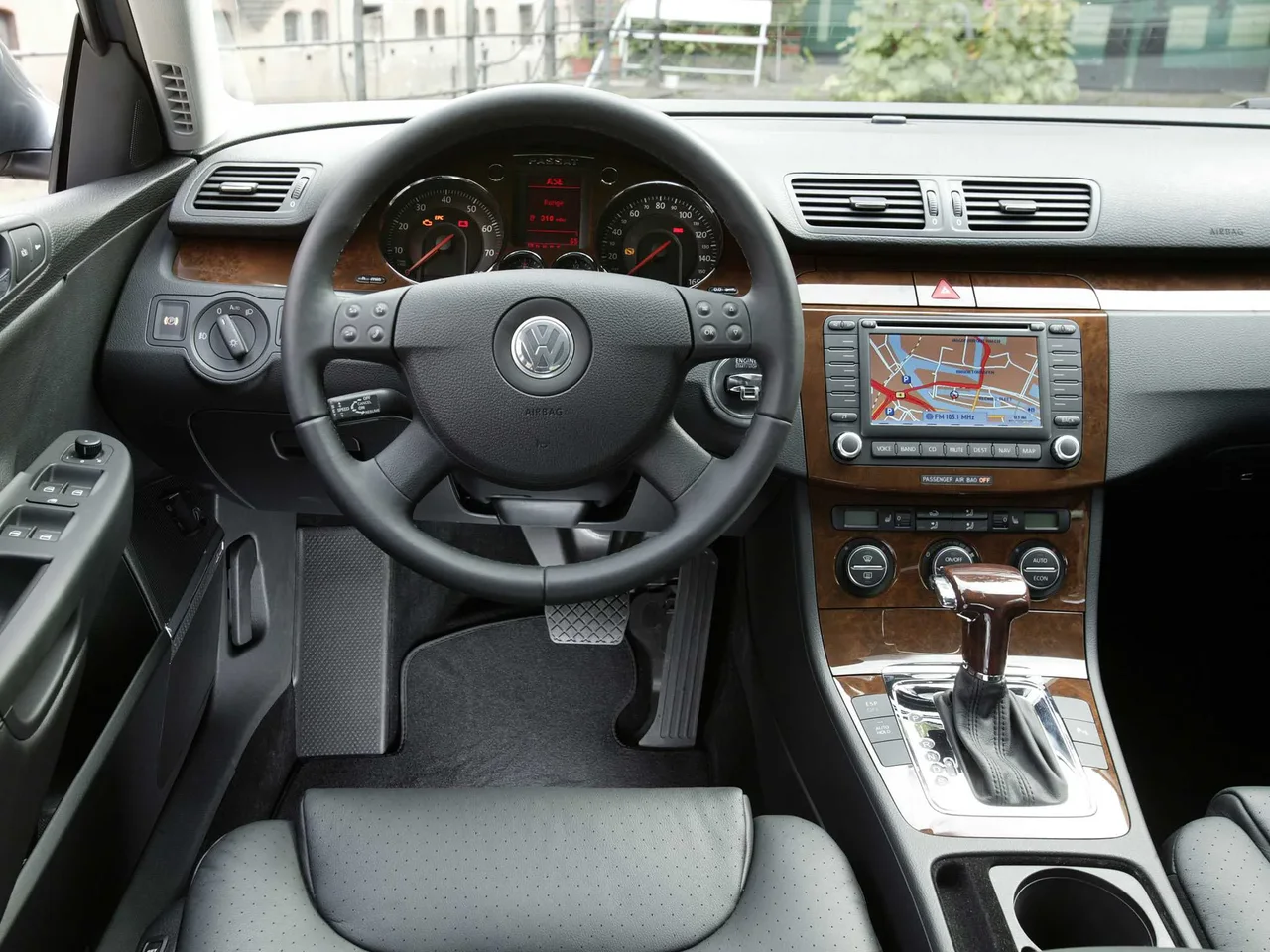

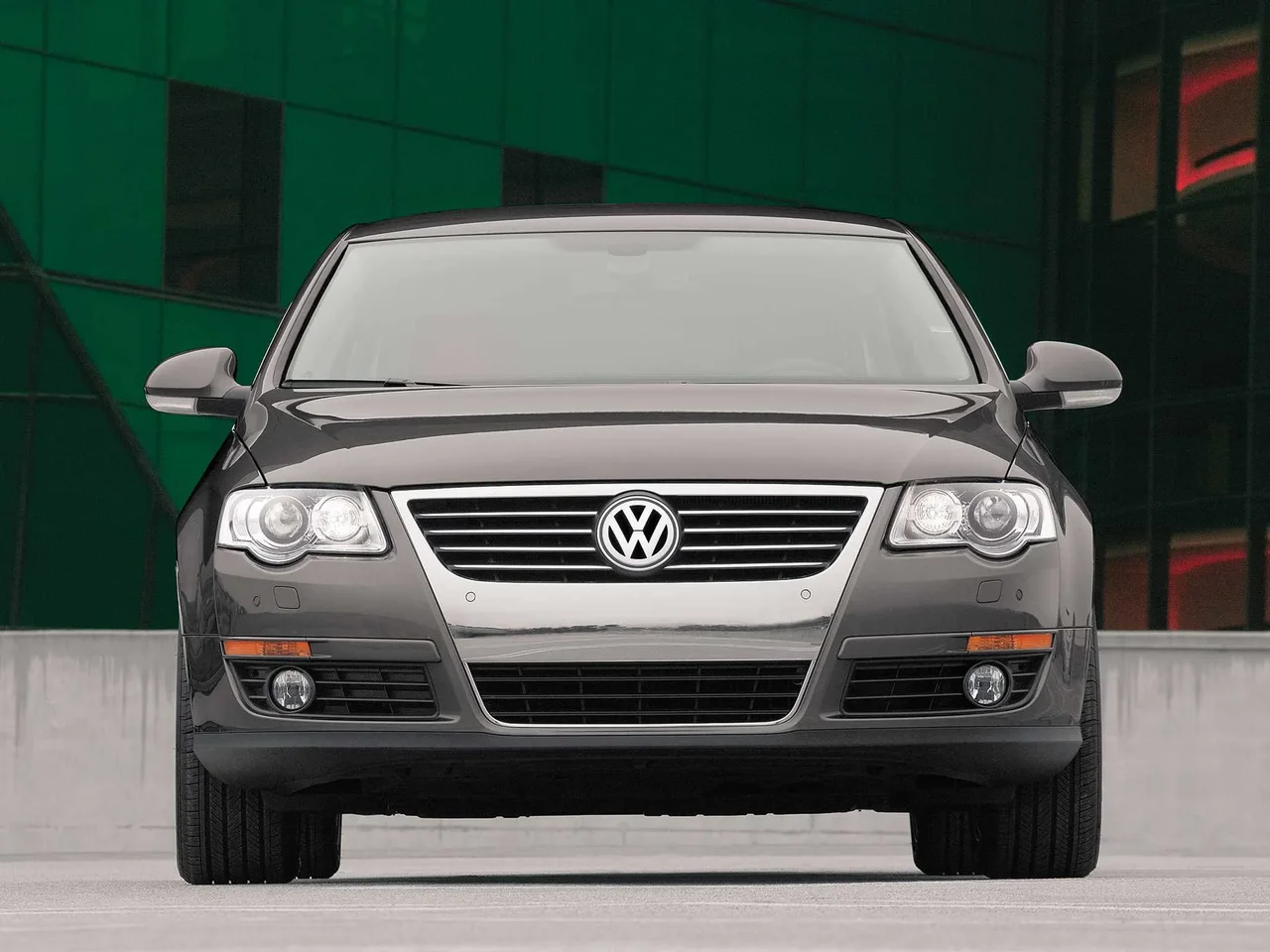

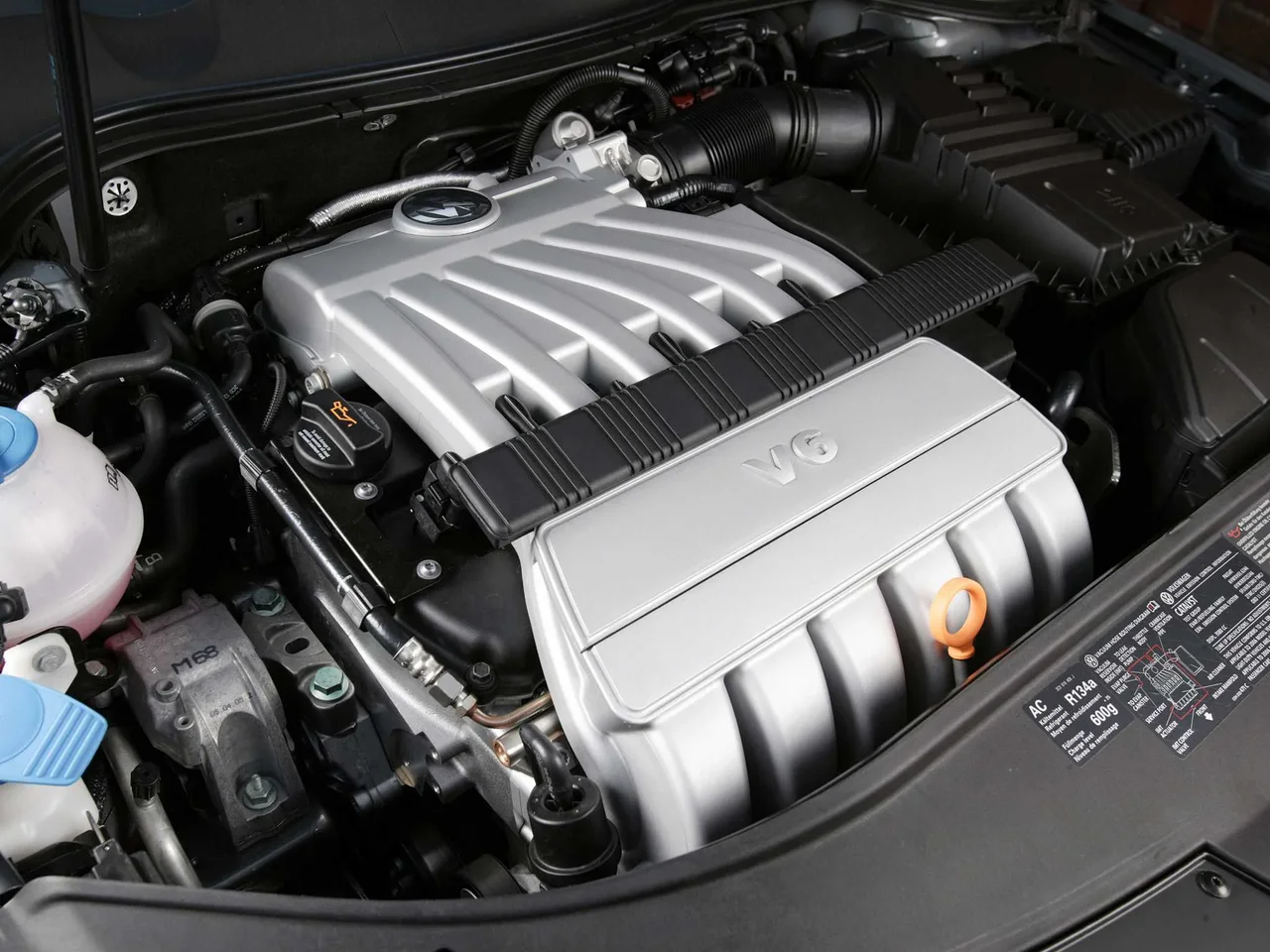

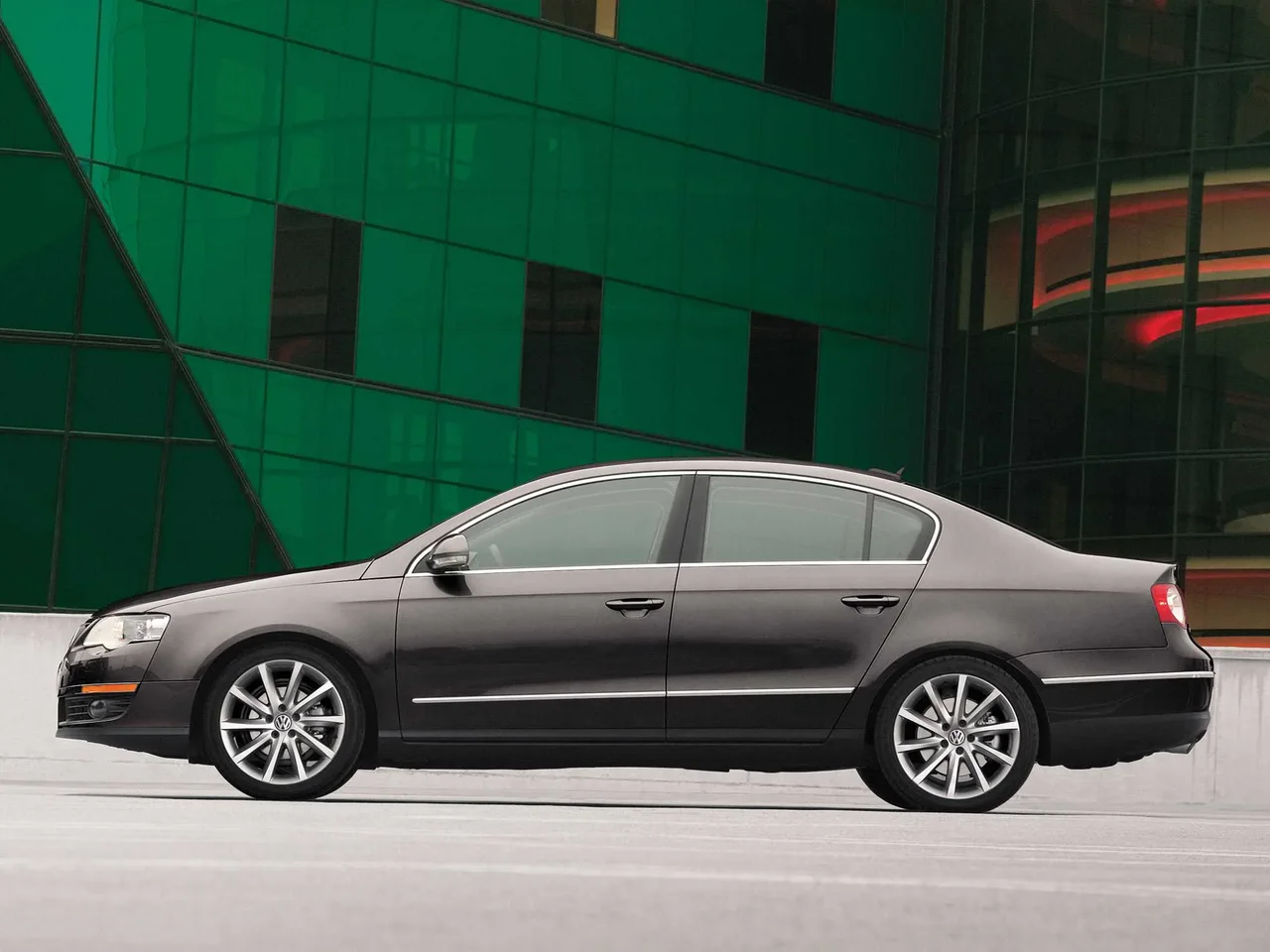

Photos

Specifications

Vehicle DetailsPowertrainDimensionsEngine & PerformanceDimensions & WeightExteriorInteriorFeaturesSafety & SecurityOther

Vehicle Details

Year
2007
Make
Volkswagen
Model
Passat
Body Style
Sedan
Generation
B6 (Type 3C)
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Manumatic
  • Manual, 6-speed

Powertrain

Engine Name
1.6 FSI
Engine Configuration
Inline
Power (hp)
115 hp
Power (kW)
85 kW
Torque
155 Nm (114 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
10.9 seconds (estimated)
0–100 km/h
11.4 seconds
Displacement

Dimensions

Length
4,765 mm (187.6 in)
Width
1,820 mm (71.7 in)
Height
1,472 mm (58.0 in)
Wheelbase
2,709 mm (106.7 in)
Curb weight
1,348 kg (2,972 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 10W-60
Semi-synthetic Oil (viscosity)
1,598 cc
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 10W-50
  • 10W-60
  • 15W-40
  • 20W-40
  • 20W-50
  • Mineral Oil (viscosity)
    • 15W-40
    • 15W-50
    • 20W-50
    Engine Oil, Volume
    3.5 litres
    Car Battery
    Battery Capacity
    44 Ah
    Cold Start Power
    220 A
    Alternator Charge Current
    110 A
    Engine Configuration
    Bore
    76.5 mm (3.0 in)
    Stroke
    86.9 mm (3.4 in)
    Compression Ratio
    12 :1
    Engine Configuration
    Inline
    Naturally Aspirated
    Yes
    Synchronization
    Timing Chain
    Engine Placement
    Front
    Engine Mount
    Transversally
    Type of Combustion Engine
    Service Intervals
    Brake Fluid
    2 years
    Oil Change & Engine Filter
    15,000 km / 1 years
    Interior Filter
    60,000 km / 2 years

    Transmission & Drivetrain

    Transmission
    • Automatic Manumatic
    • Manual, 6-speed

    Brakes

    Parking Brake
    Electric
    Yes
    Front Brakes
    Disc Brakes
    Rear Brakes
    Disc Brakes
    Brakes Material
    Steel
    Front Brakes
    Cooling
    Ventilated

    Suspensions

    Spring, Front
    Coil
    Spring, Rear
    Coil
    Anti-roll Bar
    • Front
    • Rear
    Sports Suspension
    Optional
    Suspension, Front
    Independent
    MacPherson Strut
    Suspension, Rear
    Independent

    Fuel

    General
    Tank Volume
    70 litres
    Lockable Fuel Cap
    Yes
    General › Fuel Cap Position
    Rear
    Right
    Emission
    Emission Standard
    Euro 4
    Fuel Consumption NEDC
    City

    Dimensions & Weight

    Exterior

    Width, with Mirrors
    1,991 mm (78.4 in)
    Track, Front
    1,552 mm (61.1 in)
    Track, Rear
    1,551 mm (61.1 in)
    Overhang, Front
    965 mm (38.0 in)
    Overhang, Rear
    1,091 mm (43.0 in)
    Approach Angle

    Exterior

    Chassis & Body

    Chassis
    Chassis
    Sedan
    Pillars
    A-C
    Chassis Construction
    Unibody
    Body Material
    • Plastic
    • Steel
    Roof Material
    Steel
    Protective Moldings
    Yes

    Interior

    Equipment

    Instrument Cluster
    Trip Computer
    Yes
    Speedometer
    Analogue
    Tachometer
    Analogue
    Fuel Gauge
    Analogue
    Coolant Temperature
    Analogue
    Odometer Limit
    1,000,000 km/miles
    Instrument Cluster › Trip Computer

    Features

    Comfort Features

    Keyless Entry
    Optional
    Cruise Control
    Optional
    Parking Heater
    Optional
    Cameras
    Optional
    Cruise Control
    Adaptive Cruise Control
    Optional
    Parking Heater

    Safety & Security

    Seat Belt

    Height Adjustable Retractor
    Yes
    Seat Belt Colour
    Black
    Feature
    Driver
    Passenger
    Rear
    Seat Belt Reminder
    Driver

    Other

    Identification

    VIN Location
    Engine Compartment, Bulkhead
    Right
    Left Side Casing of Window
    Yes
    Pillar
    B-Pillar, Left
    Trunk
    on Floor
    On-board Diagnostic, Port Type
    OBD-II
    On-board Diagnostic, Port Location
    Volkswagen emblem
    Piston
    Fuel System
    Electronic (Direct) Fuel Injection
    Camshaft Type
    DOHC
    Engine Heads
    Aluminium
    Engine Cooling
    Liquid Cooling
    Multi-link
    10.3 litres / 100 km
    Highway
    6.4 litres / 100 km
    Combined
    7.8 litres / 100 km
    Emission NEDC
    CO₂, Combined
    179 g/km
    14.4 °
    Breakover Angle
    10.8
    Departure Angle
    12.6 °
    Turning Circle
    11.4 m
    Ground Clearance
    114 mm (4.5 in)

    Interior

    Head Room, Front
    951 - 973 mm (37.4 - 38.3 in)
    Head Room, Rear
    961 mm (37.8 in)
    Leg Room, Front
    725 - 1,038 mm (28.5 - 40.9 in)
    Shoulder Room, Front
    1,466 mm (57.7 in)
    Shoulder Room, Rear
    1,511 mm (59.5 in)

    Weight

    Gross Weight
    1,960 kg (4,321 lb)
    Max Trailer Load, braked 12%
    1,300 kg (2,866 lb)
    Max Trailer Load, unbraked
    710 – 730 kg (1,565 – 1,609 lb)
    Cargo Capacity
    455 – 612 kg (1,003 – 1,349 lb)
    Max Roof Load
    100 kg (220 lb)
    Max Towbar Download
    85 kg (187 lb)
    Chassis › Protective Moldings
    Rear
    Mid-Strip
    Sides
    Mid-Strip
    Doors
    Front Doors
    Conventional
    Rear Doors
    Conventional
    Door Handles
    Pull-out
    Platform
    Volkswagen Group
    B6/PL46

    Equipment

    Side Mirrors
    Mirror Type
    Conventional
    Adjustments
    Electrical
    User Memory
    Optional
    Heated
    Yes
    Ground Light
    Optional
    Turning Signal
    Yes
    House Colour
    Same as Car
    Mirror Shape, Driver side

    Lights

    Rear Lights
    LED
    Fog Lights
    Yes
    Fog Lights
    Rear
    Halogen
    Special Features
    Automatic Headlight Activation
    Optional
    Adaptive Headlights
    Optional
    Dynamic Cornering Lights
    Optional

    Colour

    Door Handles
    Same as Car

    Rims & Tires

    Tire Pressure Monitoring System (TPMS)
    Optional
    Number of Bolts
    5 pcs
    Bolt Distance
    112
    Nut/Bolt Dimensions
    M14x1.5
    Central Bore (CB), front
    57.1
    Fastening Type
    Lug Bolts
    Anti-Theft Locking Lug Nuts/Bolts
    Optional
    Tightening Torque
    120 Nm
    Display
    Yes
    Instrument Cluster › Trip Computer › Display
    Type
    Monochrome
    Shape
    Square
    Climate Control
    Air Condition
    Yes
    Pollen Filter
    Yes
    Outside Temperature Indicator
    Yes
    Controls
    • Buttons
    • Rotary Dials
    Climate Control › Air Condition
    Refrigerant
    R1234yf
    Connectivity
    Radio
    • AM
    • FM
    Media Format
    MP3
    Connectivity › Media Format
    CD
    Yes
    DVD
    Optional
    Hard Drive
    Optional
    Connectivity › Media Inputs
    AUX
    Front
    Displays
    Center Display
    Optional
    Displays › Center Display
    Touchscreen
    Optional
    Buttons
    Optional
    Rotary Dial
    Optional
    Speakers
    Total Number of Speakers
    4 - 10 pcs
    Speakers Max. Watt
    80 - 600 W
    Rear-view Mirror
    Adjustments
    Mechanical
    Rear-view Mirror: Mirror Type
    Standard
    Interior Storage › Storage Compartments
    Glove Compartment
    • Cooled
    • Light
    • Lockable (Manual)
    Armrest Hatch
    Front
    Back Pocket
    Optional
    Sunglass Compartment
    Yes
    Coin Holder
    Yes
    Card Holder
    Yes
    Under Seats
    Optional
    Door
    • Driver Side
    • Passenger Side
    Interior Storage › Storage Compartments › Under Seats
    Front
    Optional
    Interior Storage
    Cup Holders
    Yes
    Interior Storage › Cup Holders
    Front
    2
    Interior Storage › Cup Holders › Front
    Placement
    Middle Console
    Lights
    Read Light
    • Front
    • Rear
    Guide Light
    • Entry Guard
    • Bottom of the Doors
    Lights › Guide Light
    Footwell
    Optional
    Side Mirrors
    Optional
    Other Equipment
    Make-up Mirror
    • Driver Side
    • Passenger Side
    Clock
    Yes
    12V Outlet
    Front
    230V Outlet
    Optional
    Carpets
    Optional
    Ashtray
    Optional
    Cigarette Lighter
    Optional
    Other Equipment › Make-up Mirror
    Make-up Light
    Optional
    Other Equipment › Clock
    Analogue
    Dashboard
    Digital
    • Center Display
    • Instrument Cluster
    Other Equipment › 12V Outlet
    Rear
    Optional
    Trunk
    Optional
    Other Equipment › 230V Outlet
    Rear
    Optional
    Other Equipment › Carpets
    Front
    Optional
    Rear
    Optional
    Other Equipment › Ashtray
    Front
    Optional

    Steering Wheel

    Multifunction Steering Wheel
    Optional
    Power Steering
    Electro-mechanical
    Adjustments
    • Tilt
    • Telescope
    Steering Mechanism
    Rack and Pinion

    Trunk

    Rear Trunk
    Yes
    Automatic Open
    Key Button
    Cargo Hooks
    Yes
    Carpet
    Optional
    Flat Surface
    Yes
    Hatch Through Rear Seats
    Optional
    Light
    Yes
    Hatch Opening Type
    Under Rear Window
    Rear Trunk

    Seats

    Front Seats › Adjustments, Driver
    Seat Depth
    Yes
    Seat Height
    Yes
    Cushion Tilt
    Optional
    Backrest Angle
    Yes
    Lumbar Support
    Optional
    Headrest, Height
    Manual
    Headrest, Tilt
    Manual
    Front Seats › Adjustments, Passenger
    Engine Heater
    Optional
    Parking Heater › Engine Heater
    Remote
    Optional
    Timer
    Optional
    Cameras
    Rear
    Optional

    Other Features

    GPS
    Optional
    Start & Stop
    Optional
    Horn
    Dual Note

    Accessories

    Tool Kit and Jack
    Yes
    Tire Repair Kit
    Yes
    Compressor
    Optional
    Fire Extinguisher
    Optional
    Warning Triangle
    Yes
    First Aid Kit
    Optional
    Trunk Modules
    Optional
    Bicycle Holder
    Optional
    Yes
    PassengerYes
    Rear-
    Belt Pretensioner
    DriverYes
    PassengerYes
    RearOptional
    Belt Load Limiter
    DriverYes
    PassengerYes
    Rear-
    Height Adjustable Retractor
    Manual
    Yes
    Type of Belt
    Three-Point-Belt
    • Front Seats
    • Outer Rear Seats
    • Centre Rear Seat

    Assist Systems

    Electronic Stability Control (ESC)
    Yes
    Forward Collision Warning (FCW)
    Optional
    Lane Assist System
    Optional
    Hill Start Assist (HSA)
    Optional
    Sign Assist
    Optional
    Trailer Stability Assist (TSA)
    Yes

    Brake Systems

    Power Brakes
    Yes
    Anti-lock Braking System (ABS)
    Four-channel
    Traction Control System (TCS)
    Yes
    Electronic Brakeforce Distribution (EBD)
    Yes
    Electronic Brake Assist (BA/EBA)
    Yes
    Brake Pad Wear Indicator
    Yes
    Differential Lock
    Electronic

    Sensors

    Parking Sensors
    Optional
    Light Sensor
    Optional
    Rain Sensors
    Optional
    Parking Sensors
    Front
    Optional
    Rear
    Optional

    Other Features

    Immobiliser
    Yes
    Anti-theft Alarm
    Optional
    Central Locking
    • Remote
    • Auto Lock (Speed Sensitive)
    Child Safety Locks
    Manual
    Emergency Call
    Optional
    Immobiliser
    Electronic
    Yes

    Safety Testing

    General
    Test Year
    2005
    Overall
    5/5 stars
    Adult Occupant
    5/5 stars
    Child Occupant
    4/5 stars
    Pedestrian
    2/4 stars
    Test Year
    2008
    Overall Score
    33.99
    ANCAP Safety Rating

    Airbags

    Feature
    Driver
    Passenger
    Rear
    Frontal Airbag
    DriverYes
    PassengerYes
    Rear-
    Side Chest Airbag
    Driver

    Child Protection

    Feature
    Passenger
    Rear
    Isofix
    Passenger-
    RearYes
    Integrated Child Seat
    Passenger-
    RearOptional
    Steering Wheel, Lower Left

    Car Classification

    American Classification
    Mid-Size Car
    British Classification
    Large Family Car
    Australian Classification
    Medium Car
    European Segment
    D-Segment
    Car.info Classification
    Large Family Car

    Spare Parts BETA

    Bulb Types
    Low Beam
    • D1S (xenon)
    • H7
    Main Beam
    H7
    Bi-Xenon
    D1S
    Fog Light, Front
    • H11
    • HB4
    Fog Light, Rear
    BA15s (P21W)
    Cornering Light
    H7
    Positioning-/Parking Lights, Front
    W2.1×9.5d (W5W)
    Passat
    8.9

    €67,000

    MSRP · EUR

    Body
    Aspheric
    Windscreen Wipers
    Heated Washer Nozzles
    Optional
    Speed Sensing Intermittent
    Optional
    Intermittent Control
    Yes
    Windscreen Wipers: Connector type, Front
    Push Button
    Number of Windscreen Wipers, Front
    2
    Windows
    Window Lifts, Front
    Powered
    Heated Windows
    Rear
    Heat-Insulating Windows
    • Front
    • First Row
    • Second Row
    • Rear
    Sun Visors
    Optional
    Tinted Windows
    Optional
    Safety Glass
    Yes
    Windows › Window Lifts, Features
    Pinch Protection
    • Driver
    • Passenger
    One-touch up/down
    Driver
    Windows › Window Lifts, Features › One-touch up/down
    Passenger
    Optional
    Windows › Heated Windows
    Front
    Optional
    Windows › Tinted Windows
    Second Row
    Optional
    Rear Window
    Optional
    Windows › Safety Glass
    Front
    Laminated
    Side
    Tempered
    Rear
    Tempered
    Other Equipment
    Sunroof
    Optional
    Tow Hook
    • Front
    • Rear
    Normal Roof
    Yes
    Antenna
    Yes
    Mud Flaps
    Optional
    Electric
    Optional
    Other Equipment › Sunroof
    Sun Blind
    Optional
    Other Equipment › Sunroof › Sun Blind
    Tinted Glass
    Optional
    Other Equipment › Mud Flaps
    Front
    Optional
    Rear
    Optional
    Come Home/Leaving Lights
    Optional
    Headlight Washers
    Optional
    Headlight Range Adjustment
    Yes
    Rim Colour
    Silver
    Rim Type
    Disc Wheel
    Spare Wheel
    Optional
    Tire Pressure Monitoring System (TPMS)
    Indirect
    Optional
    Spare Wheel
    Full-size
    Optional
    Temporary
    Optional
    Spare Wheel › Full-size
    Steel
    Optional
    Rear
    Volume
    541 litres
    Volume, Back Seat Collapsed
    1,067 litres
    Depth
    1,164 mm (45.8 in)
    Depth, Back Seat Collapsed
    1,974 mm (77.7 in)
    Width
    1,412 mm (55.6 in)
    Opening Width
    1,014 mm (39.9 in)
    Height
    409 mm (16.1 in)
    Trunk Door Opening Height
    1,756 mm (69.1 in)
    Carpet
    Rubber
    Optional
    Rubber/Rug
    Optional
    Seat Depth
    Yes
    Seat Height
    Optional
    Cushion Tilt
    Optional
    Backrest Angle
    Yes
    Lumbar Support
    Optional
    Headrest, Height
    Manual
    Headrest, Tilt
    Manual
    Front Seats
    Power Seat, Driver
    Optional
    Power Seat, Passenger
    Optional
    Heated Seats
    • Driver
    • Passenger
    Armrest
    Middle
    Massage
    Optional
    Ventilated Seats
    Optional
    Front Seats › Heated Seats
    Areas
    • Cushion
    • Backrest
    Front Seats › Massage
    Driver
    Optional
    Passenger
    Optional
    Front Seats › Ventilated Seats
    Driver
    Optional
    Passenger
    Optional
    Second Seat Row
    Armrest
    Yes
    Collapsible
    Manual
    Number of Seats
    3
    Type of Seat
    Adult
    Second Seat Row › Collapsible
    Backrest Release
    On Top of Backrest
    Split Fold Ratio
    60/40
    Heated Seats
    Optional
    Second Seat Row › Headrests
    Outer Seats
    Height Adjustment
    Centre Seat
    Yes
    Coat Hanger
    Optional
    5
    Adult Occupant
    Frontal Offset
    13.99
    Side Impact
    16
    Pole
    2
    Whiplash Protection (Assessment)
    Not Assessed
    Pedestrian
    Protection (Assessment)
    Marginal
    Safety Assist
    Seat Belt Reminders
    2
    Yes
    PassengerYes
    Rear-
    Side Head Airbag
    DriverYes
    PassengerYes
    RearYes
    Curtain Airbag
    DriverYes
    PassengerYes
    RearYes
    Airbag cut-off Switch
    Driver-
    PassengerYes
    Rear-
    Reversing Light
    BA15s (P21W)
    Turn Indicators, Front
    BAY9s (H21W)
    Glove Compartment
    W2.1×9.5d (W5W)
    Read Light
    W2.1×9.5d (W5W)
    License Plate Light
    SV8.5 (C5W)
    Sedan
    Variant
    Passat Sedan Generations12 of 18
    Year
    Powertrain
    Horsepower
    115 hp
    Drivetrain
    FWD
    Fuel
    Gasoline
    Transmission
    Automatic Manumatic | Manual, 6-speed
    Sill Height
    729 mm (28.7 in)
