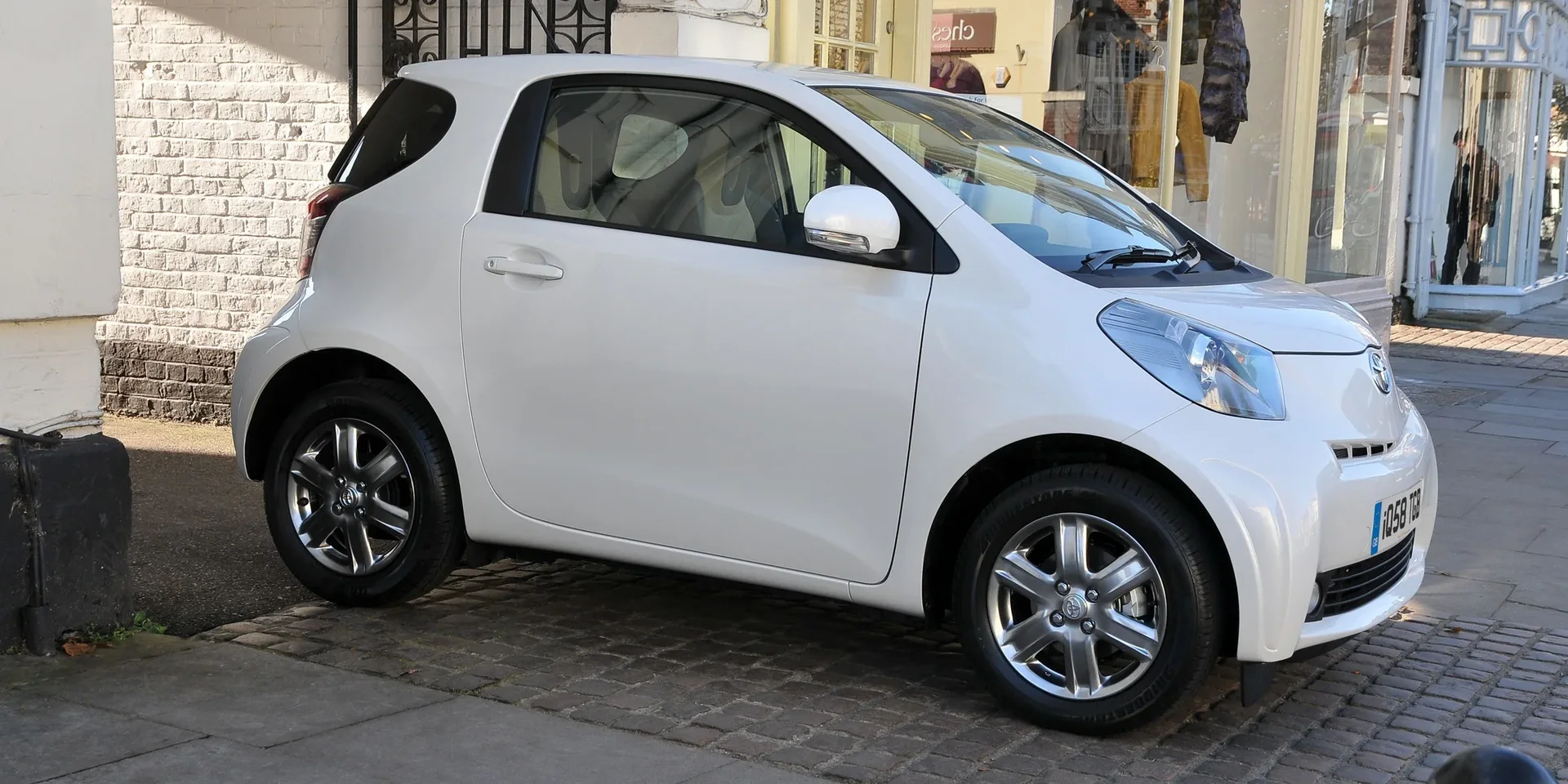

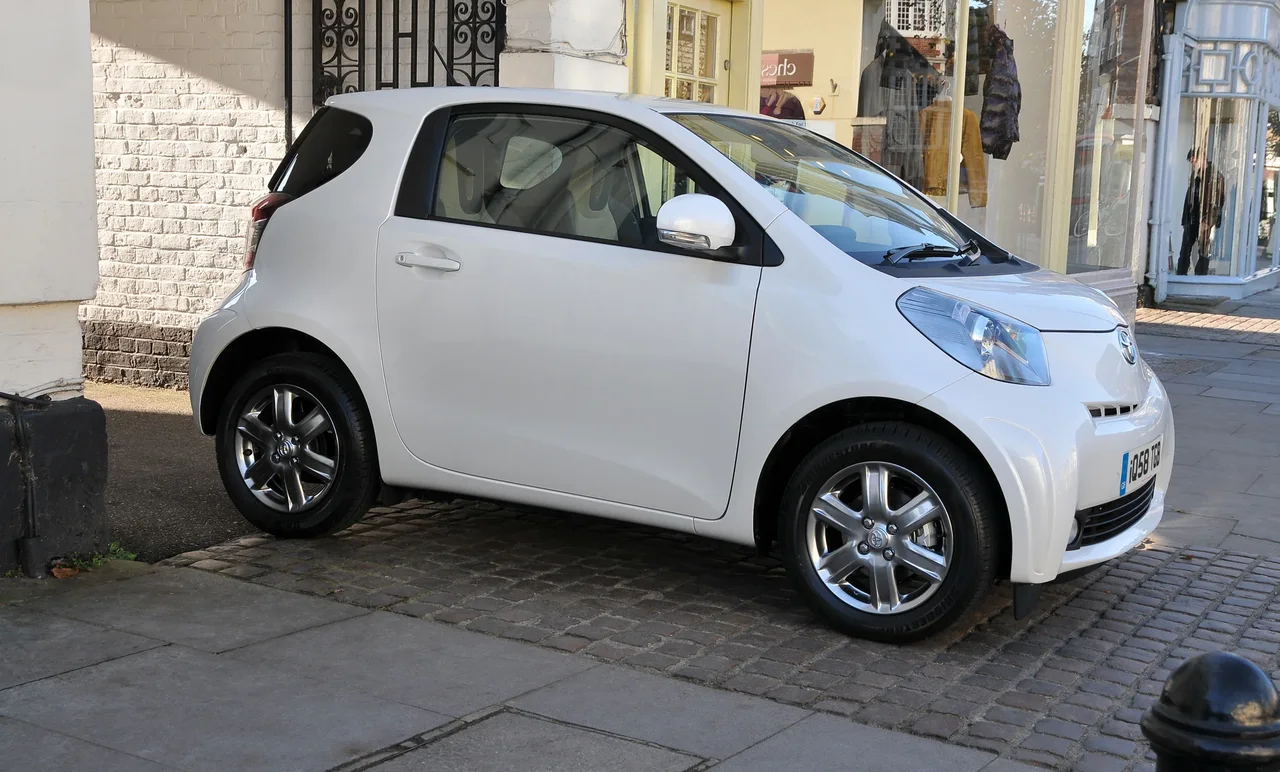

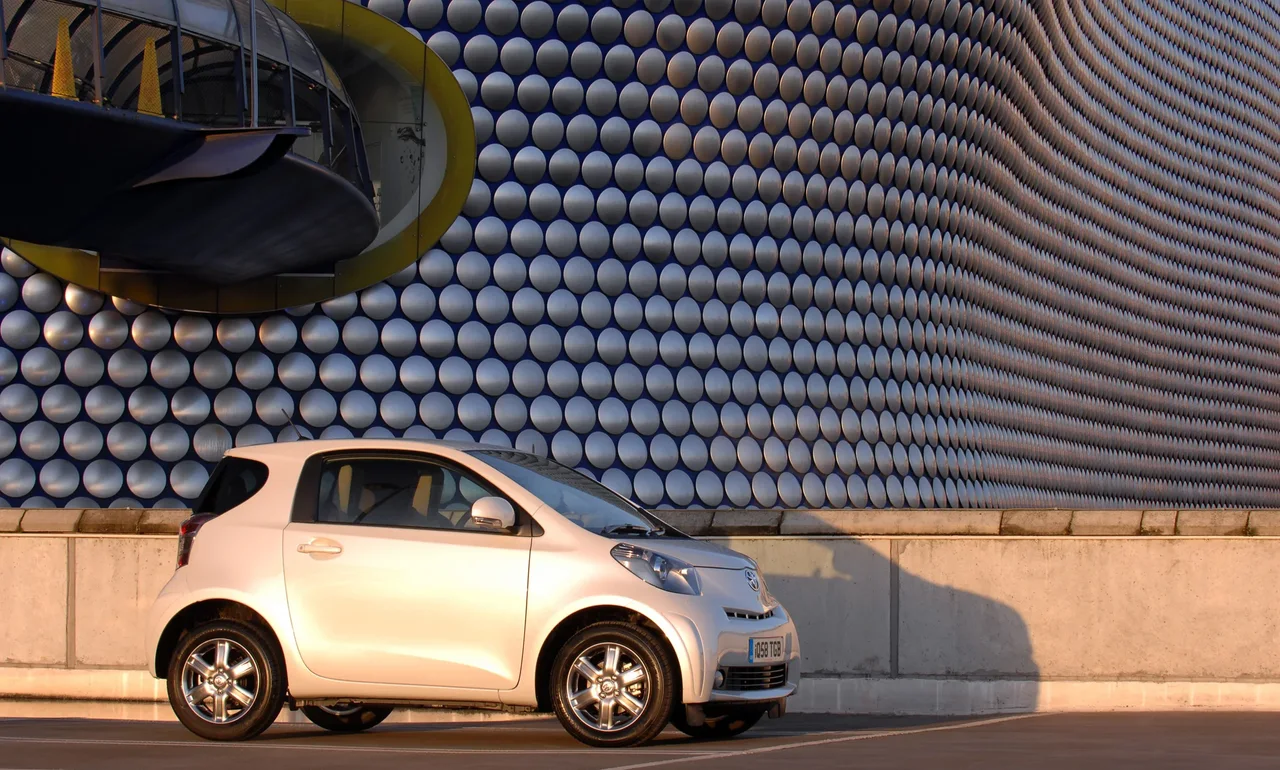

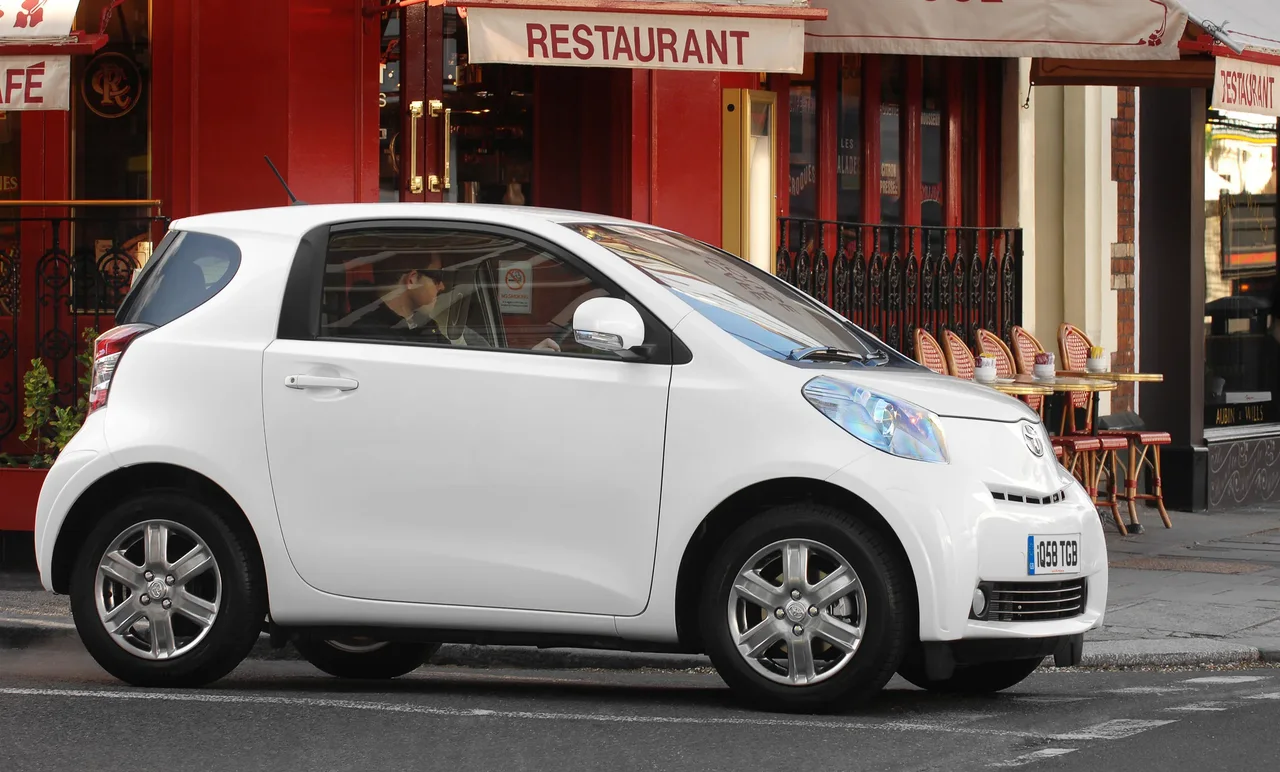

2008 Toyota iQ

JapanGasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2008
Make
Toyota
Model
iQ
Body Style
Hatchback
Generation
AJ10
Seats
4
Doors
3
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Continuously variable
  • Manual, 5-speed

Powertrain

Engine Name
1.0 VVT-i
Engine Configuration
Inline
Power (hp)
68 hp
Power (kW)
50 kW
Torque
98 Nm (72 lb-ft)
Top speed
150 km/h (93 mph)
0–60 mph
14.0 seconds (estimated)
0–100 km/h
14.7 seconds
Displacement
998 cc

Dimensions

Length
2,985 mm (117.5 in)
Width
1,680 mm (66.1 in)
Height
1,500 mm (59.1 in)
Wheelbase
2,000 mm (78.7 in)
Curb weight
820 kg (1,808 lb)

Engine & Performance

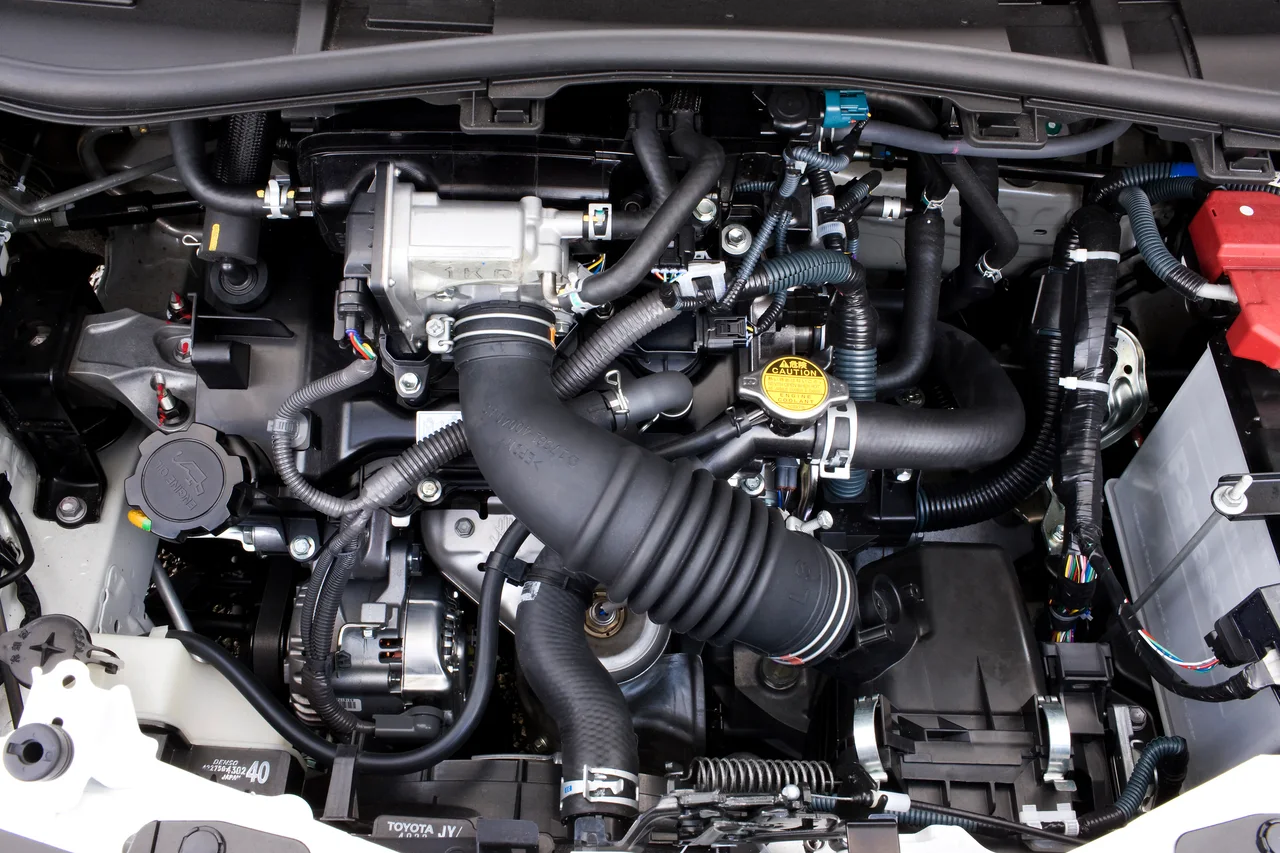

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Configuration
Bore
71 mm (2.8 in)
Stroke
83.9 mm (3.3 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
90,000 km (55,923 mi)
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
90,000 km (55,923 mi)
Interior Filter
30,000 km (18,641 mi)

Transmission & Drivetrain

Transmission
  • Automatic Continuously variable
  • Manual, 5-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
32 litres
Emission
Emission Standard
  • Euro 4
  • Euro 5
Fuel Consumption NEDC
City
4.9 – 5.7 litres / 100 km
Highway
3.9 – 4.1 litres / 100 km
Combined
4.3 – 4.7 litres / 100 km
Emission NEDC
CO₂, Combined
99 – 110 g/km

Dimensions & Weight

Exterior

Track, Front
1,480 mm (58.3 in)
Track, Rear
1,460 mm (57.5 in)
Turning Circle
7.8 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
970 mm (38.2 in)

Weight

Gross Weight
1,210 kg (2,668 lb)
Max Trailer Load, braked 12%
0 kg (0 lb)
Max Trailer Load, unbraked
0 kg (0 lb)
Cargo Capacity
375 – 390 kg (827 – 860 lb)
Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Normal Roof
Yes
Antenna
Optional
Number of Exhaust Pipes
1

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
54.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel

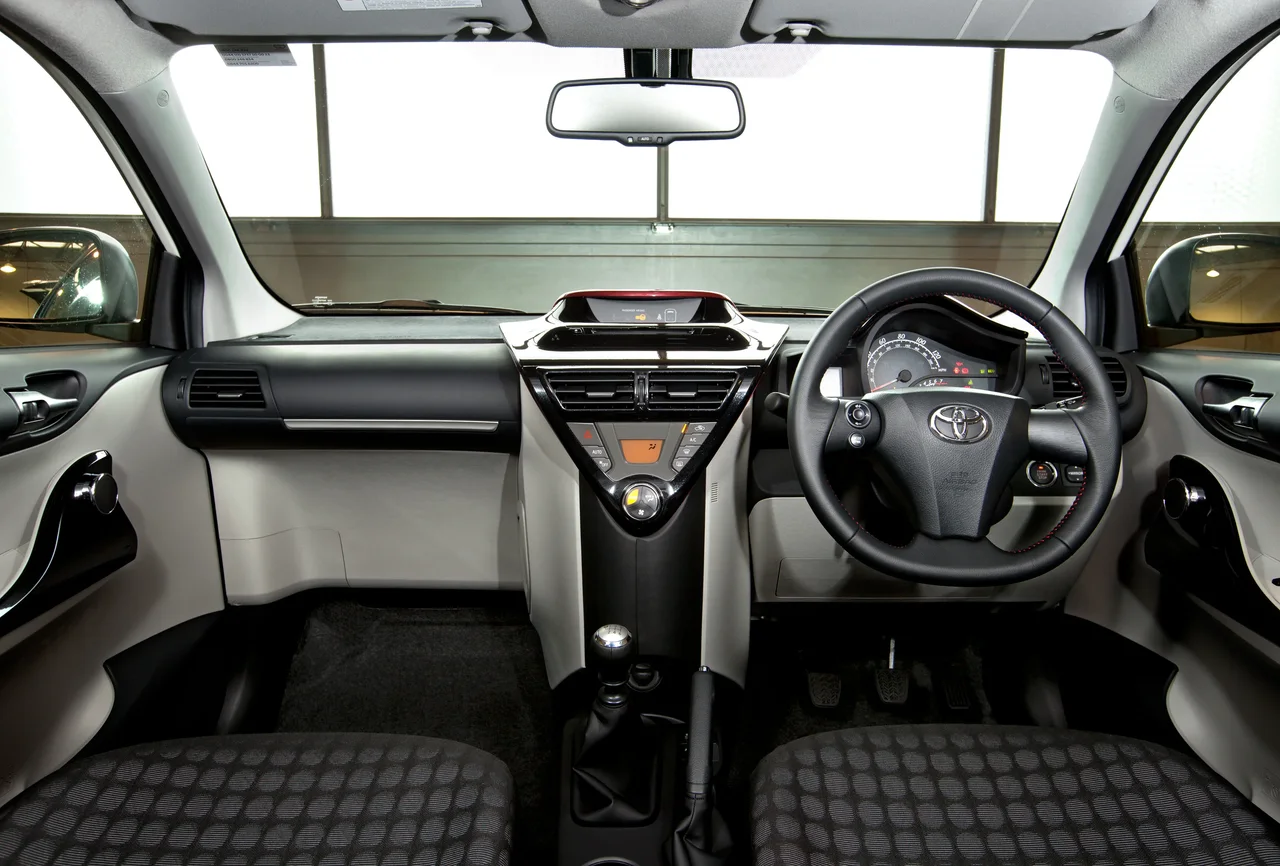

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes

Steering Wheel

Multifunction Steering Wheel
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
232 litres
Volume, Back Seat Collapsed
395 litres
Width
935 mm (36.8 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Two-Point-Belt (Shoulder)
Yes

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
91 %
Child Occupant
71 %
Vulnerable Road Users
54 %
Safety Assist
86 %
Overall
5/5 stars
Adult Occupant
Total Points
32.8 /38
Frontal Impact
15.5 /16
Lateral Impact
14.6 /16
Rear Impact
2.7 /4
Child Occupant
Total Points
34.8 /49
Safety Features
5 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.8
  • 1.7
  • 6
Teknikens Världs Moose Test
Test Year
2009
Speed
73 km/h (45 mph)

Airbags

Feature
Frontal Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
City Car
Australian Classification
Microcar
European Segment
A-Segment
Car.info Classification
Mini Car

Spare Parts BETA

Bulb Types
Low Beam
HIR2
Main Beam
HIR2
Fog Light, Front
H11
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16q (W21/5W)
Reversing Light
W3×16d (W21W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
License Plate Light
W2.1×9.5d (W5W)

Awards

Car of the Year Japan
2009 - 2008
