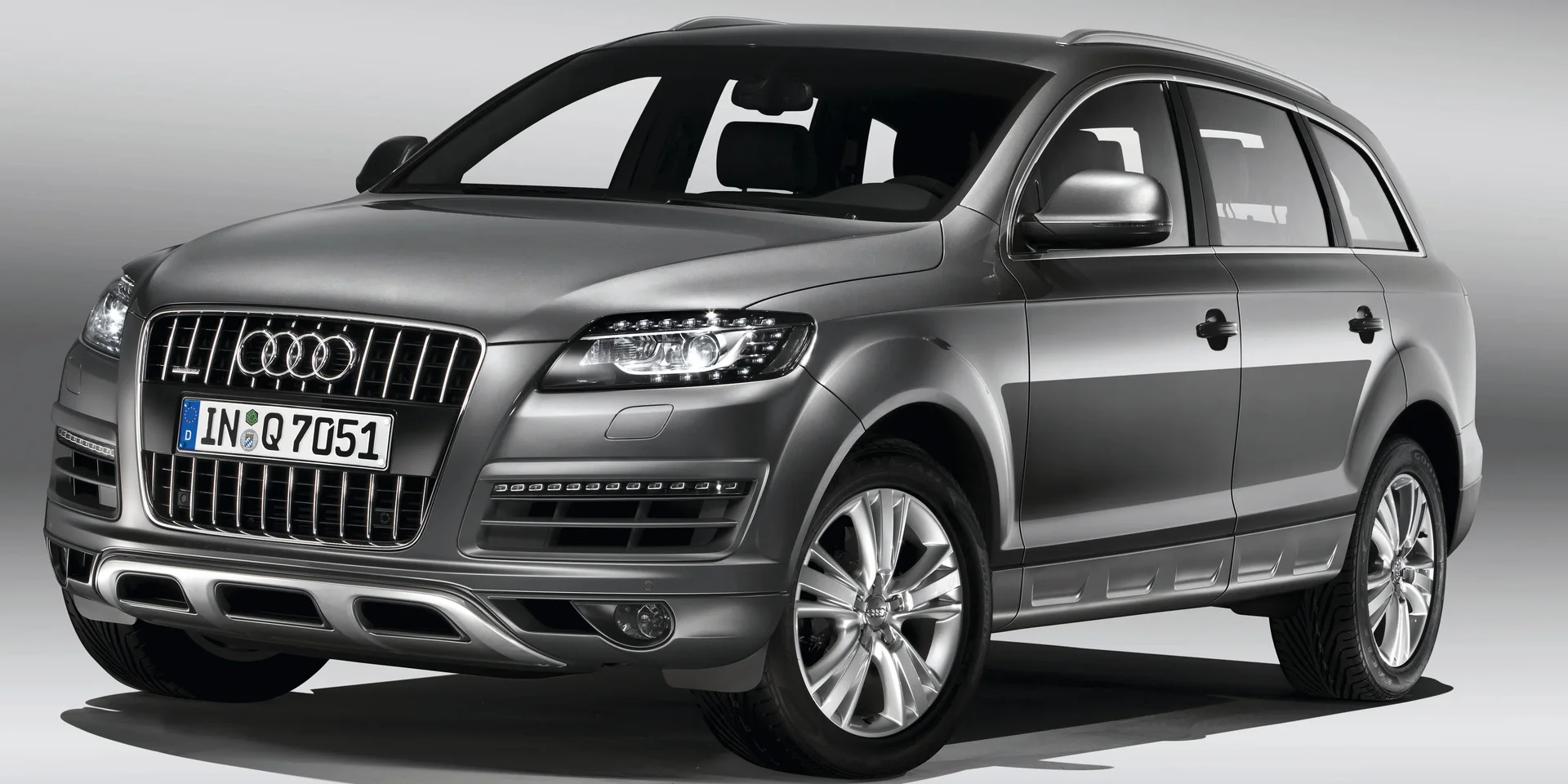

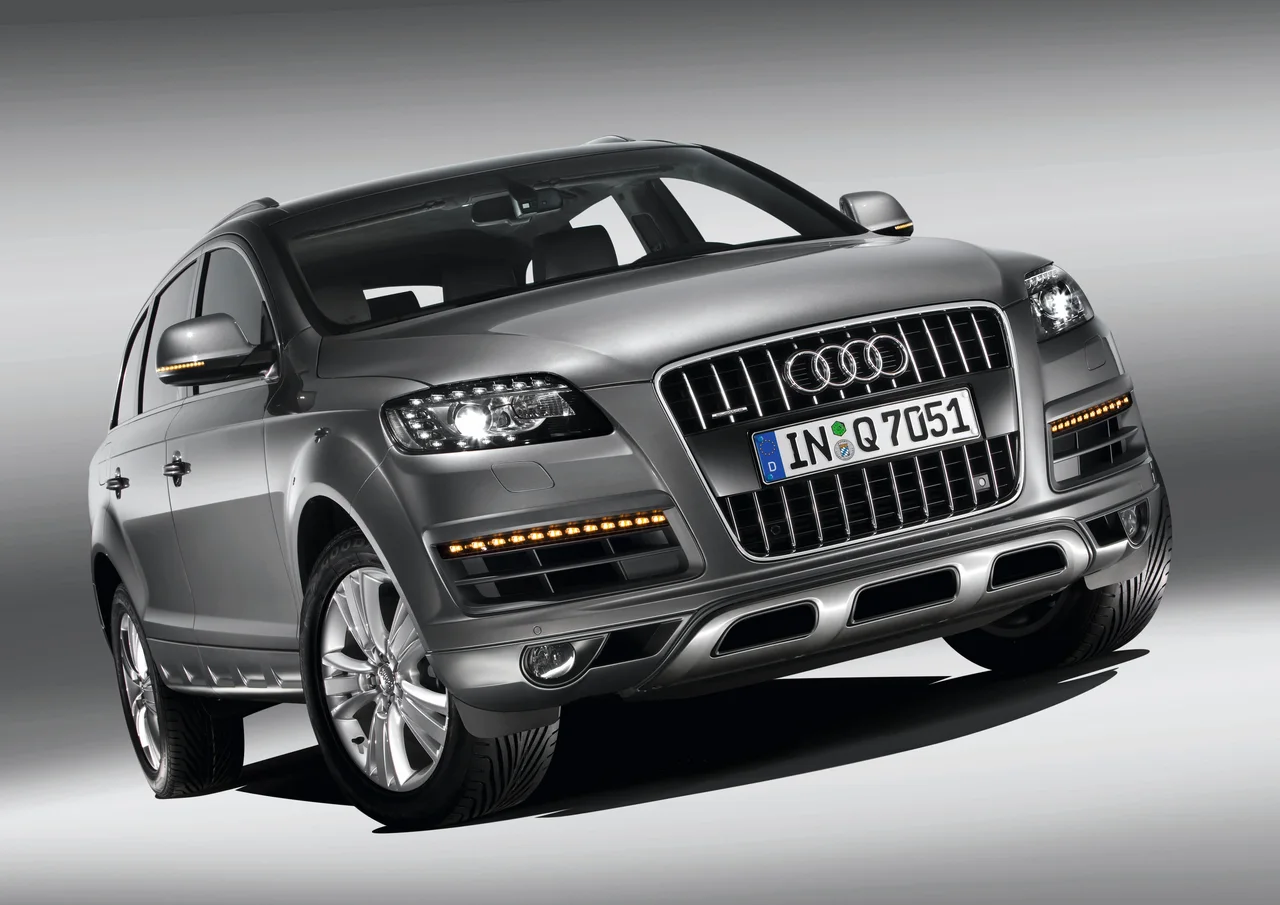

2009 Audi Q7

GermanyDieselAWDSUV

Photos

Specifications

Vehicle Details

Year
2009
Make
Audi
Model
Q7
Body Style
SUV
Generation
4L Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
  • Automatic (Manumatic), 6
  • 8-speed

Powertrain

Engine Name
3.0 TDI V6 DPF quattro
Engine Configuration
V
Power (hp)
239 hp
Power (kW)
176 kW
Torque
550 Nm (406 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
7.5 seconds (estimated)
0–100 km/h
7.9 seconds
Displacement
2,967 cc

Dimensions

Length
5,089 mm (200.4 in)
Width
1,983 mm (78.1 in)
Height
1,729 mm (68.1 in)
Wheelbase
3,002 mm (118.2 in)
Curb weight
2,270 kg (5,004 lb)

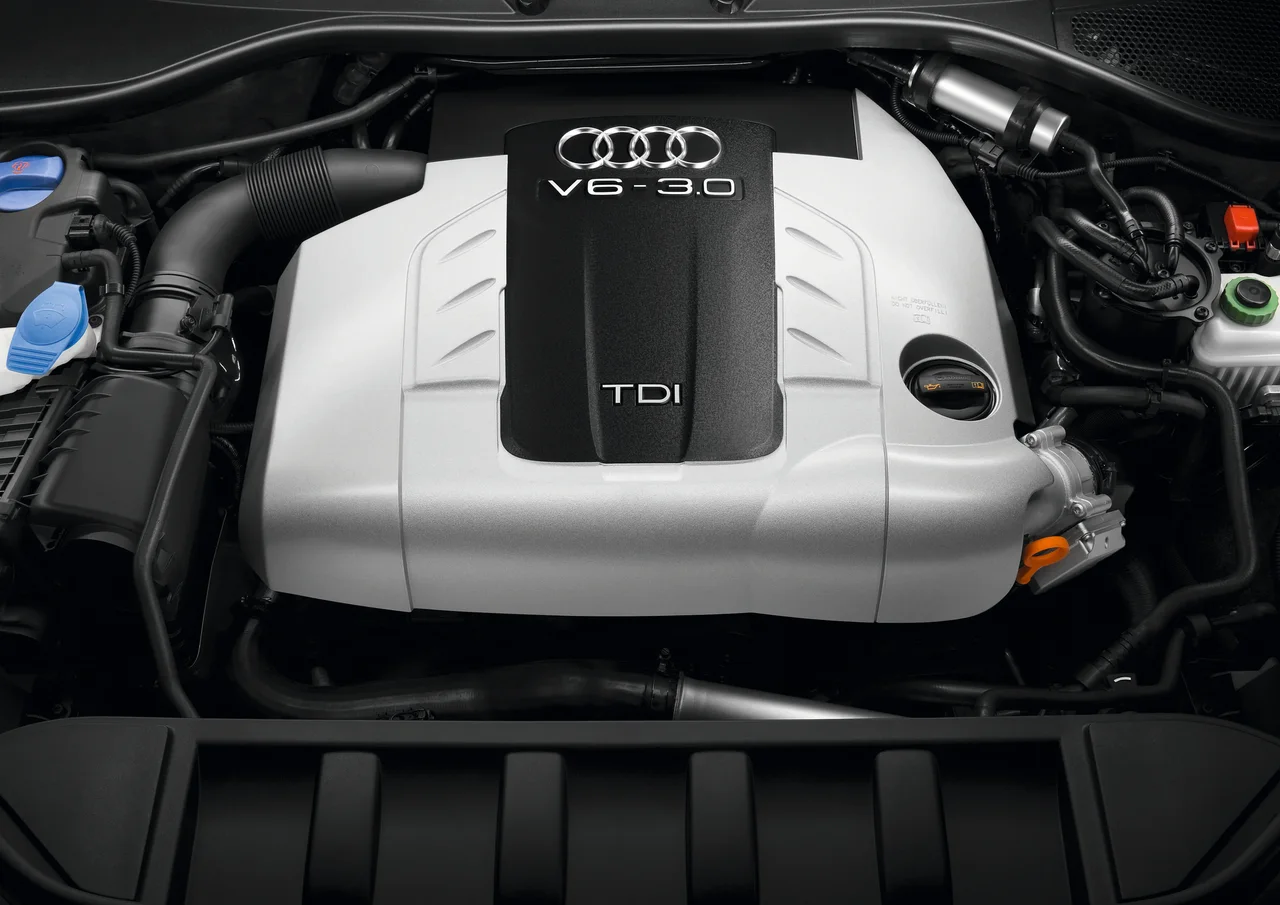

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 - 4,400 rpm
Rev. at Max Torque
1,500 - 3,000 rpm
Engine Fluids
Engine Oil, Volume
8.2 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
91.4 mm (3.6 in)
Compression Ratio
16.8 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Service Intervals
Air Filter
90,000 km (55,923 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
2 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic (Manumatic), 6
  • 8-speed
Transmission
Paddles
Optional
Gear Ratio
1st Gear
4.15 :1
2nd Gear
2.37 :1
3rd Gear
1.56 :1
4th Gear
1.16 :1
5th Gear
0.86 :1
6th Gear
0.69 :1
Final Drive
3.9 :1
Reverse
3.39 :1

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
100 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
8.6 – 11.3 litres / 100 km
Highway
6.7 – 7.8 litres / 100 km
Combined
7.4 – 9.1 litres / 100 km
Emission NEDC
CO₂, Combined
195 – 239 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,177 mm (85.7 in)
Track, Front
1,651 mm (65.0 in)
Track, Rear
1,681 mm (66.2 in)
Overhang, Front
962 mm (37.9 in)
Overhang, Rear
1,125 mm (44.3 in)
Turning Circle
12 m
Ground Clearance
204 - 206 mm (8.0 - 8.1 in)

Interior

Head Room, Front
1,030 mm (40.6 in)
Head Room, Rear
990 mm (39.0 in)
Head Room, Third Row
904 mm (35.6 in)
Leg Room, Front
1,049 mm (41.3 in)
Leg Room, Rear
942 mm (37.1 in)
Shoulder Room, Front
1,490 mm (58.7 in)
Shoulder Room, Rear
1,475 mm (58.1 in)
Shoulder Room, Third Row
1,235 mm (48.6 in)

Weight

Gross Weight
2995 – 3150 kg (6,603 – 6,945 lb)
Max Trailer Load, braked 12%
3200 – 3500 kg (7,055 – 7,716 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
725 kg (1,598 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
130 kg (287 lb)
Permitted Axle Load, front
1,525 kg (3,362 lb)
Permitted Axle Load, rear
1,780 kg (3,924 lb)

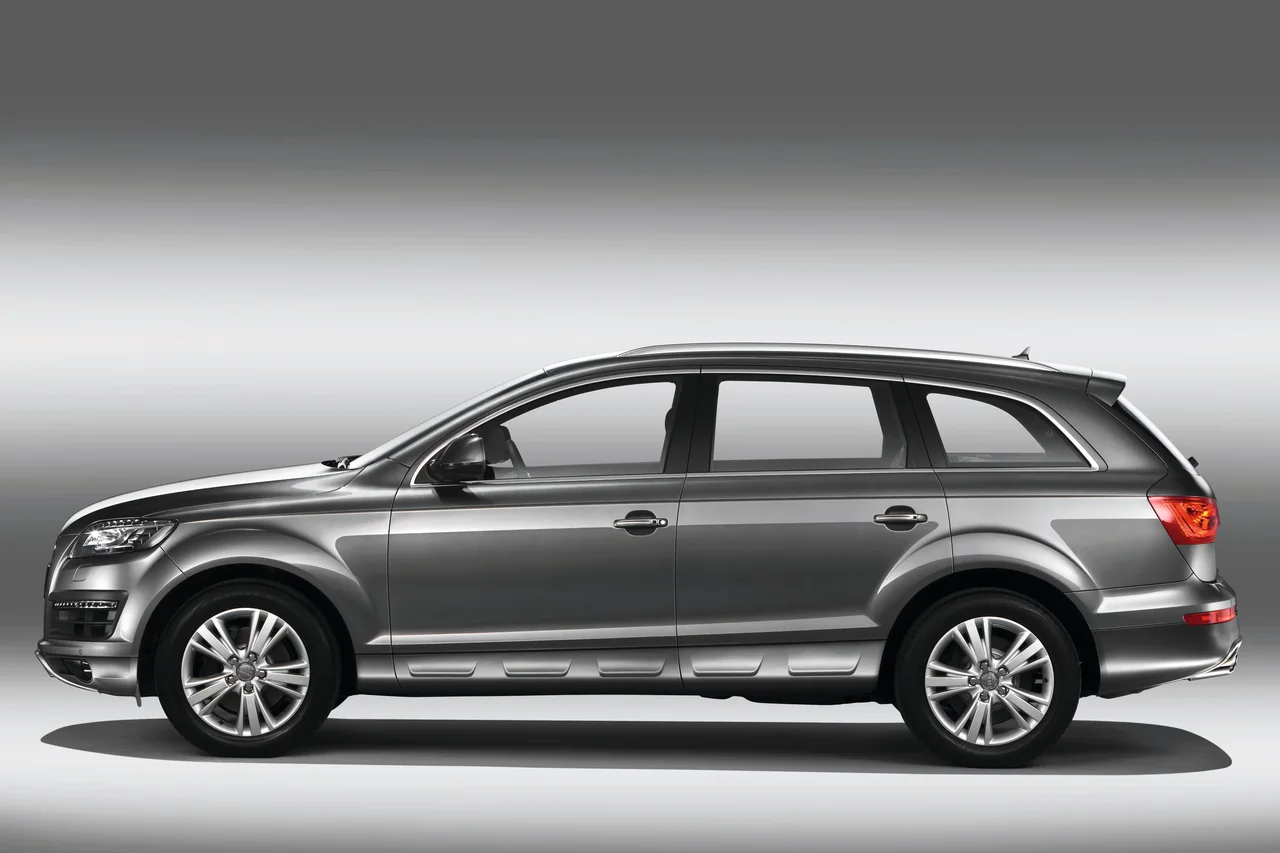

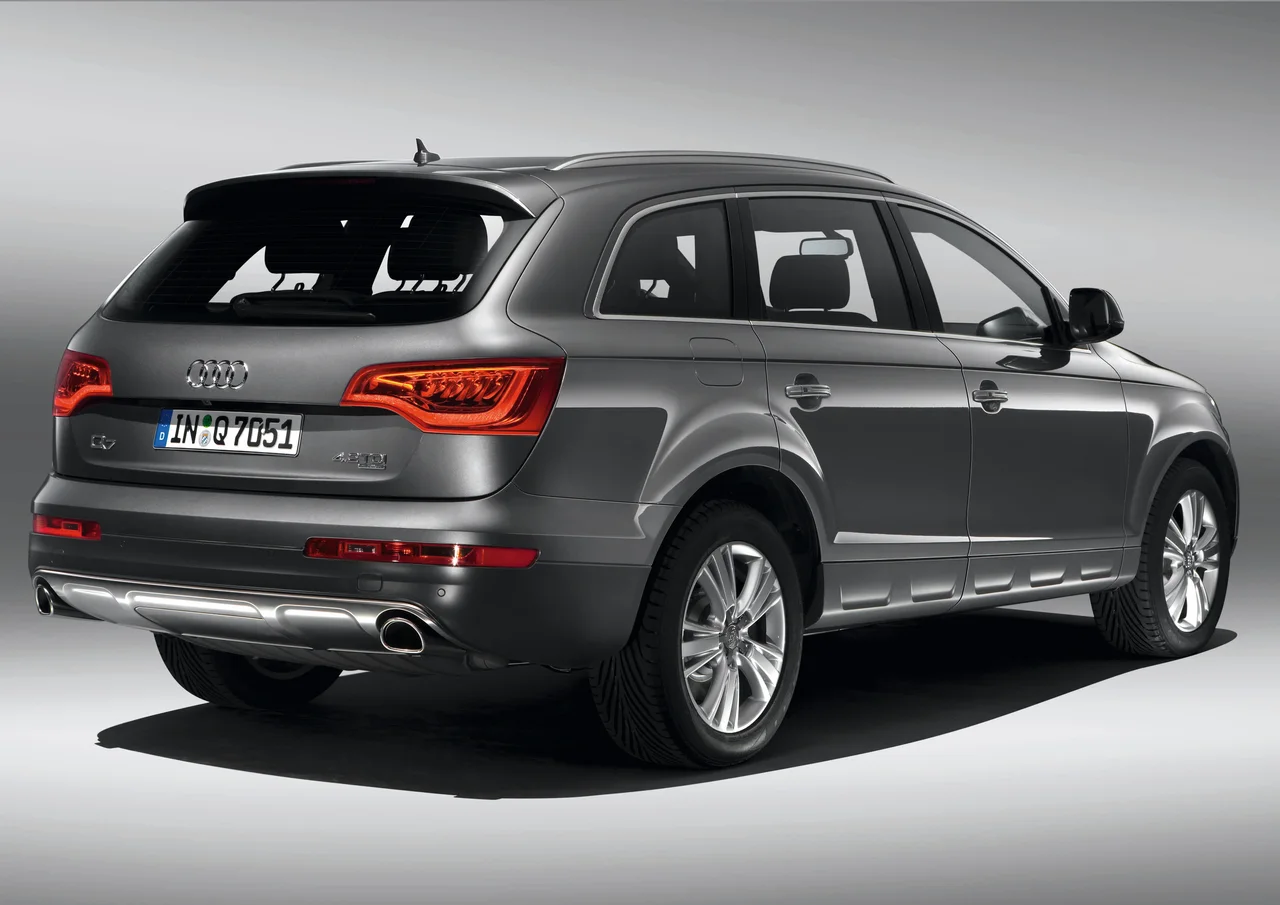

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Volkswagen Group
E Platform (PL71)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Front
Sun Visors
Optional
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Number of Exhaust Pipes
2
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Rear Lights
LED
Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Front
Halogen
Rear
LED
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
130
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
71.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
160 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Tire Pressure Monitoring System (TPMS)
Indirect
Optional
Spare Wheel
Full-size
Optional
Temporary
Optional

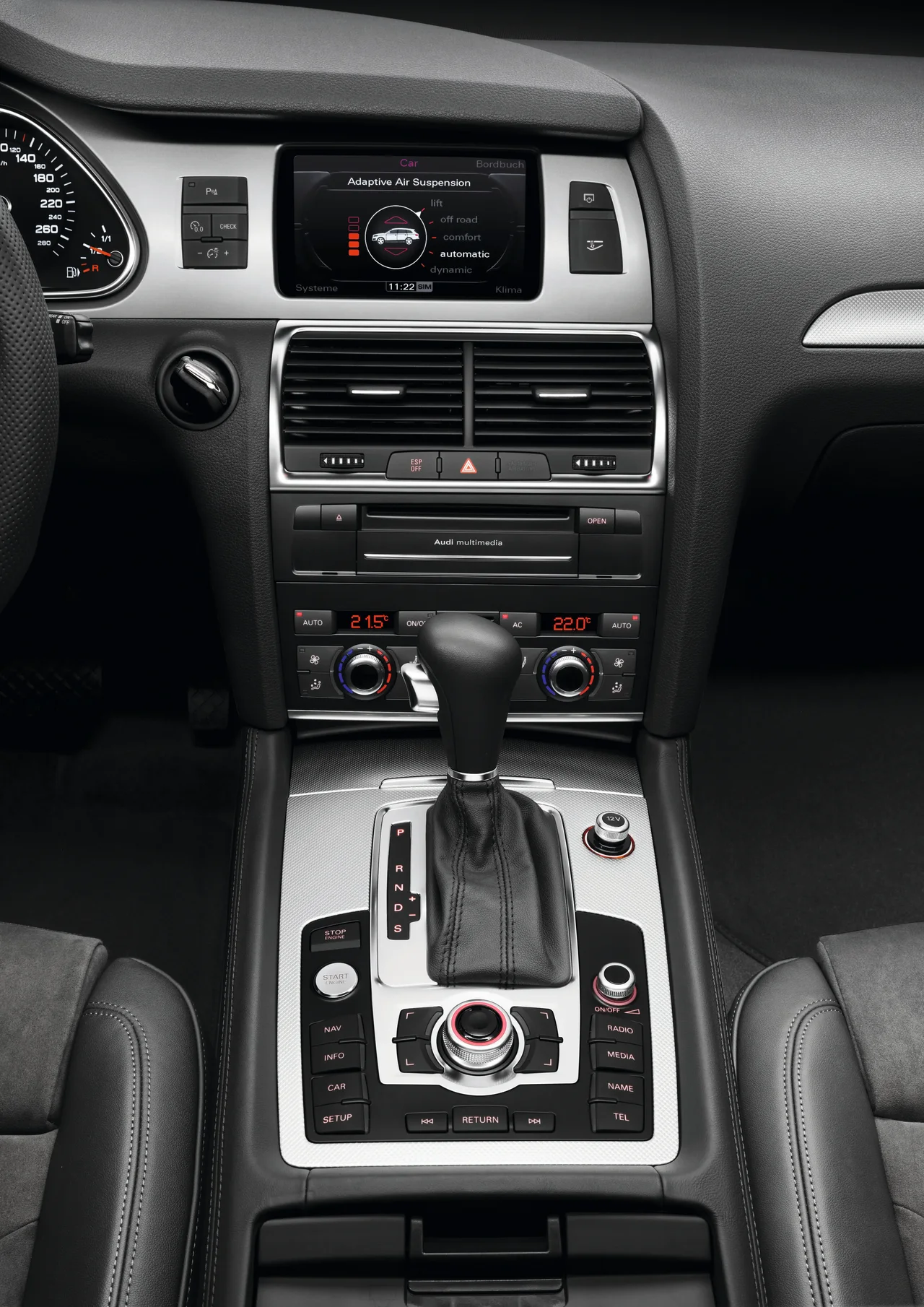

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Bluetooth
Optional
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › TV Receiver › Digital
Analogue
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
Optional
AAC
Optional
MP3
Optional
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Number of Ports
1 pcs
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
6.5 - 7"
Center Display Controls
Rotary Dial
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
Optional
Speakers
Total Number of Speakers
14 pcs
Speakers Max. Watt
1,000 W
Subwoofer
Optional
Rear-view Mirror
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Optional
Sunglass Compartment
Yes
Coin Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
  • 2
  • 4
Rear
  • 4
  • 6
Interior Storage › Cup Holders › Front
Placement
  • Middle Console
  • Driver Door
  • Passenger Door
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Dual Sun Visors
Optional
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
  • Front (Retractable)
  • Rear
Cigarette Lighter
Yes
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Dual Sun Visors
Driver
Optional
Passenger
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Sport
Optional
Colour
Black
Steering Ratio
16.5 :1
Steering Mechanism
Rack and Pinion
Adjustments
Tilt
Yes
Telescope
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Sliding (Manual)
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Soft Close
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
775 litres
Volume, Back Seat Collapsed
2,035 litres
Depth
1,201 mm (47.3 in)
Depth, Back Seat Collapsed
2,026 mm (79.8 in)
Width
1,159 mm (45.6 in)
Opening Width
1,221 mm (48.1 in)
Height
789 mm (31.1 in)
Sill Height
836 mm (32.9 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Key Button
Optional
Carpet
Rubber
Optional
Rug
Optional

Design

Colour
Black
Colour
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Adjustments
Backrest Angle
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Adjustments
Seat Depth
Optional
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Seat Colour
Black
Stitching Colour
Black

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Garage Remote Control
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Yes
Start & Stop
Yes
Driving Mode Selection
Off-road
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Positive Torque Control (PTC)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Active Headrests
Yes
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2006
Adult Occupant
4/5 stars
Child Occupant
4/5 stars
Pedestrian
2/4 stars
Test Year
2007
Overall Score
29.92
ANCAP Safety Rating
4
Adult Occupant
Frontal Offset
11.92
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Pedestrian
Protection (Assessment)
Marginal
Safety Assist
Seat Belt Reminders
0
Rollover
Rollover Resistance
18.5 %
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
Yes
Trunk
on Floor
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Full-Size SUV
British Classification
Large 4x4
Australian Classification
Upper Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H15
Bi-Xenon
D3S
Datyime Running Light
H15
Fog Light, Front
H11
Fog Light, Rear
BAY9s (H21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAY9s (H21W)
Turn Indicators, Rear
BA15s (P21W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
BA9s (T4W)
Trunk
W2.1×9.5d (W5W)
Entry Light
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

Similar suvs

Suggested vehicles
