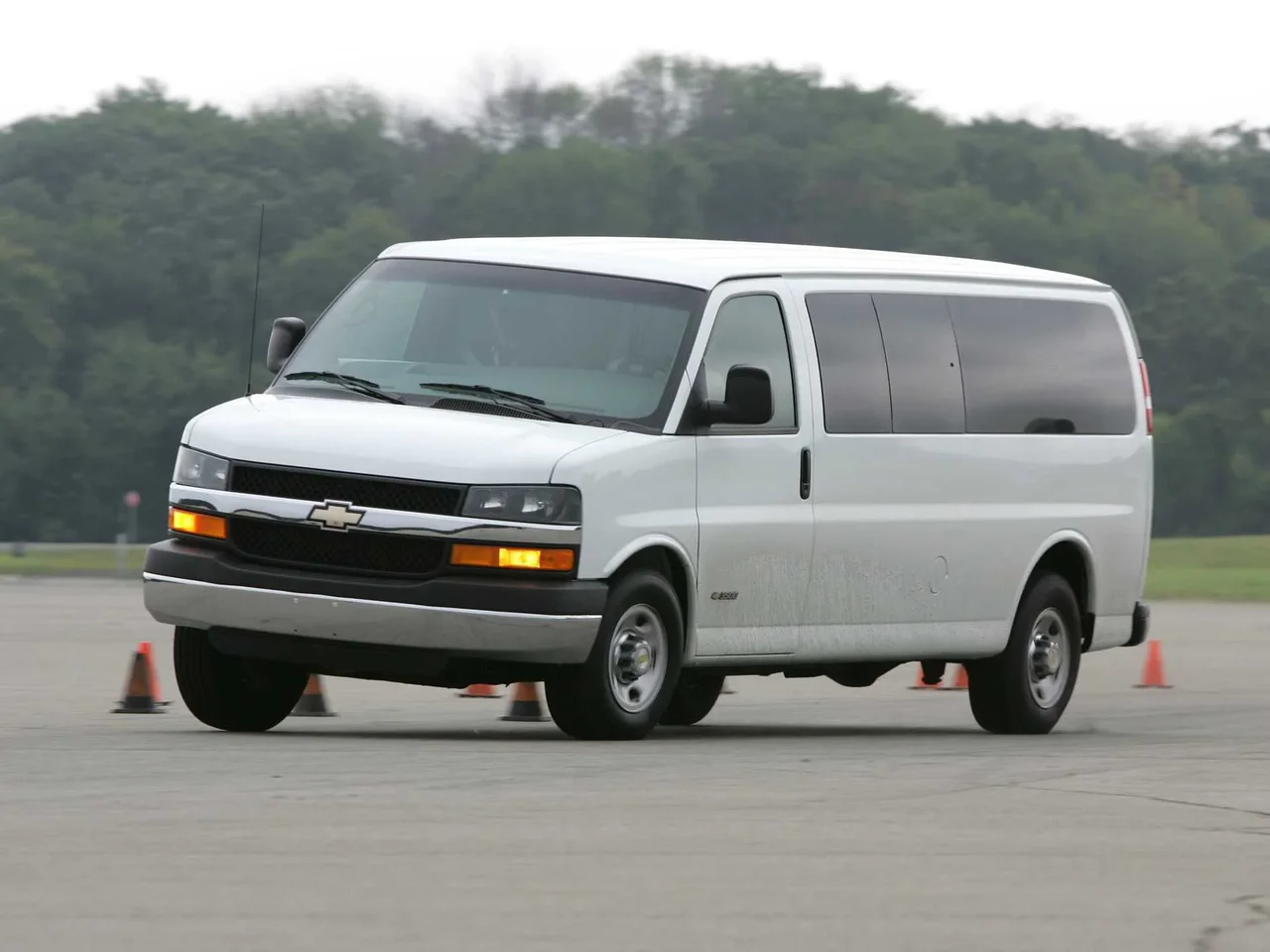

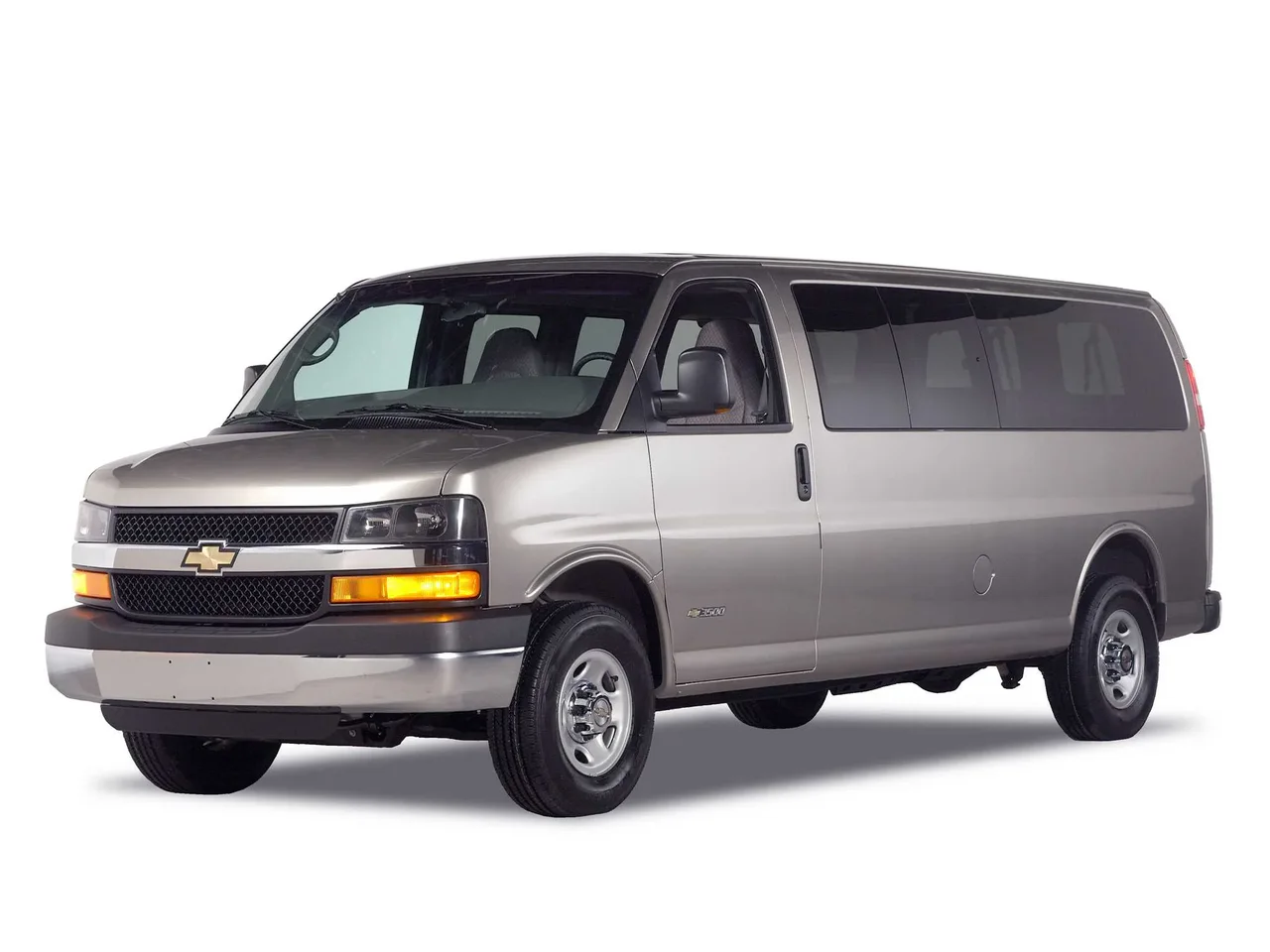

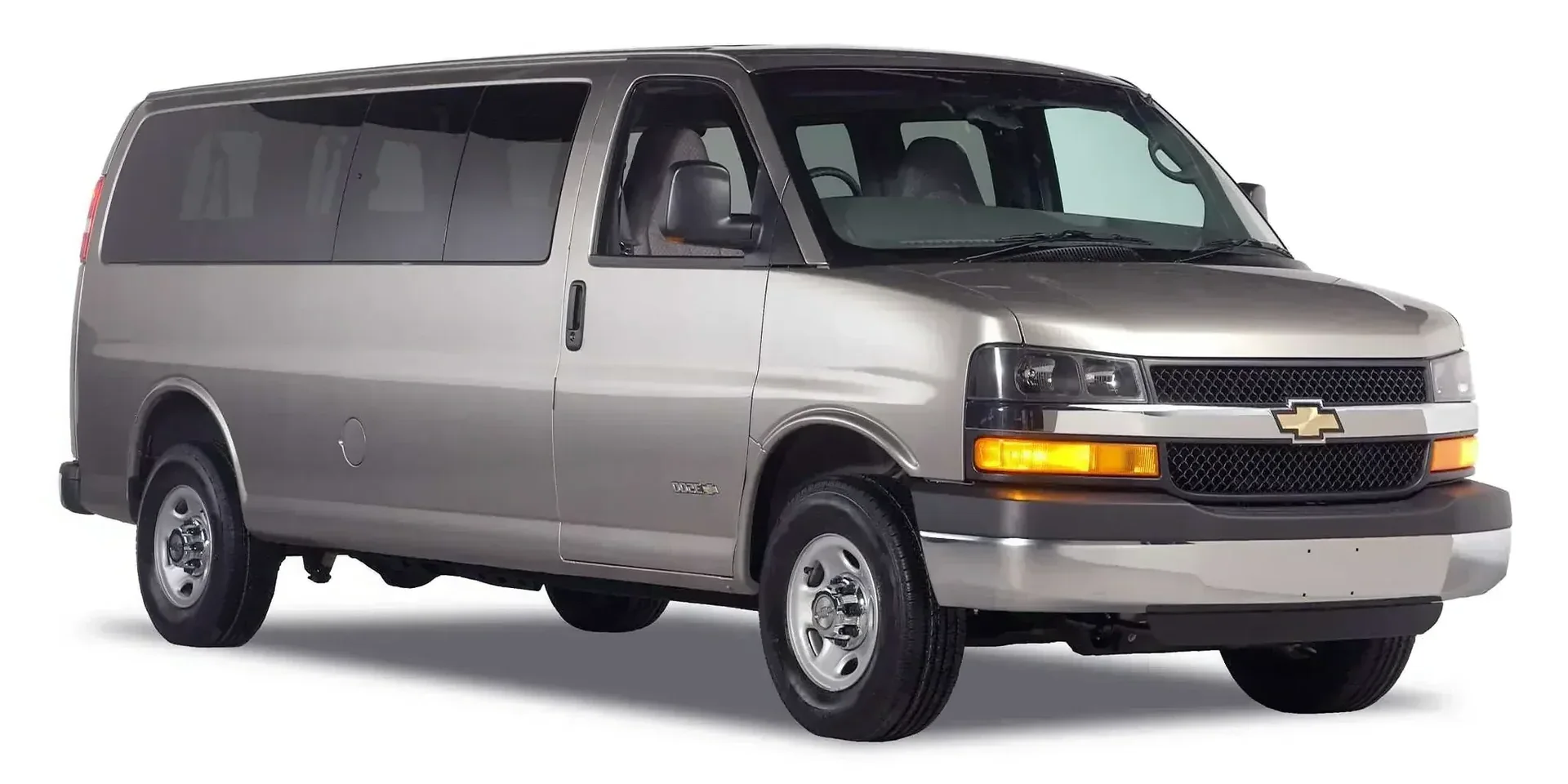

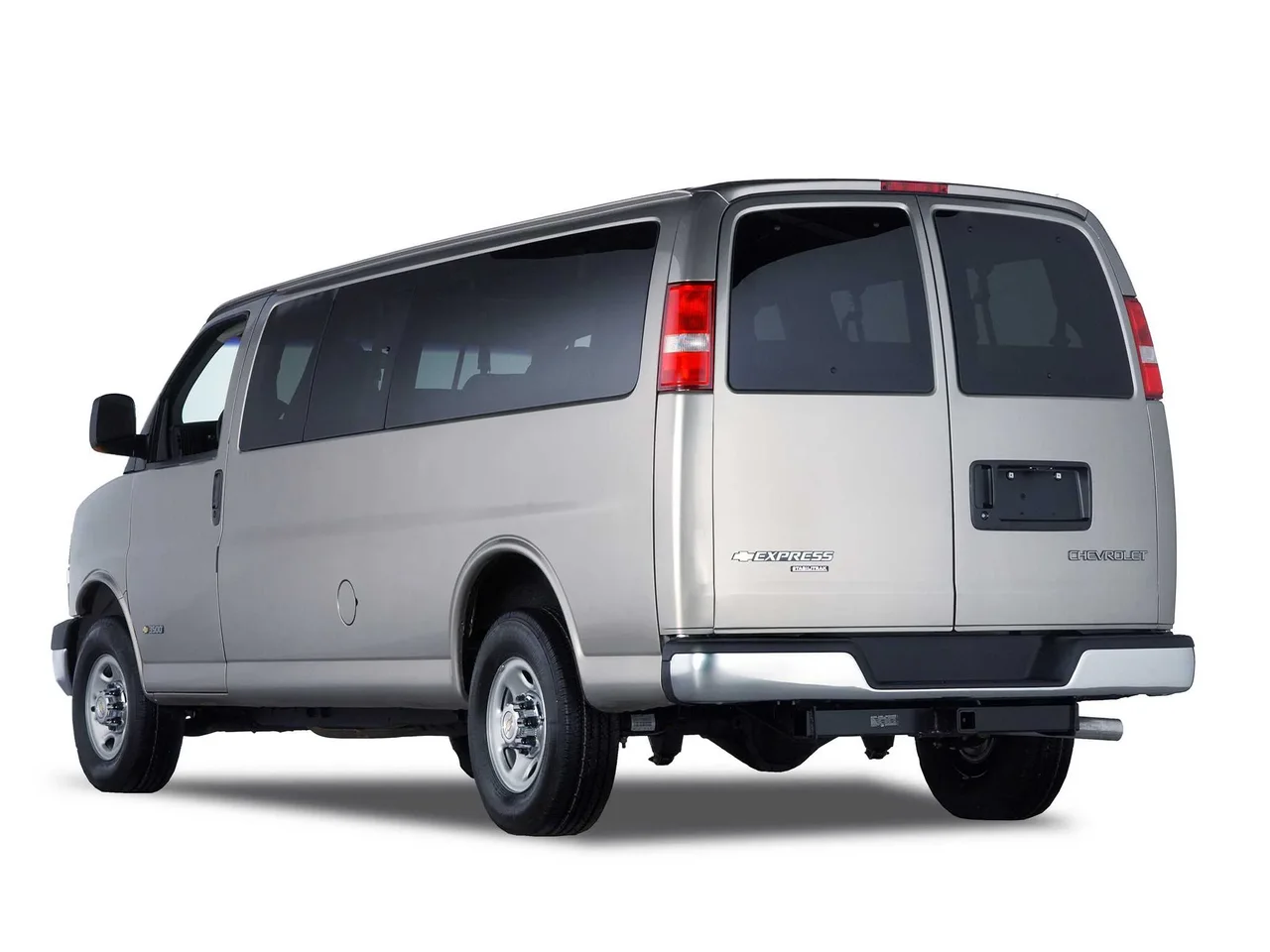

2009 Chevrolet Express G3500

United States Gasoline RWD LCV

Race Tracks

Vehicles

Makes
Types
Years
Countries

Map

Makes
Race Tracks
Game Studios
TV Networks

TV Shows

Games

YouTube

People

Founders
Owners

© 2026 Vehicleref. All rights reserved.

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2009
Make: Chevrolet
Model: Express
Variant: G3500
Body Style: LCV
Generation: GMT610 Facelift
Seats: 5
Doors: 4
Fuel: Gasoline
Drivetrain: RWD
Transmission: Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name: G3500 Passenger Van Hydra-Matic
Engine Configuration: V
Power (hp): 328 hp
Power (kW): 241 kW
Torque: 504 Nm (372 lb-ft)
Displacement: 5,998 cc

Dimensions

Width: 2,018 mm (79.4 in)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 4,400 rpm
Rev. at Max Torque: 4,000 rpm
Redline: 5,600 rpm

Engine Fluids

Synthetic Oil (viscosity): 0W-30
5W-30
Engine Oil, Volume: 5.6 litres
Engine Coolant, Volume: 13.6 litres

Engine Fluids › Engine Coolant

OAT: GM OE DEX-COOL

Car Battery

Voltage: 12 V
Battery Capacity: 61 - 66 Ah
Cold Start Power: 600 - 770 A
Alternator Charge Current: 105 A
Alternator Voltage: 14 V

Engine Configuration

Bore: 101.6 mm (4.0 in)
Stroke: 92 mm (3.6 in)
Compression Ratio: 9.4 :1
Engine Configuration: V-Engine
Naturally Aspirated: Yes
Synchronization: Timing Chain
Engine Placement: Front
Engine Mount: Longitudinally
Type of Combustion Engine: Piston
Fuel System: Electronic (Multi-Point) Fuel Injection
Camshaft Type: OHC
Engine Block: Cast Iron
Engine Heads: Aluminium
Engine Cooling: Liquid Cooling

Service Intervals

Air Filter: 72,000 km / 4 years
Spark Plug: 36,210 km (22,500 mi)
Oil Change & Engine Filter: 12,070 km / 1 years
Engine Coolant: 240,000 km / 5 years
Accessory Belt: 240,000 km (149,129 mi)

Transmission & Drivetrain

Transmission: Automatic (Electrohydraulic), 4-speed
Gear Selector: Stalk
Gear Selector Location: Steering Column
Overdrive: Yes

Gear Ratio

1st Gear: 2.48 :1
2nd Gear: 1.48 :1
3rd Gear: 1 :1
4th Gear: 0.75 :1
Final Drive: 3.73 :1
Reverse: 2.08 :1

Fuel

General

Tank Volume: 117 litres

General › Fuel Cap Position

Rear: Left

Emission

Emission Control: Catalyst
Evaporative Control System
Exhaust Gas Recirculation
Positive Crankcase Ventilation

Brakes

Parking Brake

Manual: Pedal

Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes
Brakes Material: Cast Iron

Front Brakes

Diameter: 325 mm (12.8 in)
Width: 38 mm (1.5 in)
Cooling: Ventilated

Rear Brakes

Diameter: 330 mm (13.0 in)
Width: 30 mm (1.2 in)

Suspensions

Spring, Front: Coil
Spring, Rear: Leaf (Longitudinal Spring)
Anti-roll Bar: Yes

Suspension, Front

Independent: Double Wishbone

Suspension, Rear

Dependent: Beam Axle (Dead Axle)

Anti-roll Bar

Front: 35 mm (1.4 in)

Dimensions & Weight

Exterior

Track, Front: 1,721 mm (67.8 in)
Track, Rear: 1,721 mm (67.8 in)
Overhang, Front: 1,008 mm (39.7 in)
Ground Clearance: 180 - 196 mm (7.1 - 7.7 in)

Interior

Head Room, Front: 1,021 mm (40.2 in)
Head Room, Rear: 978 mm (38.5 in)
Head Room, Third Row: 980 mm (38.6 in)
Leg Room, Front: 1,049 mm (41.3 in)
Leg Room, Rear: 884 mm (34.8 in)
Leg Room, Third Row: 955 mm (37.6 in)
Hip Room, Front: 1,664 mm (65.5 in)
Hip Room, Rear: 1,676 mm (66.0 in)
Hip Room, Third Row: 1,636 mm (64.4 in)
Shoulder Room, Front: 1,748 mm (68.8 in)
Shoulder Room, Rear: 1,750 mm (68.9 in)
Shoulder Room, Third Row: 1,613 mm (63.5 in)

LCV Specific

General

Version: L1H1
L2H1

Dimensions › Length

L1: 5,691 mm (224.1 in)
L2: 6,199 mm (244.1 in)

Dimensions › Height

L1H1: 2,131 mm (83.9 in)
L2H1

Exterior

Chassis & Body

Chassis

Chassis: LCV (Minibus)
Pillars: A-D
Chassis Construction: Body-on-Frame (Ladder Frame)
Body Material: Steel

Doors

Front Doors: Conventional
Rear Doors: Sliding Right
Dual Swing-out
Door Handles: Pull-up

Platform

General Motors Platforms: GMT Platform (GMT610)

Equipment

Side Mirrors

Mirror Type: Conventional
Folding: Manual
Heated: Optional
Turning Signal: Optional
House Colour: Black

Windscreen Wipers

Number of Wiper Speeds: 2
Integrated Water Nozzles in Wipers

Interior

Equipment

Instrument Cluster

Trip Computer: Yes
Speedometer: Analogue
Tachometer: Analogue
Fuel Gauge: Analogue
Voltmeter: Analogue
Oil Pressure: Analogue

Features

Comfort Features

Keyless Entry: Optional
Remote Engine Start: Optional
Cruise Control: Optional
Speed Limiter: Yes
Parking Heater: Optional

Parking Heater

Engine Heater

Safety & Security

Seat Belt

Height Adjustable Retractor: Yes
Rear Centre Seat Belt: Yes

Feature

Driver

Passenger

Rear

Seat Belt Reminder

Driver

Other

Identification

On-board Diagnostic, Port Location: Steering Wheel, Lower Left

Car Classification

American Classification: Passenger Van
British Classification: Minibus
Australian Classification: People Mover
European Segment

Lights

Main Beam: Halogen
Low Beam: Halogen
Rear Lights: Halogen
Daytime Running Light: Halogen

Colour

Bumper: Optional
Door Handles: Non-painted

Rims & Tires

Tire Pressure Monitoring System (TPMS): Direct
Number of Bolts: 8 pcs
Nut/Bolt Dimensions: M14x1.5
Fastening Type: Lug Nuts
Tightening Torque: 190 Nm
Rim Material: Steel
Rim Type: Disc Wheel
Spare Wheel: Full-size

Coolant Temperature

Analogue

Odometer Limit

1,000,000 km/miles

Compass

Optional

Instrument Cluster › Trip Computer

Display: Yes

Instrument Cluster › Trip Computer › Display

Type: Monochrome
Shape: Square

Climate Control

Climate Control: Manual
Air Condition: Yes
Outside Temperature Indicator: Optional
Number of Vents, Front: 5 pcs
Controls: Rotary Dials
Back Seat Controls: Optional

Climate Control › Air Condition

Refrigerant: R134A
Refrigerant, Capacity: 900 g

Climate Control › Back Seat Controls

Rotary Dials: Optional

Connectivity

Radio: AM
FM
RDS
Media Format: MP3

Connectivity › Media Format

CD: Yes

Connectivity › Media Inputs

AUX: Yes

Displays

Equalizer: Yes

Speakers

Total Number of Speakers: 2 - 6 pcs

Interior Storage › Storage Compartments

Glove Compartment: Lockable
Door: Driver Side
Passenger Side
Total Number of Compartments: 12 pcs

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 3
Rear: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console
Middle of Media Center

Interior Storage › Cup Holders › Rear

Placement: Door

Lights

Read Light: Front
Rear
Guide Light: Yes

Other Equipment › Make-up Mirror

Driver Side: Optional
Passenger Side: Optional
Make-up Light: Optional

Other Equipment

Clock: Yes
12V Outlet: Front
110V Outlet: Front
Carpets: Optional
Ashtray: Optional
Cigarette Lighter: Optional

Other Equipment › Clock

Digital: Dashboard

Other Equipment › Ashtray

Front: Optional

Steering Wheel

Multifunction Steering Wheel: Yes
Power Steering: Hydraulic
Adjustments: Tilt
Number of Spokes: 4
Colour: Black
Steering Ratio: 17.2 :1
Steering Mechanism: Recirculating Ball

Multifunction Steering Wheel

Trunk

Release Button: Yes
Flat Surface: Yes
Light: Yes
Hatch Opening Type: Two-parted Doors

Design

Interior Decor Material: Plastic
Transmission Knob Material: Plastic
Entry Guard Material: Plastic

Seats

Front Seats › Adjustments, Driver

Seat Depth: Yes
Seat Height: Optional
Backrest Angle: Manual

Front Seats

Number of Driver Seat Adjustments, Manual: 2 - 4
Number of Driver Seat Adjustments, Powered: 6
Number of Driver Seat Adjustments, Total: 4 - 8
Number of Passenger Seat Adjustments, Manual

Optional

Other Features

GPS: Optional
Horn: Single Note

Accessories

Tool Kit and Jack: Yes
Fire Extinguisher: Optional
Warning Triangle: Optional
First Aid Kit: Optional

Yes

PassengerYes

Rear-

Belt Pretensioner

DriverYes

PassengerYes

Rear-

Belt Load Limiter

DriverYes

Passenger-

Rear-

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats
Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC): Yes

Brake Systems

Power Brakes: Yes
Anti-lock Braking System (ABS): Yes
Traction Control System (TCS): Yes
Electronic Brake Assist (BA/EBA): Yes

Sensors

Light Sensor: Yes

Other Features

Immobiliser: Yes
Anti-theft Alarm: Optional
Central Locking: Yes
Child Safety Locks: Manual
Emergency Call: Optional
Number of Remote Keys: 2
Number of Standard Keys: 2
Total Number of Keys: 4

Central Locking

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

Rear-

Side Chest Airbag

Driver

Child Protection

Isofix: Passenger: -
Rear: Yes

M-Segment

Car.info Classification

Passenger Van

2,131 mm (83.9 in)

Dimensions › Wheel Base

L1: 3,429 mm (135.0 in)
L2: 3,937 mm (155.0 in)

Dimensions › Turning Circle

L1: 14.8 m
L2: 16.6 m

Side Door › Side Door Height

H1: 1,217 mm (47.9 in)

Side Door › Side Door Width

L1: 1,120 mm (44.1 in)
L2: 1,120 mm (44.1 in)

Side Door › Ground to Door Height

L1H1: 513 mm (20.2 in)
L1H2: 508 mm (20.0 in)

Rear Doors › Rear Doors Height

L1H1: 1,255 mm (49.4 in)

Rear Doors

Rear Doors Width: 1,448 mm (57.0 in)

Rear Doors › Sill Height

L1H1: 704 mm (27.7 in)
L1H2: 693 mm (27.3 in)

Cargo Space › Cargo Volume

L1H1: 5,777 litres
L2H1: 6,720 litres

Cargo Space › Depth

L1: 3,246 mm (127.8 in)
L2: 3,754 mm (147.8 in)

Cargo Space › Height

H1: 1,318 mm (51.9 in)

Cargo Space › Space Width, Between Wheel Arches

L1: 1,282 mm (50.5 in)
L2: 1,282 mm (50.5 in)

Yes

Intermittent Control

Yes

Windows

Heated Windows: Optional
Heat-Insulating Windows: Front
First Row
Second Row
Tinted Windows: Optional
Rear Windows, Pop-out: Manual

Windows › Heated Windows

Rear: Optional

Windows › Tinted Windows

Windscreen, upper part: Optional
Second Row: Optional
Rear Window: Optional

Other Equipment

Normal Roof: Yes
Antenna: Whip
Air Intakes: 1-port
Number of Exhaust Pipes: 1
Mud Flaps: Optional

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Media

Yes

Number of Buttons

7 - 11 pcs

Multifunction Steering Wheel › Media

Channels: Yes
Volume: Buttons
Mute Audio: Yes

2 - 4

Number of Passenger Seat Adjustments, Powered

6

Number of Passenger Seat Adjustments, Total

4 - 8

Power Seat, Driver

Optional

Power Seat, Passenger

Optional

Armrest

Driver
Passenger

Front Seats › Adjustments, Passenger

Seat Depth: Yes
Seat Height: Optional
Backrest Angle: Yes

Second Seat Row

Number of Seats: 3
Type of Seat: Adult

Third/Fourth Seat Row

Third Seat Row: Yes
Fourth Seat Row: Optional

Third/Fourth Seat Row › Third Seat Row

Type of Seat: Adult
Seat Angle: Front Facing

Remote: Optional

Optional

PassengerOptional

Rear-

Curtain Airbag

DriverOptional

PassengerOptional

RearOptional

Airbag cut-off Switch

Driver-

PassengerYes

Rear-

Chevrolet emblem

Express

€67,000

MSRP · EUR

Body

LCV

Variant

Express G3500 LCV Generations3 of 3

Year

Powertrain

Horsepower

328 hp

Drivetrain

RWD

Fuel

Transmission

Automatic (Electrohydraulic), 4-speed
