2009 Mazda 3

JapanDieselFWDSedan

Photos

Specifications

Vehicle Details

Year
2009
Make
Mazda
Model
3
Body Style
Sedan
Generation
BL
Seats
5
Doors
4
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 5-speed

Powertrain

Engine Name
1.6 MZ-CD Manual
Engine Configuration
Inline
Power (hp)
109 hp
Power (kW)
80 kW
Torque
240 Nm (177 lb-ft)
Top speed
185 km/h (115 mph)
0–60 mph
10.5 seconds (estimated)
0–100 km/h
11 seconds
Displacement
1,560 cc

Dimensions

Length
4,580 mm (180.3 in)
Width
1,755 mm (69.1 in)
Height
1,470 mm (57.9 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,235 kg (2,723 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
3.8 litres
Engine Configuration
Bore
75 mm (3.0 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
18.3 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Timing Interval
200,000 km / 10 years
Air Filter
60,000 km / 3 years
Fuel Filter
60,000 km / 3 years
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Interior Filter
40,000 km / 2 years

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
278 mm (10.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
265 mm (10.4 in)
Cooling
Solid

Fuel

General
Tank Volume
55 litres
Fuel Consumption NEDC
City
5.8 litres / 100 km
Highway
3.8 litres / 100 km
Combined
4.5 litres / 100 km
Emission NEDC
CO₂, Combined
119 g/km

Dimensions & Weight

Exterior

Track, Front
1,535 mm (60.4 in)
Track, Rear
1,520 mm (59.8 in)
Turning Circle
10.4 m
Ground Clearance
155 mm (6.1 in)

Interior

Head Room, Front
967 - 987 mm (38.1 - 38.9 in)
Head Room, Rear
950 - 953 mm (37.4 - 37.5 in)
Leg Room, Front
1,068 mm (42.0 in)
Leg Room, Rear
919 mm (36.2 in)
Shoulder Room, Front
1,395 mm (54.9 in)
Shoulder Room, Rear
1,371 mm (54.0 in)

Weight

Gross Weight
1,830 kg (4,034 lb)
Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Max Trailer Load, unbraked
600 kg (1,323 lb)
Cargo Capacity
595 kg (1,312 lb)
Max Roof Load
75 kg (165 lb)

Exterior

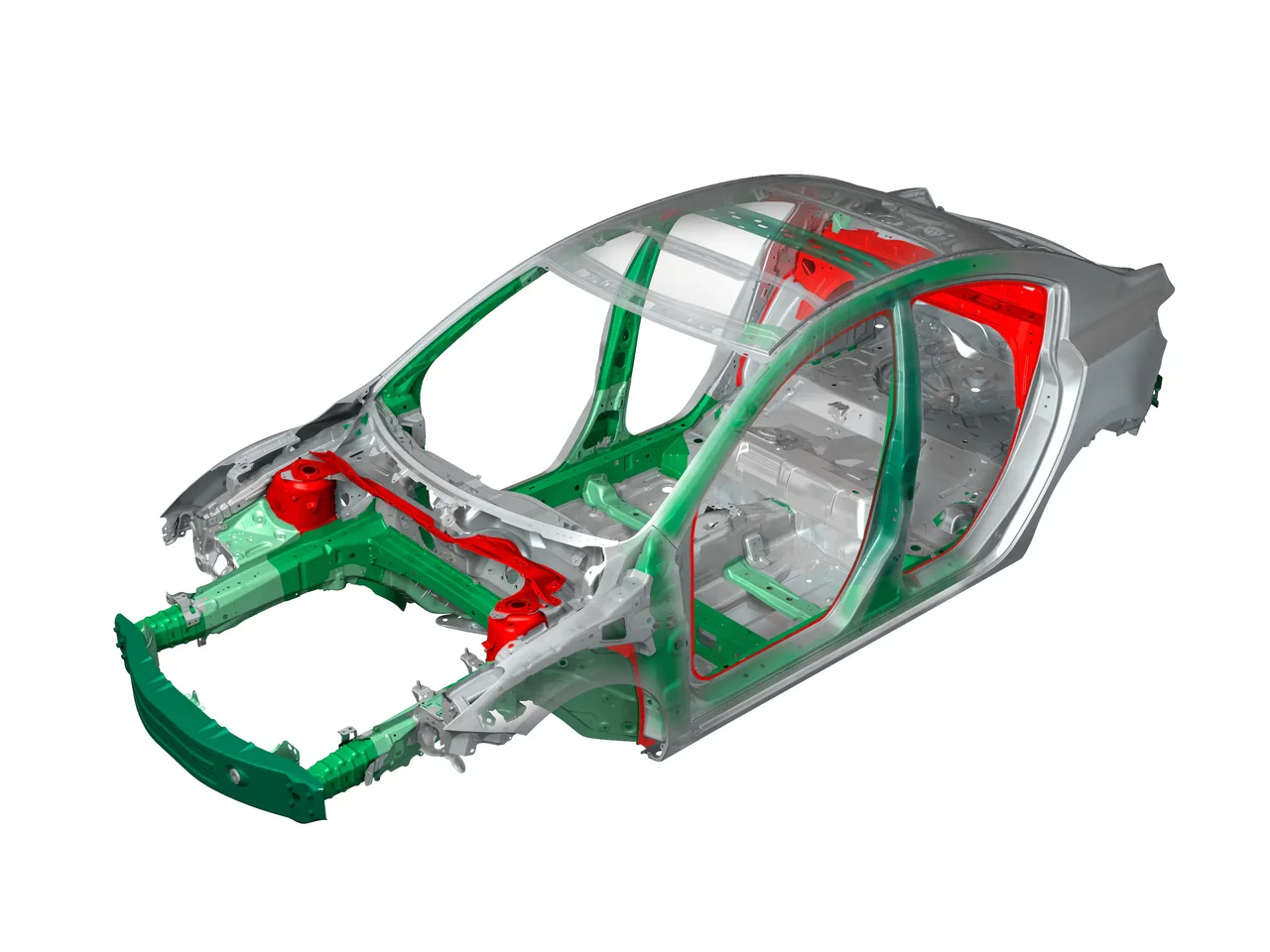

Chassis & Body

Chassis
Chassis
Sedan
Platform
BL
Yes

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Semi-Static)

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 118 Nm

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Yes
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional

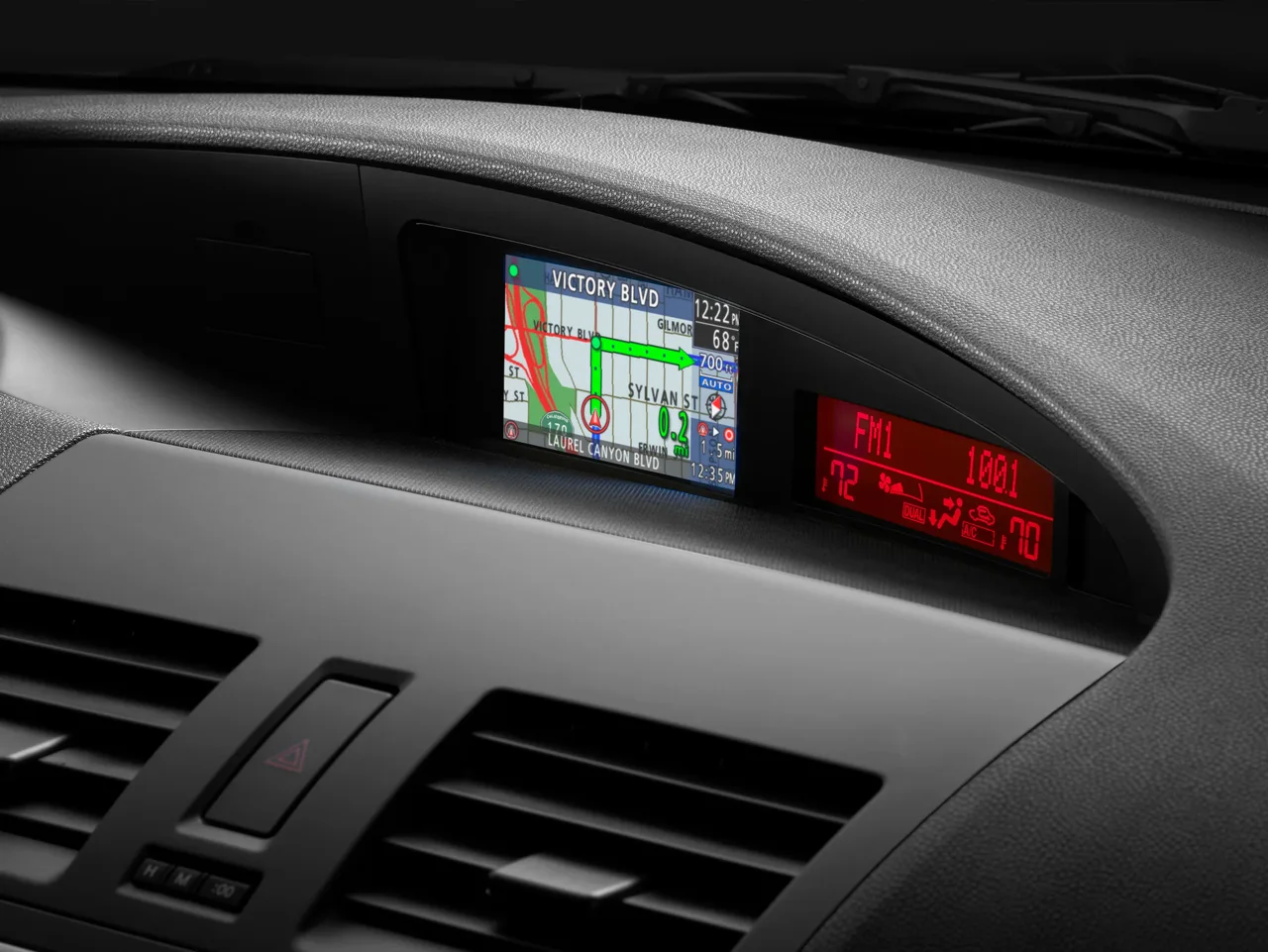

Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-hydraulic
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
430 litres

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
86 %
Child Occupant
84 %
Vulnerable Road Users
51 %
Safety Assist
71 %
Overall
5/5 stars
Overall Score
33.33
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.33
Side Impact
15
Pole
1
Safety Assist
Seat Belt Reminders
2
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
2/5 stars
Front Seat Rating
4/5 stars
Combined Rear Seat Rating
2/5 stars
Side Barrier Rating
2/5 stars
Overall Side Pole Star Rating
3/5 stars
Rollover
Rollover Resistance
10.9 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
2/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H11
Main Beam
HB3
Bi-Xenon
D2S
Fog Light, Front
HB4
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)

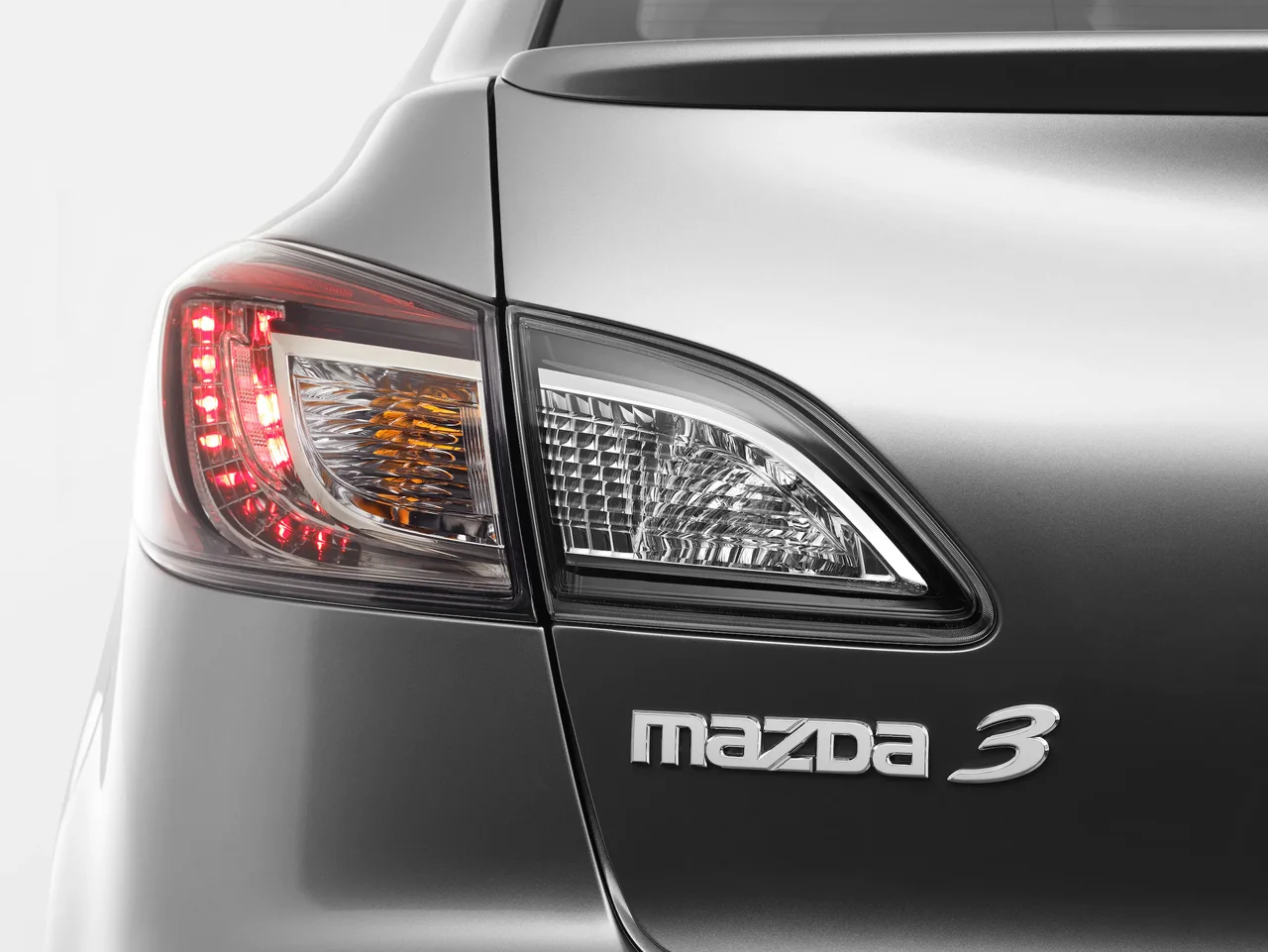

Rear/Brake Light
  • W3×16d (W21W)
  • W3×16q (W21/5W)
Reversing Light
W3×16d (W21W)
Turn Indicators, Rear
WX3×16d (WY21W)
License Plate Light
W2.1×9.5d (W5W)

Similar sedans

Suggested vehicles
