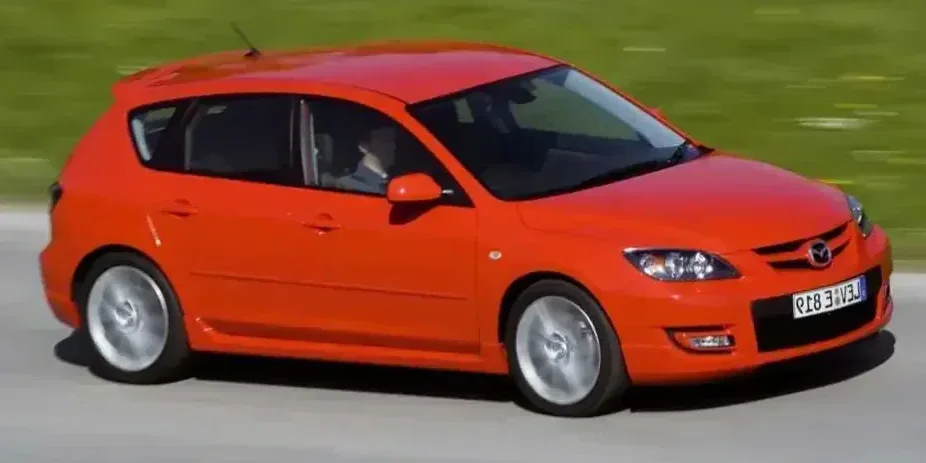

2009 Mazda 3 MPS

JapanGasolineFWDHatchback

Specifications

Vehicle Details

Year
2009
Make
Mazda
Model
3
Variant
MPS
Body Style
Hatchback
Generation
BK Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
MPS Manual
Engine Configuration
Inline
Power (hp)
260 hp
Power (kW)
191 kW
Torque
380 Nm (280 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.8 seconds (estimated)
0–100 km/h
6.1 seconds
Displacement
2,261 cc

Dimensions

Length
4,415 mm (173.8 in)
Width
1,755 mm (69.1 in)
Height
1,465 mm (57.7 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,485 kg (3,274 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
3,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-20
  • 5W-30
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
87.5 mm (3.4 in)
Stroke
94 mm (3.7 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Service Intervals
Air Filter
60,000 km / 3 years
Spark Plug
90,000 km (55,923 mi)
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Interior Filter
40,000 km / 2 years

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes

Suspensions

Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link
Strut Bar
  • Front
  • Rear

Fuel

General
Tank Volume
55 litres
Fuel Consumption NEDC
City
13.5 litres / 100 km
Highway
7.5 litres / 100 km
Combined
9.7 litres / 100 km
Emission NEDC
CO₂, Combined
231 g/km

Dimensions & Weight

Exterior

Track, Front
1,530 mm (60.2 in)
Track, Rear
1,515 mm (59.6 in)
Turning Circle
10.9 m
Ground Clearance
121 mm (4.8 in)

Interior

Head Room, Front
971 - 994 mm (38.2 - 39.1 in)
Head Room, Rear
974 - 976 mm (38.3 - 38.4 in)
Leg Room, Front
1,065 mm (41.9 in)
Leg Room, Rear
922 mm (36.3 in)
Shoulder Room, Front
1,394 mm (54.9 in)
Shoulder Room, Rear
1,371 mm (54.0 in)

Weight

Gross Weight
1,910 kg (4,211 lb)
Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Cargo Capacity
425 kg (937 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Platform
Mazda Platforms
BK

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
Driver
Windows › Window Lifts, Features › Pinch Protection
Rear
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Automatic Headlight Activation
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
117 - 89 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Compass
Optional
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Optional
Connectivity
Radio
  • AM
  • FM
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Cassette
Optional
MP3
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-hydraulic
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Colour
Black
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Optional
Flat Surface
Yes
Rear Trunk
Volume
346 litres
Volume, Back Seat Collapsed
1,285 litres
Depth
800 mm (31.5 in)
Depth, Back Seat Collapsed
1,580 mm (62.2 in)
Width
1,040 mm (40.9 in)

Design

Interior Decor Material
Textile

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Optional
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Safety Testing

General
Test Year
2006
Adult Occupant
4/5 stars
Child Occupant
3/5 stars
Pedestrian
2/4 stars
Overall Score
32.49
ANCAP Safety Rating
4
Adult Occupant
Frontal Offset
12.37
Side Impact
15.5
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D2S (xenon)
  • H7
Main Beam
HB3
Fog Light, Front
  • H11
  • HB4
Rear/Brake Light
  • W3×16q (W21/5W)
  • W2.1×9.5d (W16W)
Reversing Light
W3×16d (W21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
WX3×16d (WY21W)
License Plate Light
W2.1×9.5d (W5W)
