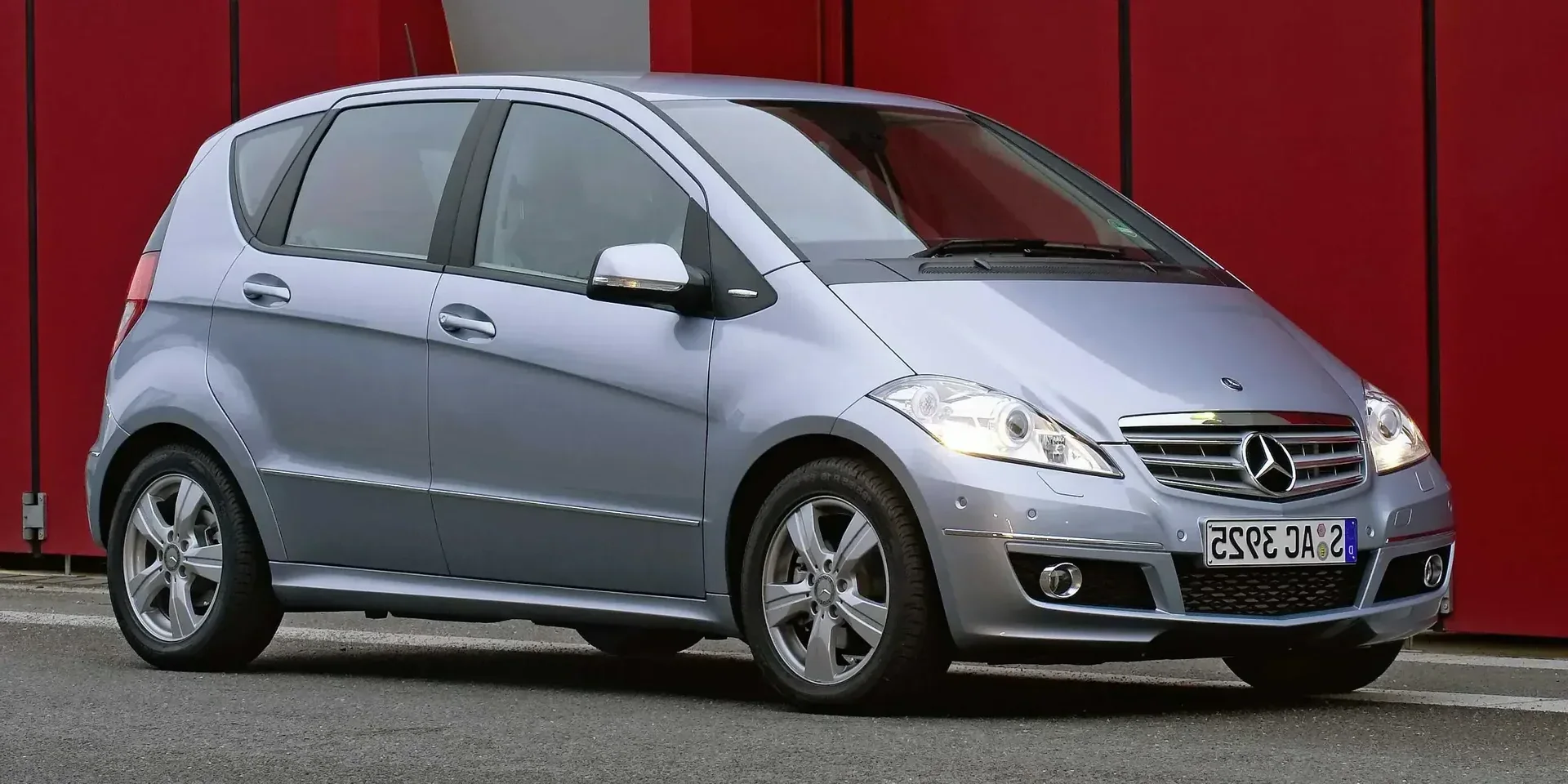

2009 Mercedes-Benz A-Class

GermanyDieselFWDHatchback

Photos

Specifications

Vehicle Details

Year
2009
Make
Mercedes-Benz
Model
A-Class
Body Style
Hatchback
Generation
W169 Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic Continuously variable
  • Manual, 6-speed

Powertrain

Engine Name
A 180 CDI 5-door
Engine Configuration
Inline
Power (hp)
109 hp
Power (kW)
80 kW
Torque
250 Nm (184 lb-ft)
Top speed
181 km/h (112 mph)
0–60 mph
10.3 seconds (estimated)
0–100 km/h
10.8 seconds
Displacement
1,991 cc

Dimensions

Length
3,883 mm (152.9 in)
Width
1,764 mm (69.4 in)
Height
1,593 mm (62.7 in)
Wheelbase
2,568 mm (101.1 in)
Curb weight
1,245 kg (2,745 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,200 rpm
Rev. at Max Torque
1,600 - 2,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Oil, Volume
5.4 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92 mm (3.6 in)
Compression Ratio
18 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Service Intervals
Air Filter
120,000 km (74,565 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km / 15 years
Interior Filter
40,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Continuously variable
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
54 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
6.4 – 7 litres / 100 km
Highway
4.2 – 4.4 litres / 100 km
Combined
5 – 5.4 litres / 100 km
Emission NEDC
CO₂, Combined
134 – 142 g/km

Dimensions & Weight

Exterior

Track, Front
1,556 mm (61.3 in)
Track, Rear
1,551 mm (61.1 in)
Turning Circle
11 m
Ground Clearance
124 mm (4.9 in)

Interior

Head Room, Front
1,030 mm (40.6 in)

Weight

Gross Weight
1,830 kg (4,034 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
645 kg (1,422 lb)
Cargo Capacity
550 – 585 kg (1,213 – 1,290 lb)
Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Rear Wiper
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Front
Yes
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Optional
Bluetooth
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
MP3
Optional
WMA
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
Armrest Hatch
Optional
Coin Holder
Yes
Card Holder
Yes
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Colour
Black

Trunk

Rear Trunk
Yes
Light
Yes
Rear Trunk
Volume
435 litres
Volume, Back Seat Collapsed
1,370 litres
Depth
630 mm (24.8 in)
Depth, Back Seat Collapsed
1,450 mm (57.1 in)
Width
1,020 mm (40.2 in)

Seats

Colour & Material
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
  • Height Adjustment
  • Tilt Adjustment

Features

Comfort Features

Cruise Control
Optional

Other Features

GPS
Optional

Accessories

Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Yes
Active Headrests
Yes

Safety Testing

General
Test Year
2005
Adult Occupant
5/5 stars
Child Occupant
4/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Pillar
B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D2S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D2S
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
SV8.5 (C5W)
Read Light
  • SV8.5 (C10W)
  • W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)
