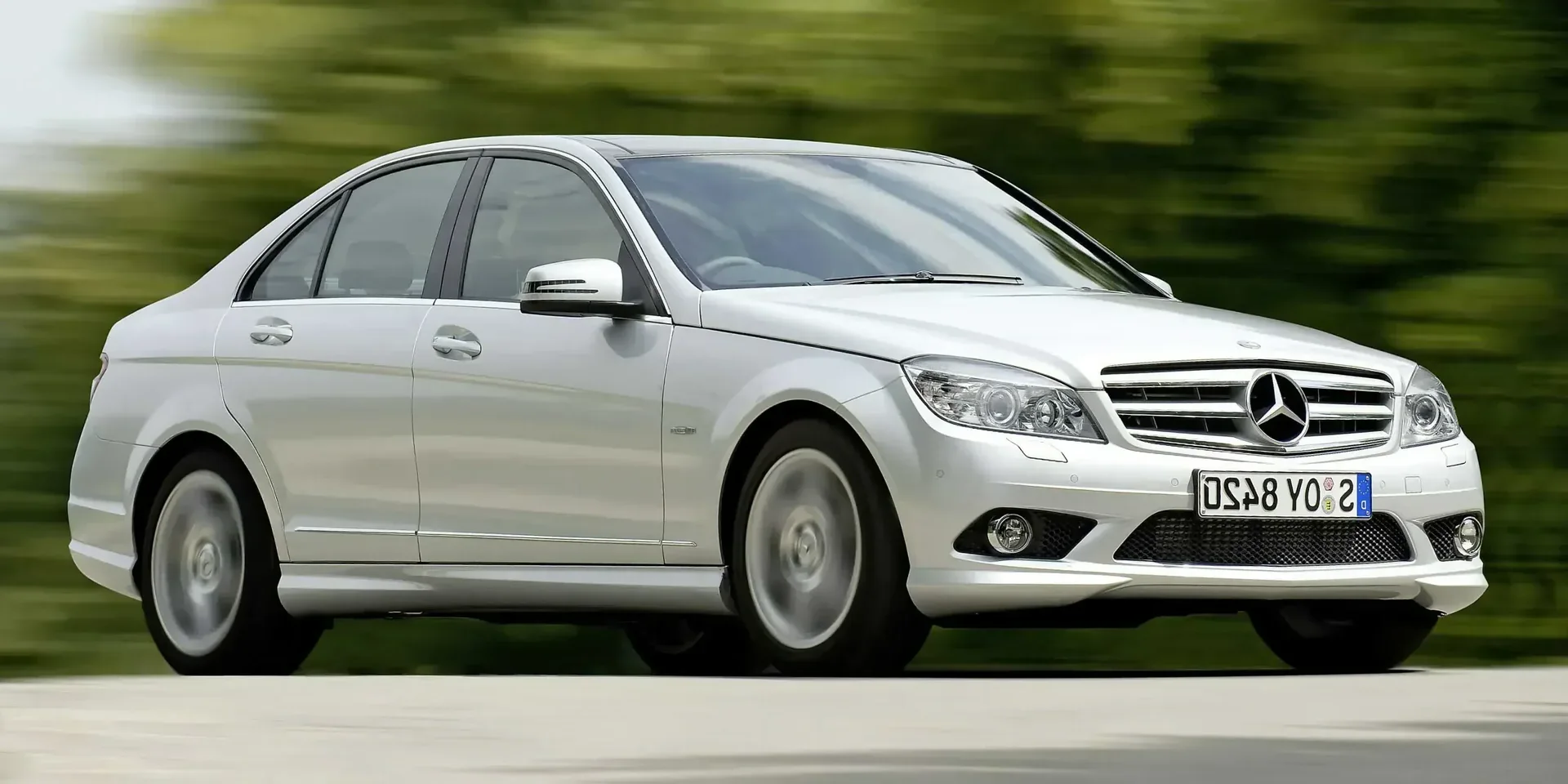

2009 Mercedes-Benz C-Class

GermanyDieselRWDSedan

Photos

Specifications

Vehicle Details

Year
2009
Make
Mercedes-Benz
Model
C-Class
Body Style
Sedan
Generation
W204
Seats
5
Doors
4
Fuel
Diesel
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
C 250 CDI BlueEFFICIENCY
Engine Configuration
Inline
Power (hp)
204 hp
Power (kW)
150 kW
Torque
500 Nm (369 lb-ft)
Top speed
240 km/h (149 mph)
0–60 mph
6.7 seconds (estimated)
0–100 km/h
7 seconds
Displacement
2,143 cc

Dimensions

Length
4,581 mm (180.4 in)
Width
1,770 mm (69.7 in)
Height
1,432 mm (56.4 in)
Wheelbase
2,760 mm (108.7 in)
Curb weight
1,515 kg (3,340 lb)

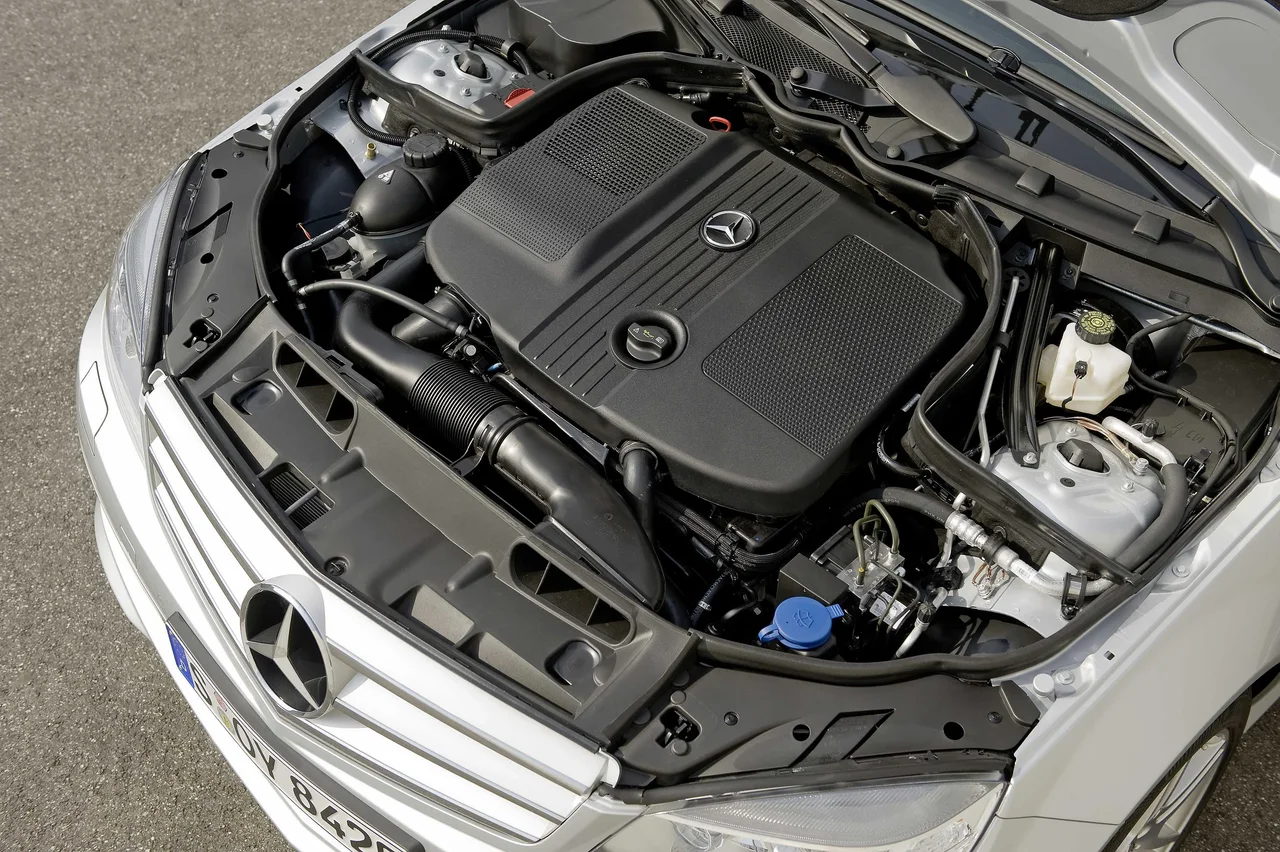

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,200 rpm
Rev. at Max Torque
1,600 - 1,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Oil, Volume
6.5 litres
Engine Configuration
Bore
88 mm (3.5 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
16.2 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
75,000 km / 4 years
Fuel Filter
75,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
25,000 km / 1 years
Engine Coolant
250,000 km / 15 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut

Fuel

General
Tank Volume
59 - 66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
6.6 – 7.8 litres / 100 km
Highway
4.2 – 4.3 litres / 100 km
Combined
5.1 – 5.6 litres / 100 km
Emission NEDC
CO₂, Combined
134 – 149 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,009 mm (79.1 in)
Track, Front
1,549 mm (61.0 in)
Track, Rear
1,552 mm (61.1 in)
Overhang, Front
765 mm (30.1 in)
Overhang, Rear
1,056 mm (41.6 in)
Turning Circle
10.8 m
Ground Clearance
101 mm (4.0 in)

Interior

Head Room, Front
984 mm (38.7 in)
Head Room, Rear
942 mm (37.1 in)
Hip Room, Front
1,440 mm (56.7 in)
Hip Room, Rear
1,462 mm (57.6 in)
Shoulder Room, Front
1,390 mm (54.7 in)
Shoulder Room, Rear
1,398 mm (55.0 in)

Weight

Gross Weight
2,120 kg (4,674 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
605 kg (1,334 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Windscreen Wipers: Connector type, Front
Side Lock
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Glass-integrated
Electric
Optional

Lights

Fog Lights
Yes
Fog Lights
Front
Halogen
Rear
Halogen
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

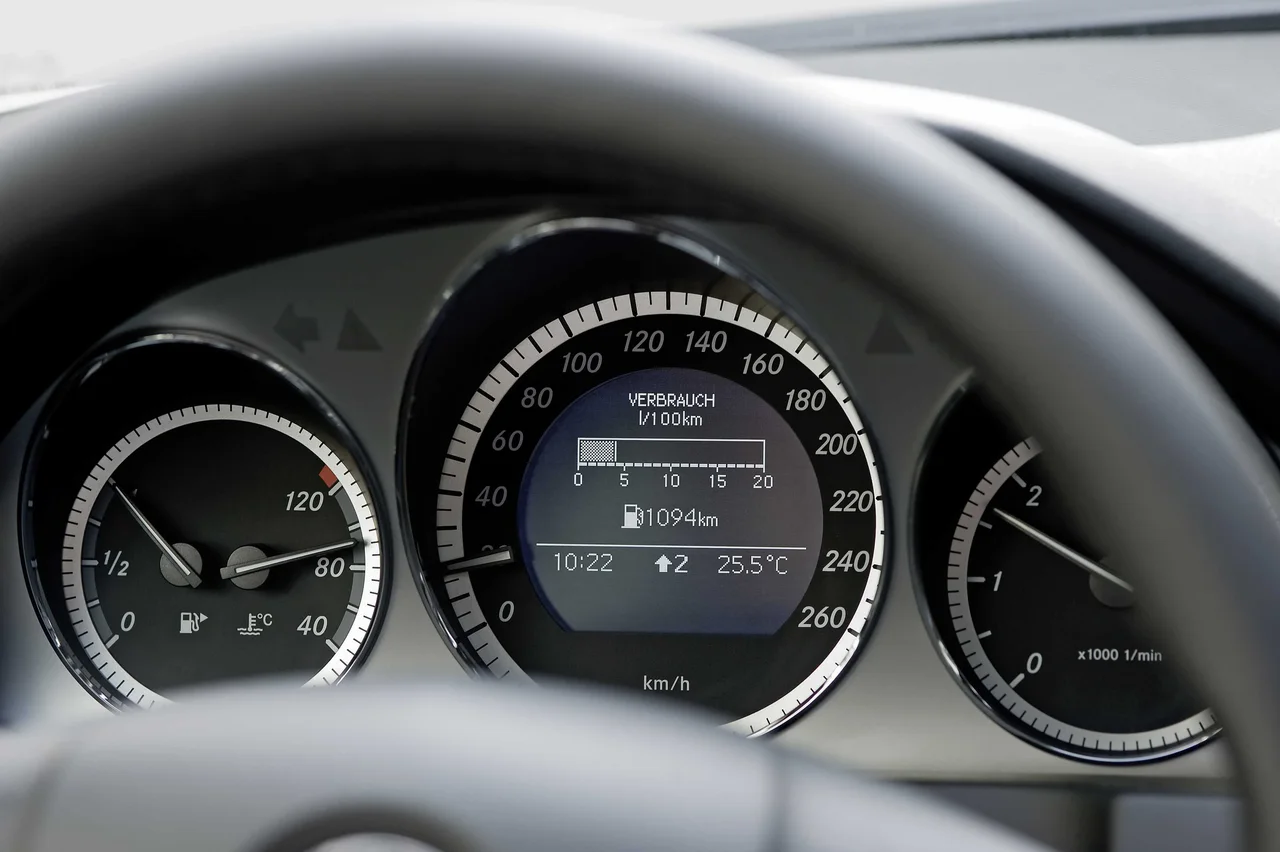

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
Optional
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › Cellular Network
3G
Optional
Displays
Center Display
12.7 - 17.8"
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
Optional
Speakers
Total Number of Speakers
6 pcs
Speakers Max. Watt
450 W
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Optional
Interior Storage › Cup Holders
Rear
2
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Number of Spokes
4
Material
Leather
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

Trunk

Rear Trunk
Yes
Release Button
Yes
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
475 litres

Design

Transmission Knob Material
Leather
Entry Guard Material
Plastic
Pedals
Standard
Pedals
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Powered
Cushion Tilt
Manual
Backrest Angle
Powered
Lumbar Support
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Powered
Cushion Tilt
Manual
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
  • 60/40
  • 40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Cameras
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Optional
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual

Safety Testing

General
Test Year
2009
Adult Occupant
82 %
Child Occupant
70 %
Vulnerable Road Users
30 %
Safety Assist
86 %
Overall
5/5 stars
Overall Score
36.16
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.16
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D1S
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
Entry Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Awards

Japan Import Car of the Year
2008 - 2007

Similar sedans

Suggested vehicles
