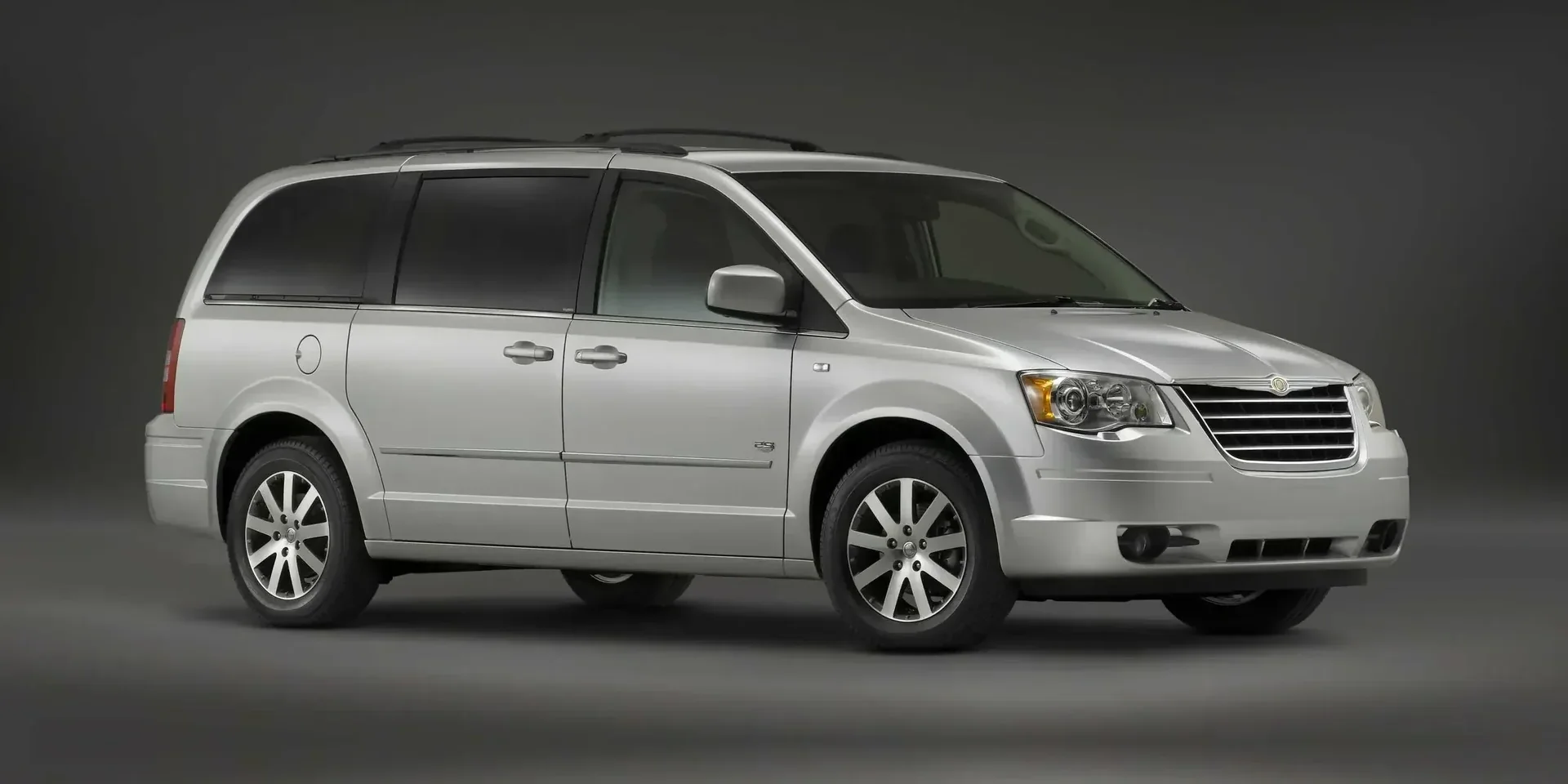

2010 Chrysler Voyager Grand Voyager

United StatesGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2010
Make
Chrysler
Model
Voyager
Variant
Grand Voyager
Body Style
Minivan
Generation
RT
Seats
7
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
Grand Voyager 3.8 V6 Automatic
Engine Configuration
V
Power (hp)
193 hp
Power (kW)
142 kW
Torque
305 Nm (225 lb-ft)
Top speed
193 km/h (120 mph)
0–60 mph
12.0 seconds (estimated)
0–100 km/h
12.6 seconds
Displacement
3,778 cc

Dimensions

Length
5,143 mm (202.5 in)
Width
1,954 mm (76.9 in)
Height
1,750 mm (68.9 in)
Wheelbase
3,078 mm (121.2 in)
Curb weight
2,025 kg (4,464 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,200 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
4.7 litres
Engine Configuration
Bore
96 mm (3.8 in)
Stroke
87 mm (3.4 in)
Compression Ratio
9.6 :1
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
Cam-in-block
Engine Block
Cast Iron
Service Intervals
Spark Plug
96,000 km (59,652 mi)
Brake Fluid
24,000 km (14,913 mi)
Oil Change & Engine Filter
12,000 km / 1 years
Interior Filter
24,000 km (14,913 mi)

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
75 litres
Fuel Consumption NEDC
City
18.3 litres / 100 km
Highway
8.8 litres / 100 km
Combined
12.3 litres / 100 km
Emission NEDC
CO₂, Combined
294 g/km

Dimensions & Weight

Exterior

Track, Front
1,651 mm (65.0 in)
Track, Rear
1,645 mm (64.8 in)
Turning Circle
11.9 m
Ground Clearance
140 mm (5.5 in)

Weight

Gross Weight
2,690 kg (5,930 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
665 kg (1,466 lb)
Max Roof Load
68 kg (150 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)

Equipment

Side Mirrors
Mirror Type
Conventional
Heated
Yes
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Roof Railing
Optional

Lights

Rear Lights
Halogen
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Yes
Special Features
Main Beam Assist
Optional

Rims & Tires

Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable
Lights
Read Light
Front
Guide Light
Optional
Other Equipment
12V Outlet
Front
Carpets
Optional
Ashtray
Yes
Cigarette Lighter
Yes

Steering Wheel

Heated
Optional
Power Steering
Yes
Material
Plastic
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Rear Trunk
Volume
638 litres
Volume, Back Seat Collapsed
3,296 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Second Seat Row
Collapsible
Manual
Third/Fourth Seat Row
Third Seat Row
Yes

Features

Comfort Features

Cruise Control
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Light Sensor
Optional
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote

Safety Testing

General
Test Year
2007
Adult Occupant
1/5 stars
Child Occupant
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Left Side Casing of Window
Yes

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV
