2010 Ford Mustang Shelby GT500

United StatesGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
2010
Make
Ford
Model
Mustang
Variant
Shelby GT500
Body Style
Coupe
Generation
5th Generation 1st Facelift (S197 II)
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
Shelby GT500 Manual
Engine Configuration
V
Power (hp)
548 hp
Power (kW)
403 kW
Torque
691 Nm (510 lb-ft)
Displacement
5,409 cc

Dimensions

Length
4,765 mm (187.6 in)
Width
1,875 mm (73.8 in)
Height
1,385 mm (54.5 in)
Wheelbase
2,720 mm (107.1 in)

Engine & Performance

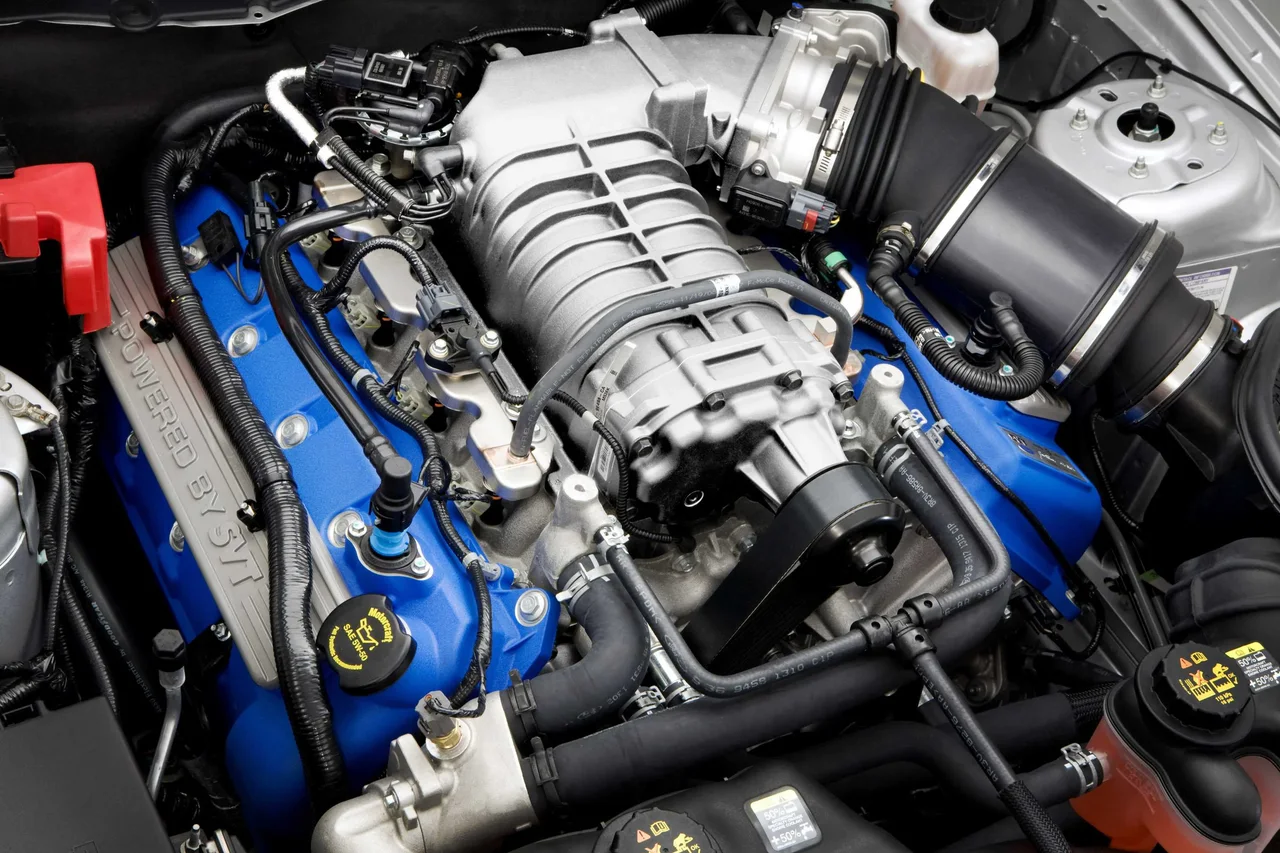

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,800 rpm
Engine Configuration
Bore
90.2 mm (3.6 in)
Stroke
105.8 mm (4.2 in)
Compression Ratio
8.4 :1
Engine Configuration
V-Engine
Supercharger
Yes
Type of Combustion Engine
Piston

Fuel

General › Fuel Cap Position
Rear
Left

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Width, with Mirrors
2,035 mm (80.1 in)
Track, Front
1,580 mm (62.2 in)
Track, Rear
1,590 mm (62.6 in)
Ground Clearance
127 mm (5.0 in)

Interior

Head Room, Front
978 mm (38.5 in)
Head Room, Rear
881 mm (34.7 in)
Leg Room, Front
1,077 mm (42.4 in)
Leg Room, Rear
757 mm (29.8 in)
Shoulder Room, Front
1,405 mm (55.3 in)
Shoulder Room, Rear
1,311 mm (51.6 in)

Weight

Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-B
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Door Handles
Pull-up
Platform
Ford Motor Company
D2C Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
House Colour
Same as Car
Windscreen Wipers
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
Windows › Window Lifts, Features
One-touch up/down
  • Driver
  • Passenger
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Whip
Other Equipment › Sunroof
Tinted Glass
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon
Rear Lights
LED
Fog Lights
Yes
Fog Lights
Front
Halogen

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Central Bore (CB), front
70.5
Fastening Type
Lug Nuts
Tightening Torque
135 Nm
Rim Material
Aluminium
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Connectivity
Radio
  • AM
  • FM
Connectivity › Radio
XM
Optional
HD Radio
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Hard Drive
10 GB
MP3
Optional
Connectivity › Media Inputs
AUX
Armrest Hatch/Mid-console
Displays
Center Display
8"
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Coin Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Carpets
Front
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
Tilt
Number of Spokes
3
Material
  • Alcantara
  • Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Answer Phone
Yes
Volume
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
350 litres

Design

Interior Decor Colour
Black

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Optional
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
50/50
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Yes
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Cameras
Optional
Voice Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional

Other Features

GPS
Optional
GPS
DVD
Optional
GPS › DVD
CD
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Emergency Assist
Yes

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Limited Slip Differential (LSD)

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
3/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
3/5 stars
Side Barrier Rating
4/5 stars
Overall Side Pole Star Rating
4/5 stars
Rollover
Rollover Resistance
8.7 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
4/5 stars
Rollver
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car
