2011 Cadillac DTS

United StatesGasolineFWDSedan

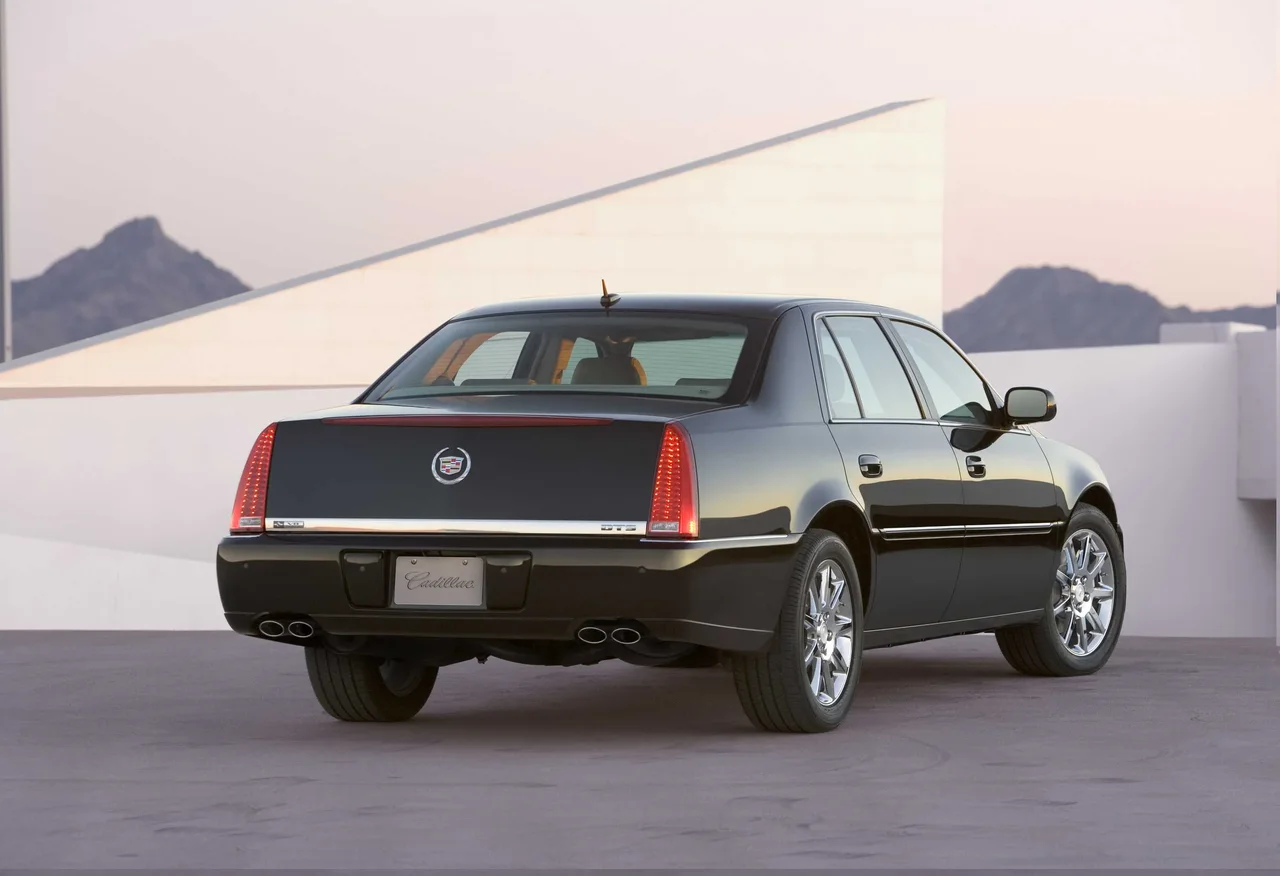

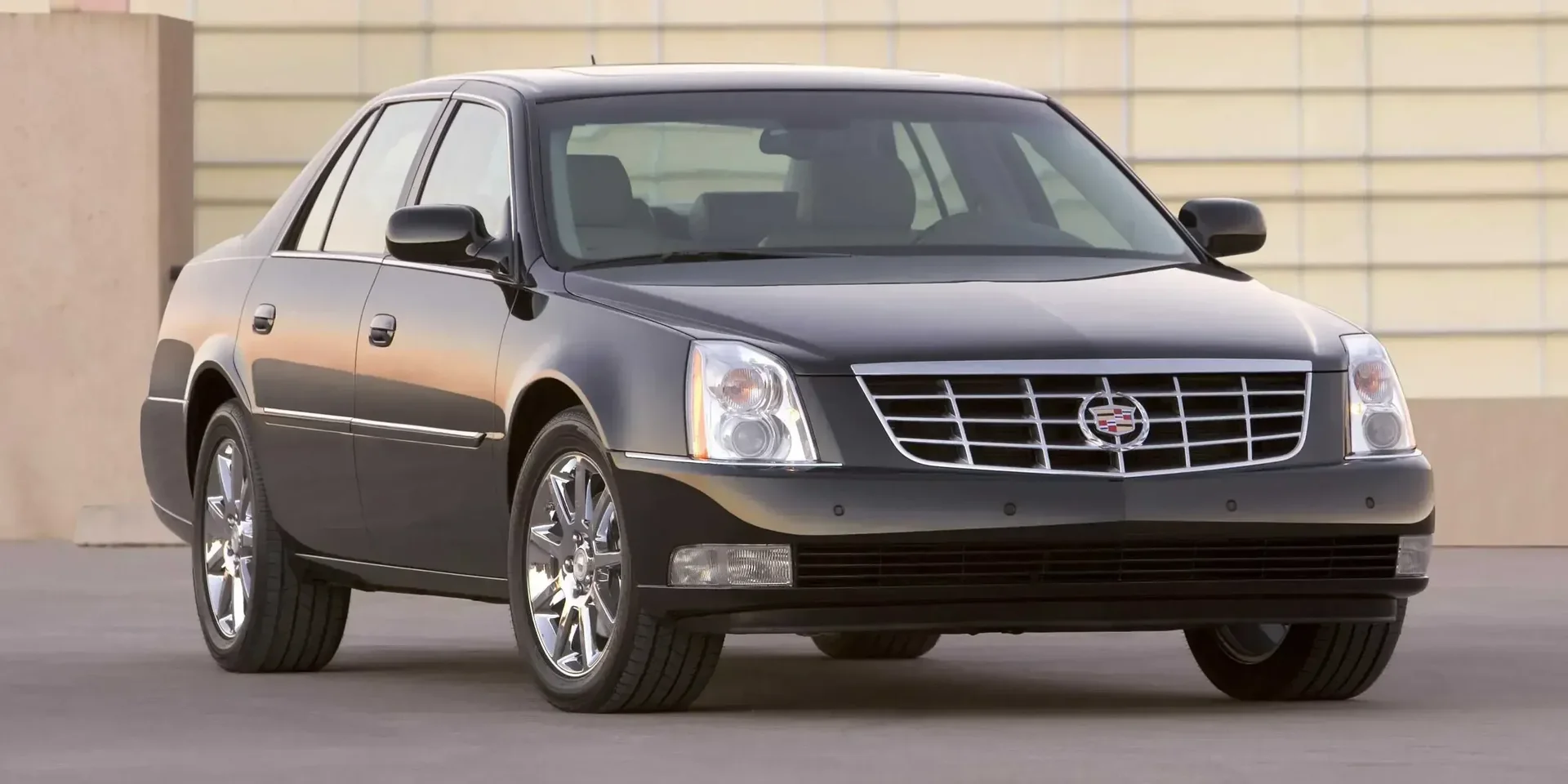

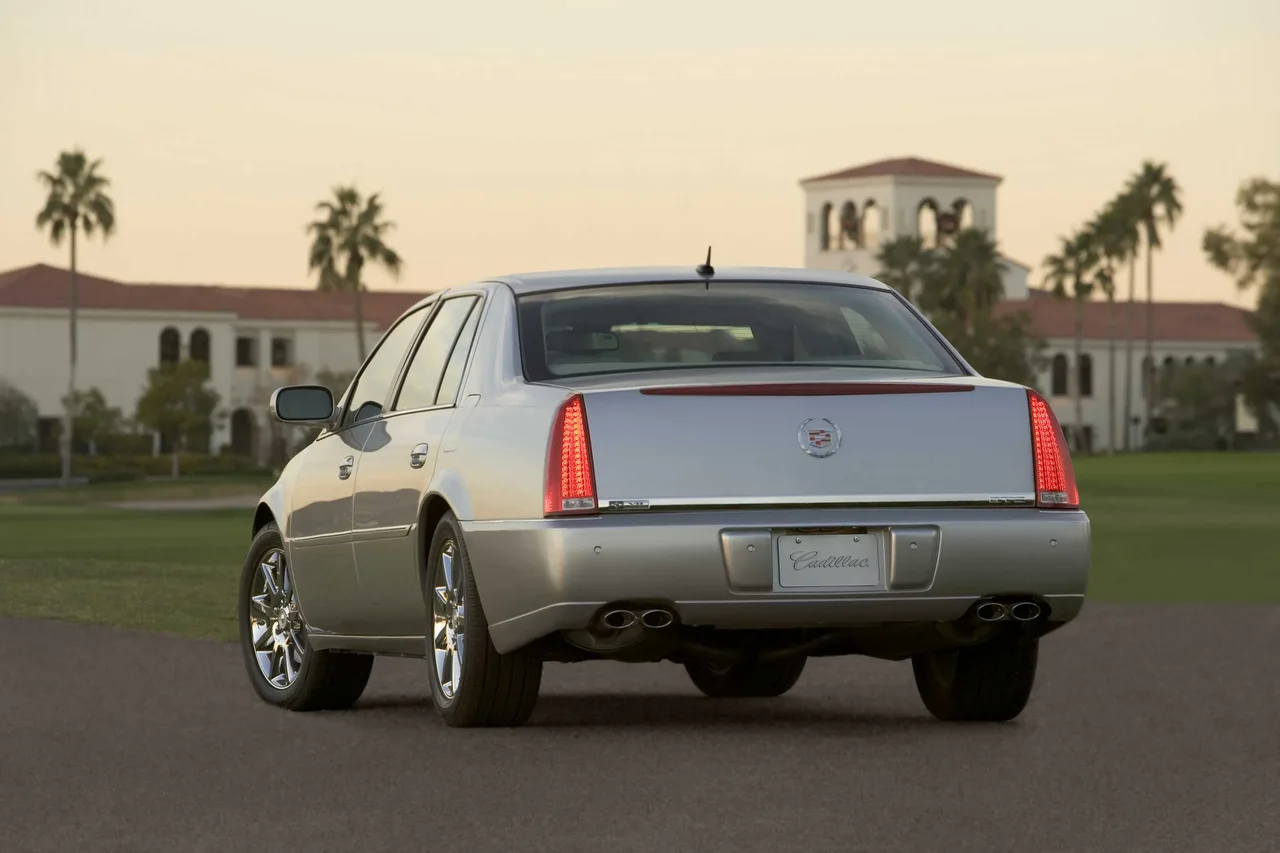

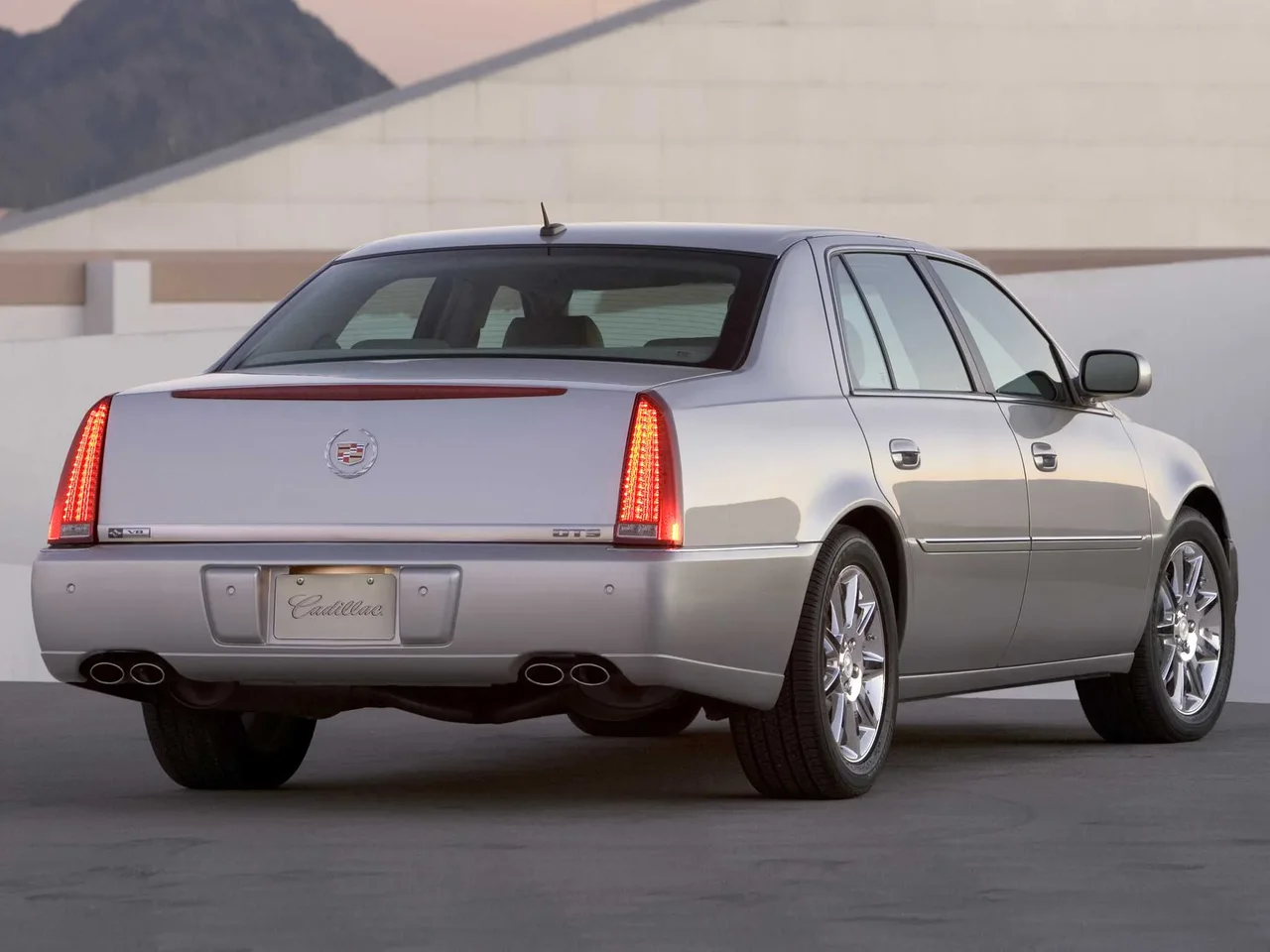

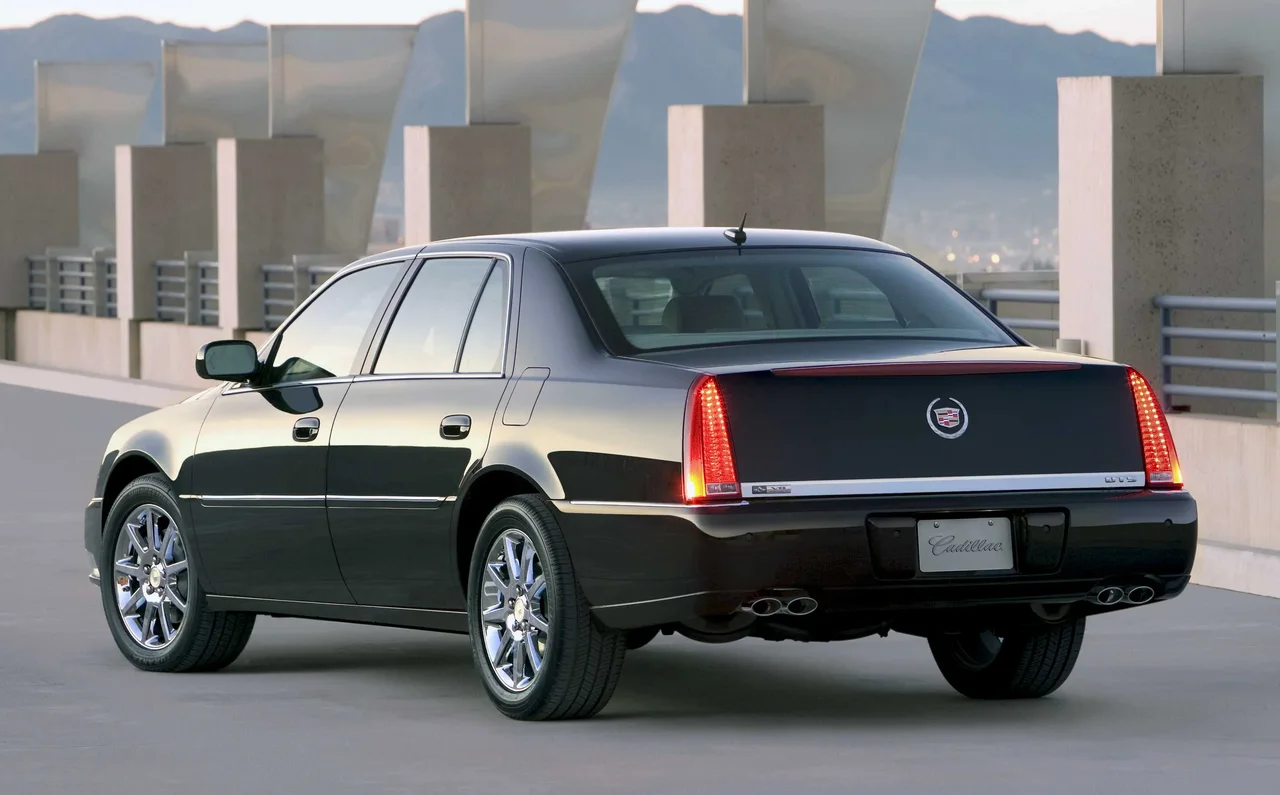

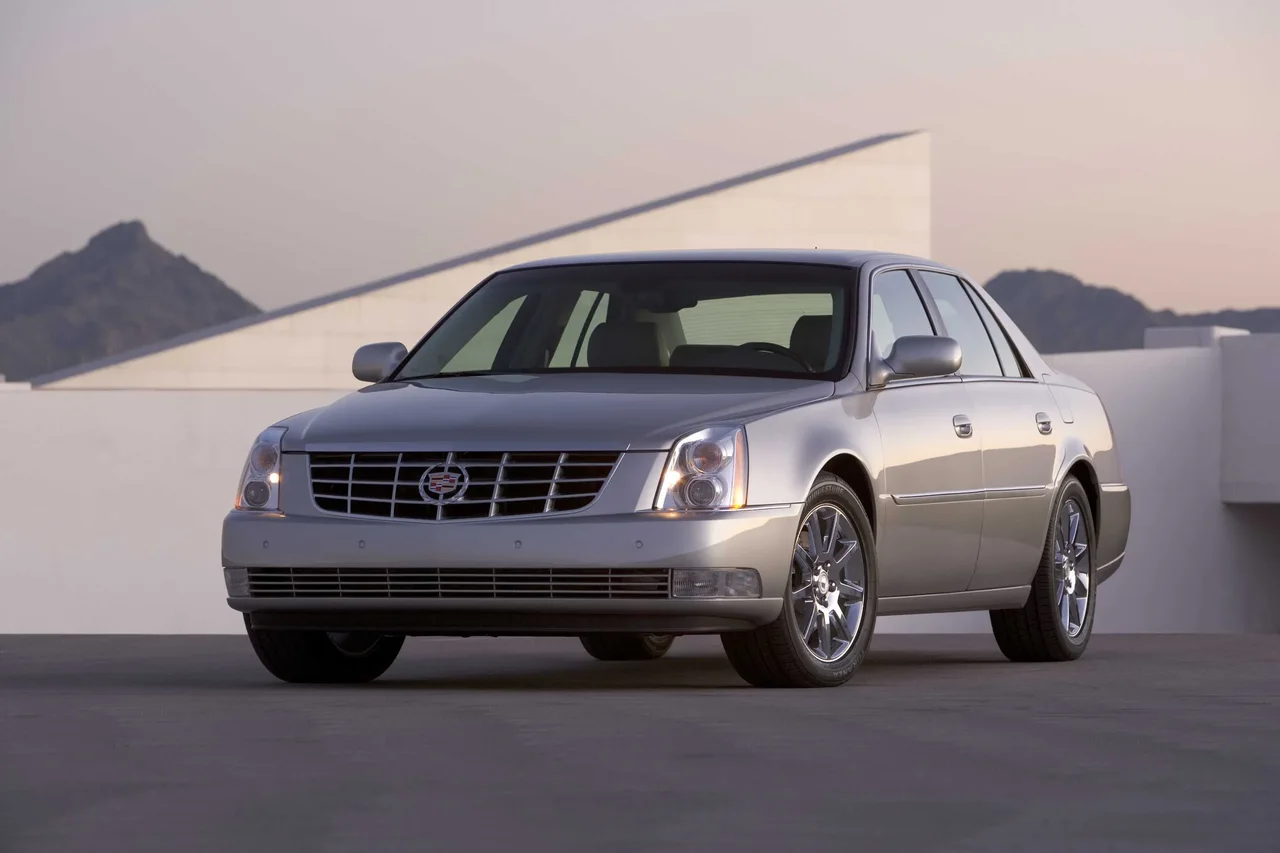

Photos

Specifications

Vehicle Details

Year
2011
Make
Cadillac
Model
DTS
Body Style
Sedan
Generation
1st Generation
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name
4.6 V8 Hydra-Matic
Engine Configuration
V
Power (hp)
279 hp
Power (kW)
205 kW
Torque
400 Nm (295 lb-ft)
Displacement
4,565 cc

Dimensions

Length
5,274 mm (207.6 in)
Width
1,901 mm (74.8 in)
Height
1,464 mm (57.6 in)
Wheelbase
2,936 mm (115.6 in)
Curb weight
1,818 kg (4,008 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,400 rpm
Redline
6,700 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
7.1 litres
Transmission Fluid, Volume
7 litres
Engine Coolant, Volume
12 litres
Engine Configuration
Bore
93 mm (3.7 in)
Stroke
84 mm (3.3 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
80,000 km (49,710 mi)
Spark Plug
160,000 km (99,419 mi)
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Transmission, Fluid
160,000 km (99,419 mi)
Transmission, Fluid Filter
160,000 km (99,419 mi)
Interior Filter
40,000 km (24,855 mi)

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 4-speed
Gear Selector
Stick
Gear Selector Location
  • Mid-Console
  • Steering Column
Gear Selector
Stalk
Optional
Gear Ratio
1st Gear
2.96 :1
2nd Gear
1.63 :1
3rd Gear
1 :1
4th Gear
0.68 :1
Final Drive
3.11 :1
Reverse
2.13 :1

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
323 mm (12.7 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
292 mm (11.5 in)
Width
12 mm (0.5 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Anti-roll Bar
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link
Anti-roll Bar
Front
29 mm (1.1 in)
Rear
18 mm (0.7 in)

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
17 MPG
Highway
25 MPG
Combined
23 MPG

Dimensions & Weight

Exterior

Track, Front
1,588 mm (62.5 in)
Track, Rear
1,567 mm (61.7 in)
Turning Circle
12.8 - 13.4 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
973 - 997 mm (38.3 - 39.3 in)
Head Room, Rear
981 mm (38.6 in)
Leg Room, Front
1,079 mm (42.5 in)
Leg Room, Rear
1,056 mm (41.6 in)
Hip Room, Front
1,445 mm (56.9 in)
Hip Room, Rear
1,440 mm (56.7 in)
Shoulder Room, Front
1,524 mm (60.0 in)
Shoulder Room, Rear
1,504 mm (59.2 in)

Weight

Curb Weight (DIN)
2,425 kg (5,346 lb)
Max Trailer Load, unbraked
454 kg (1,001 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-up
Platform
General Motors Platforms
G Platform (FWD)

Equipment

Side Mirrors
Folding
Manual
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Electric
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
115
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
70.3
Fastening Type
Lug Nuts
Tightening Torque
140 Nm

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Connectivity
Radio
Yes
Media Format
MP3
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
532 litres

Seats

Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Number of Seats
3
Type of Seat
Adult
Colour & Material
Upholstery
Leather

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes

Other Features

GPS
Optional

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

IIHS
Test Year
2006
Moderate Overlap Front
Good
Side
Acceptable
Head Restraints & Seats
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Other

Car Classification

American Classification
Full-Size Luxury Car
British Classification
Luxury Car
Australian Classification
Upper Large Car
European Segment
F-Segment
Car.info Classification
Luxury Car
