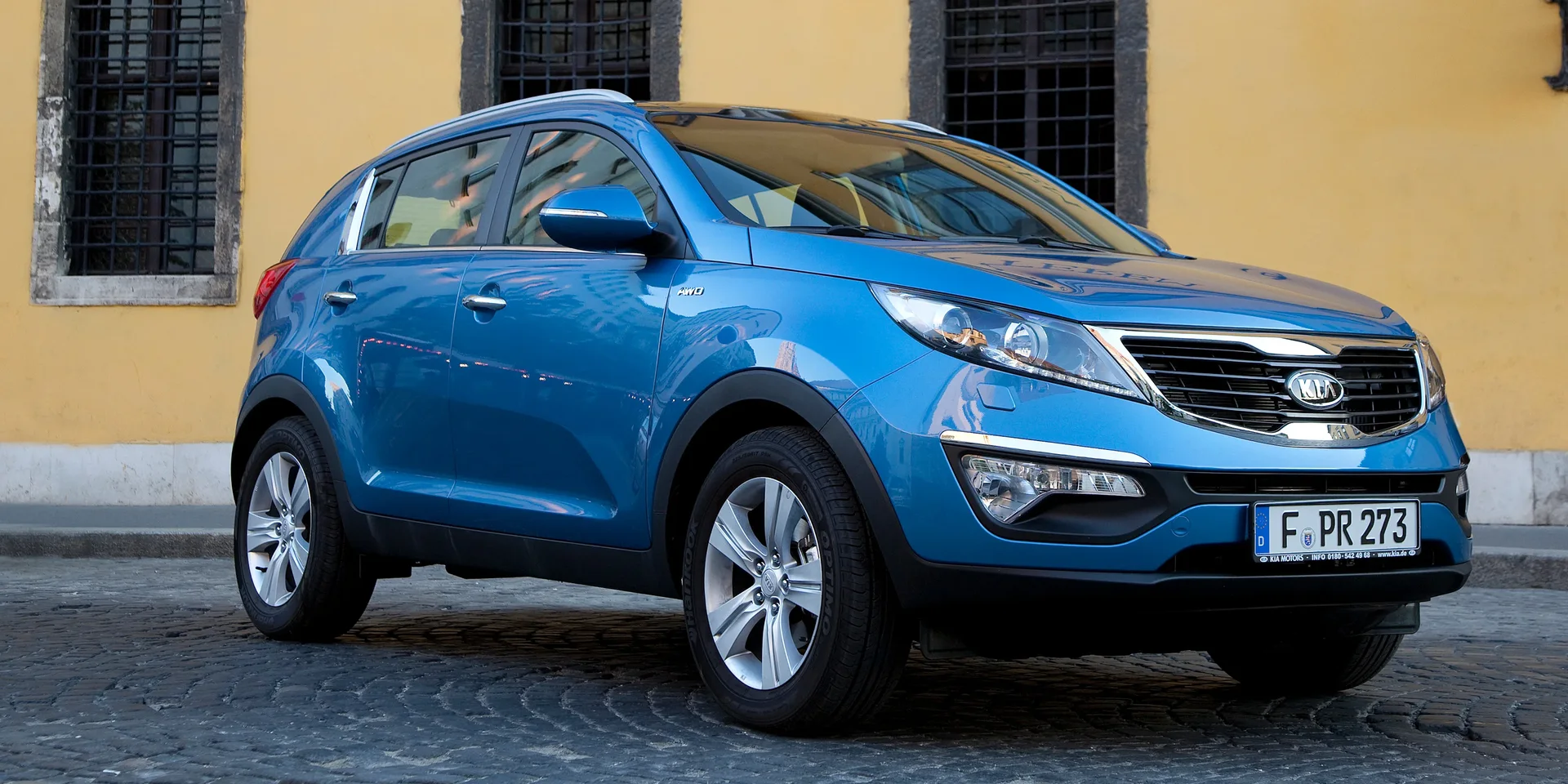

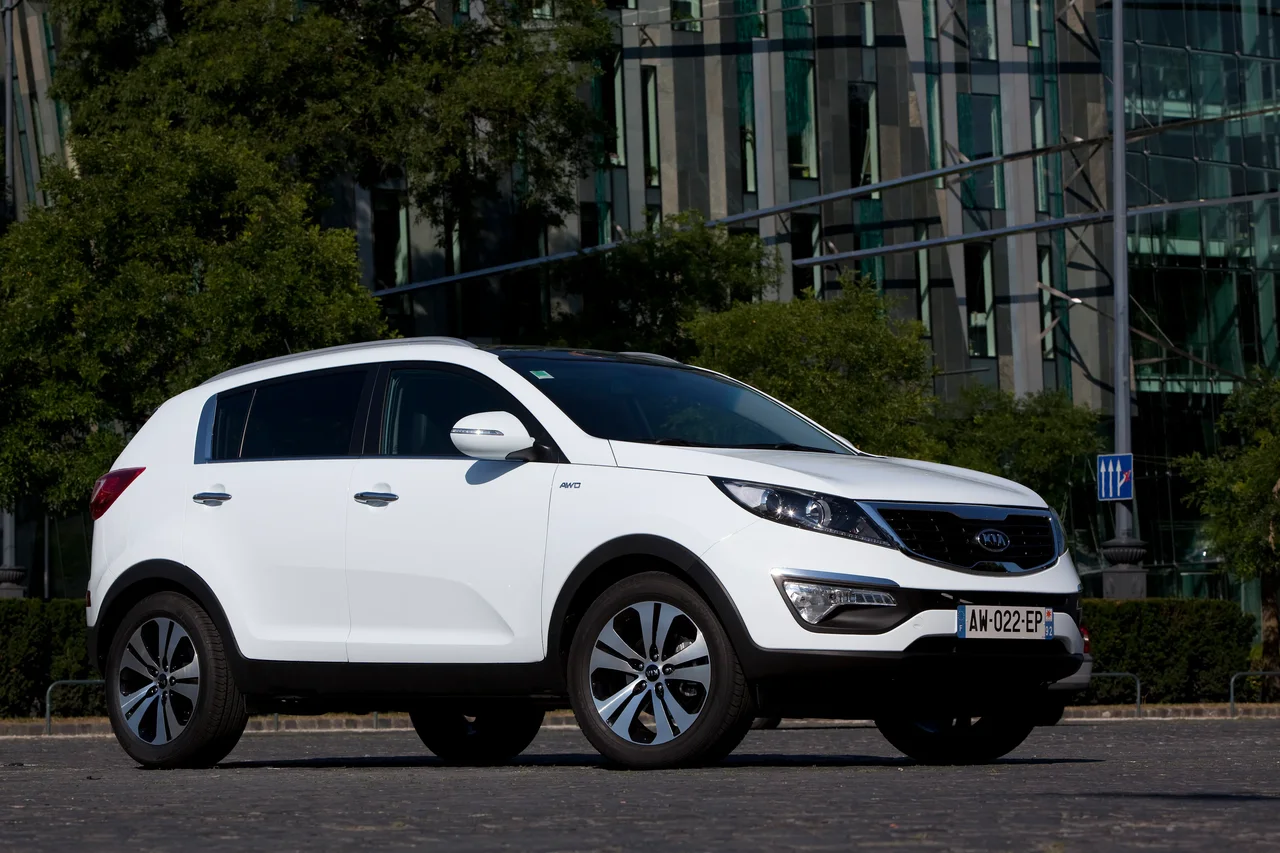

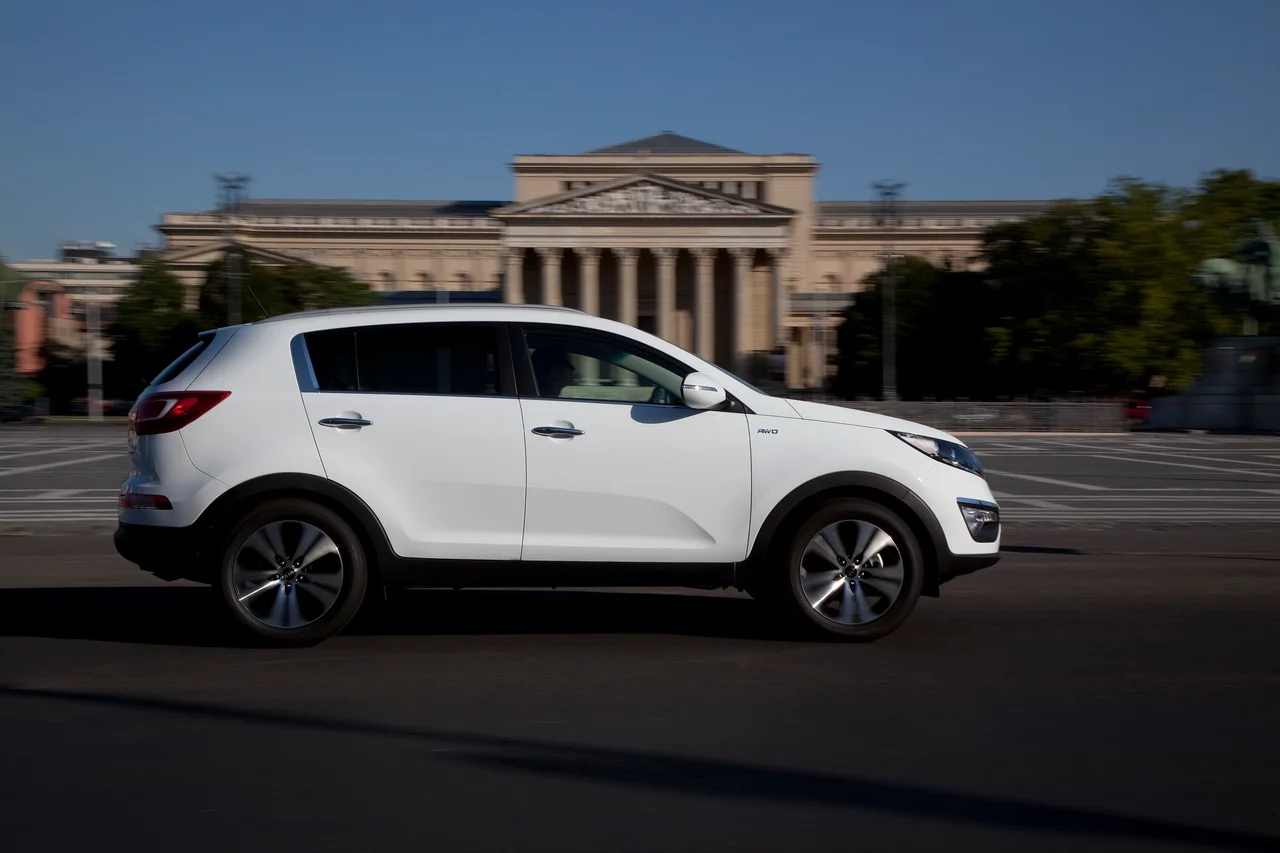

2011 Kia Sportage

South KoreaGasolineFWDCrossover

Photos

Specifications

Vehicle Details

Year
2011
Make
Kia
Model
Sportage
Body Style
Crossover
Generation
SL
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.6 GDI Manual
Engine Configuration
Inline
Power (hp)
135 hp
Power (kW)
99 kW
Torque
164 Nm (121 lb-ft)
Top speed
178 km/h (111 mph)
0–60 mph
11.0 seconds (estimated)
0–100 km/h
11.5 seconds
Displacement
1,591 cc

Dimensions

Length
4,440 mm (174.8 in)
Width
1,855 mm (73.0 in)
Height
1,635 mm (64.4 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,380 kg (3,042 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,300 rpm
Rev. at Max Torque
4,850 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
3.3 litres
Engine Configuration
Bore
77 mm (3.0 in)
Stroke
85 mm (3.3 in)
Compression Ratio
11 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
150,000 km / 10 years
Brake Fluid
2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
2 years
Interior Filter
30,000 km / 2 years

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
MacPherson Strut

Fuel

General
Tank Volume
58 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
7.5 litres / 100 km
Highway
5.8 litres / 100 km
Combined
6.4 litres / 100 km
Emission NEDC
CO₂, Combined
149 g/km

Dimensions & Weight

Exterior

Track, Front
1,614 mm (63.5 in)
Track, Rear
1,615 mm (63.6 in)
Overhang, Front
890 mm (35.0 in)
Overhang, Rear
910 mm (35.8 in)
Turning Circle
10.8 m
Ground Clearance
172 mm (6.8 in)

Interior

Head Room, Front
993 mm (39.1 in)
Head Room, Rear
978 mm (38.5 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
963 mm (37.9 in)
Hip Room, Front
1,364 mm (53.7 in)
Hip Room, Rear
1,247 mm (49.1 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,400 mm (55.1 in)

Weight

Gross Weight
1,830 kg (4,034 lb)
Max Trailer Load, braked 12%
1,200 kg (2,646 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
450 kg (992 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Hyundai-Kia Platforms
J Platform (J4)

Equipment

Side Mirrors
Mirror Type
Conventional
Heated
Optional
Turning Signal
Optional
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Whip
Mud Flaps
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Optional
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Manual

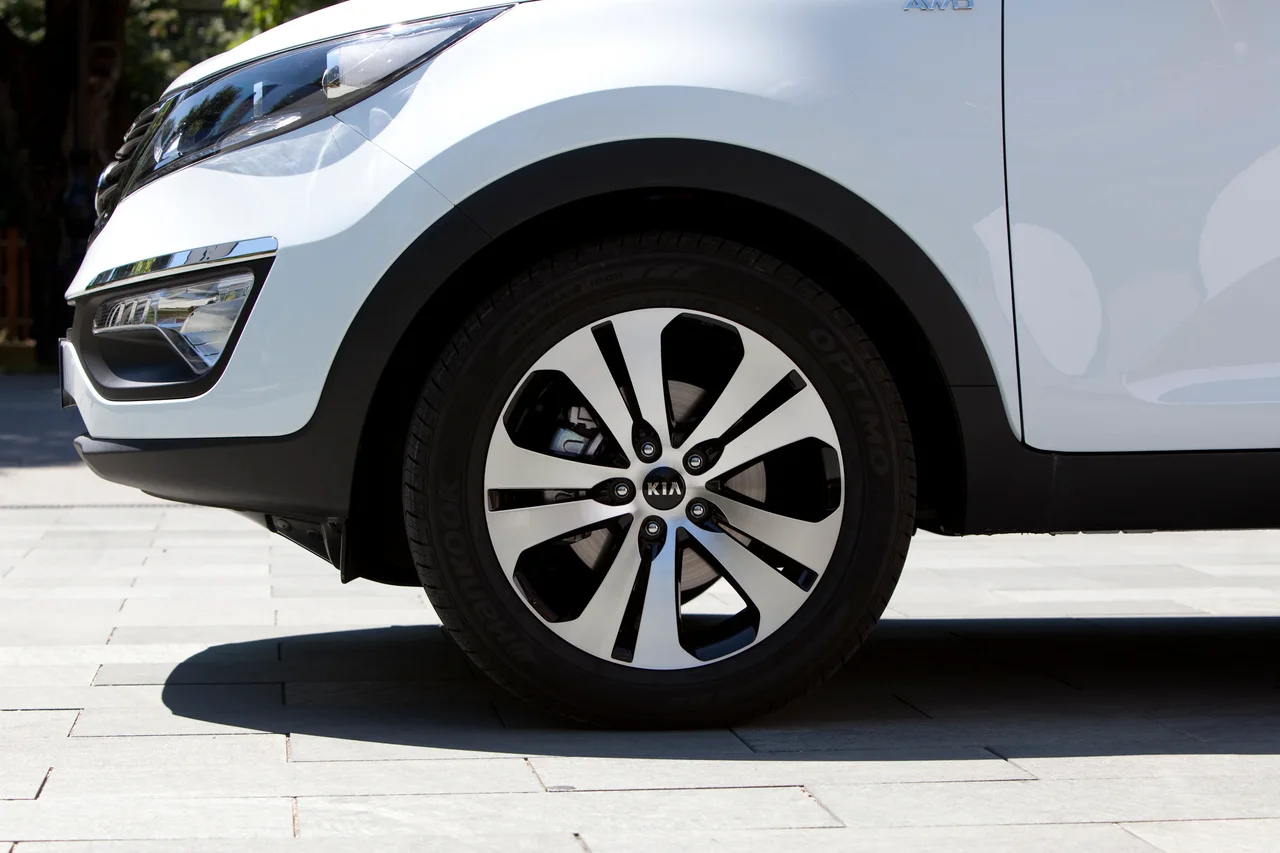

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 107 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
  • RDS
Media Format
  • CD
  • MP3
  • WMA
Media Inputs
USB
Bluetooth
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Sunglass Compartment
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
  • Middle Console
  • Driver Door
  • Passenger Door
Lights
Read Light
Front
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Yes
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electric
Adjustments
Tilt
Colour
Black
Steering Mechanism
Rack and Pinion
Adjustments
Telescope
Optional

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
564 litres
Volume, Back Seat Collapsed
1,353 litres

Design

Interior Decor Material
Plastic

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional

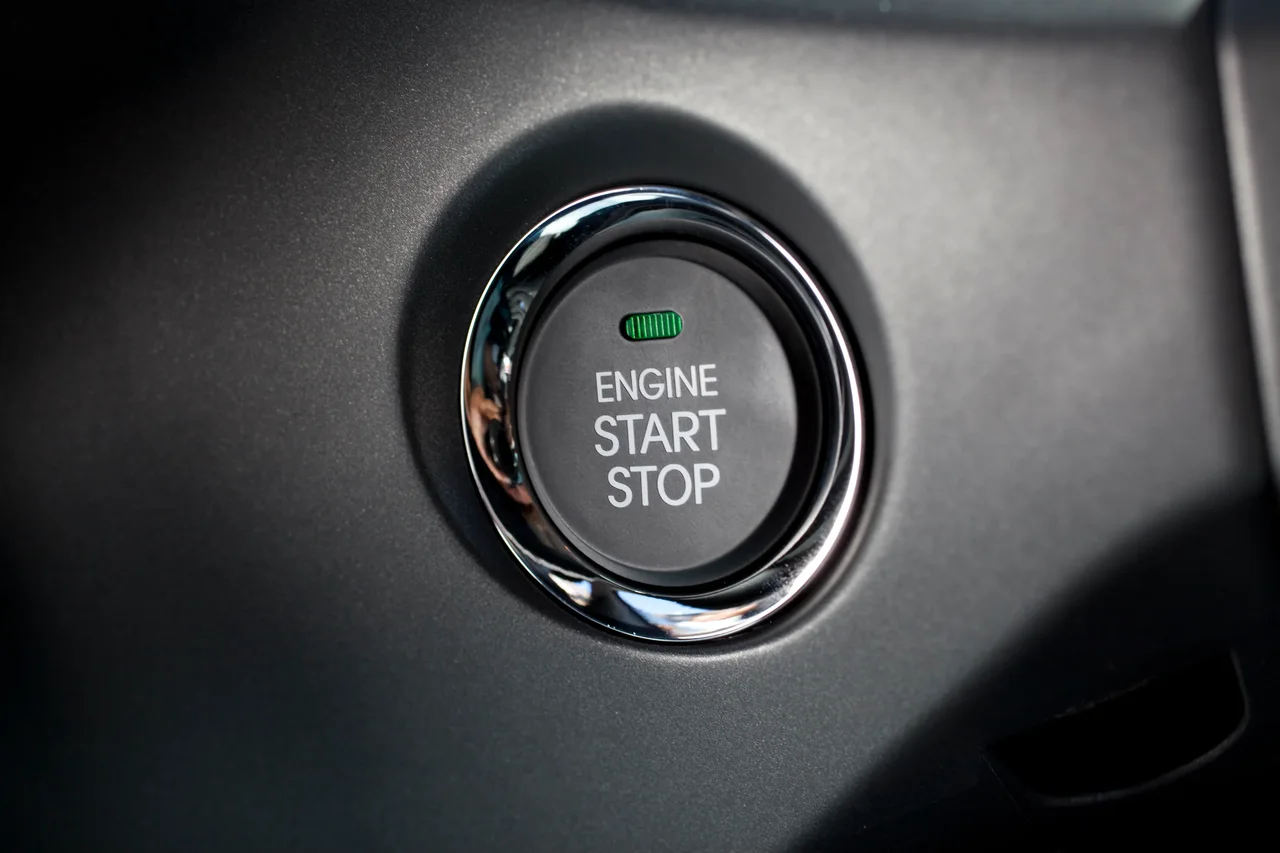

Keyless Start
Optional
Cruise Control
Optional
Cameras
Optional

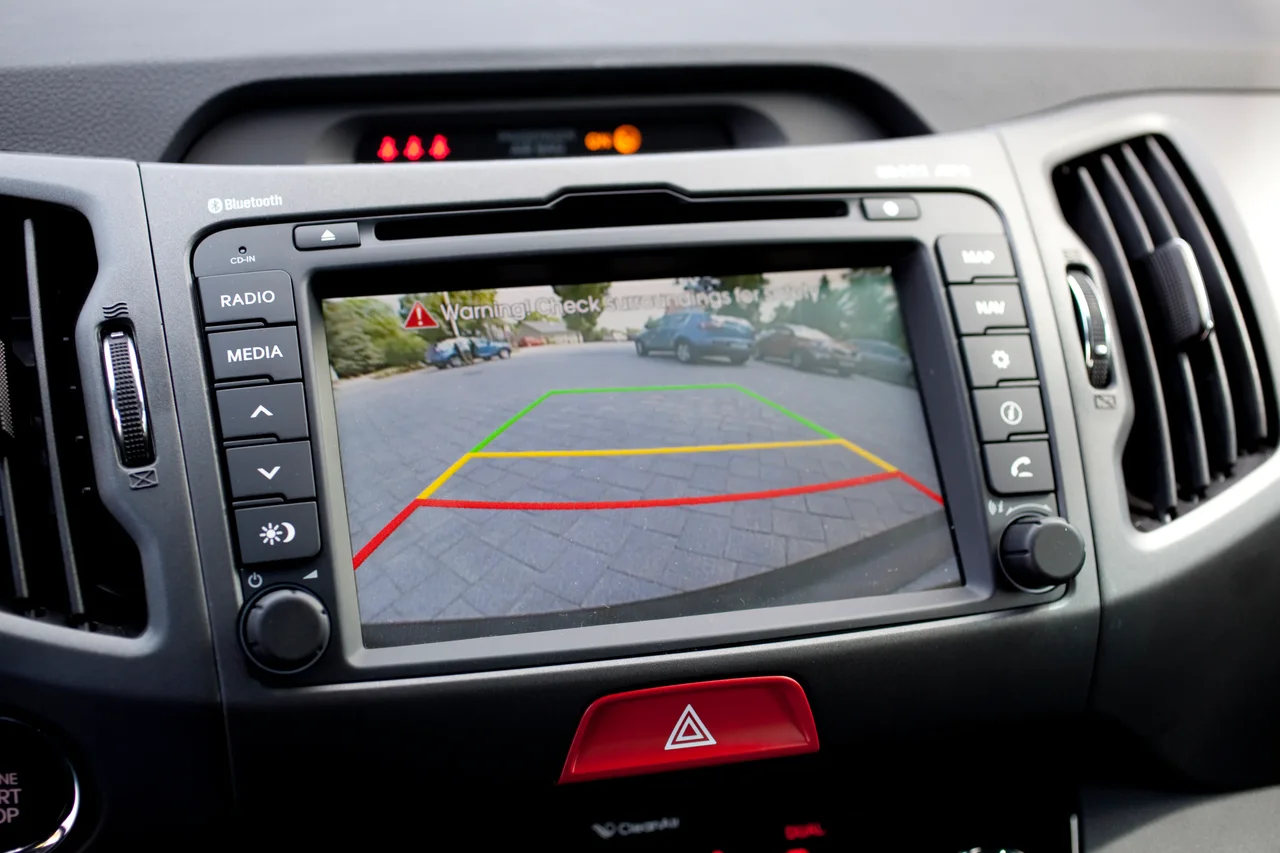

Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Remote

Safety Testing

General
Test Year
2010
Adult Occupant
93 %
Child Occupant
86 %
Vulnerable Road Users
49 %
Safety Assist
86 %
Overall
5/5 stars
Overall Score
35.1
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.1
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
2
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
17.4 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
Teknikens Världs Moose Test
Test Year
2013
Speed
69 km/h (43 mph)

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km / 5 years
Rust Damage
150,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km / 7 years

Identification

VIN Location
Left Side Casing of Window
Yes
Right Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H27W/2
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Trunk
SV8.5 (C5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Type
Crossover (G)
