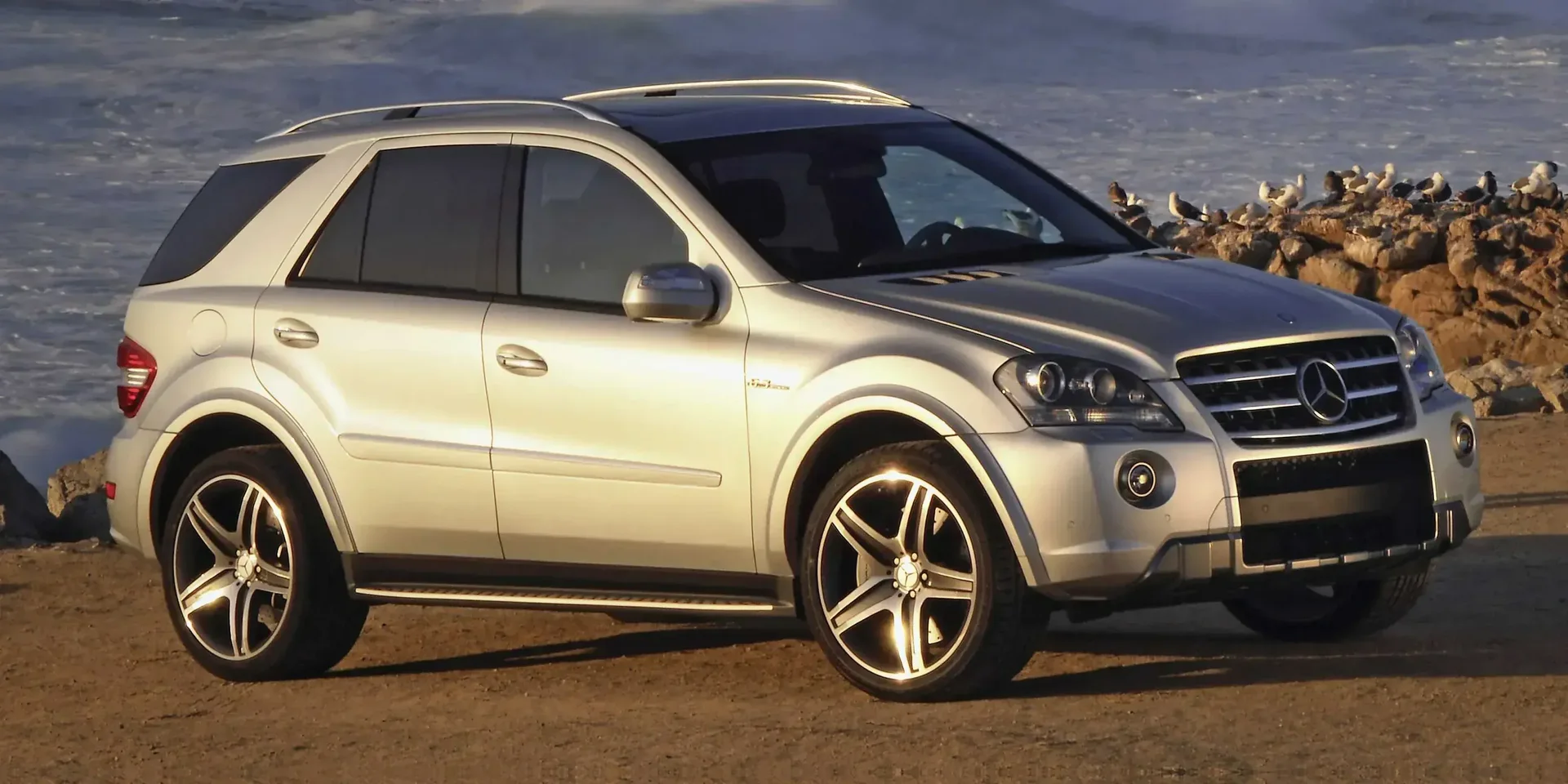

2011 Mercedes-Benz M-Class ML

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2011
Make
Mercedes-Benz
Model
M-Class
Variant
ML
Body Style
SUV
Generation
W164 Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
ML 500 4MATIC 7G-Tronic
Engine Configuration
V
Power (hp)
388 hp
Power (kW)
285 kW
Torque
530 Nm (391 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.5 seconds (estimated)
0–100 km/h
5.8 seconds
Displacement
5,461 cc

Dimensions

Length
4,804 mm (189.1 in)
Width
1,926 mm (75.8 in)
Height
1,796 mm (70.7 in)
Wheelbase
2,915 mm (114.8 in)
Curb weight
2,085 kg (4,597 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
2,800 - 4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Oil, Volume
8.5 litres
Engine Configuration
Bore
98 mm (3.9 in)
Stroke
90.5 mm (3.6 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Service Intervals
Fuel Filter
250,000 km / 15 years
Spark Plug
100,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
250,000 km / 15 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
95 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
18 litres / 100 km
Highway
10.2 litres / 100 km
Combined
13.1 litres / 100 km
Emission NEDC
CO₂, Combined
304 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,141 mm (84.3 in)
Track, Front
1,648 mm (64.9 in)
Track, Rear
1,663 mm (65.5 in)
Overhang, Front
880 mm (34.6 in)
Overhang, Rear
1,009 mm (39.7 in)
Turning Circle
11.6 m
Ground Clearance
210 mm (8.3 in)

Interior

Head Room, Front
1,059 mm (41.7 in)
Head Room, Rear
992 mm (39.1 in)
Leg Room, Front
508 mm (20.0 in)
Leg Room, Rear
729 mm (28.7 in)
Knee Room, Front
475 mm (18.7 in)
Knee Room, Rear
490 mm (19.3 in)
Hip Room, Front
1,485 mm (58.5 in)
Hip Room, Rear
1,482 mm (58.3 in)
Shoulder Room, Front
1,540 mm (60.6 in)
Shoulder Room, Rear
1,528 mm (60.2 in)

Weight

Gross Weight
2,830 kg (6,239 lb)
Max Trailer Load, braked 12%
3,500 kg (7,716 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
745 kg (1,642 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Glass-integrated
Electric
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver

Lights

Rear Lights
Halogen
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
150 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Compass
Optional
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • MP3
  • WMA
Phone Preparation
Yes
Cellular Network
Optional
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › Cellular Network
3G
Optional
Displays
Center Display
Yes
Center Display Controls
Buttons
Displays › Center Display
Type
Monochrome
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
Optional
Ashtray
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Analogue
Dashboard
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Cover
Optional
Barrier Net/Grid
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
551 litres
Volume, Back Seat Collapsed
2,050 litres
Depth
1,063 mm (41.9 in)
Depth, Back Seat Collapsed
1,697 mm (66.8 in)
Width
1,027 mm (40.4 in)
Height
902 mm (35.5 in)
Sill Height
750 mm (29.5 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Yes
Lumbar Support
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Power Seat, Passenger
User Memory
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional

Accessories

Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Assist
Yes
Trailer Stability Assist (TSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual

Safety Testing

General
Test Year
2008
Adult Occupant
5/5 stars
Child Occupant
3/5 stars
Pedestrian
1/4 stars
Overall Score
33.97
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
13.97
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
2

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
Under
Rear Seat
Under

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Fog Light, Front
H11
Fog Light, Rear
  • BA15s (P21W)
  • W2.1×9.5d (W16W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
  • BA15s (P21W)
  • W2.1×9.5d (W16W)
Turn Indicators, Front
  • BAU15s (PY21W)
  • W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
SV8.5 (C5W)

Similar suvs

Suggested vehicles
