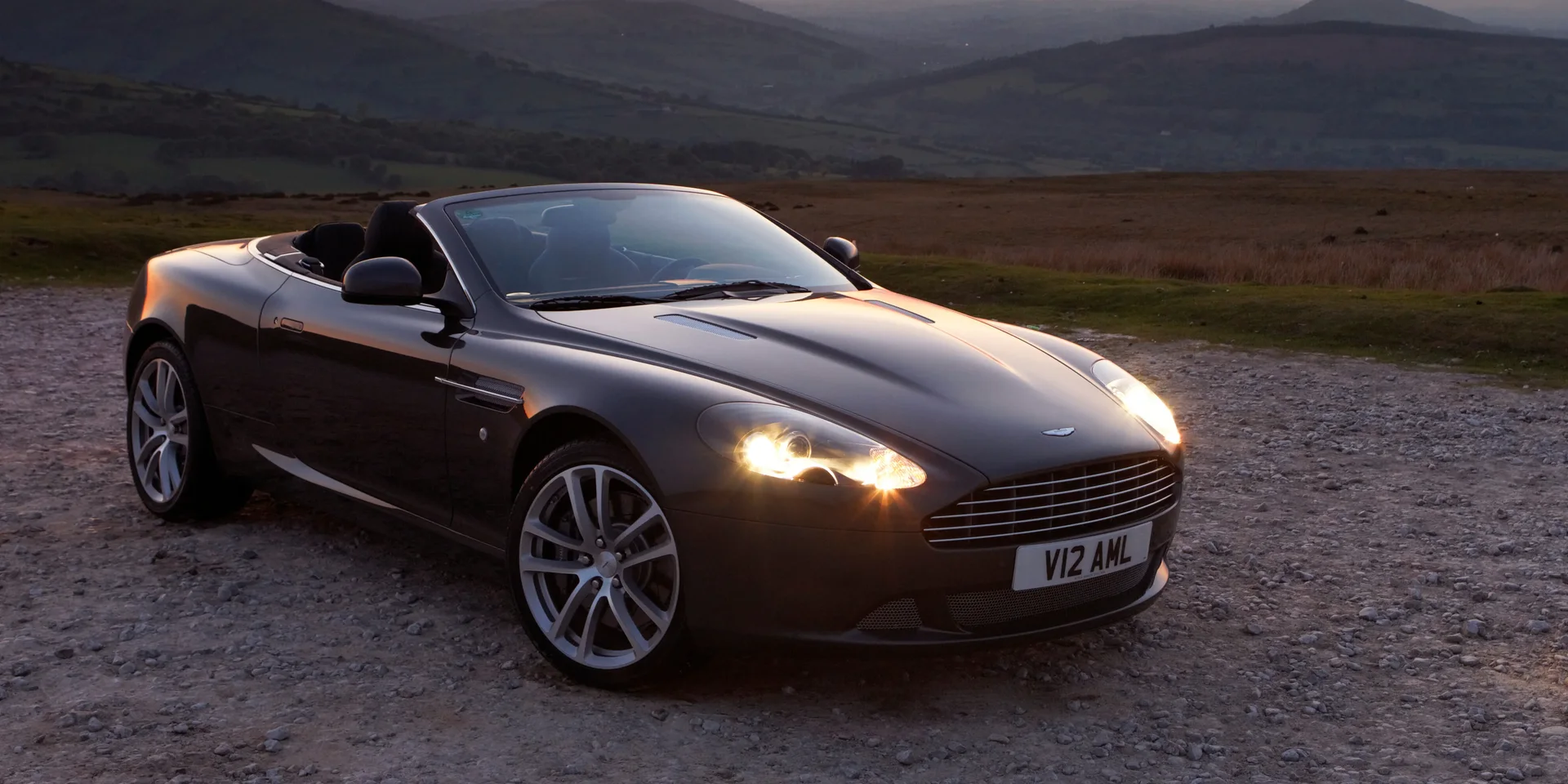

2012 Aston Martin DB9 Volante

United KingdomGasolineRWDConvertible

Specifications

Vehicle Details

Year
2012
Make
Aston Martin
Model
DB9
Variant
Volante
Body Style
Convertible
Generation
1st Generation 2nd Facelift (VH1)
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
5.9 V12
Engine Configuration
V
Power (hp)
477 hp
Power (kW)
350 kW
Torque
600 Nm (443 lb-ft)
Top speed
305 km/h (190 mph)
0–60 mph
4.3 seconds
0–100 km/h
4.5 seconds
Displacement
5,935 cc

Dimensions

Length
4,710 mm (185.4 in)
Width
1,875 mm (73.8 in)
Height
1,263 mm (49.7 in)
Wheelbase
2,740 mm (107.9 in)
Curb weight
1,800 kg (3,968 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
5,000 rpm
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
79.5 mm (3.1 in)
Compression Ratio
10.7 :1
Engine Configuration
V-Engine

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (4)
  • Rear (4)
Front Brakes
Diameter
355 mm (14.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Cooling
Ventilated

Fuel

General
Tank Volume
80 litres
Fuel Consumption NEDC
City
22.3 – 24.6 litres / 100 km
Highway
10.2 – 11.7 litres / 100 km
Combined
14.6 – 16.4 litres / 100 km
Emission NEDC
CO₂, Combined
345 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,017 mm (79.4 in)
Track, Front
1,568 mm (61.7 in)
Track, Rear
1,568 mm (61.7 in)
Overhang, Front
980 mm (38.6 in)
Overhang, Rear
990 mm (39.0 in)
Turning Circle
11.5 m
Ground Clearance
105 mm (4.1 in)

Interior

Head Room, Front
921 mm (36.3 in)
Head Room, Rear
800 mm (31.5 in)
Leg Room, Front
1,086 mm (42.8 in)
Leg Room, Rear
695 mm (27.4 in)
Hip Room, Front
1,392 mm (54.8 in)
Hip Room, Rear
1,200 mm (47.2 in)
Shoulder Room, Front
1,410 mm (55.5 in)
Shoulder Room, Rear
1,242 mm (48.9 in)

Weight

Gross Weight
2115 – 2155 kg (4,663 – 4,751 lb)
Cargo Capacity
315 kg (694 lb)
Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Platform
Aston Martin Platform
VH Platform (I)

Equipment

Side Mirrors
Folding
Electrical
Windows
Window Lifts, Front
Powered

Lights

Main Beam
Halogen
Low Beam
Halogen

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M14x2
Central Bore (CB), front
68.1
Fastening Type
Lug Nuts
Tightening Torque
110 Nm

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Yes
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Format
CD
Multiple CD Changer
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes

Steering Wheel

Multifunction Steering Wheel
Yes
Sport
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
138 litres

Seats

Colour & Material
Upholstery
Leather
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Type of Seat
Sport Seats

Features

Comfort Features

Cruise Control
Yes

Other Features

GPS
Navigation

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
  • Front
  • Rear

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Other

Car Classification

American Classification
Convertible
British Classification
Convertible
Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car
