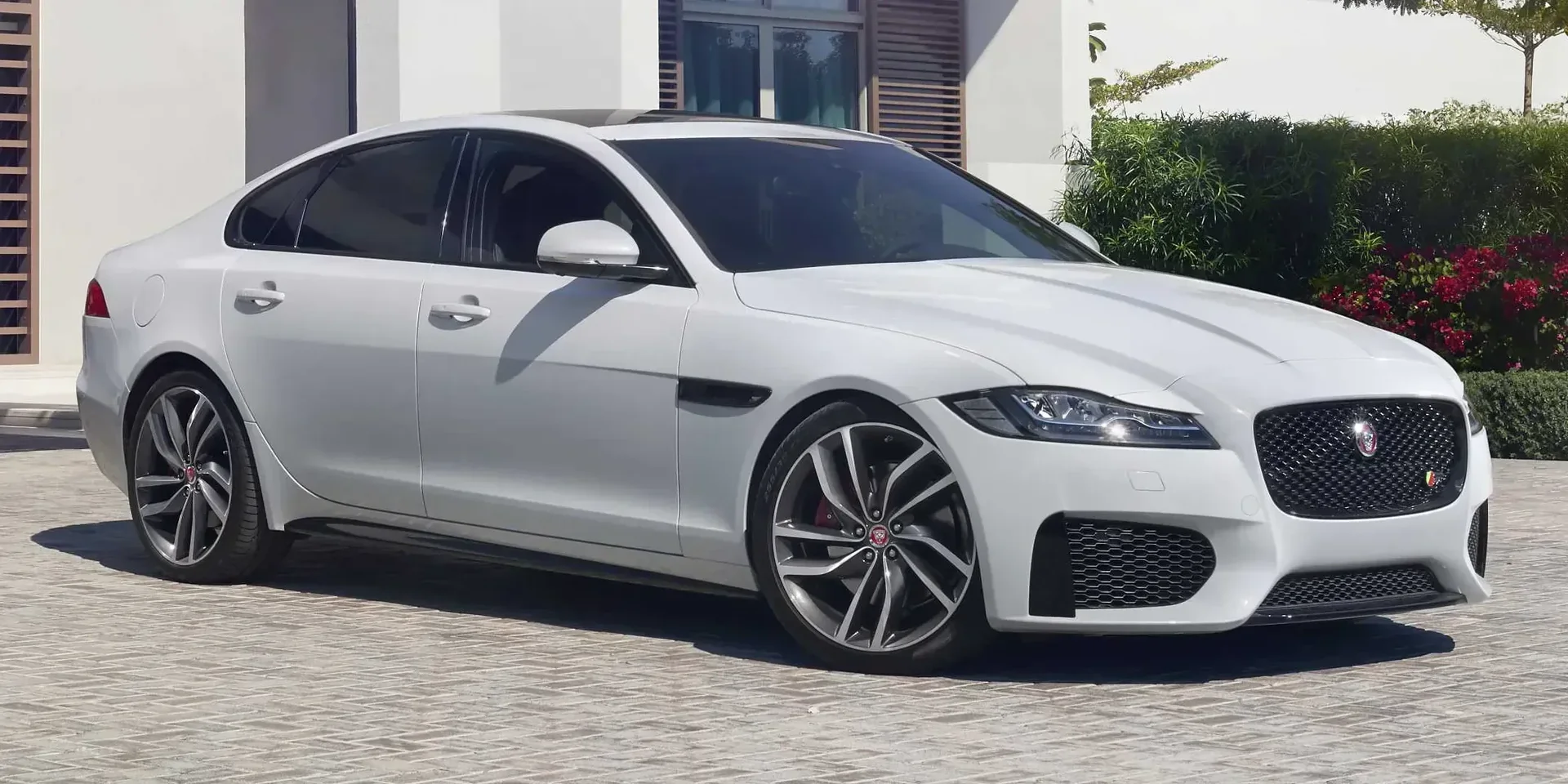

2012 Jaguar XF

United KingdomGasolineRWDSedan

Photos

Specifications

Vehicle Details

Year
2012
Make
Jaguar
Model
XF
Body Style
Sedan
Generation
X250 Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic, 6
  • 8-speed

Powertrain

Engine Name
R
Engine Configuration
V
Power (hp)
510 hp
Power (kW)
375 kW
Torque
625 Nm (461 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.7 seconds (estimated)
0–100 km/h
4.9 seconds
Displacement
5,000 cc

Dimensions

Length
4,961 mm (195.3 in)
Width
1,877 mm (73.9 in)
Height
1,460 mm (57.5 in)
Wheelbase
2,909 mm (114.5 in)
Curb weight
1,875 kg (4,134 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 - 6,500 rpm
Rev. at Max Torque
2,500 - 5,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Configuration
Bore
92.5 mm (3.6 in)
Stroke
93 mm (3.7 in)
Compression Ratio
9.5 :1
Engine Configuration
V-Engine
Supercharger
Yes
Synchronization
Timing Chain

Transmission & Drivetrain

Transmission
  • Automatic, 6
  • 8-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
355 mm (14.0 in)
Width
32 mm (1.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
326 mm (12.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Fuel

General
Tank Volume
70 litres
Fuel Consumption NEDC
City
16.9 litres / 100 km
Highway
8.6 litres / 100 km
Combined
11.6 litres / 100 km
Emission NEDC
CO₂, Combined
270 g/km

Dimensions & Weight

Exterior

Track, Front
1,559 mm (61.4 in)
Track, Rear
1,605 mm (63.2 in)
Turning Circle
11.5 m
Ground Clearance
105 mm (4.1 in)

Interior

Head Room, Front
991 - 1,000 mm (39.0 - 39.4 in)
Head Room, Rear
956 mm (37.6 in)
Leg Room, Front
1,056 mm (41.6 in)
Leg Room, Rear
930 mm (36.6 in)
Shoulder Room, Front
1,444 mm (56.9 in)
Shoulder Room, Rear
1,432 mm (56.4 in)

Weight

Gross Weight
2,410 kg (5,313 lb)
Cargo Capacity
535 kg (1,179 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Adaptive Headlights
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
  • Headlight Washers
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Tightening Torque
125 Nm
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
  • HD Radio
Media Format
  • CD
  • DVD
Media Inputs
USB
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
Yes
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Adjustments
Tilt
Powered
Telescope
Powered

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
540 litres
Volume, Back Seat Collapsed
963 litres

Seats

Colour & Material
Upholstery
Leather
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Yes
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2011
Adult Occupant
92 %
Child Occupant
84 %
Vulnerable Road Users
80 %
Safety Assist
83 %
Overall
4/5 stars
Test Year
2011
Overall Score
32.38
ANCAP Safety Rating
4
Adult Occupant
Frontal Offset
12.38
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Good
Pedestrian
Protection (Assessment)
Marginal
Safety Assist
Seat Belt Reminders
2
Teknikens Världs Moose Test
Test Year
2012
Speed
71 km/h (44 mph)

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Mid-Size Luxury Car
British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car
