2012 Toyota 86 GT86

Japan Gasoline RWD Coupe

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2012
Make: Toyota
Model: 86
Variant: GT86

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2012
Make: Toyota
Model: 86
Variant: GT86

Body Style

Coupe

Generation

ZN6

Seats

4

Doors

2

Fuel

Gasoline

Drivetrain

RWD

Transmission

Automatic
Manual, 6-speed

Powertrain

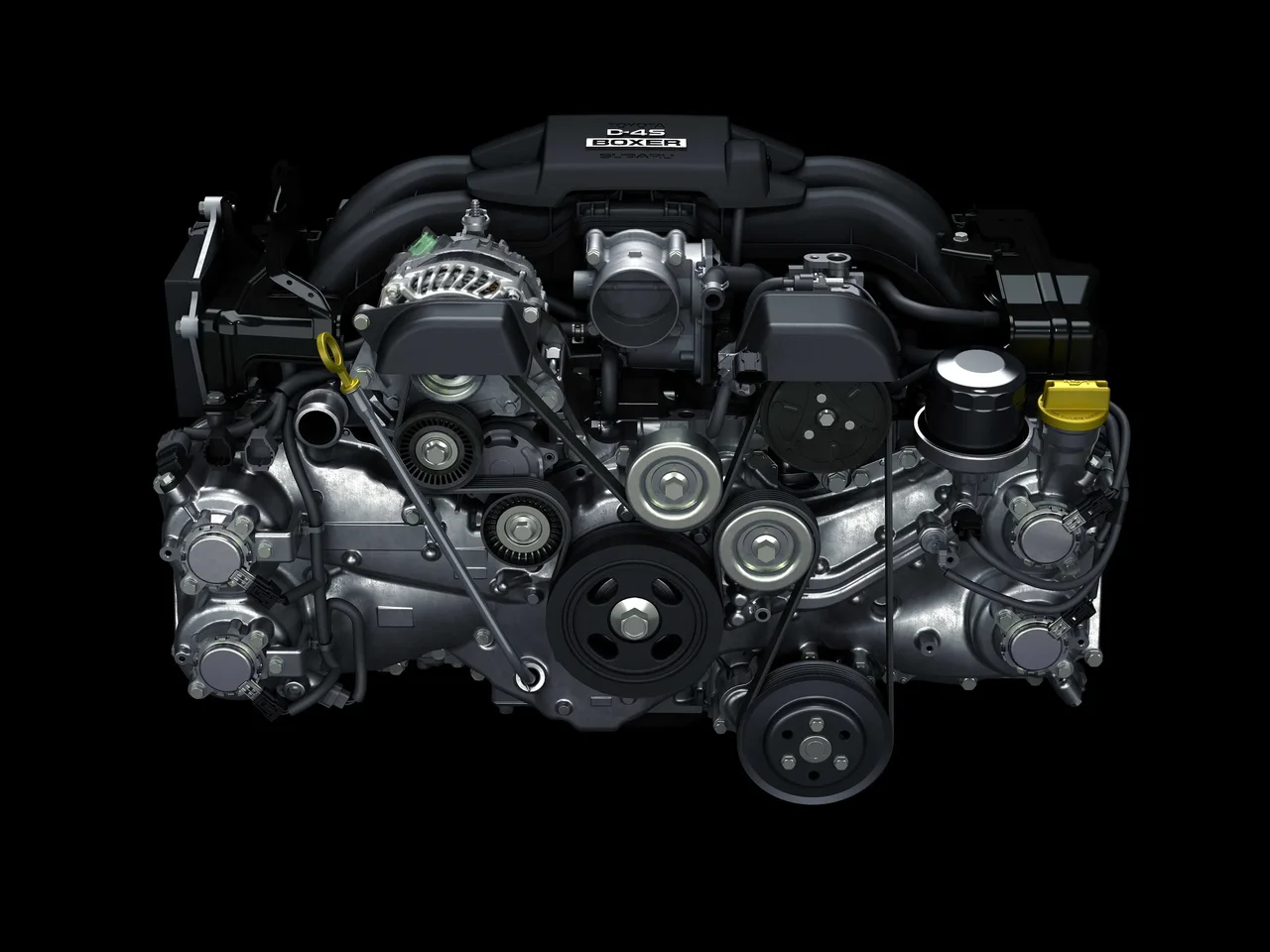

Engine Name: GT86 2.0 H4
Engine Configuration: Flat
Power (hp): 200 hp
Power (kW): 147 kW
Torque: 205 Nm (151 lb-ft)
Top speed: 210 km/h (130 mph)
0–60 mph: 7.2 seconds (estimated)
0–100 km/h: 7.6 seconds
Displacement

Dimensions

Length: 4,240 mm (166.9 in)
Width: 1,775 mm (69.9 in)
Height: 1,290 mm (50.8 in)
Wheelbase: 2,570 mm (101.2 in)
Curb weight: 1,230 kg (2,712 lb)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 7,000 rpm
Rev. at Max Torque: 6,400 - 6,600 rpm

Engine Fluids

Synthetic Oil (viscosity): 0W-20
5W-30
Semi-synthetic Oil (viscosity): 5W-30
Engine Oil, Volume

Similar coupes

Suggested vehicles

View all

2012 Subaru BRZ

1,998 cc

5.4 litres

Engine Configuration

Bore: 86 mm (3.4 in)
Stroke: 86 mm (3.4 in)
Compression Ratio: 12.5 :1
Engine Configuration: Flat
Synchronization: Timing Chain
Engine Placement: Front
Type of Combustion Engine: Piston
Fuel System: Electronic (Direct) Fuel Injection

Service Intervals

Oil Change & Engine Filter: 15,000 km / 1 years

Transmission & Drivetrain

Transmission: Automatic
Manual, 6-speed

Transmission

Paddles: Optional

Brakes

Parking Brake

Manual: Lever

Parking Brake › Manual

Material: Leather

Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes

Front Brakes

Diameter: 295 mm (11.6 in)

Suspensions

Spring, Front: Coil
Spring, Rear: Coil

Suspension, Front

Independent: MacPherson Strut

Suspension, Rear

Independent: Double Wishbone

Fuel

General

Tank Volume: 50 litres

General › Fuel Cap Position

Rear: Right

Emission

Emission Standard: Euro 5

Fuel Consumption NEDC

City: 9.6 – 10.4 litres / 100 km
Highway

Dimensions & Weight

Exterior

Width, with Mirrors: 1,775 mm (69.9 in)
Track, Front: 1,520 mm (59.8 in)
Track, Rear: 1,540 mm (60.6 in)
Overhang, Front: 845 mm (33.3 in)
Overhang, Rear: 825 mm (32.5 in)
Turning Circle

Exterior

Chassis & Body

Chassis

Chassis: Coupé
Pillars: A-B
Chassis Construction: Unibody

Doors

Front Doors: Conventional

Equipment

Side Mirrors

Interior

Equipment

Instrument Cluster

Trip Computer: Yes
Tachometer: Analogue
Fuel Gauge: Analogue

Instrument Cluster › Trip Computer

Display: Yes

Climate Control

Features

Comfort Features

Keyless Entry: Optional
Keyless Start: Optional
Cruise Control: Optional
Parking Heater: Optional
Voice Control: Media

Voice Control

Navigation

Safety & Security

Seat Belt

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats

Seat Belt Colour: Black

Feature

Driver

Passenger

Rear

Other

Warranty

Manufacturer: 100,000 km / 3 years
Body Protection: 3 years
Paintwork: 3 years
Rust Damage: 12 years
Roadside Assistance: Yes

Roadside Assistance

Roadside Assistance

Engine Block

Aluminium

Engine Cooling

Liquid Cooling

Cooling

Ventilated

Rear Brakes

Diameter: 290 mm (11.4 in)
Cooling: Ventilated

5.7 – 6.4 litres / 100 km

Combined

7.1 – 7.8 litres / 100 km

Fuel Consumption EPA

City: 22 – 25 MPG
Highway: 30 – 34 MPG
Combined: 25 – 28 MPG

Emission NEDC

CO₂, City: 131 – 240 g/km
CO₂, Highway: 148 – 223 g/km
CO₂, Combined: 164 – 181 - 164 – 192 g/km

11 m

Ground Clearance

125 - 130 mm (4.9 - 5.1 in)

Interior

Head Room, Front: 942 mm (37.1 in)
Head Room, Rear: 889 mm (35.0 in)
Leg Room, Front: 1,064 mm (41.9 in)
Leg Room, Rear: 760 mm (29.9 in)
Hip Room, Front: 1,349 mm (53.1 in)
Hip Room, Rear: 1,151 mm (45.3 in)
Shoulder Room, Front: 1,384 mm (54.5 in)

Weight

Gross Weight: 1,700 kg (3,748 lb)
Cargo Capacity: 470 kg (1,036 lb)
Max Roof Load: 75 kg (165 lb)

Mirror Type: Conventional
Heated: Optional

Windows

Window Lifts, Front: Powered
Heated Windows: Rear
Frameless Windows: First Row
Tinted Windows: Front
Second Row
Rear Window

Other Equipment

Normal Roof: Yes
Spoiler: Optional
Antenna: Yes
Number of Exhaust Pipes: 2
Mud Flaps: Optional

Other Equipment › Spoiler

Fixed: Optional

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Lights

Daytime Running Light: LED
Fog Lights: Yes
Optional
Special Features: Headlight Wipers

Fog Lights

Front: Halogen

Special Features

Headlight Washers: Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS): Direct
Number of Bolts: 5 pcs
Bolt Distance: 100
Nut/Bolt Dimensions: M12x1.25
Central Bore (CB), front: 56.1
Fastening Type: Lug Nuts
Tightening Torque: 120 Nm
Rim Material: Alloy

Air Condition

Yes

Outside Temperature Indicator

Yes

Climate Control › Air Condition

Refrigerant: R134A

Connectivity

Radio: AM
FM
Media Format: CD
MP3
WMA
Bluetooth: Phone
Audio

Connectivity › Media Inputs

AUX: Yes
USB: USB-A

Displays

Center Display: 6.1"
Center Display Controls: Touchscreen
Buttons
Rotary Dial

Displays › Center Display

Type: Colour

Speakers

Total Number of Speakers: 6 pcs

Rear-view Mirror

Anti-glare: Automatic

Interior Storage › Storage Compartments

Glove Compartment: Lockable (Manual)
Armrest Hatch: Front
Back
Door: Driver Side
Passenger Side

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2
Rear: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front
Guide Light: Yes

Other Equipment

Clock: Digital
12V Outlet: Front
Carpets: Yes
Ashtray: Optional

Other Equipment › Carpets

Material: Textile
Colour: Black

Other Equipment › Ashtray

Front: Optional

Steering Wheel

Power Steering: Yes
Adjustments: Tilt
Telescope
Sport: Yes
Number of Spokes: 3
Material: Leather
Colour: Black
Steering Mechanism: Rack and Pinion

Trunk

Rear Trunk: Yes
Hatch Opening Type: Under Rear Window

Rear Trunk

Volume: 243 litres

Seats

Colour & Material

Seat Colour: Black

Front Seats › Adjustments, Driver

Seat Depth: Manual
Seat Height: Optional
Backrest Angle: Manual

Front Seats › Adjustments, Passenger

Seat Depth: Manual
Backrest Angle

Optional

Other Features

GPS: Optional

Accessories

Fire Extinguisher: Optional
Warning Triangle: Optional
First Aid Kit: Optional

Seat Belt Reminder

DriverYes

PassengerYes

Rear-

Belt Pretensioner

DriverYes

PassengerYes

Rear-

Assist Systems

Electronic Stability Control (ESC): Yes
Sign Assist: Optional
Lane Departure Warning (LDW): Optional

Brake Systems

Anti-lock Braking System (ABS): Yes
Traction Control System (TCS): Yes
Electronic Brakeforce Distribution (EBD): Yes
Electronic Brake Assist (BA/EBA): Yes
Differential Lock: Limited Slip Differential (LSD)

Sensors

Parking Sensors: Optional

Parking Sensors

Front: Optional
Rear: Optional

Other Features

Immobiliser: Yes
Central Locking: Yes

Safety Testing

General

Not Tested by Euro NCAP: Yes

IIHS

Test Year: 2014
Small Overlap Front: Driver Side: Acceptable
Moderate Overlap Front: Good
Side: Good
Roof Strength: Good
Head Restraints & Seats

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

Rear-

Side Chest Airbag

Driver

Child Protection

Isofix: Passenger: -
Rear: Yes

3 years

Identification

VIN Location

Left Side Casing of Window: Yes
Pillar: B-Pillar, Left
Passenger Seat: in Front of

Car Classification

Australian Classification: Sports Car
European Segment: S-Segment
Car.info Classification: Sports Car

Spare Parts BETA

Bulb Types

Low Beam: D4S (xenon)
H11
Main Beam: HB3
Bi-Xenon: D4S
Fog Light, Front: H8
Fog Light, Rear: W3×16d (W21W)
Positioning-/Parking Lights, Front: W2.1×9.5d (W5W)
Reversing Light: W2.1×9.5d (W16W)
Turn Indicators, Front

ACRISS

Category: Standard (S)
Type: Coupe (E)

86

8.9

€67,000

MSRP · EUR

Body

Shoulder Room, Rear

1,313 mm (51.7 in)

Number of Spokes

10

Rim Type

Disc Wheel

Manual

Collapsible

Yes

Front Seats

Heated Seats: Optional
Type of Seat: Sport Seats

Front Seats › Heated Seats

Cushion: Optional

Front Seats › Heated Seats › Cushion

Backrest: Optional

Second Seat Row

Armrest: Yes
Collapsible: Manual
Number of Seats: 2
Type of Seat: Adult

Second Seat Row › Collapsible

Backrest Release: On Top of Backrest
Split Fold Ratio: 50/50

Good

Yes

PassengerYes

Rear-

Airbag cut-off Switch

Driver-

PassengerYes

Rear-

WX3×16d (WY21W)

Turn Indicators, Side

W2.1×9.5d (WY5W)

Turn Indicators, Rear

WX3×16d (WY21W)

Read Light

SV8.5 (C10W)

Trunk

W2.1×9.5d (W5W)

License Plate Light

W2.1×9.5d (W5W)
