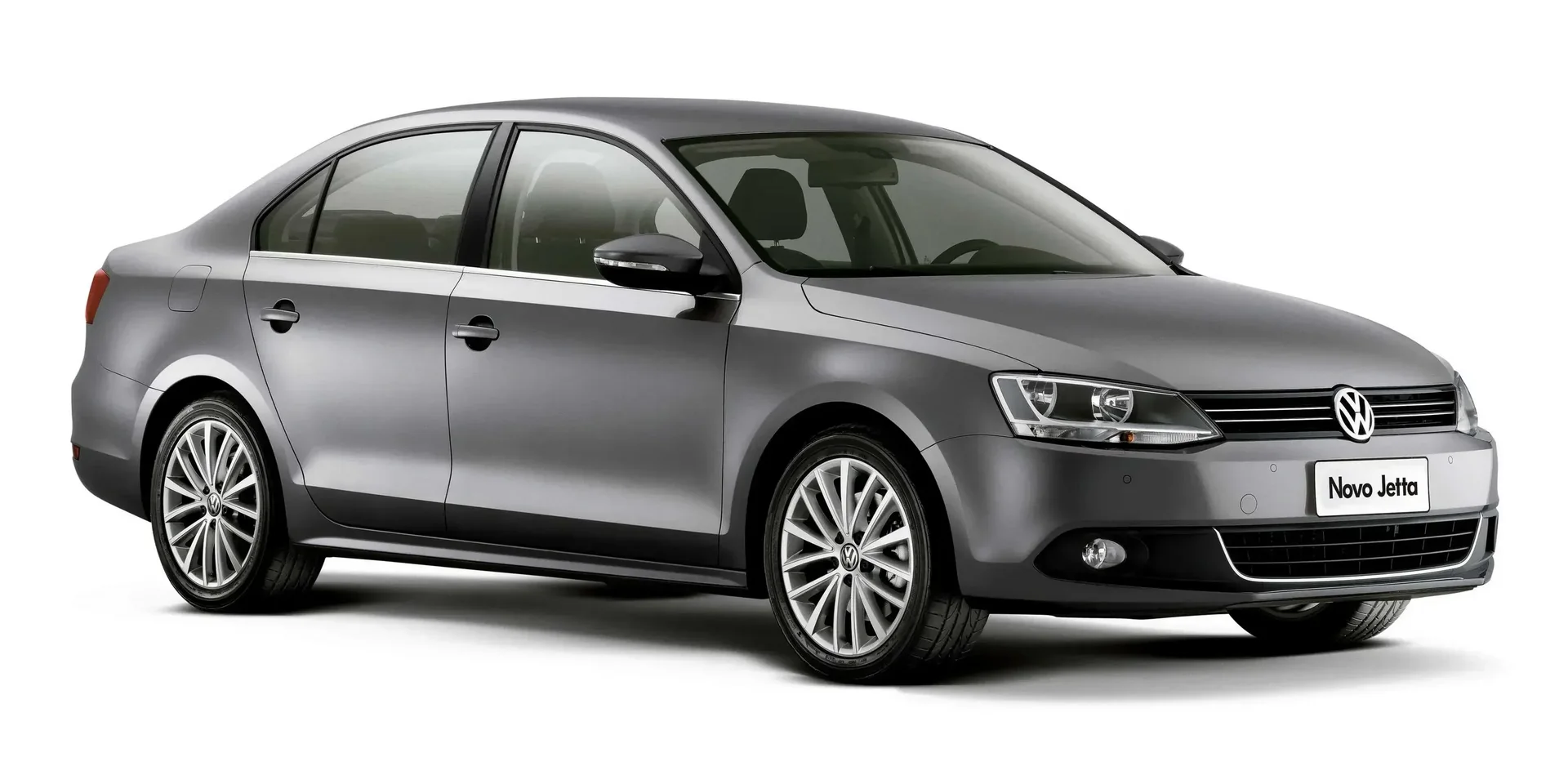

2012 Volkswagen Jetta

GermanyGasolineFWDSedan

Photos

Specifications

Vehicle Details

Year
2012
Make
Volkswagen
Model
Jetta
Body Style
Sedan
Generation
A6 (Type 16)
Seats
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 6-speed

Powertrain

Engine Name
2.0 TSI DSG Sequential
Engine Configuration
Inline
Power (hp)
211 hp
Power (kW)
155 kW
Torque
280 Nm (207 lb-ft)
Top speed
241 km/h (150 mph)
Displacement
1,984 cc

Dimensions

Curb weight
1,376 kg (3,034 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,300 rpm
Rev. at Max Torque
1,700 - 5,200 rpm
Engine Fluids
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.6 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 6-speed

Fuel

General
Tank Volume
55 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Weight

Gross Weight
1,950 kg (4,299 lb)
Max Trailer Load, braked 12%
680 kg (1,499 lb)
Max Trailer Load, unbraked
680 kg (1,499 lb)
Gross Train Weight
2,630 kg (5,798 lb)
Cargo Capacity
574 kg (1,265 lb)
Permitted Axle Load, front
1,040 kg (2,293 lb)
Permitted Axle Load, rear
950 kg (2,094 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Number of Doors
0
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
A Platform (PQ35)

Interior

Seats

Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40

Trunk

Rear Trunk
Yes
Hatch Opening Type
Under Rear Window
