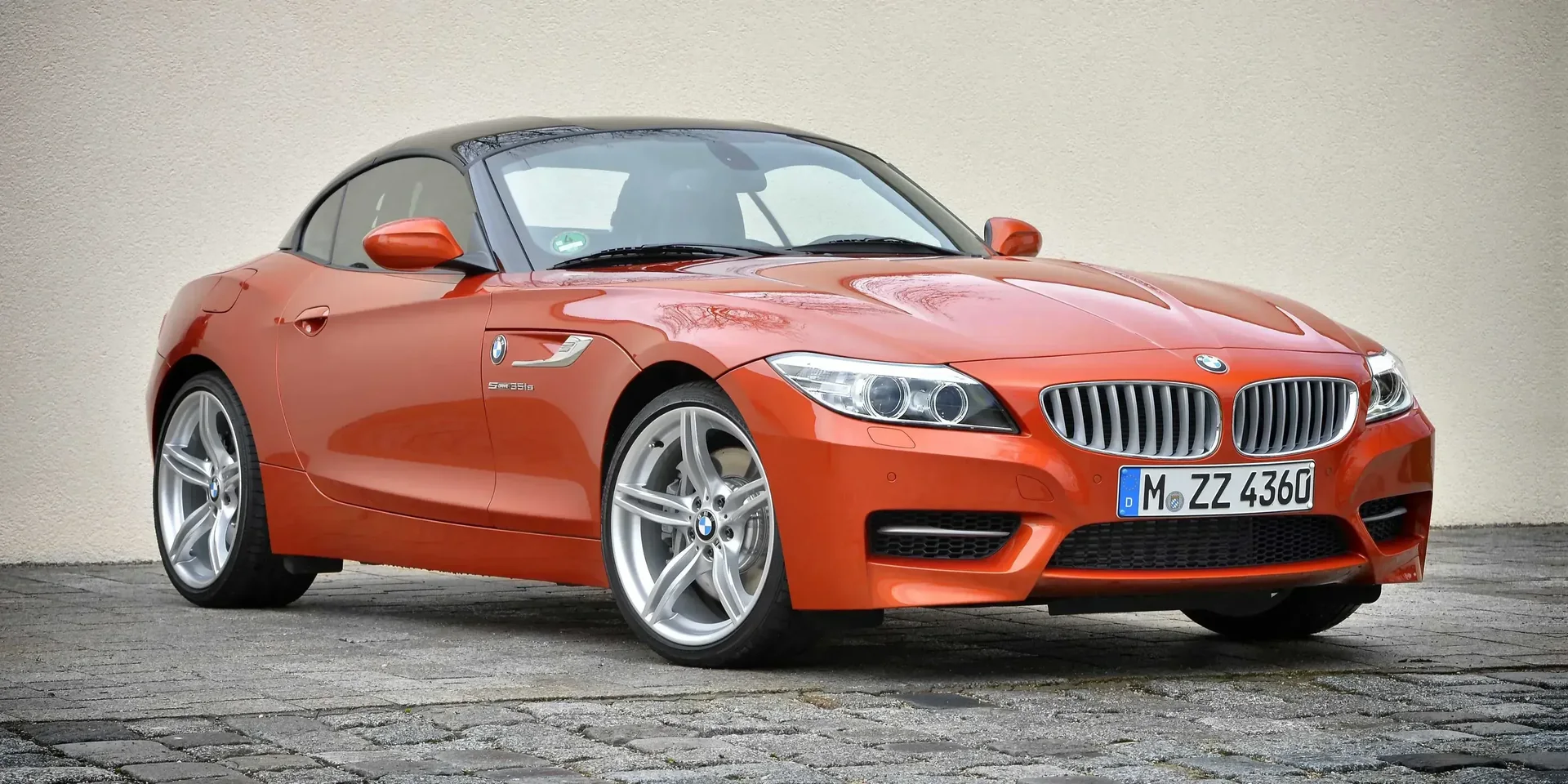

2013 BMW Z4 sDrive35i

GermanyGasolineRWDConvertible

Photos

Specifications

Vehicle Details

Year
2013
Make
BMW
Model
Z4
Variant
sDrive35i
Body Style
Convertible
Generation
E89 Facelift
Seats
2
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
sDrive35i
Engine Configuration
Inline
Power (hp)
306 hp
Power (kW)
225 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.9 seconds (estimated)
0–100 km/h
5.1 seconds
Displacement
2,979 cc

Dimensions

Length
4,239 mm (166.9 in)
Width
1,790 mm (70.5 in)
Height
1,291 mm (50.8 in)
Wheelbase
2,496 mm (98.3 in)
Curb weight
1,580 kg (3,483 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,800 rpm
Rev. at Max Torque
1,400 - 5,000 rpm
Engine Fluids
Engine Oil, Volume
6.5 litres
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
89.6 mm (3.5 in)
Compression Ratio
10.2 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed
Gear Ratio
1st Gear
4.06 – 4.78 :1
2nd Gear
2.4 – 3.06 :1
3rd Gear
1.58 – 2.15 :1
4th Gear
1.19 – 1.68 :1
5th Gear
1 – 1.39 :1
6th Gear
0.87 – 1.2 :1
7th Gear
1 :1
Final Drive
2.56 – 3.08 :1
Reverse
3.68 – 4.45 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
348 mm (13.7 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
324 mm (12.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Fuel

General
Tank Volume
55 litres
Emission
Emission Standard
Euro 6
Emission Control
Catalyst
Fuel Consumption NEDC
City
12.9 – 13.4 litres / 100 km
Highway
6.8 – 7.1 litres / 100 km
Combined
9.1 – 9.4 litres / 100 km
Emission NEDC
CO₂, Combined
211 – 219 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,951 mm (76.8 in)
Track, Front
1,511 mm (59.5 in)
Track, Rear
1,562 mm (61.5 in)
Overhang, Front
850 mm (33.5 in)
Overhang, Rear
893 mm (35.2 in)
Turning Circle
10.7 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room, Front
992 mm (39.1 in)
Hip Room, Front
1,439 mm (56.7 in)

Weight

Gross Weight
1835 – 1855 kg (4,045 – 4,090 lb)
Cargo Capacity
330 kg (728 lb)
Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé-Cabriolet

Equipment

Side Mirrors
Folding
Electrical
Windows
Window Lifts, Front
Powered

Lights

Main Beam
Xenon
Low Beam
Xenon
Low Beam
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
115 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
Yes
Media Format
CD
Media Inputs
USB
Bluetooth
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Sport
Yes
Material
Leather
Colour
Black

Trunk

Rear Trunk
Yes
Automatic Close
Yes
Rear Trunk
Volume
310 litres
Volume (Roof Folded)
180 litres

Seats

Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes

Other Features

GPS
Optional

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Central Locking
Yes
Active Bonnet
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
69 %
Child Occupant
61 %
Vulnerable Road Users
91 %
Safety Assist
46 %
Overall
3/5 stars
Adult Occupant
Total Points
26 /38
Lateral Impact
8 /16
Rear Impact
2.4 /4
Child Occupant
Total Points
13 /49
Safety Features
1 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
33.1 /49
Pedestrian
  • 21.3
  • 6
  • 5.8
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
0 /4

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Seat Belt

Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Child Protection

Isofix
  • Passenger: -
  • Rear: Optional

Other

Identification

VIN Location
Engine Compartment, Inner Wing
Right
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

Spare Parts BETA

Bulb Types
Rear/Brake Light
  • BAY9s (H21W)
  • W2.1×9.5d (W16W)
Turn Indicators, Front
PGU20 (PGU20/4 - PY24W)

ACRISS

Category
Premium Elite (U)
Type
Convertible (T)
